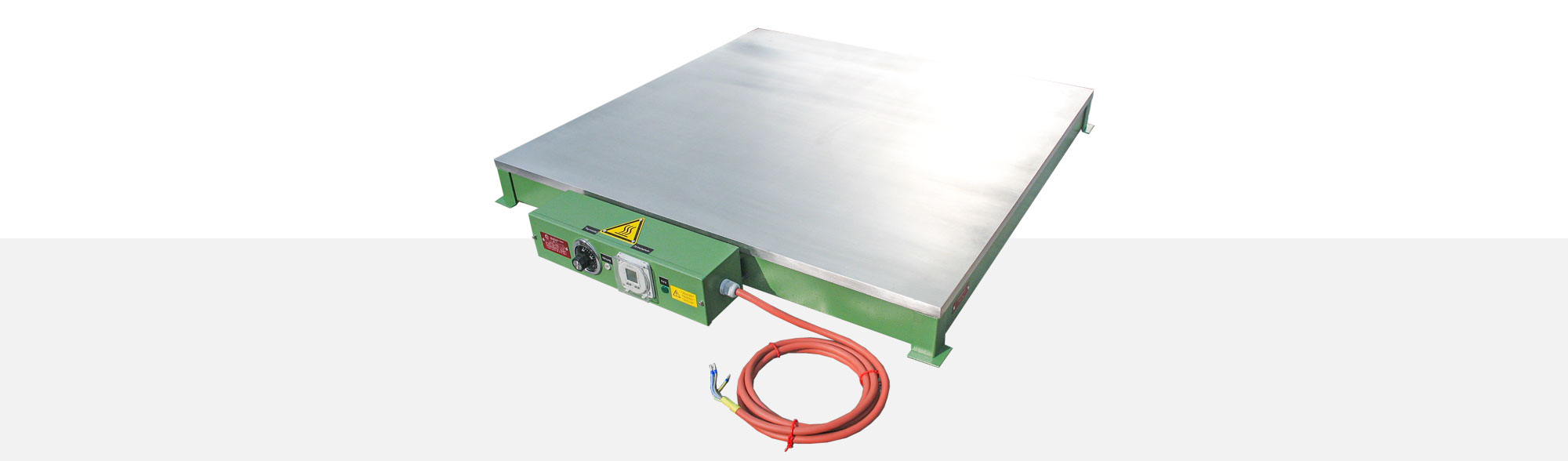

HEATING PLATES

Heating Plates are suitable for wax heating as well as heating of coil bodies and metallic moulds. Designs with covers avoid heat loos and improve the temperature distribution of the Heating Plate.

Applications

Heating Plates are suitable for wax heating as well as heating of coil bodies and metallic moulds. Designs with covers avoid heat loos and improve the temperature distribution of the Heating Plate.

Options

  • voltage and wattage variations
  • operating temperature variations
  • painting, as per customer request
  • other dimensions
  • electronic digital clock timer
  • stainless steel, aluminium, brass, copper or steel polished working plates
  • working plates as carrier for provided pre-heat plates of various designs
  • covers for working plate
  • with base as heating table
  • working plate with floated frame
  • temperature control with capillary thermostat and actual temperature display
  • up to450°C
    operating temperature
  • heat capacity
    to customer specification
  • sizes
    to customer specification
Example 1 - up to 85 °C - 1,500 x 500 mm - part# 1359239
Heating Plates are suitable for wax heating as well as heating of coil bodies and metallic moulds. Designs with covers avoid heat loos and improve the temperature distribution of the Heating Plate.



  • 1,500 x 500 x 100 mm
    (width x depth x height)
  • operating temperature: up to 85 °C
  • heat capacity: 6.0 kW
  • connection voltage: 230/400 V





This Heating Plate is used to pre-heat moulds, tools, etc.

CONSTRUCTION

  • temperature control with capillary thermostat 30 – 85 °C
  • 8 mm thick steel working plate
  • load circuit via solid state relay
  • painting: RAL 6011 reseda-green structure

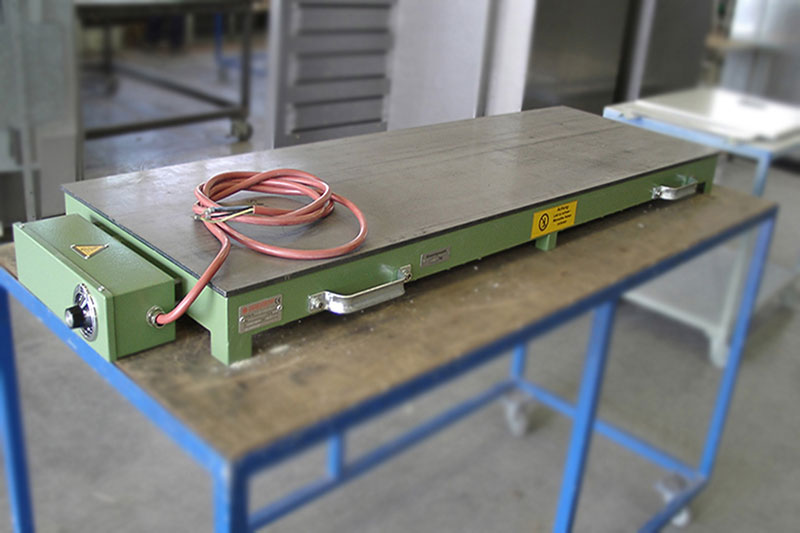

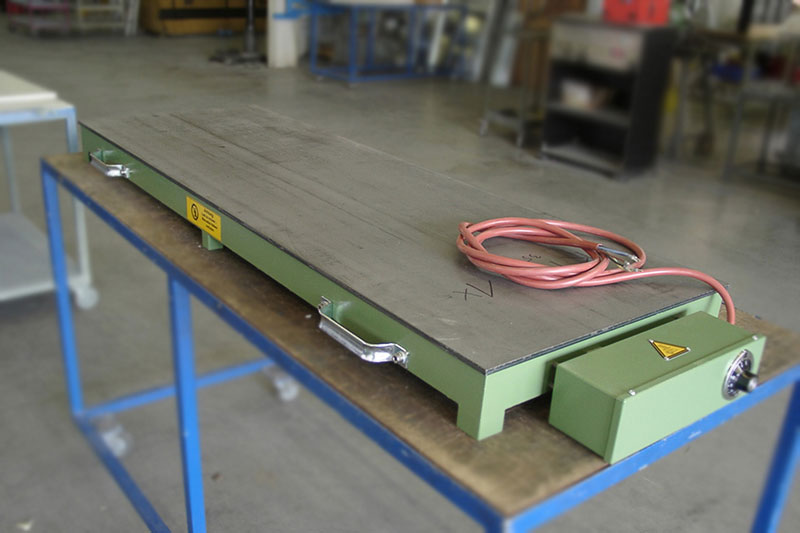

Galery

  • Heating Plates are suitable for wax heating as well as heating of coil bodies and metallic moulds. Designs with covers avoid heat loos and improve the temperature distribution of the Heating Plate.
    Heating Plate
  • Heating Plates are suitable for wax heating as well as heating of coil bodies and metallic moulds. Designs with covers avoid heat loos and improve the temperature distribution of the Heating Plate.
    Heating Plate
Example 2 - up to 120 °C - 800 x 500 x 100 mm - part# 2021396
Heating Plates are suitable for wax heating as well as heating of coil bodies and metallic moulds. Designs with covers avoid heat loos and improve the temperature distribution of the Heating Plate.
Heating plate with open cover



  • 800 x 500 x 100 mm
    (width x depth x height)
  • operating temperature: up to 120 °C
  • heat capacity: 2.4 kW
  • connection voltage: 3 x 415 V





This Heating Plate is used to pre-heat moulds, tools, etc.

CONSTRUCTION

  • temperature control with hidden capillary thermostat solid adjusted to 120 °C
  • 20 mm thick aluminium working plate
  • slewing insulated stainless steel cover with 150 mm clear internal height
  • painting: RAL 6011 reseda-green structure

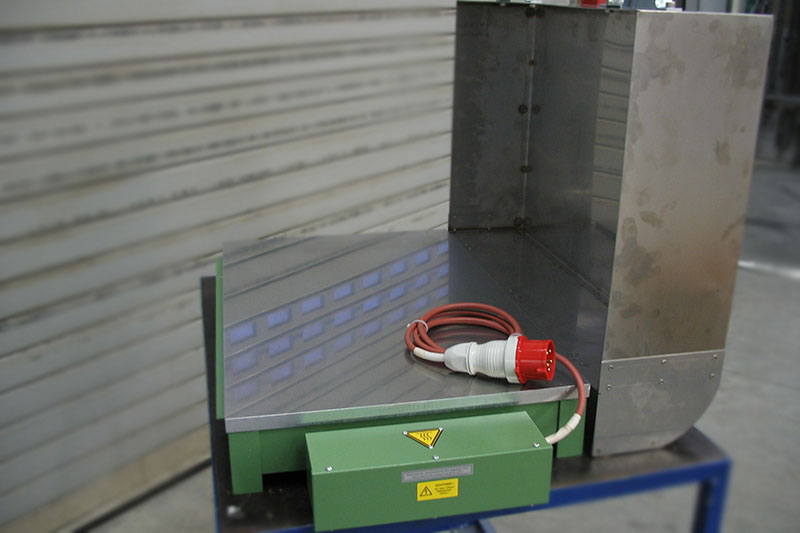

Gallery

  • Heating Plates are suitable for wax heating as well as heating of coil bodies and metallic moulds. Designs with covers avoid heat loos and improve the temperature distribution of the Heating Plate.
    Heating Plate
  • Heating Plates are suitable for wax heating as well as heating of coil bodies and metallic moulds. Designs with covers avoid heat loos and improve the temperature distribution of the Heating Plate.

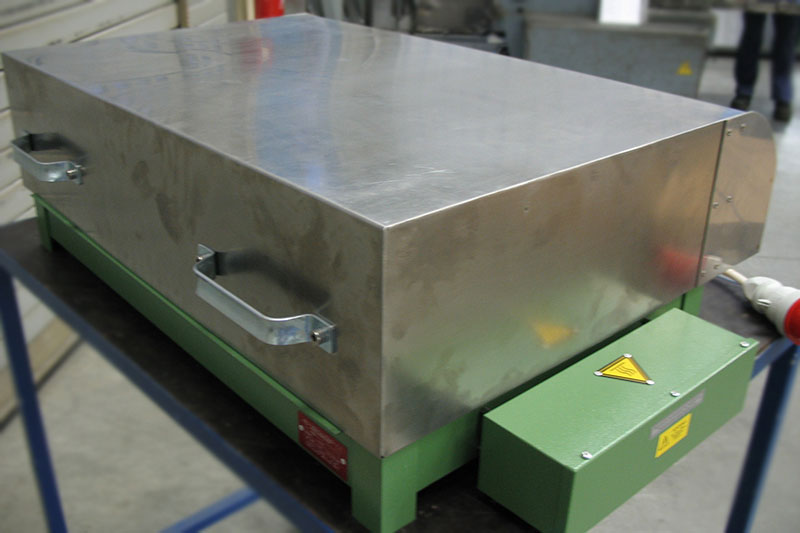

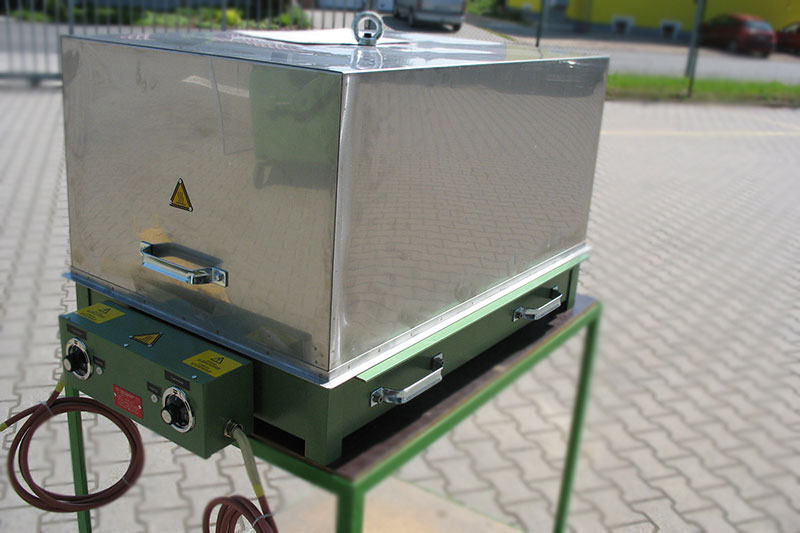

    Heating plate with cover
  • Heating Plates are suitable for wax heating as well as heating of coil bodies and metallic moulds. Designs with covers avoid heat loos and improve the temperature distribution of the Heating Plate.
    Heating plate with cover

Any
questions?

Find your contact person in one of our locations!

Contact
