Tubular Cartridge Heaters

RPS tensible

APPLICATIONS

Tubular Cartridge Heaters are the ideal heating for injection moulding tools. They are suitable for the heating of spigot automats and for mandrel heaters, e.g. with tube extrusion. Further to this Tubular Cartridge Heaters find their application within hot runner systems, at machinery nozzles and within die-cast production.

Options

  • various dimensions (Ø/length)
  • voltage and wattage variations
  • various lengths and types of leads
  • other capacity tolerances
  • with removal and assembling aid
  • with connection pins and plane front side
  • with capacity distribution
  • leads with various plugs
  • with integral Thermocouple or Mineral Insulated Thermocouple
  • up to 600°C
    operating temperature
  • 5-10 mm
    wall thickness
  • up to 15 W/cm²
    surface load

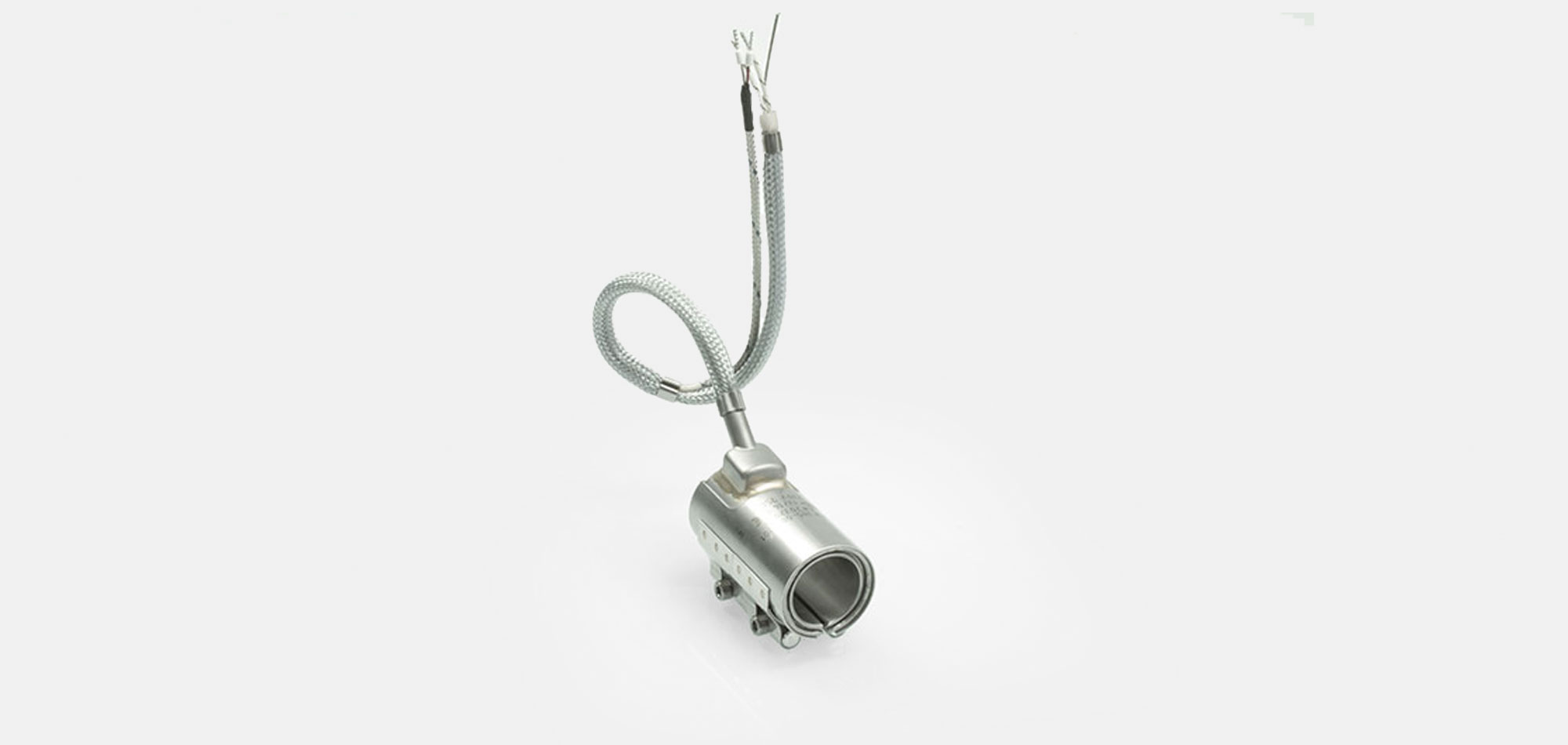

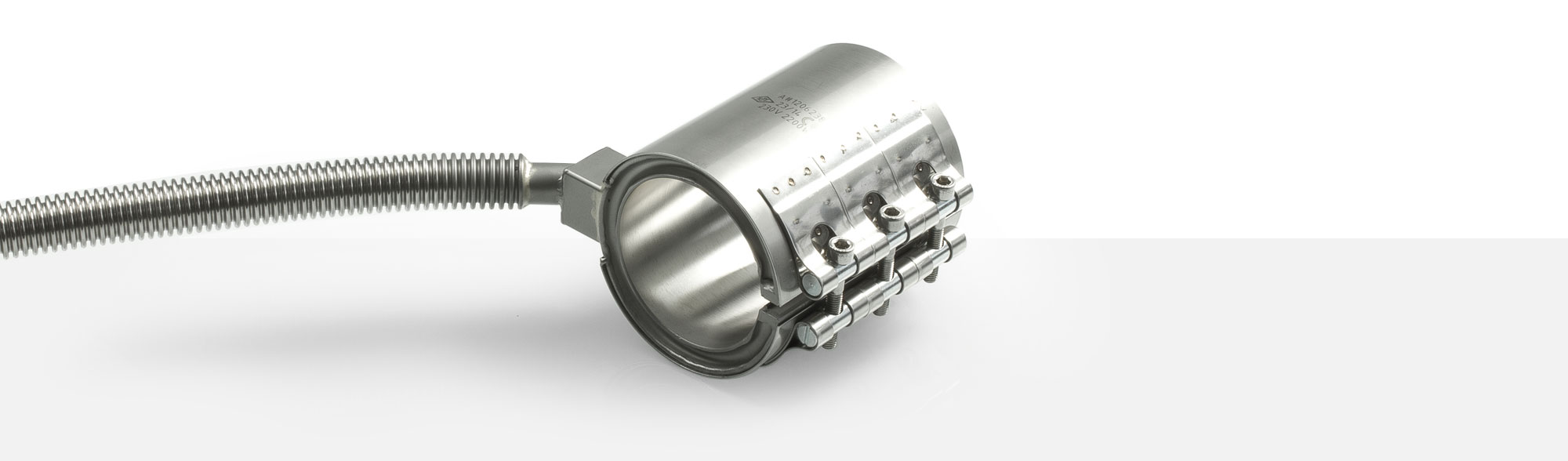

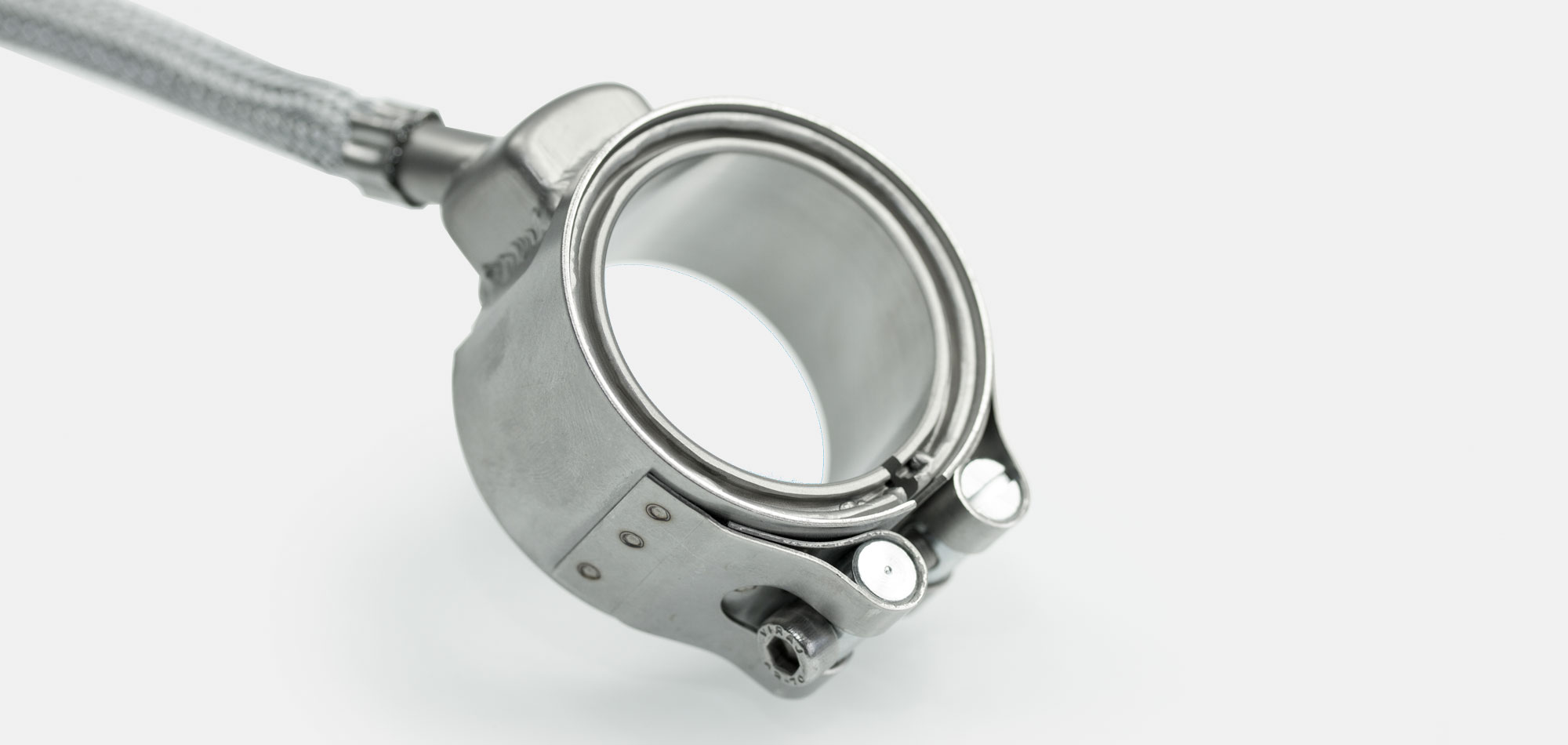

RPS tensible Tubular Cartridge Heater

Material

  • stainless steel 1.4541 or 1.4301
  • with clamping band 1mm

Connection options

  • nozzle cap
  • fig. 8: 45° axial nozzle cap
    fig. 8: 45° axial nozzle cap
  • fig. 9: 5° axial nozzle cap
    fig. 9: 5° axial nozzle cap
  • fig. 10: radial nozzle cap
    fig. 10: radial nozzle cap
  • fig. 11: tangential nozzle cap
    fig. 11: tangential nozzle cap

Inner diameter

  • H12 (depends on the length)

Cable exit options

  • fibreglass insulated nickle leads up to 400 °C (GLS 400) or 700 °C (GLS 700)
    fibreglass insulated nickle leads up to 400 °C (GLS 400) or 700 °C (GLS 700)
  • fibreglass insulated nickle leads up to 400 °C (GLS 400) or 700 °C (GLS 700) with earth protection (SL)
    fibreglass insulated nickle leads up to 400 °C (GLS 400) or 700 °C (GLS 700) with earth protection (SL)
  • 3-core cable and metal braided hose steel or stainless steel + earth protection up to 400 °C / 700 °C
    3-core cable and metal braided hose steel or stainless steel + earth protection up to 400 °C / 700 °C
  • 3-core cable and spiral hose steel or stainless steel + earth protection up to 400 °C / 700 °C
    3-core cable and spiral hose steel or stainless steel + earth protection up to 400 °C / 700 °C
  • 3-core cable and wave hose steel or stainless steel + earth protection up to 400 °C / 700 °C
    3-core cable and wave hose steel or stainless steel + earth protection up to 400 °C / 700 °C
  • fibreglass insulated nickle leads additional covered with un-coated fibreglas hose (400 °C)
    fibreglass insulated nickle leads additional covered with un-coated fibreglas hose (400 °C)
  • teflon insulated leads (PTFE), 2- or 3-core, temperature-stable up to max. 260 °C
    teflon insulated leads (PTFE), 2- or 3-core, temperature-stable up to max. 260 °C
