BAND HEATERS

Z/ZAW/ZWM

Band Heater , temperatures up to 280°C, injection molding, extrusion, holes, cutouts, thermocouple connector, insulation, air protection jacket, mica insulated

APPLICATIONS

Z/ZAW/ZWM mica insulated Band Heaters are proven on all common machinery of the injection moulding and extrusion industry.

Options

various dimensions and connection versions
other voltage, single or multi-phase, star or delta connection
with holes and/or thermocouple bridges
additional cut outs
other clamp gap
multi part construction or segment heaters
with warning sign – “Attention – hot surface”
with pressure spring lock

up to 280°C
operating temperature
ZAW
with insulation
ZWM
with air protection jacket

Z/ZAW/ZWM Band Heater

Band Heater , temperatures up to 280°C, injection molding, extrusion, holes, cutouts, thermocouple connector, insulation, air protection jacket, mica insulated

Connection

different connection options possible
(cable connection axial, radial or tangential)

Wall thickness

Z = about 3,5 mm
ZAW = about 8 mm
ZWM = about 20 mm

Holes and cut outs

with holes and/or thermocouple bridges
additional cut outs

type	minimum dimensions		type	maximum dimensions
	diameter	length		diameter¹	length
Z	40mm	20mm	Z	400mm	500mm
ZAW	80mm	40mm	ZAW	400mm	500mm
ZWM	55mm	50mm	ZWM	400mm	500mm
¹ larger dimensions on request

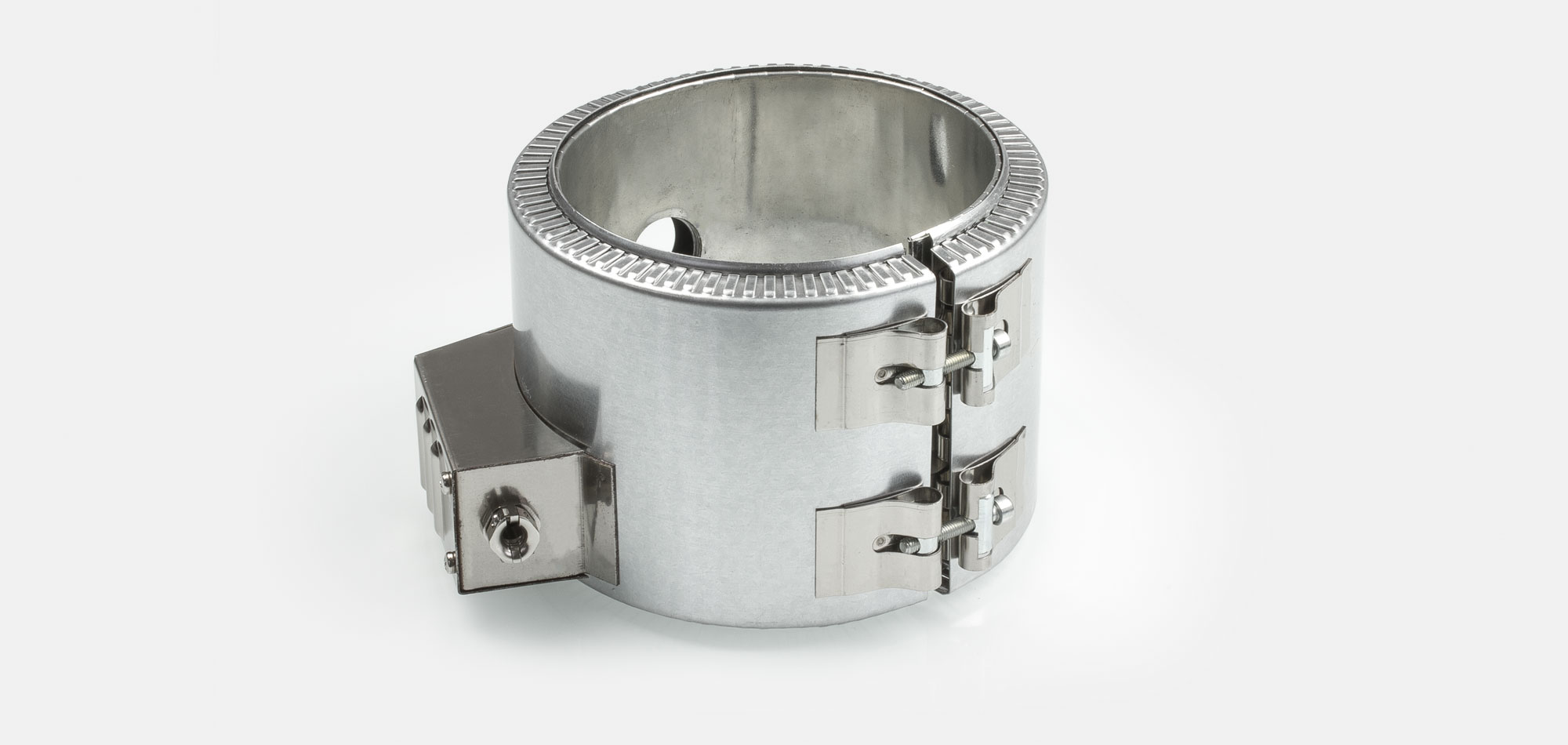

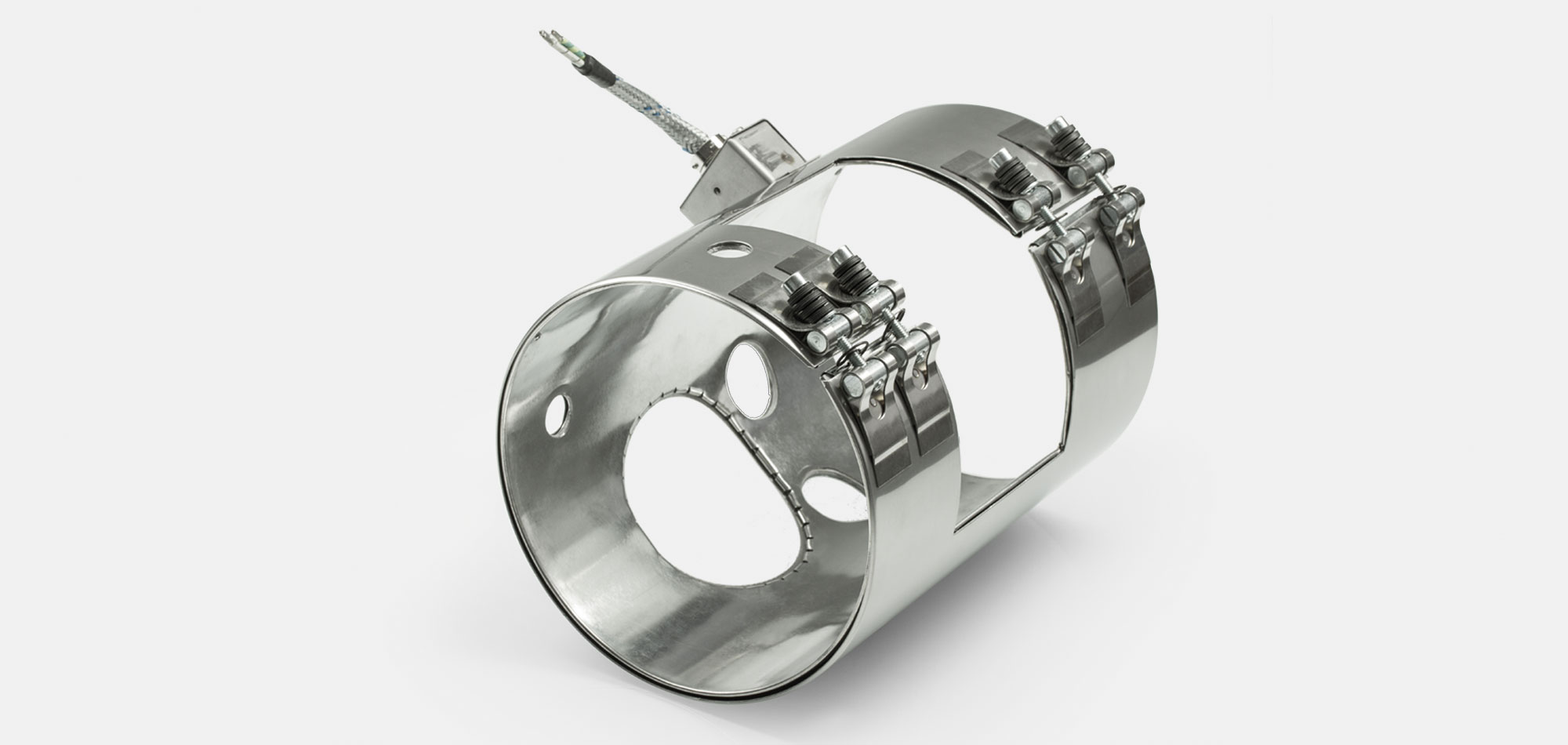

Band Heater , temperatures up to 280°C, injection molding, extrusion, holes, cutouts, thermocouple connector, insulation, air protection jacket, mica insulated — Mica insulated Band Heater with various cutouts and holes

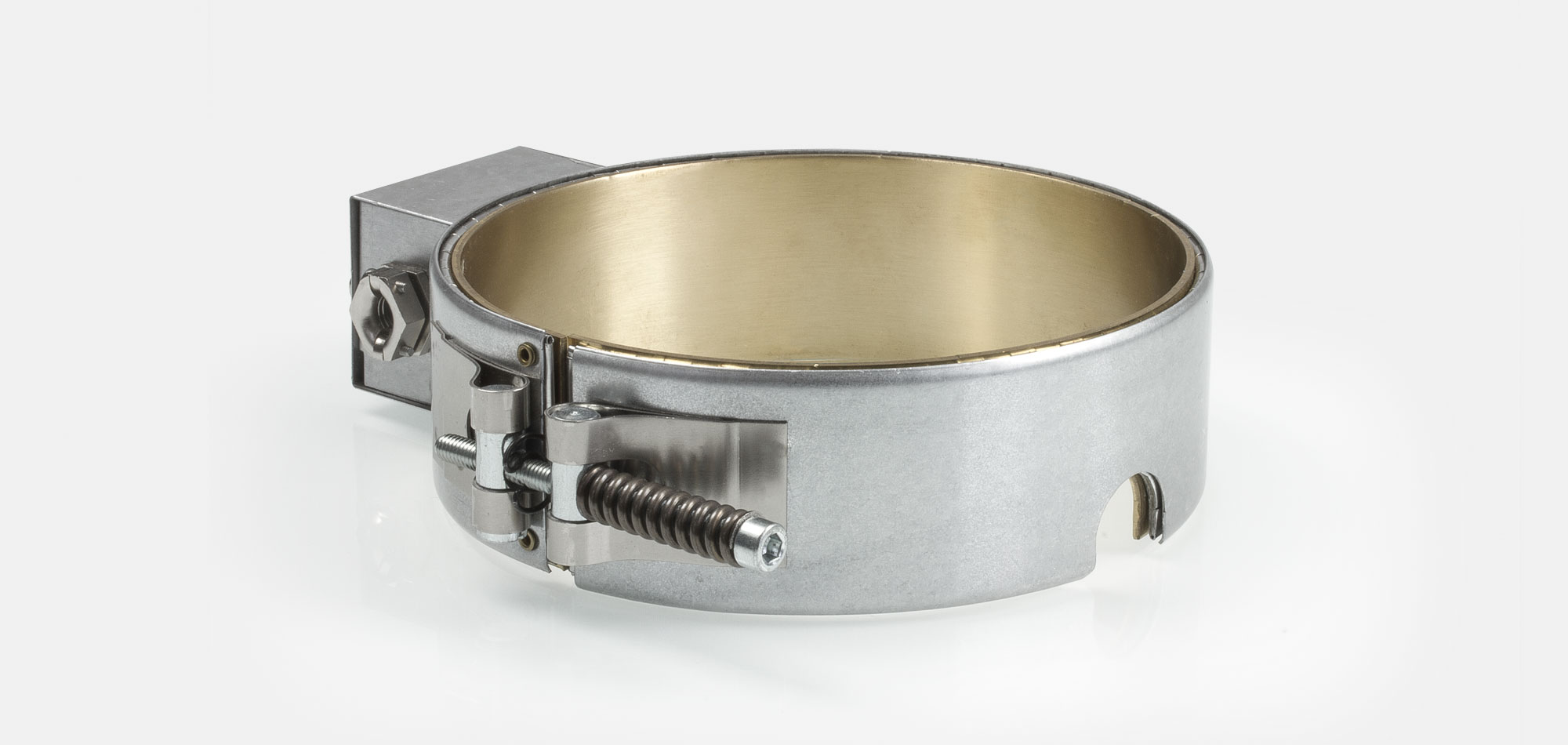

Band Heater , temperatures up to 280°C, injection molding, extrusion, holes, cutouts, thermocouple connector, insulation, air protection jacket, mica insulated — Band Heater with brass plate and disc spring lock

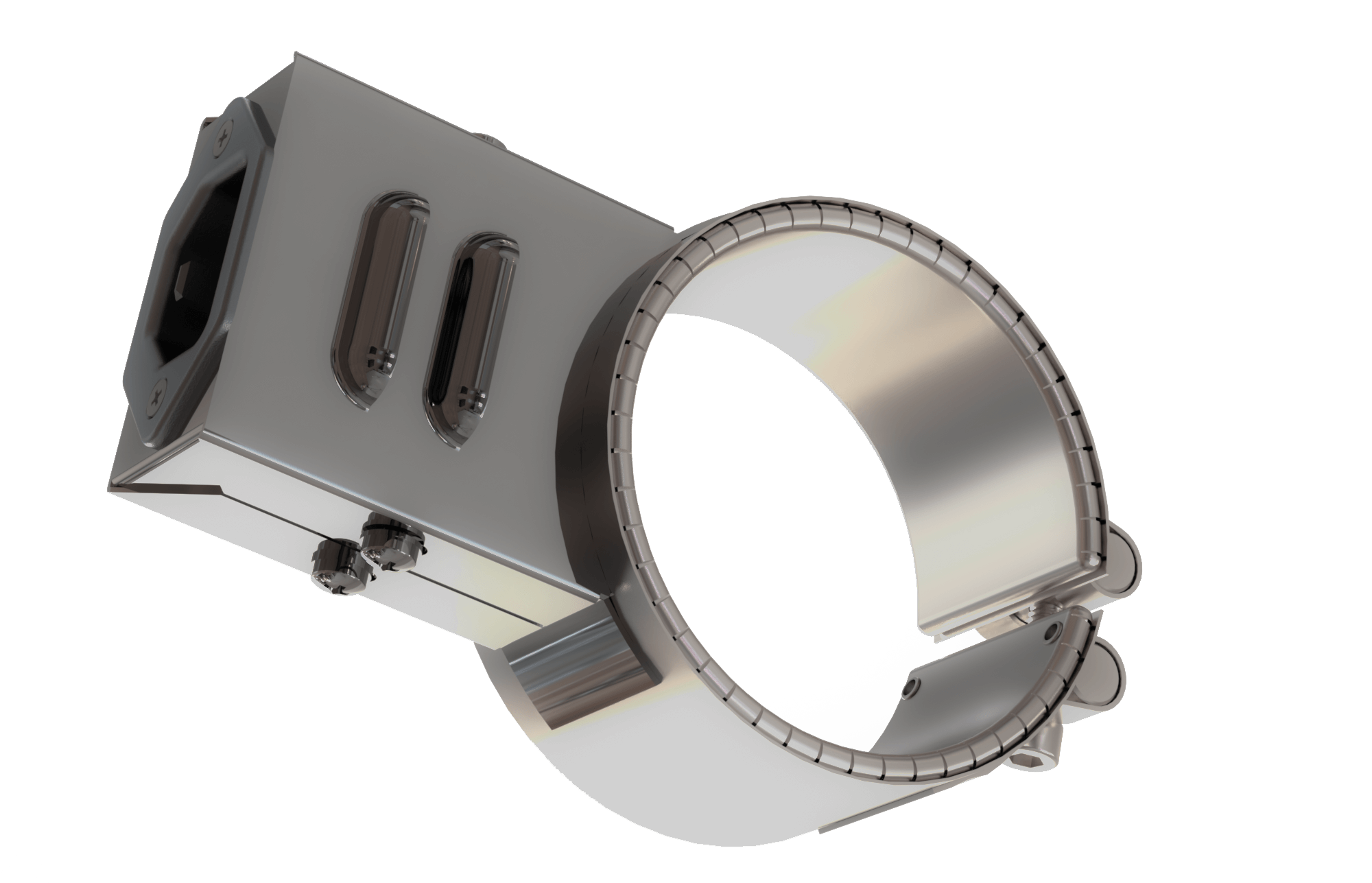

Band Heater , temperatures up to 280°C, injection molding, extrusion, holes, cutouts, thermocouple connector, insulation, air protection jacket, mica insulated — Band Heater with air protection jacket

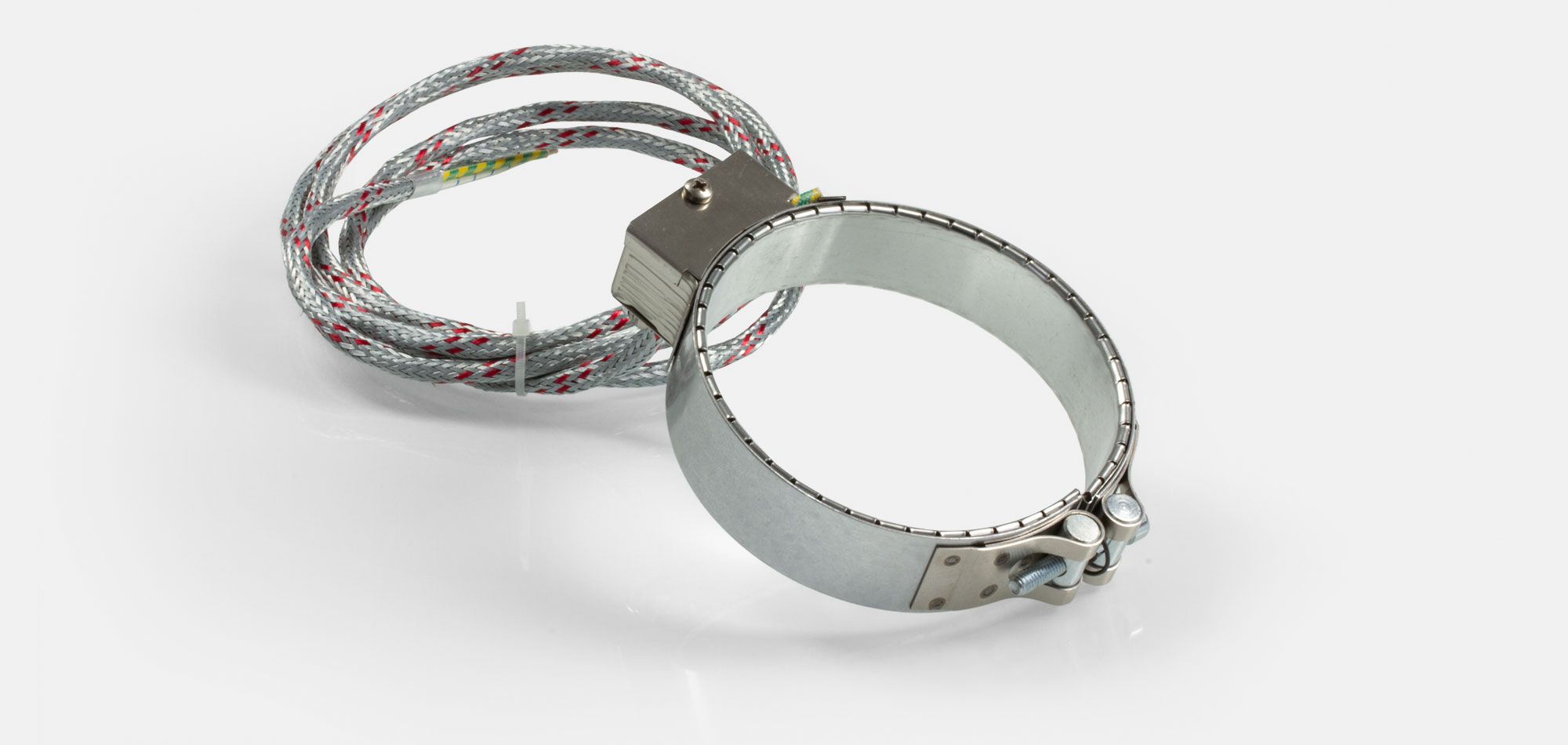

Band Heater , temperatures up to 280°C, injection molding, extrusion, holes, cutouts, thermocouple connector, insulation, air protection jacket, mica insulated — Mica Band Heater for operating temperatures up to 280°C
