Terminal boxes

Type AK

APPLICATIONS

Terminal boxes are suitable for the electrical connection of Cartridge Heaters.

  • Total width (B): 30, 40, 50, 60 oder 100 mm
  • Hole spacing (C): 16, 24, 35 oder 45 mm
  • Length: ab 80 mm, in 20 mm Schritten steigend

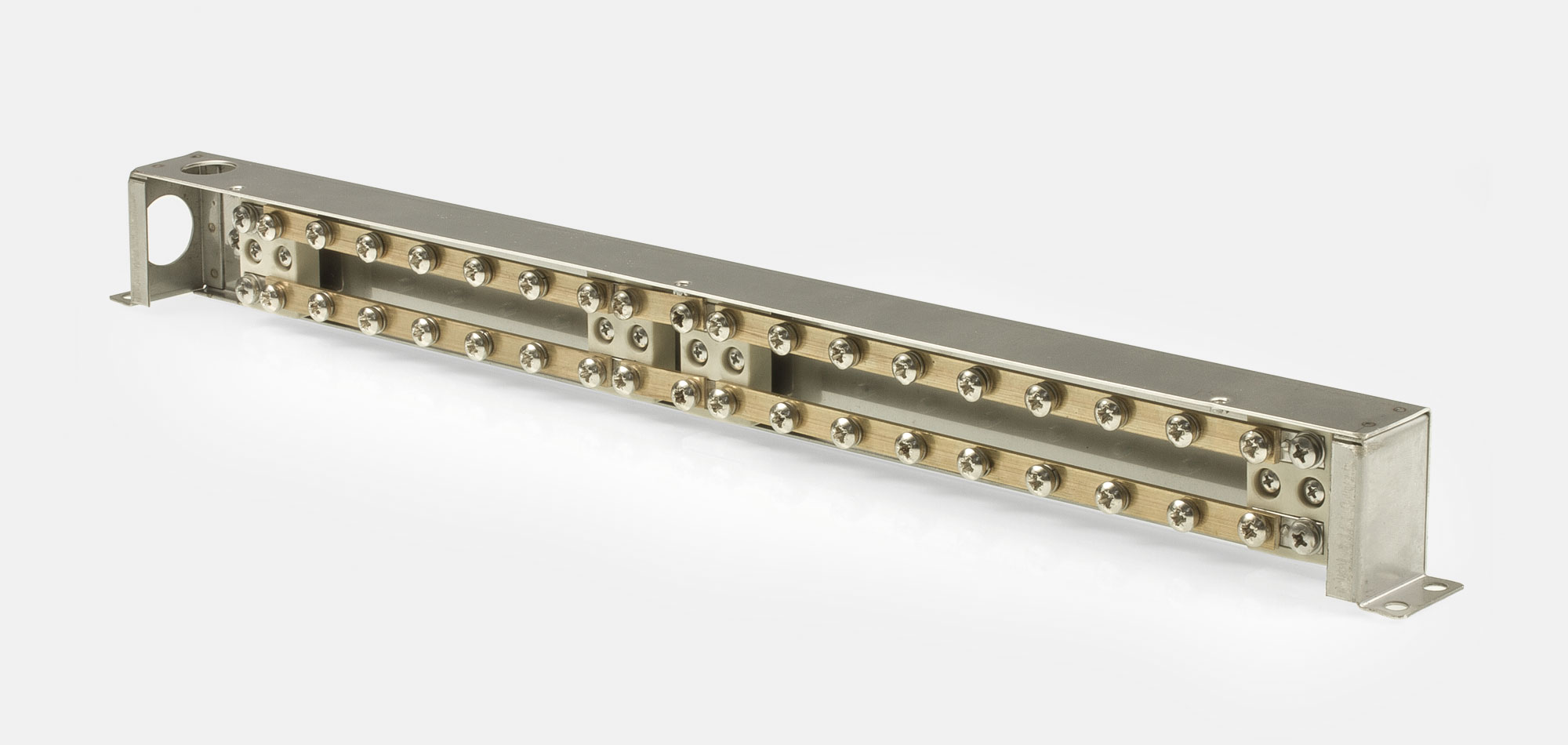

Options

  • various dimension as per request
  • with holes and/or cut outs
  • grouped terminal strips
  • stainless steel terminal strips
  • with screwed contacts
  • with contact or cable fitting
  • leads with various plugs

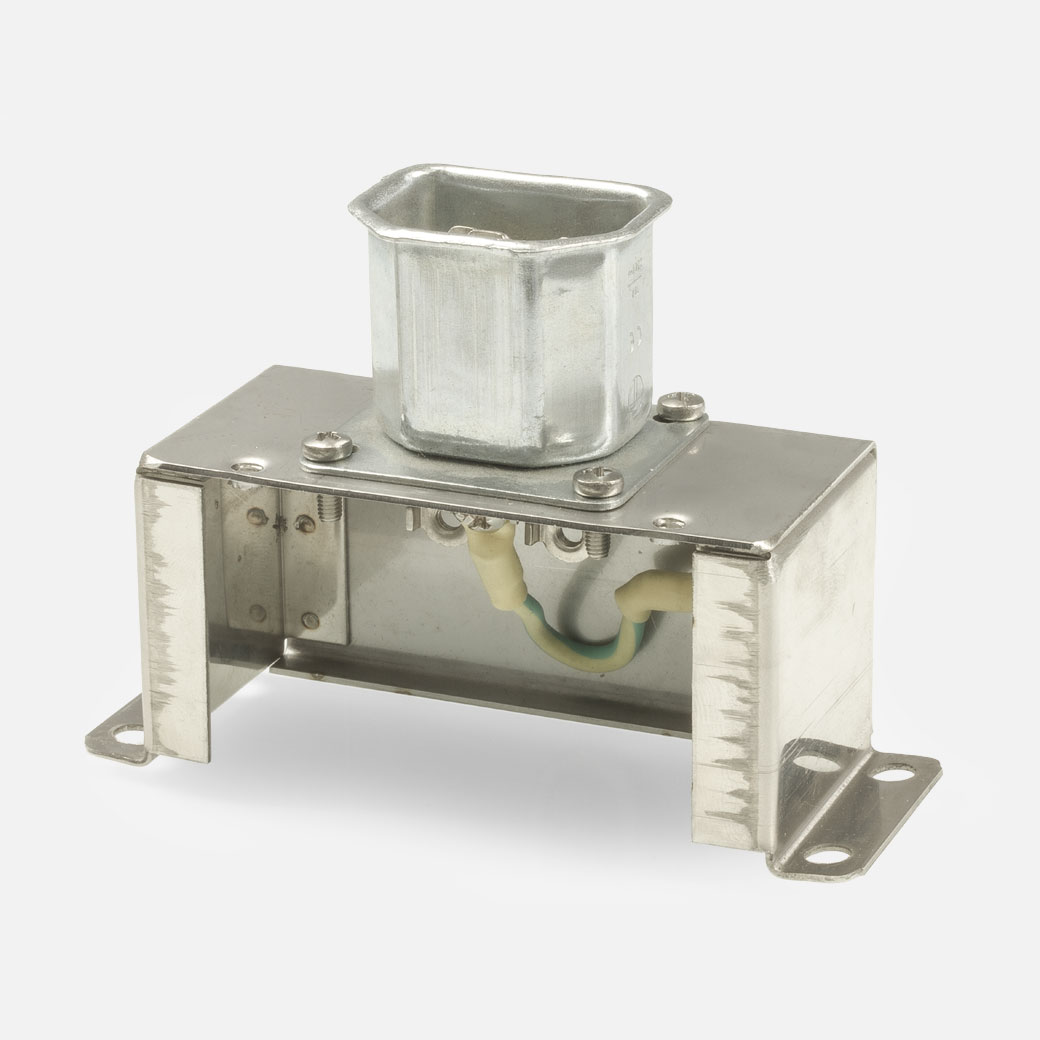

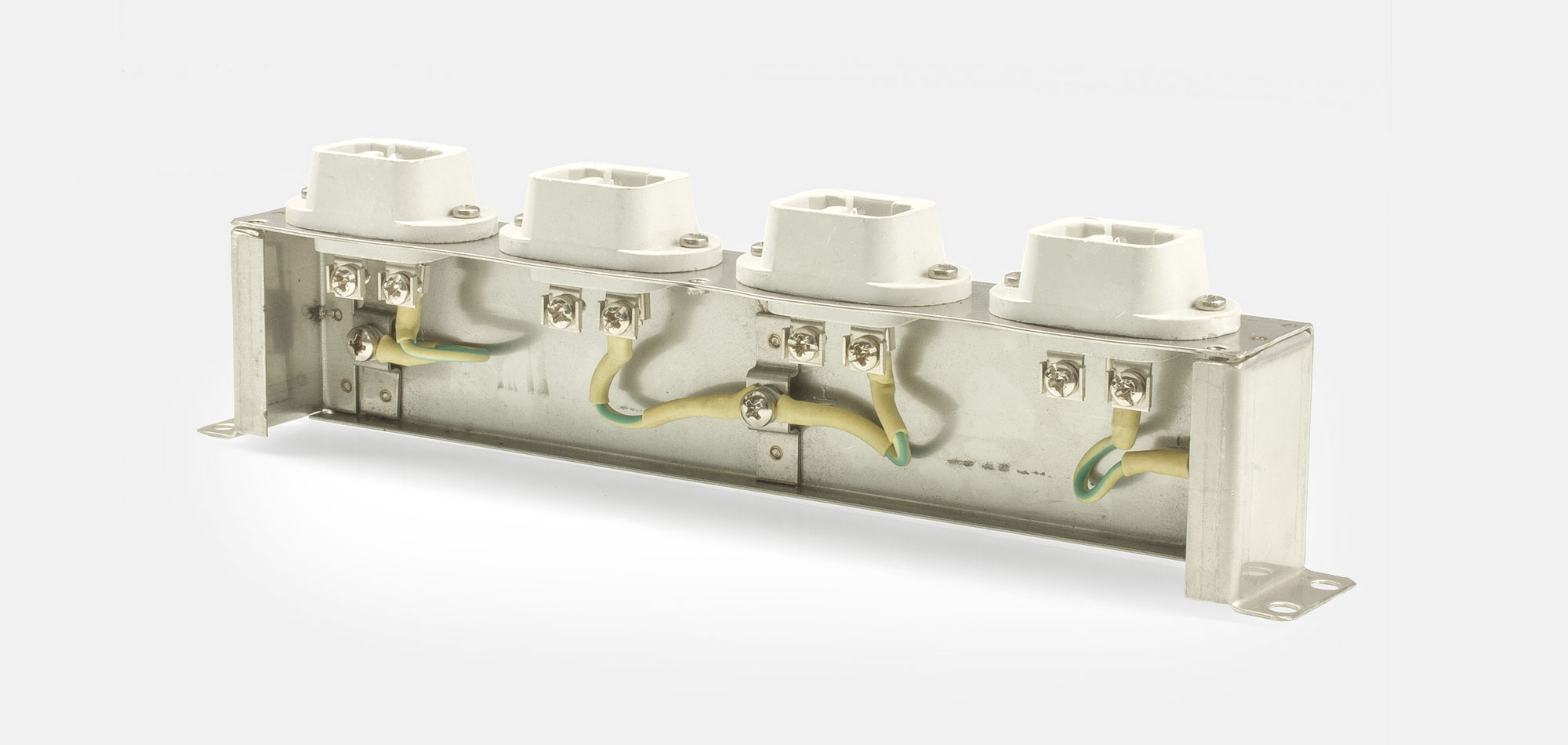

Option 1 - Terminal Box with plug, without terminal strip

  • Total width (B):
    30, 40, 50, 60 oder 100 mm
  • Hole spacing (C):
    16, 24, 35 oder 45 mm
  • Length:
    80, 100, 120 oder 140 mm
  • Material:
    1 mm stainless steel Terminal Box

Execution

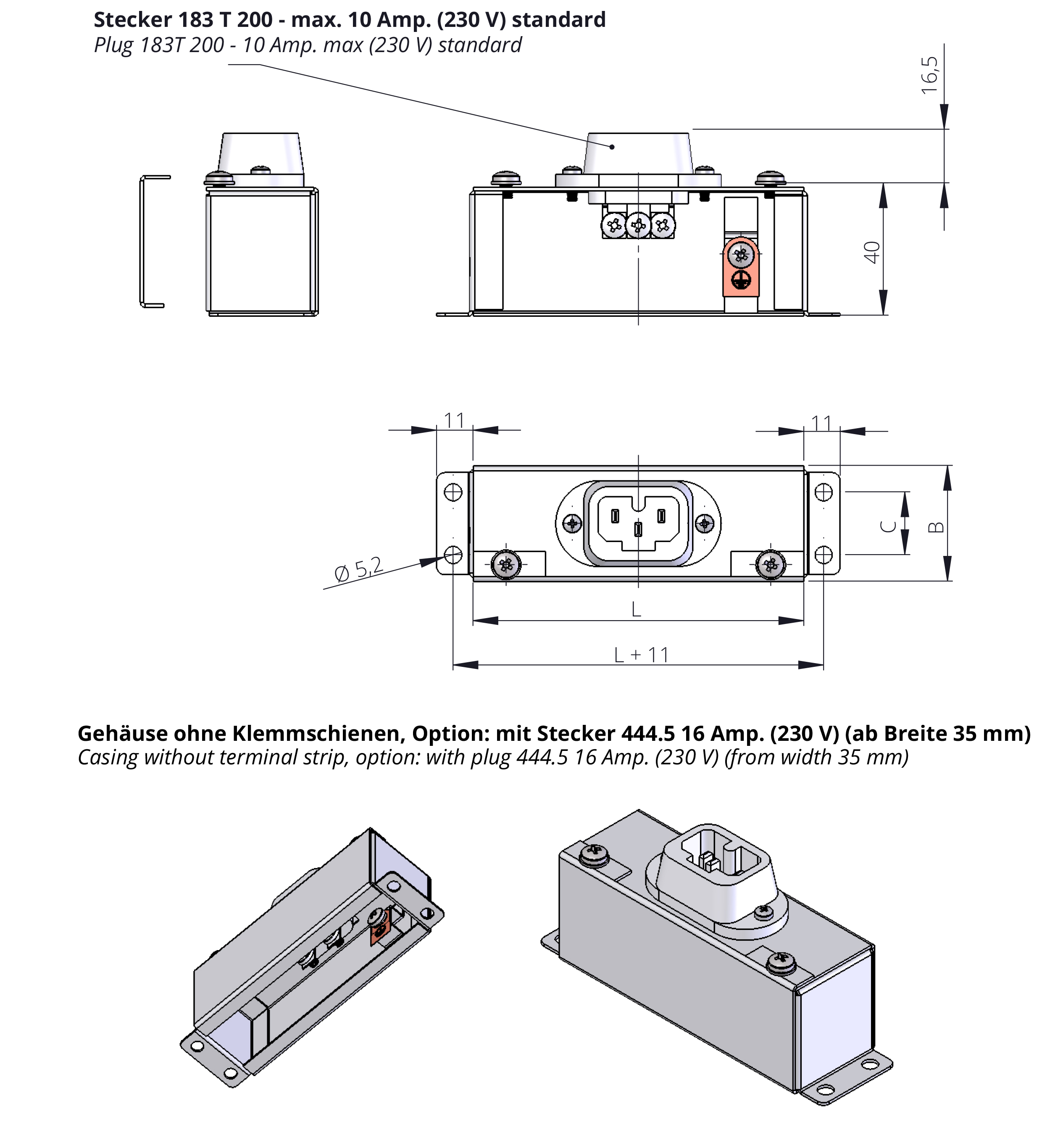

  • with plug T200 up to 10A/230V
  • alternative with plug 444.5 up to 16A/230V (from width 40 mm)

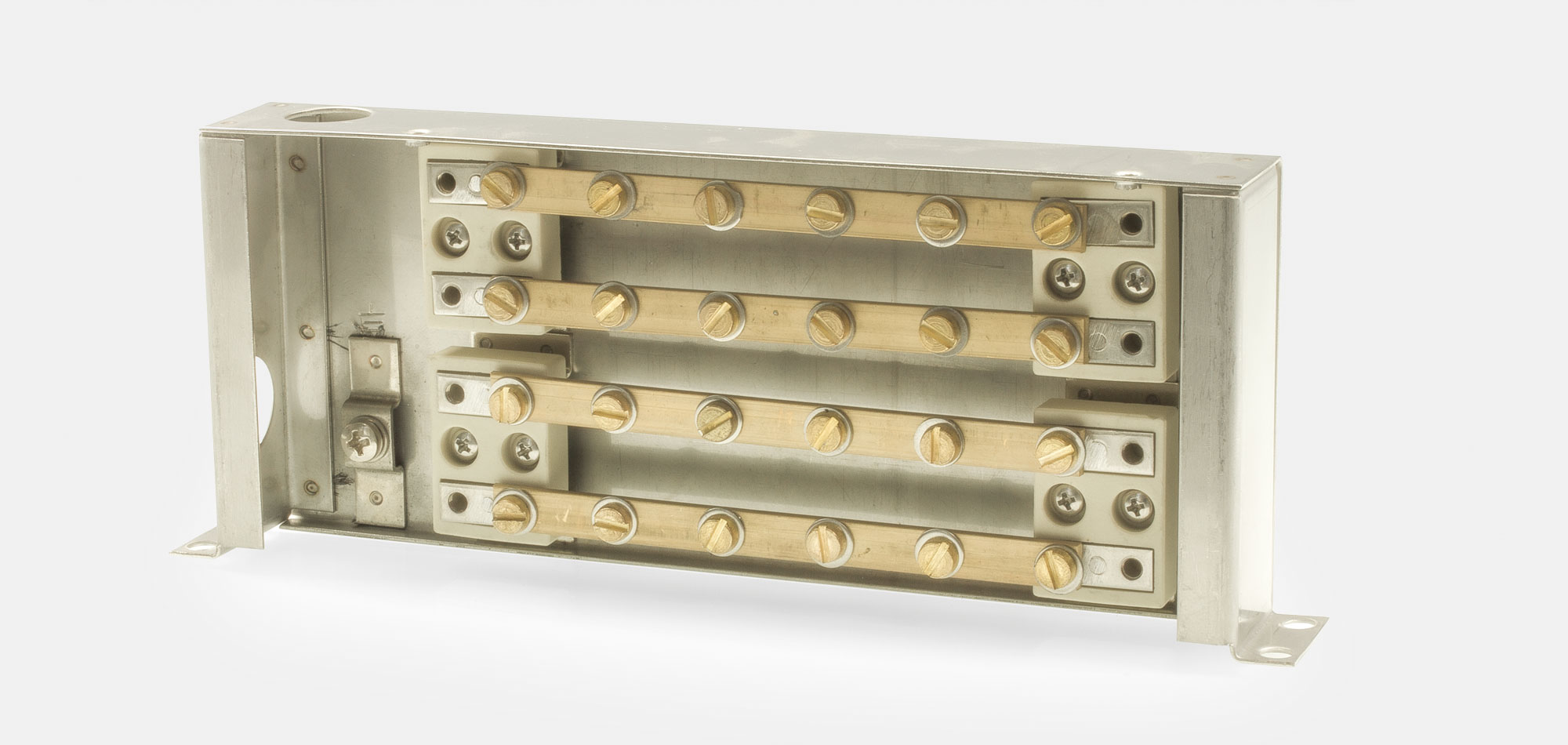

Option 2 - Terminal box with plug and terminal strip

  • Total width (B):
    30, 40, 50, 60 oder 100 mm
  • Hole spacing (C):
    16, 24, 35 oder 45 mm
  • Length:
    from 140 mm, in 20 mm step increasing
  • Material:
    1 mm stainless steel Terminal Box
    brass terminal strip

Execution

  • with plug 444.5 up to 16A/230V (from width 40 mm)

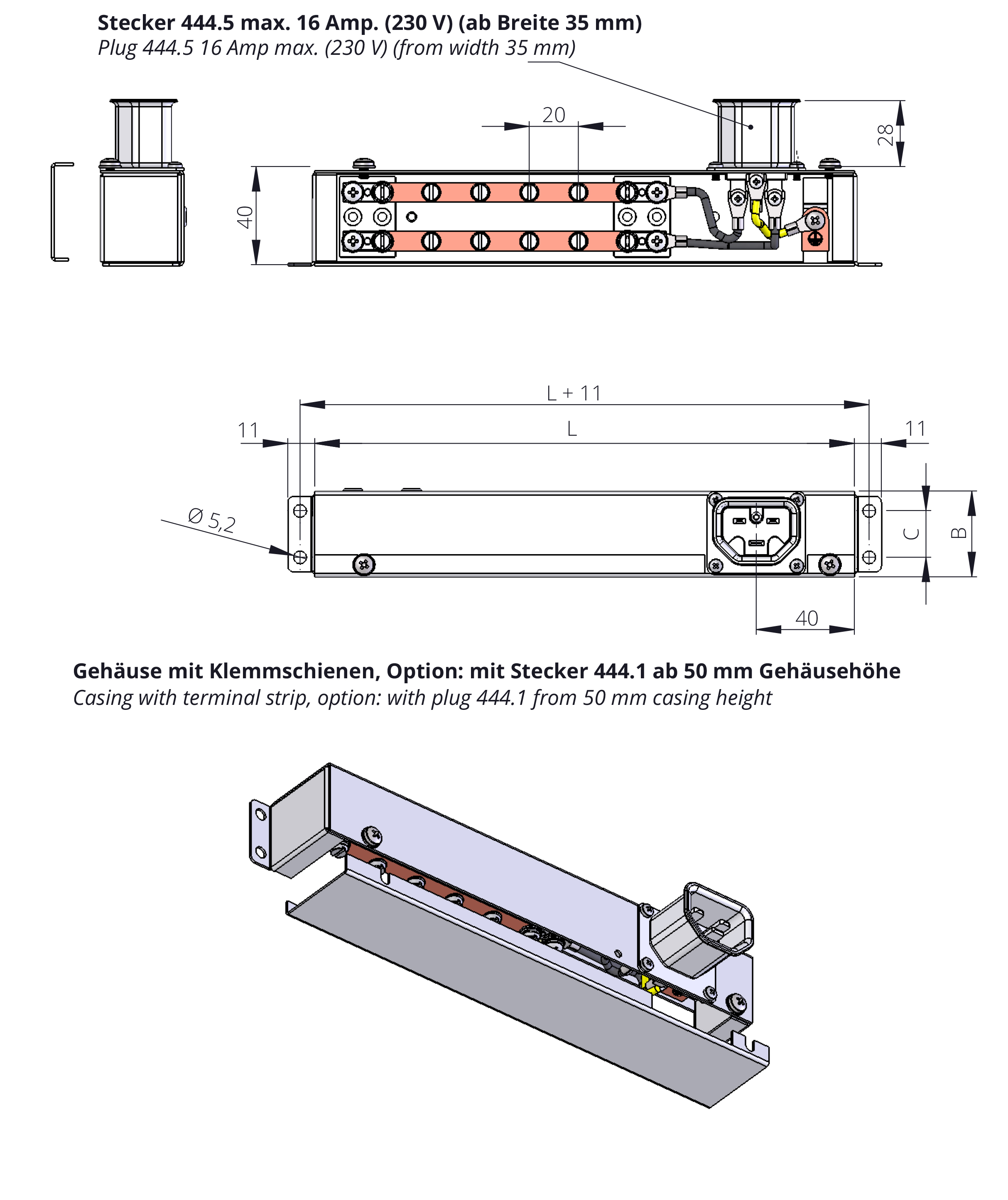

  • alternative with plug 444.1 up to 16A/230V (from casing height 50 mm)

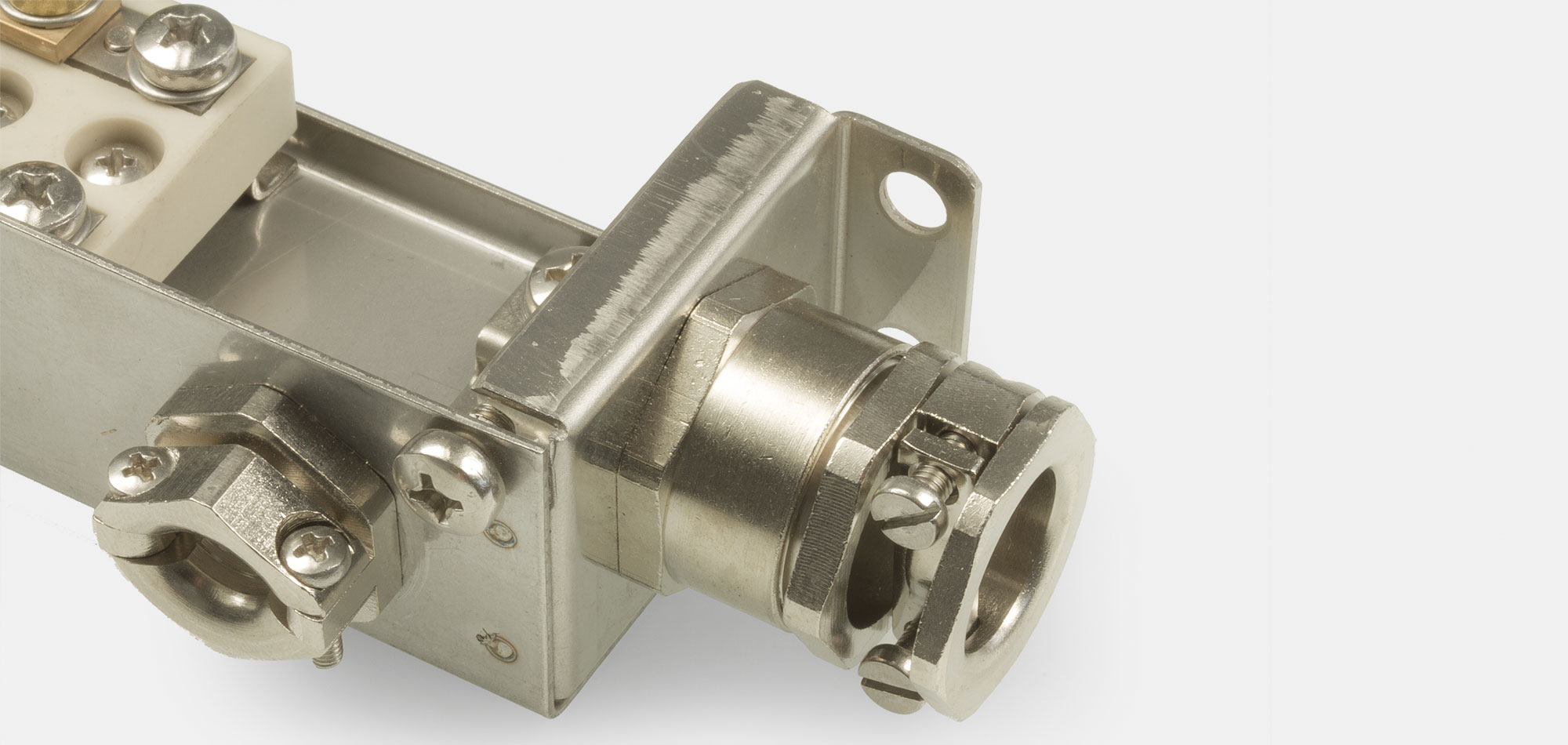

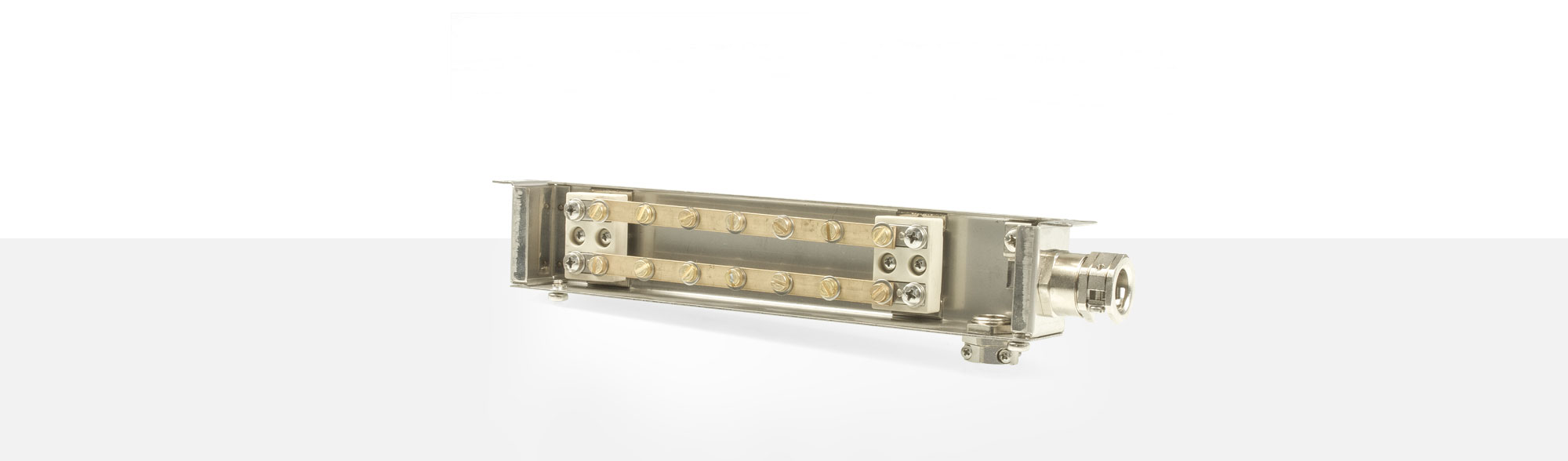

Option 3 - Terminal Box with cable gland and terminal strip

  • Total width (B):
    30, 40, 50, 60 oder 100 mm
  • Hole spacing (C):
    16, 24, 35 oder 45 mm
  • Length:
    from 140 mm, in 20 mm steps increasing
  • Material:
    1 mm stainless steel plate Terminal Box
    brass terminal strips

Execution

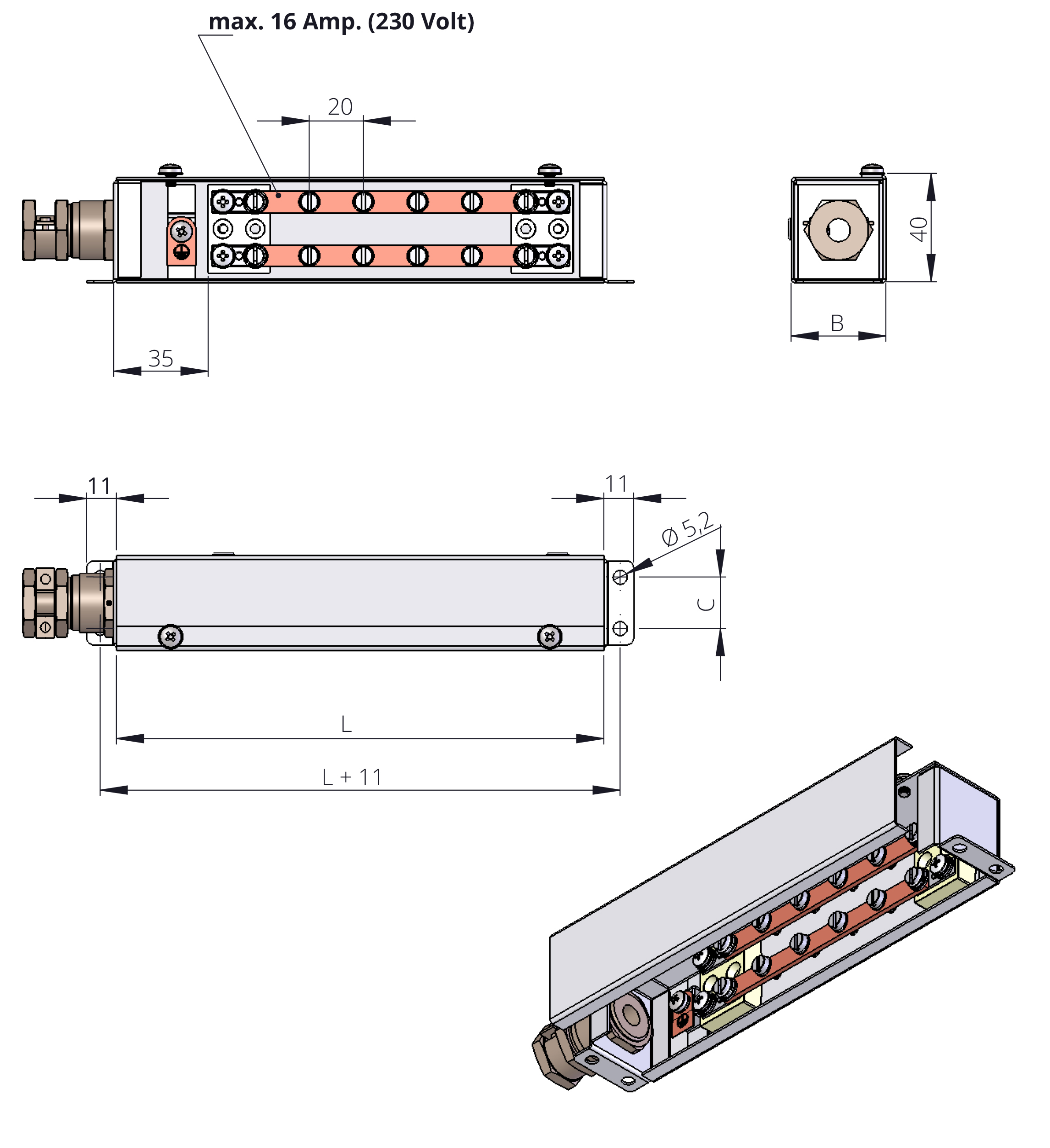

  • with cable gland
