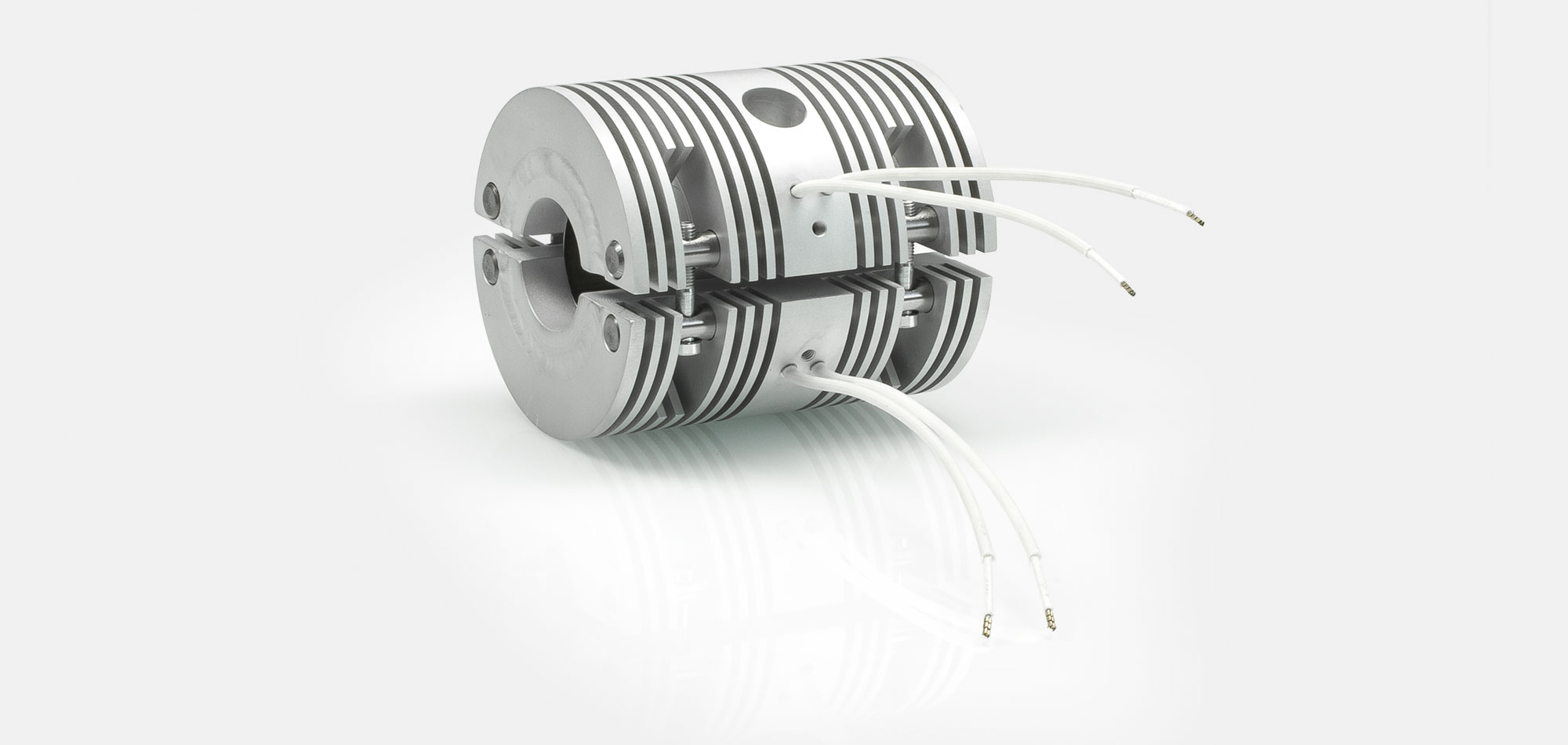

HEAT-COOL-COMBINATIONS aluminium compact

HAK

High-performance Heat-Cool-Combination, temperatures up to 450°C, extrusion, injection molding, recycling systems, blowers, air cooling, cooling-intensive systems, minimal heating-up time, perfect heat distribution, energy efficient, cramped installation

APPLICATIONS

The high performance HAK Heat-Cool-Combinations aluminium compact are used for the heating of cooling intensive extrusion machinery.

  • minimal pre-heat time with highest possible cooling capacity during production
  • perfect heat distribution
  • usage of whole cylinder surface for loaded heat capacity
  • simple assembly of half-shells (no separation of heating and cooling elements)
  • suitable as well with restricted fitting conditions
  • energy efficient

Options

  • various dimensions and connection versions
  • other voltage and/or wattage
  • with holes and/or thermocouple bridges
  • cut outs with lining as indicated
  • other clamp gap
  • hinged cooling jacket
  • with quick lock
  • additional integral insulation layer
  • outer touch protection
  • other cooling jacket material, e.g. stainless steel
  • blower connection versions
  • with self-locking flap at air exit
  • with blower
  • additional heat sink possible with high cooling requirements



  • aluminium compact
    heating and cooling
  • air blower
    cooling
  • up to 450°C
    operating temperature

HAK HEAT-COOL-COMBINATION

High-performance Heat-Cool-Combination, temperatures up to 450°C, extrusion, injection molding, recycling systems, blowers, air cooling, cooling-intensive systems, minimal heating-up time, perfect heat distribution, energy efficient, cramped installation

Construction

  • layout: heating + cooling through whole length of zone

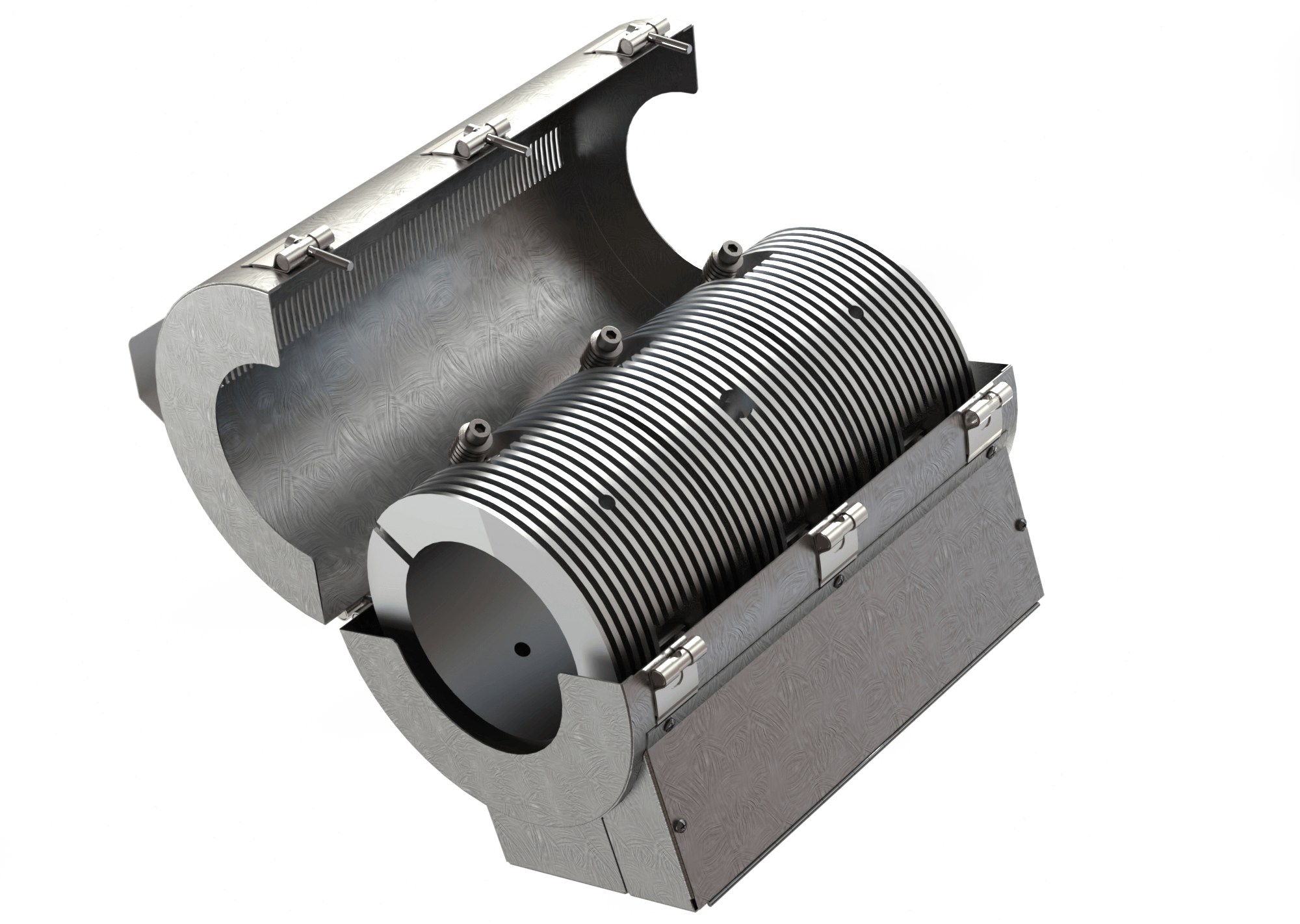

  • assembly design: heater + cooling jacket: semi-monocoque design

Electrical connection

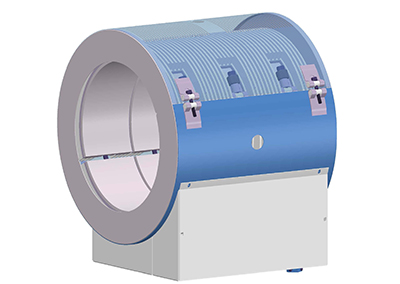

  • cable channel

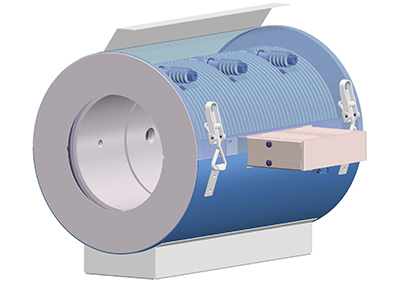

  • cable fitting

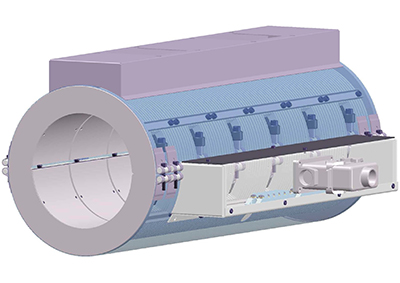

  • plug connection

Holes and cut outs

  • with holes and/or thermocouple bridges
  • cut outs with coverage as per indication
  HAK
height of lip from 35 mm
diameter 40 mm - 500 mm
length 100 mm - 1000 mm
length per segment 50 mm - 150 mm¹

¹ tolerance +/- 2 mm

Options

  • others voltages
  • with holes and/or thermocouple connectors
  • cut outs with coverage as per indication
  • other clamp gap
  • hinged cooling jacket
  • with quick lock
  • additional integrated insulation
  • external contact protection
  • other cooling jacket material, e.g. stainless steel
  • different blower connections options
  • with self-locking lid at air exit
  • blower
High-performance Heat-Cool-Combination, temperatures up to 450°C, extrusion, injection molding, recycling systems, blowers, air cooling, cooling-intensive systems, minimal heating-up time, perfect heat distribution, energy efficient, cramped installation
Band Heater for high-performance Heat-Cool-Combination for operating temperatures up to 450°C
High-performance Heat-Cool-Combination, temperatures up to 450°C, extrusion, injection molding, recycling systems, blowers, air cooling, cooling-intensive systems, minimal heating-up time, perfect heat distribution, energy efficient, cramped installation
High-performance Heat-Cool-Combination as special heating of extruders in the laboratory area
