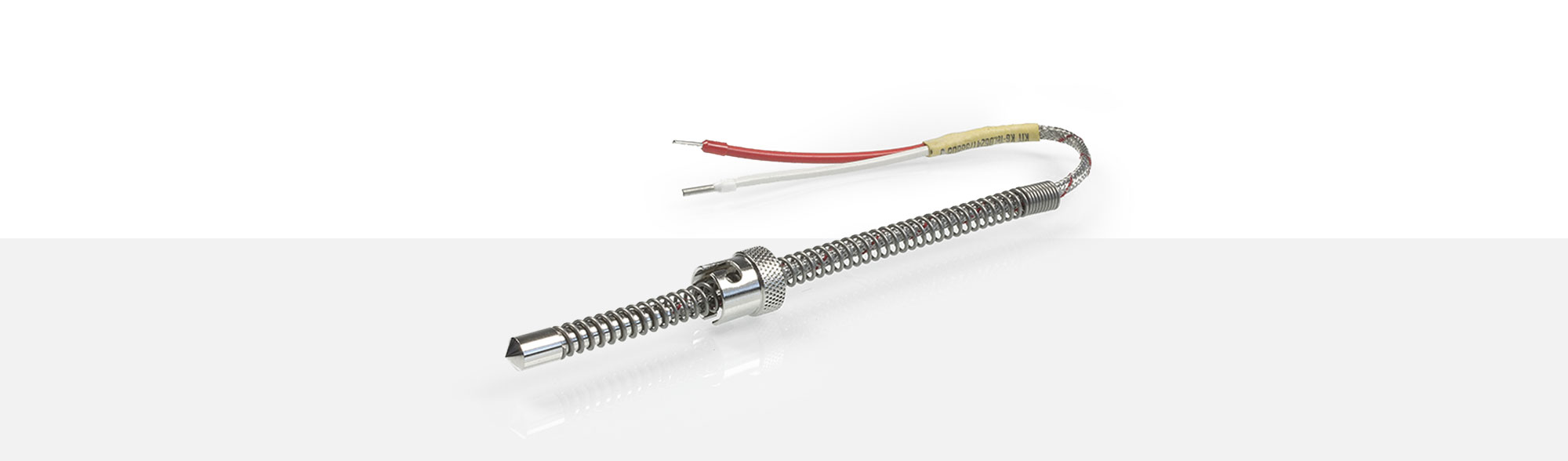

Bayonet Sensors

PWF 16

APPLICATIONS

Insertion resistance sensors with bayonet cap are mainly used in moulds and tools of the polymer processing industry. With the 110° sensor tip the sensor is matching to the sensor hole. The 200 mm standard spring out of 1.4310 guarantees a perfect fitting on to the sensor tip. The cap has an 8 mm or 6 mm spring thread. With throwing the bayonet cap the insertion length can be changed. The ID of the bayonet cap is 12.3 mm. Leads are out of fiberglass insulated cores with protection meshing and galvanized steel wires.

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • two-wire circuit as standard design
  • operating temperature: up to 260 °C
  • isolated
  • sensor tip:
    Ø 8 x 12 mm – 110°
    Ø 6 x 12 mm – 110°
  • bayonet cap IØ 12.3 mm
  • up to 260°C
    operating temperature
  • 12.3 mm
    bayonet cap
  • Ø 6 or Ø 8
    sensor tip - 110°

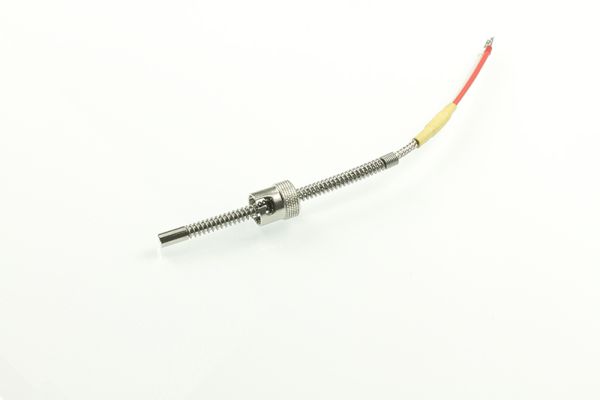

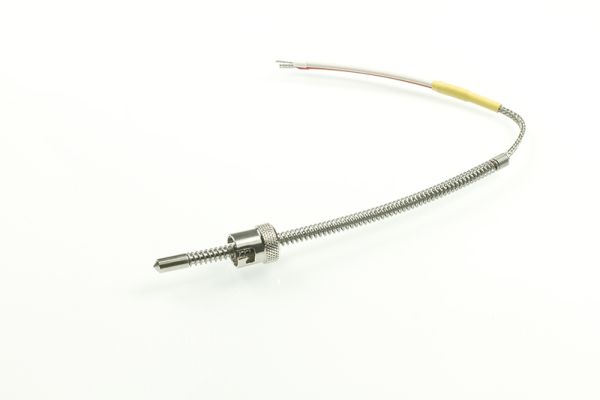

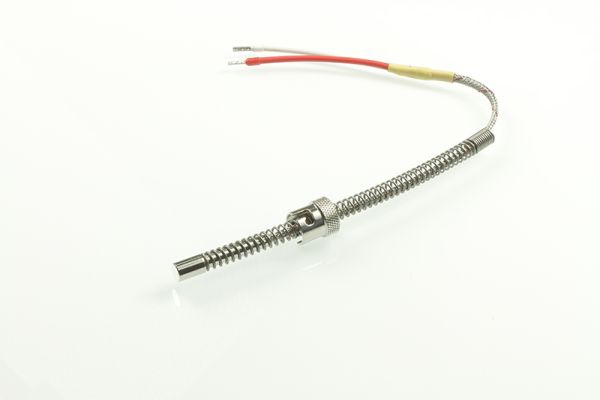

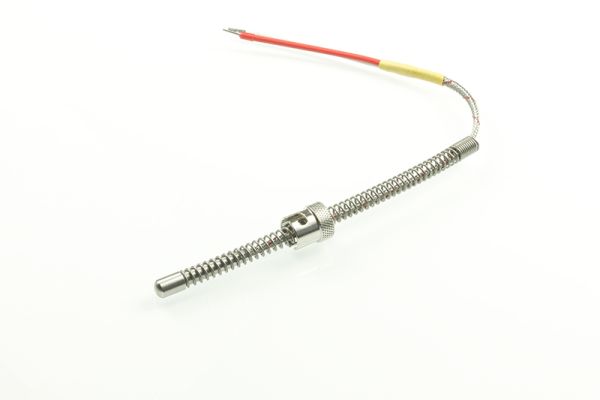

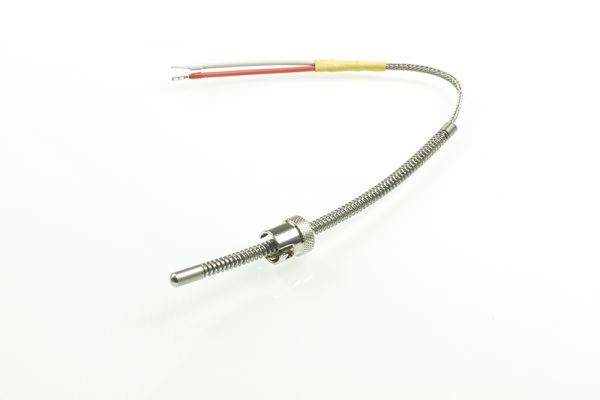

PWF 16 Bayonet Sensor

    Please find following our standard leads for PWF 16 Ø 6 mm Resistance sensors listed. Others are available on request.

    part# cross section temperature range outer diameter
    1201352 2x0.38 mm²
    Cu-nickel plated
    -50 °C up to +260 °C 3.45 x 1.95 mm
    1340642 3x0.25 mm²
    Cu-tinned
    -60 °C up to +260 °C 3.40 ±0.15 mm

    Please find following our standard leads for PWF 16 Ø 8 mm Resistance sensors listed. Others are available on request.

    part# cross section temperature range outer diameter
    1201354 2x0.35 mm²
    Cu-nickel plated
    -50 °C up to +260 °C 4.6 x 2.8 mm
    1340642 3x0.25 mm²
    Cu-tinned
    -60 °C up to +260 °C 3.40 ±0.15 mm
    1266897 4x0.18 mm²
    Cu-nickel plated
    -50 °C up to +260 °C 3.90 ±0.15 mm
    1307789 4x0.22 mm²
    Cu-tinned
    -50 °C up to +350 °C 4.00 ±0.15 mm
    1300580 4x0.22 mm²
    Cu-tinned
    -90 °C up to +260 °C 3.50 ±0.10 mm
    1307865 4x0.25 mm²
    Cu-tinned
    -25 °C up to +180 °C 4.50 ±0.15 mm

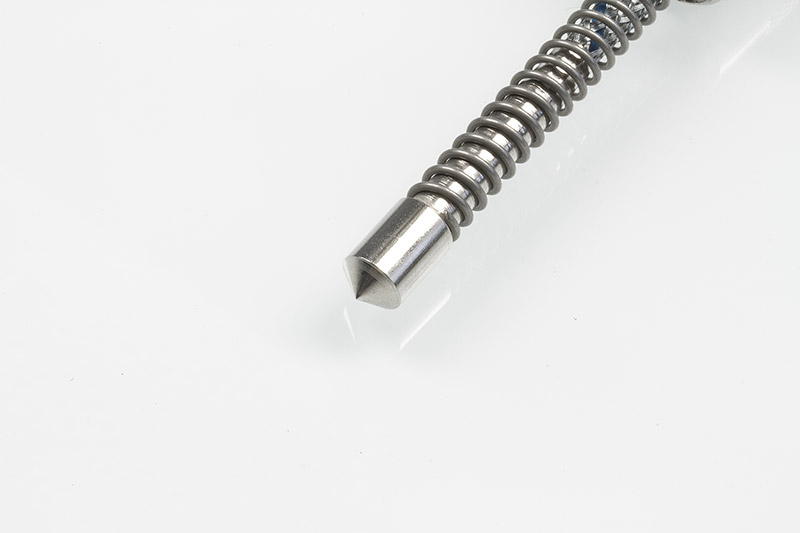

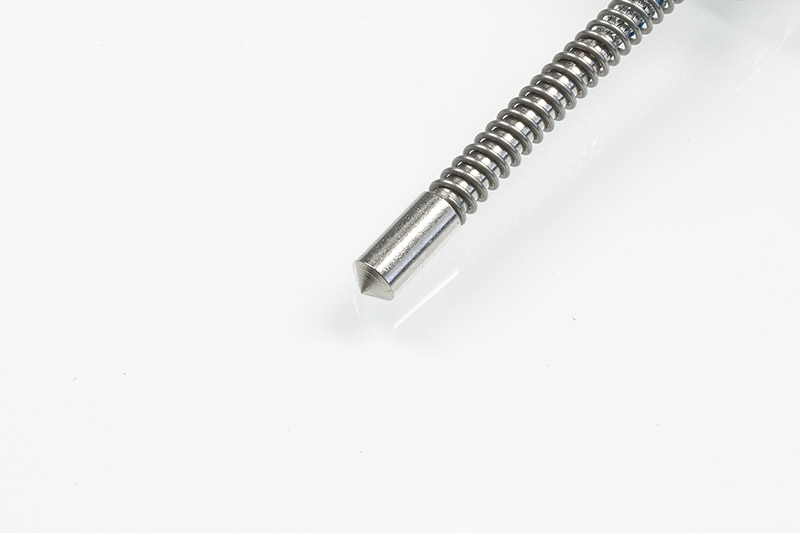

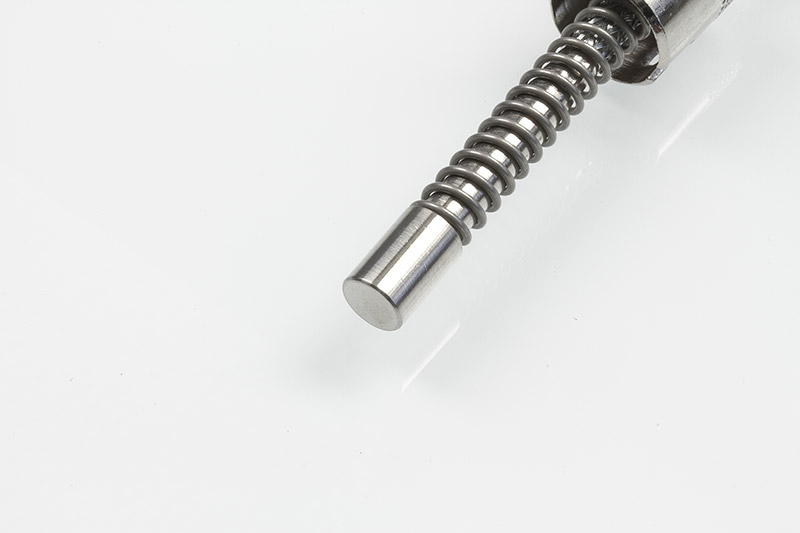

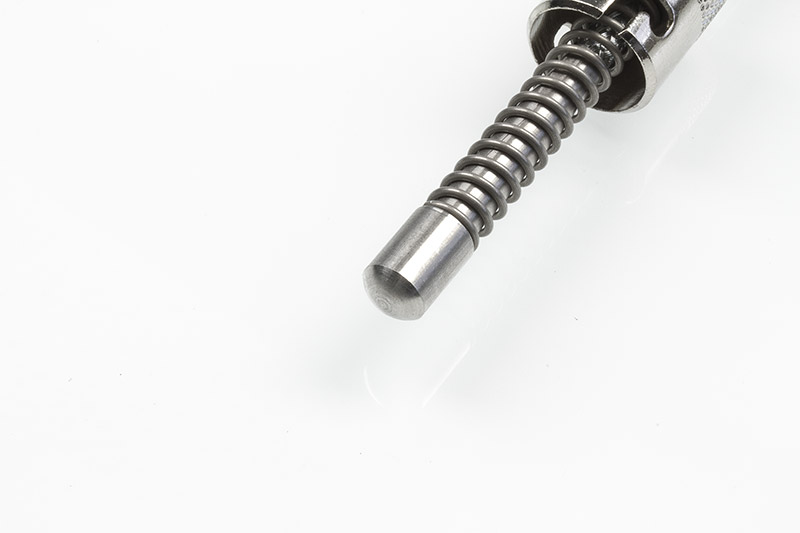

    sensor tips

    Pointes de la sonde

      Miniature - round plugs with screw connection

      2-pin plug T3200 part# 1200716
        socket T3201 part# 1200721





      3-pin plug T3260 part# 1201415
        socket T3261 part# 1200722



      4-pin plug T3300 part# 1103624
        socket T3301 part# 1200723

      Round plugs with screw connection

      3-pin plug T3079 part# 1103631
        socket T3080 part# 1200749





      5-pin plug T3083 part# 1103635
        socket T3084 part# 1200750



      Round plugs with bayonet connection

      3-pin plug T3008 part# 1103627





      5-pin plug T3012 part# 1119173



      Miniature plug connectors

      Lemo cable Ø max. in mm
        sizes 0S 1S 2S 3S
        standard socket 3,7 4,2 4,2 4,2
        fitting socket
        standard plug 3,7 4,2 4,2 4,2

      Screw-in protection sleeves

      Screw-in protection screws allow an assembly and disassembly of temperature sensors without system release.

      Screw-in protection sleeve

      material stainless steel
      1.4301
      thermocouples Ø 8 mm
      Ø 6 mm
      diameter Ø 12 mm
      Ø 10 mm
      internal borehole Ø 8,5 mm
      Ø 6,5 mm
      fitting depth
      (customer request)
      inclusive thread
      thread length 10 mm
      key size 24
      sensor screwing G 1/4"
      process connection G 3/8"
      G 1/2"
      M18x1,5
      M20x1,5

      Screw-in protection sleeve

      material brass
      MS58
      thermocouples Ø 8 mm
      Ø 6 mm
      diameter Ø 12 mm
      Ø 10 mm
      internal borehole Ø 8,5 mm
      Ø 6,5 mm
      fitting depth
      (customer request)
      inclusive thread
      thread length 10 mm
      key size 24
      sensor screwing G 1/4"
      process connection G 3/8"
      G 1/2"
      M18x1,5
      M20x1,5

      Screw-in nipples N16

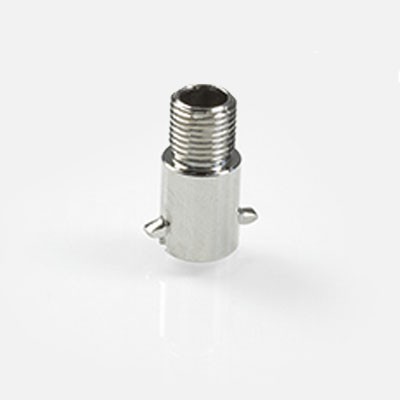

      screw-in nipple N16

      M10 x 1 x 100 mm

      part# 1208009
      thread M10 x 1
      thread length 10 mm
      total length 25 mm
      shaft diameter 12 mm
      internal diameter   7 mm
      material nickel plated
      steel
      pulled pins           2

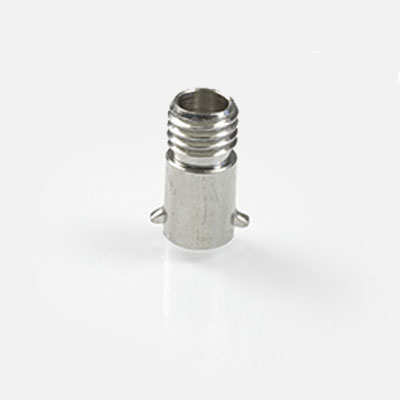

      screw-in nipple N16

      M12

      part# 1204425
      thread M12
      thread length 10 mm
      total length 25 mm
      shaft diameter 12 mm
      internal diameter 8,5 mm
      material nickel plated
      steel
      pulled pins            2

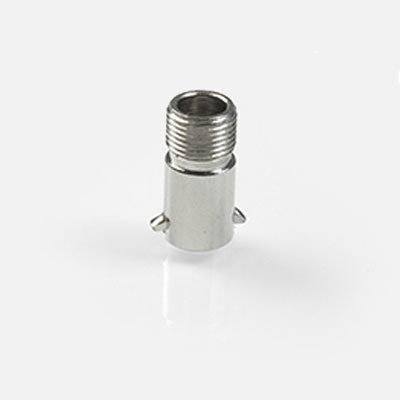

      screw-in nipple N16

      M12 x 1

      part# 1205027
      thread M12 x 1
      thread length 10 mm
      total length 25 mm
      shaft diameter 12 mm
      internal diamter 8,5 mm
      material nickel plated
      steel
      pulled pins           2

      Design examples
