screw-in sensors

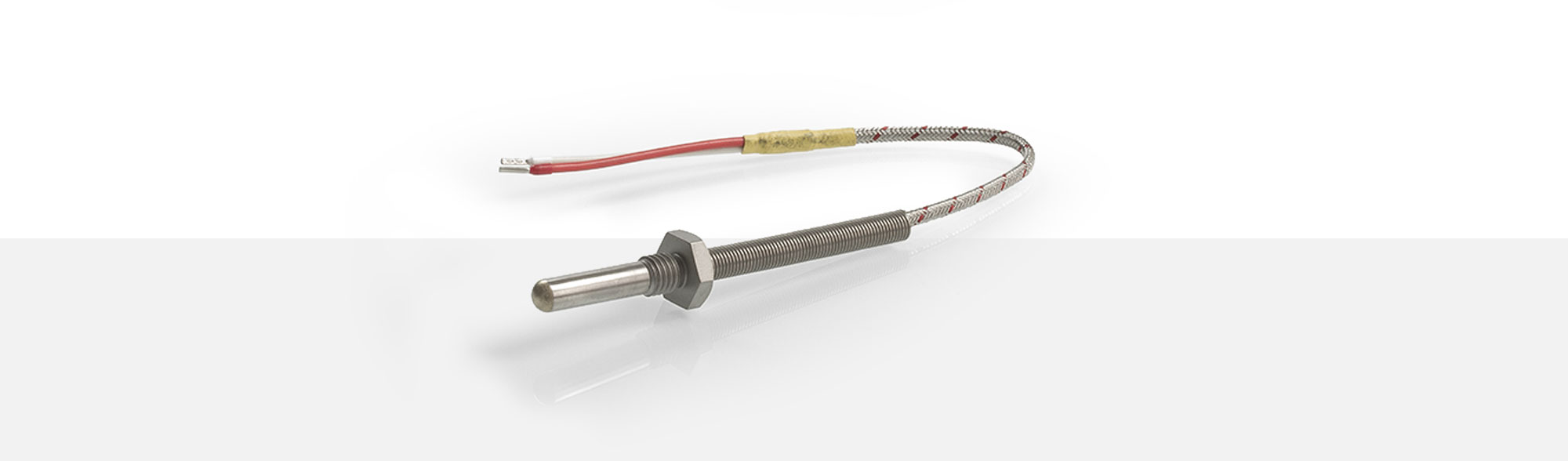

Screw-in resistance sensors are ideal for surface measuring. They are screwed directly into the component and are available with various thread sizes. The PWF 206 has a fitting length of 50 mm. The Ø 8 x 30 mm ball sensor tube ends with a solid M10 x 20 mm thread nipple with a key size of 17 mm. The total length is 50 mm. An 8 x 65 mm spring is used as anti-kink protection. Standard leads are galvanized copper wires with PFA- and fiberglass insulation covered with steel protection metal braid.
Please find following our standard leads for PWF 206 Resistance Sensors listed. Others are available on request.
| part# | cross section | temperature range | outer diameter |
| 1308376 | 2x0.22 mm² Cu-tinned |
-50 °C up to +350 °C | 3.50 ±0.15 mm |
| 1298296 | 2x0.22 mm² Cu-tinned |
-50 °C up to +260 °C | 3.80 ±0.05 mm |
| 1258824 | 2x0.25 mm² Cu-tinned |
-50 °C up to +260 °C | 3.30 ±0.10 mm |
| 1201354 | 2x0.35 mm² Cu-nickel plated |
-50 °C up to +260 °C | 4.6 x 2.8 mm |
| 1201352 | 2x0.38 mm² Cu-nickel plated |
-50 °C up to +260 °C | 3.45 x 1.95 mm |
| 1340642 | 3x0.25 mm² Cu-tinned |
-60 °C up to +260 °C | 3.40 ±0.15 mm |
| 1307789 | 4x0.22 mm² Cu-tinned |
-50 °C up to +350 °C | 4.00 ±0.15 mm |
| 1307865 | 4x0.25 mm² Cu-tinned |
-25 °C up to +180 °C | 4.50 ±0.15 mm |
Miniature - round plugs with screw connection
| 3-pin | plug | T3260 | part# 1201415 |
| socket | T3261 | part# 1200722 |
| 4-pin | plug | T3300 | part# 1103624 |
| socket | T3301 | part# 1200723 |
Miniature plug connectors
| Lemo | cable Ø max. in mm | ||||
| sizes | 0S | 1S | 2S | 3S | |
| standard socket | 3,7 | 4,2 | 4,2 | 4,2 | |
| fitting socket | |||||
| standard plug | 3,7 | 4,2 | 4,2 | 4,2 |
