screw-in sensors

PWF 57


Screw-in resistance sensors are ideal for surface measuring. They are screwed directly into the component and are available with various thread sizes. This massive sensor design is mostly used at injection moulding machines. The thread nipple is kept on place with a lock ring on the sensor tip. The passage from sensor to compensating wire is conical strain relieved. An Ø 8 x 65 mm spring is used as anti-kink protection. Standard leads are galvanized copper wires with PFA- and fiberglass insulation covered by fiberglass and steel metal braid.

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • two-wire circuit as standard design
  • operating temperature: up to 260 °C
  • isolated
  • sensor tip: Ø 8 x 6 mm - plane
  • M10x1 thread nipple 15 / 23 mm long, key size 10 mm
  • up to 260°C
    operating temperature
  • Ø 8 x 6 mm
    sensor tip - plane
  • M10 x 1
    thread nipple

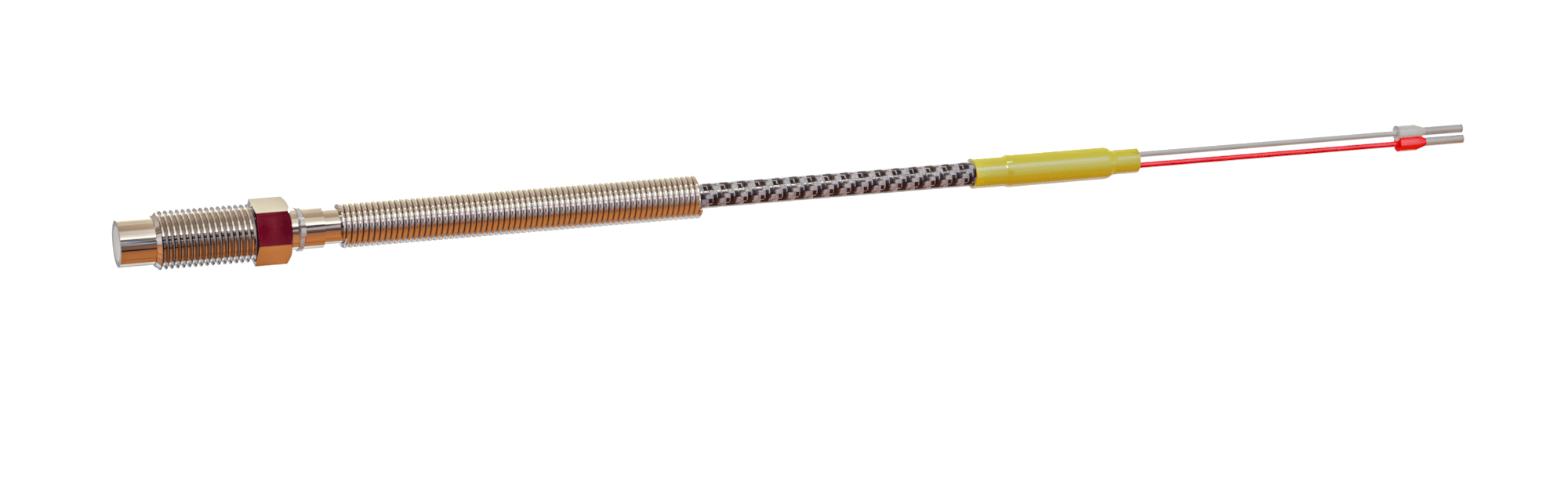

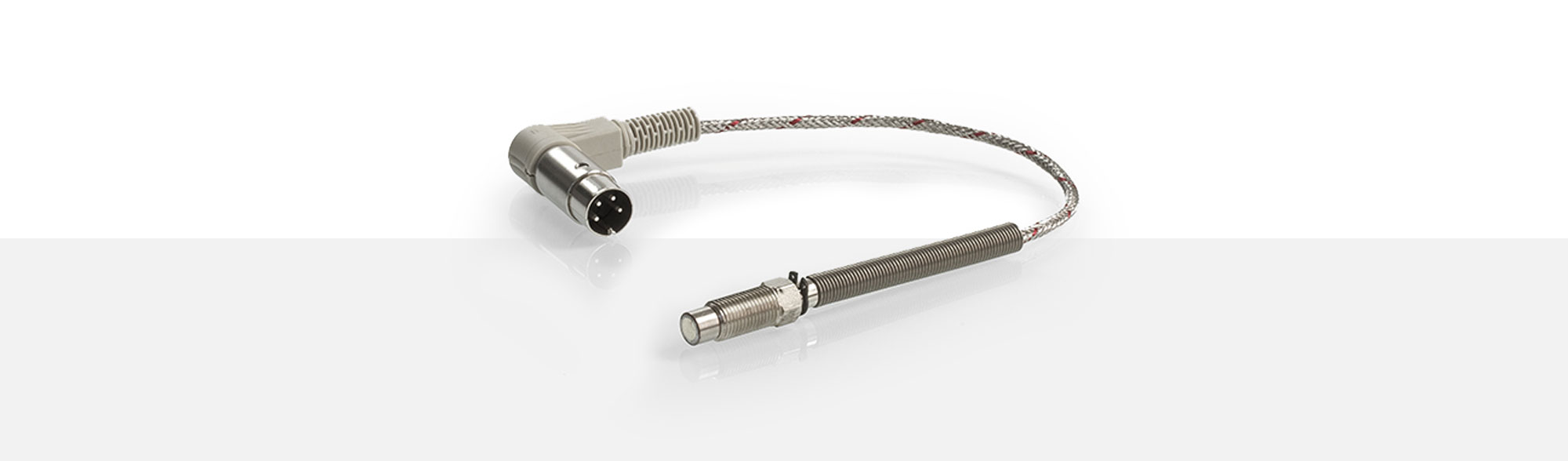

PWF 57 Screw-in sensor

Please find following our standard leads for PWF 57 Resistance Sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1308376 2x0.22 mm²
-50 °C up to +350 °C 3.50 ±0.15 mm
1201352 2x0.38 mm²
Cu-nickel plated
-50 °C up to +260 °C 3.45 x 1.95 mm
1307789 4x0.22 mm²
-50 °C up to +350 °C 4.00 ±0.15 mm

    Miniature - round plugs with screw connection

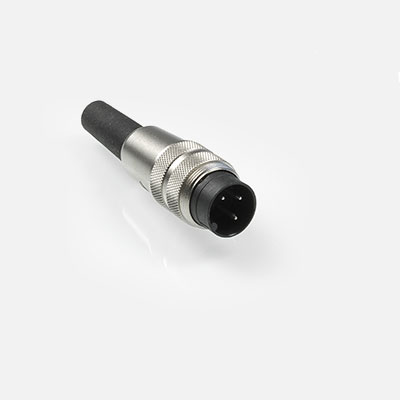

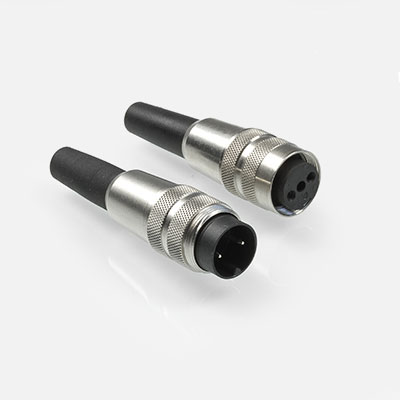

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721

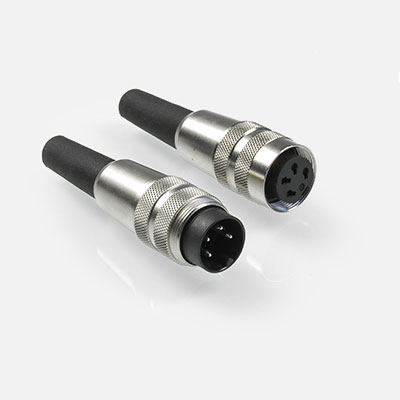

    2-pin plug T3260 part# 1201415


    4-pin plug T3200 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749

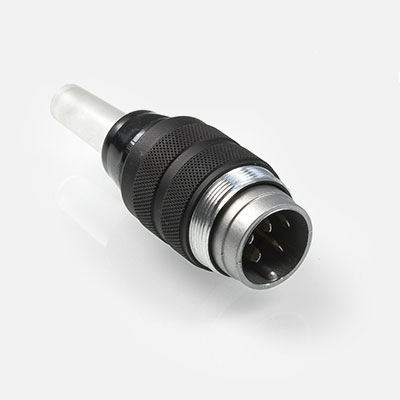

    5-pin plug T3260 part# 1103635
      socket T3084 part# 1200750


    Round plugs with bayonet connection

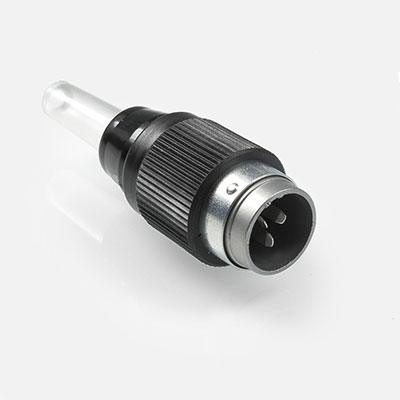

    3-pin plug T3008 part# 1103627

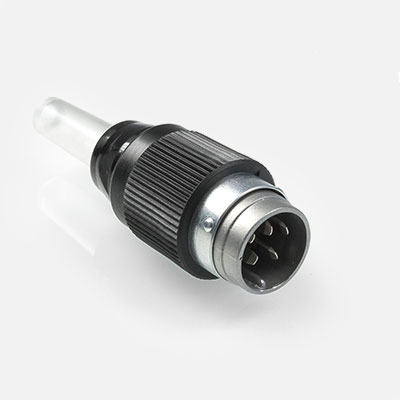

    5-pin plug T3012 part# 1119173

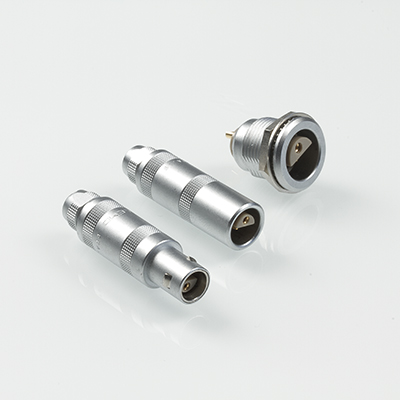

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
