screw-in sensors

PWF 73

APPLICATIONS

Screw-in resistance sensors are ideal for surface measuring. They are screwed directly into the component and are available with various thread sizes. The screw-in length of the PWF 73 is 19 mm. The plane measure surface of Ø 3.8 x 8 mm is followed by an 11 mm long M5 thread. The total length of the sensor is 38 mm with a key size of 10 mm for improved assembly on the end. Standard leads are galvanized copper wires with PFA- and fiberglass insulation covered by fiberglass and steel metal braid.

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • two-wire circuit as standard design
  • operating temperature: up to 260 °C
  • isolated
  • sensor tip: Ø 3.8 x 8 mm with M5 thread 11 mm long
  • Ø 8 x 65 mm anti-kink protection spring
  • up to 260°C
    operating temperature
  • Ø 3.8 x 8 mm
    sensor tip
  • M5 x 11 mm long
    thread

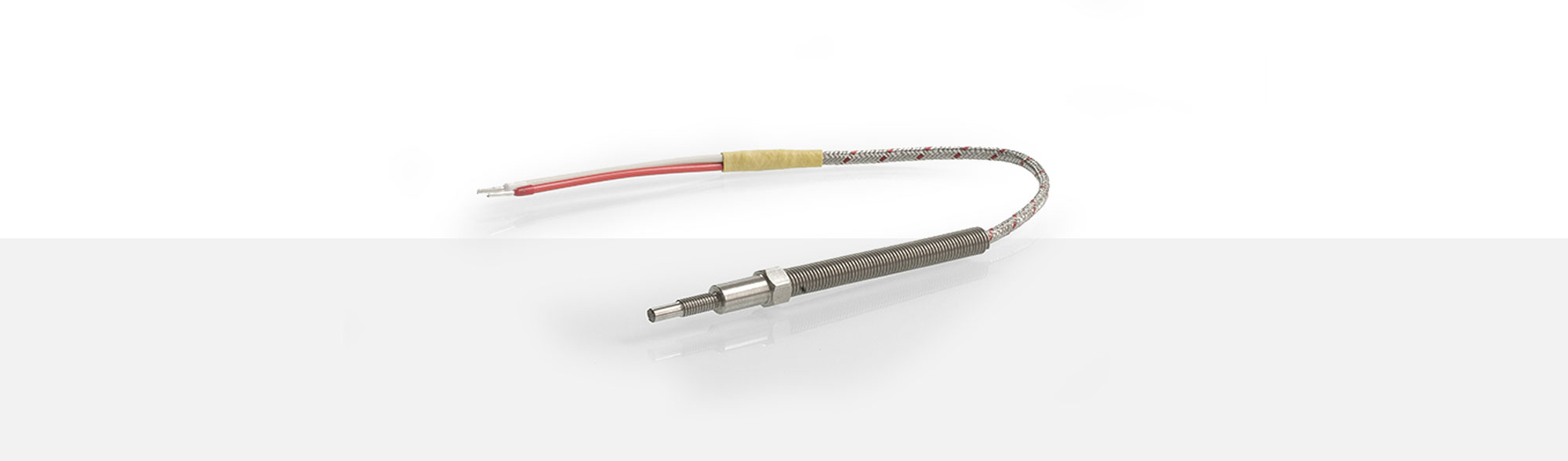

PWF 73 Screw-in sensor

Please find following our standard leads for PWF 73 Resistance sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1308376 2x0.22 mm²
Cu-tinned
-50 °C up to +350 °C 3.50 ±0.15 mm
1201354 2x0.35 mm²
Cu-nickel plated
-50 °C up to +260 °C 4.6 x 2.8 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C up to +260 °C 3.40 ±0.15 mm
1307789 4x0.22 mm²
Cu-tinned
-50 °C up to +350 °C 4.00 ±0.15 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    2-pin plug T3260 part# 1201415



    4-pin plug T3200 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3260 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
