screw-in sensors

PWF 74

APPLICATIONS

Screw-in resistance sensors are ideal for surface measuring. They are screwed directly into the component and are available with various thread sizes. With limited space, where no straight cable exit is possible the PWF 74 with right-angled exit is an alternative. The Ø 6 x 5 sensor tip is screwed under spring pressure with the help of a M8 nipple into the tool. Standard leads are galvanized copper wires with PTFE and fiberglass insulation covered by stainless steel metal braid.

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • two-wire circuit as standard design
  • operating temperature: up to 300 °C
  • isolated
  • sensor tip:
    Ø 6 x 5 mm plane
  • M8x6 screw-in nipple, 10 mm long
  • up to 300°C
    operating temperature
  • Ø 6 x 5 mm
    sensor tip - plane
  • M8 x 6 mm / 10 mm long
    screw-in nipple

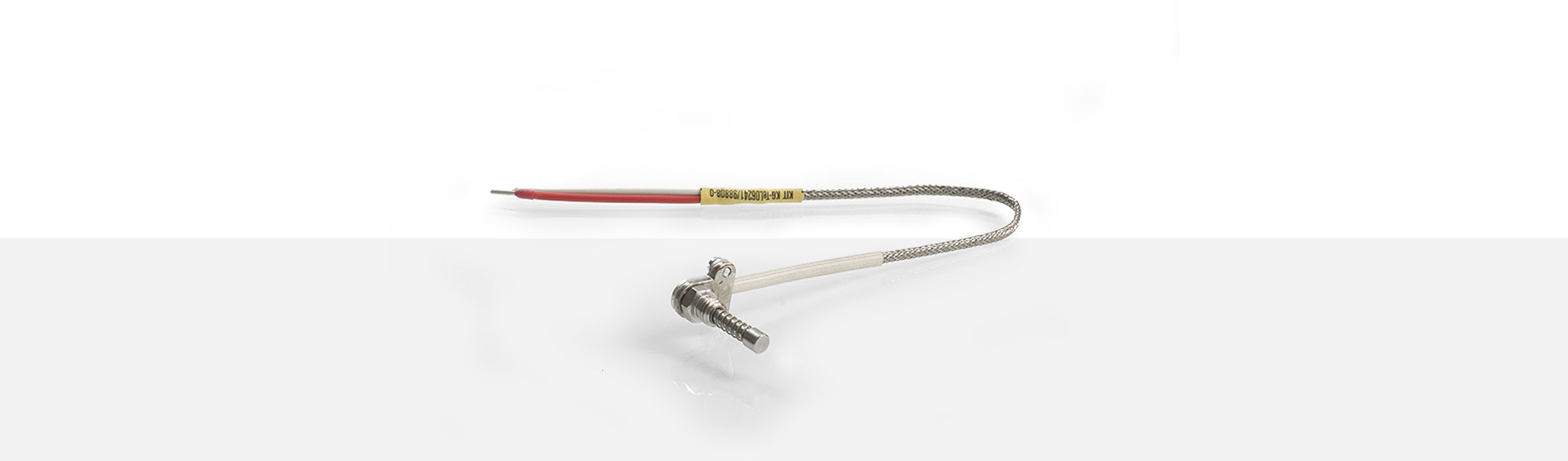

PWF 74 Screw-in sensor

Please find following our standard leads for PWF 74 Resistance Sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1308376 2x0.22 mm²
Cu-tinned
-50 °C up to +350 °C 3.50 ±0.15 mm
1258824 2x0.25 mm²
Cu-tinned
-50 °C up to +260 °C 3.30 ±0.10 mm
1201352 2x0.38 mm²
Cu-nickel plated
-50 °C up to +260 °C 3.45 x 1.95 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C up to +260 °C 3.40 ±0.15 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    2-pin plug T3260 part# 1201415



    4-pin plug T3200 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3260 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
