screw-in nipple

PWF 99

APPLICATIONS

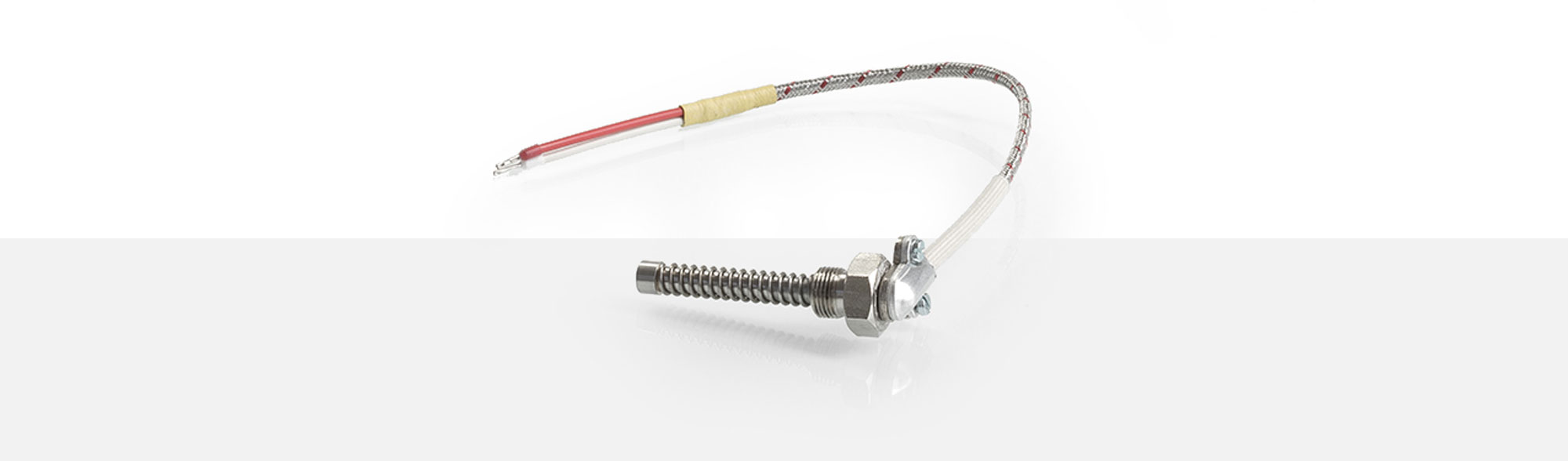

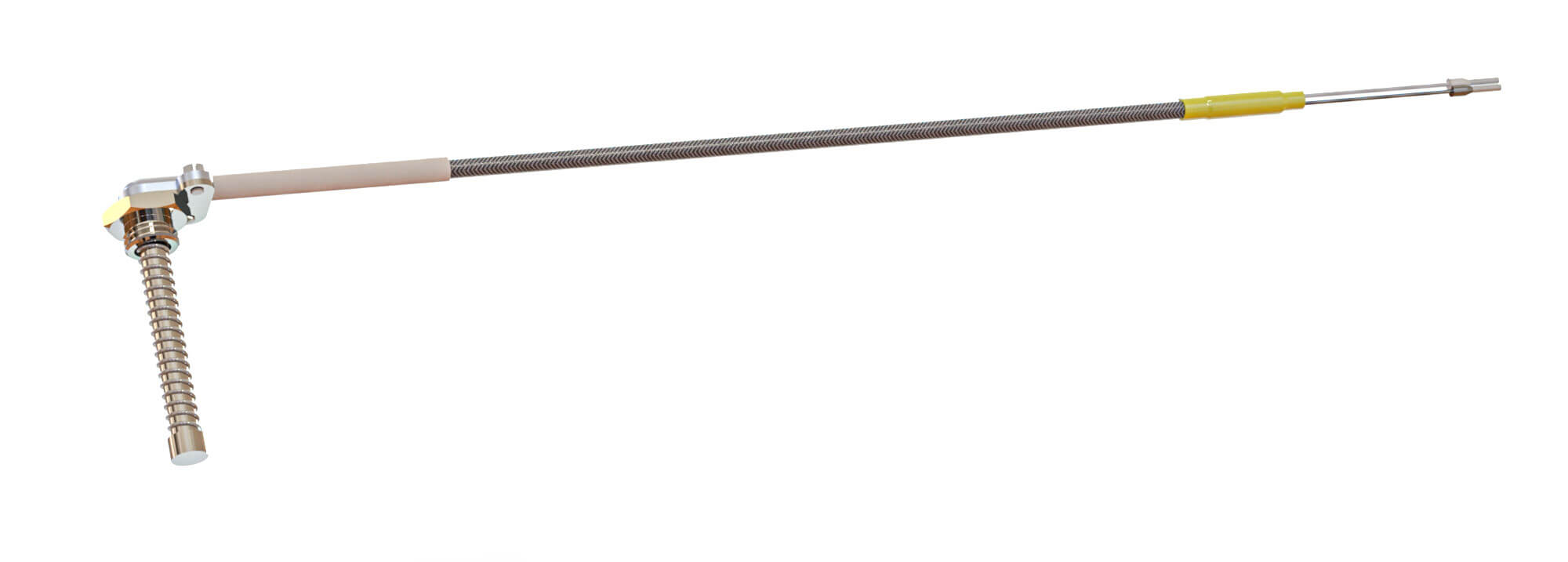

Screw-in sensors are ideal for surface measuring. They are screwed directly into the component and are available with various thread sizes.  PWF 99 dimensions are Ø 8 x 5 / 60 mm with a Ø 8 x 40 pressure spring and a M12x1 thread screw-in nipple. The nipple has a thread length of 9 mm and a key size of 17 mm. A 60 mm long fiberglass hose is used as anti-kink protection. Standard leads are galvanized copper wires with PFA- and fiberglass insulation covered by fiberglass and steel metal braid.

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • operating temperature: up to 260 °C
  • two-wire circuit as standard design
  • isolated
  • sensor tip: Ø 8 x 5 mm – plane
  • M12x1 screw-in thread 9 / 16 mm long - key size 17 mm
  • up to 260°C
    operating temperature
  • Ø 8 x 5 mm
    sensor tip - plane
  • M12 x 1
    screw- in thread

PWF 99 Screw-in sensor

Please find following our standard leads for PWF 99 Resistance Sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1308376 2x0.22 mm²
Cu-tinned
-50 °C up to +350 °C 3.50 ±0.15 mm
1298296 2x0.22 mm²
Cu-tinned
-50 °C up to +260 °C 3.80 ±0.05 mm
1258824 2x0.25 mm²
Cu-tinned
-50 °C up to +260 °C 3.30 ±0.10 mm
1201354 2x0.35 mm²
Cu-nickel plated
-50 °C up to +260 °C 4.6 x 2.8 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C up to +260 °C 3.40 ±0.15 mm
1266897 4x0.18 mm²
Cu-nickel plated
-50 °C up to +260 °C 3.90 ±0.15 mm
1307789 4x0.22 mm²
Cu-tinned
-50 °C up to +350 °C 4.00 ±0.15 mm
1300580 4x0.22 mm²
Cu-tinned
-90 °C up to +260 °C 3.50 ±0.10 mm
1307865 4x0.25 mm²
Cu-tinned
-25 °C up to +180 °C 4.50 ±0.15 mm
1311552 6x0.22 mm²
Cu-tinned
-50 °C up to +260 °C 4.00 ±0.15 mm



Miniature - round plugs with screw connection

2-pin plug T3200 part# 1200716
  socket T3201 part# 1200721





3-pin plug T3260 part# 1201415
  socket T3261 part# 1200722



4-pin plug T3300 part# 1103624
  socket T3301 part# 1200723
