Einsteckfühler

PWF 15

APPLICATION

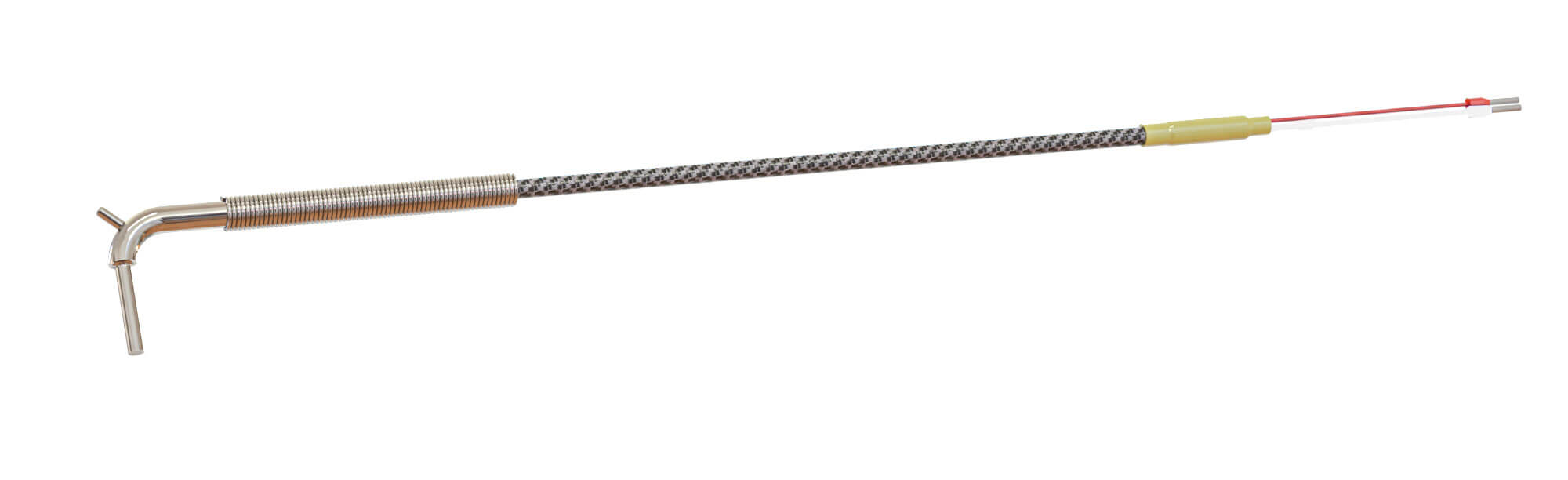

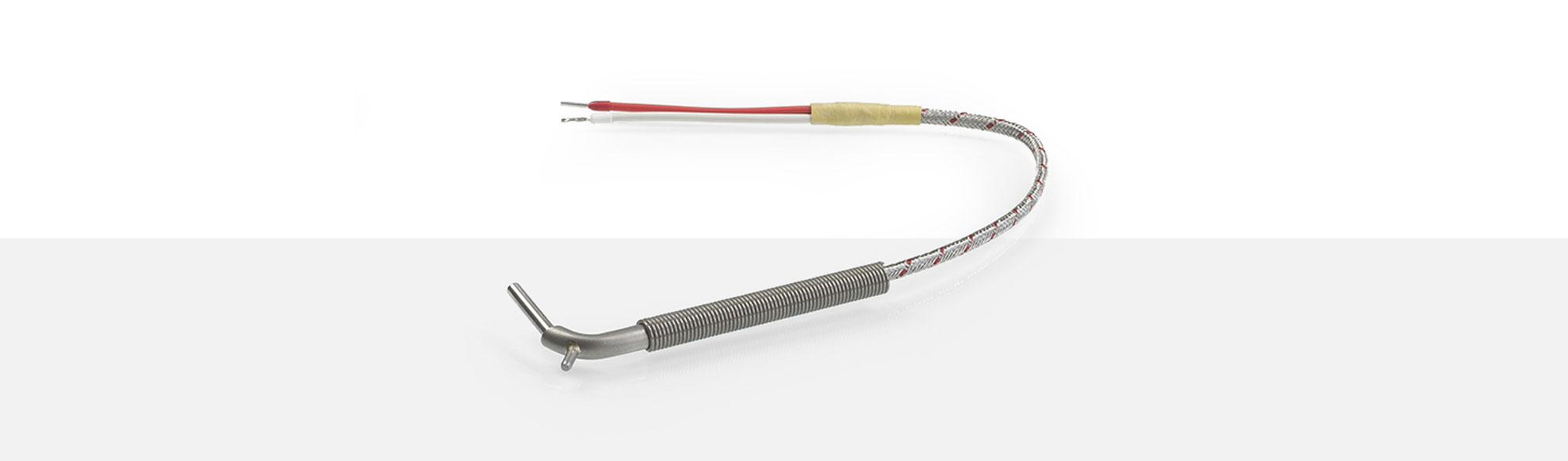

Plug-in resistance sensors are ideal for all possible application of temperature measuring. They are available as straight and right-angle design. There are clamp-screws, screws, clips and stop rings available for mounting. Springs with special-fiberglass hose and 400 °C heat resistant varnish are standard. Standard leads are galvanized copper wires with PTFE and fiberglass insulation covered by stainless steel metal braid. The PWF 15 is a right-angle sensor. The bend Ø 6 x 37 mm protection tube has soldered Ø 2.5 x 6 mm notch pin at the front side. The standard sensor tube has a Ø 3.5 and is 20 mm long.

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • two-wire circuit as standard design
  • operating temperature: up to 260 °C
  • isolated
  • sensor tip:
    Ø 3.5 x 20 mm immersion depth
  • fastening due to spring at slot pin
  • Ø 8 x 65 mm anti-kink protection spring
  • up to 260°C
    operating temperature
  • Ø 8x40mm
    sensor tip
  • 60mm
    anti-kink protection

PWF 15

Please find following our standard leads for PWF 15 Resistance sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1201354 2x0.35 mm²
Cu-nickel plated
-50 °C until +260 °C 4.6 x 2.8 mm
1201352 2x0.38 mm²
Cu-nickel plated
-50 °C until +260 °C 3.45 x 1.95 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C until +260 °C 3.40 ±0.15 mm
1307789 4x0.22 mm²
Cu-tinned
-50 °C until +350 °C 4.00 ±0.15 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 A# 1200716
      socket T3201 A# 1200721





    2-pin plug T3260 A# 1201415



    4-pin plug T3200 A# 1103624
      socket T3301 A# 1200723

    Round plugs with screw connection

    3-pin plug T3079 A# 1103631
      socket T3080 A# 1200749





    5-pin plug T3260 A# 1103635
      socket T3084 A# 1200750



    3-pin plug T3008 A# 1103627





    5-pin plug T3012 A# 1119173



    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard scoket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
