plug-in sensors

PWF 2

APPLICATIONS

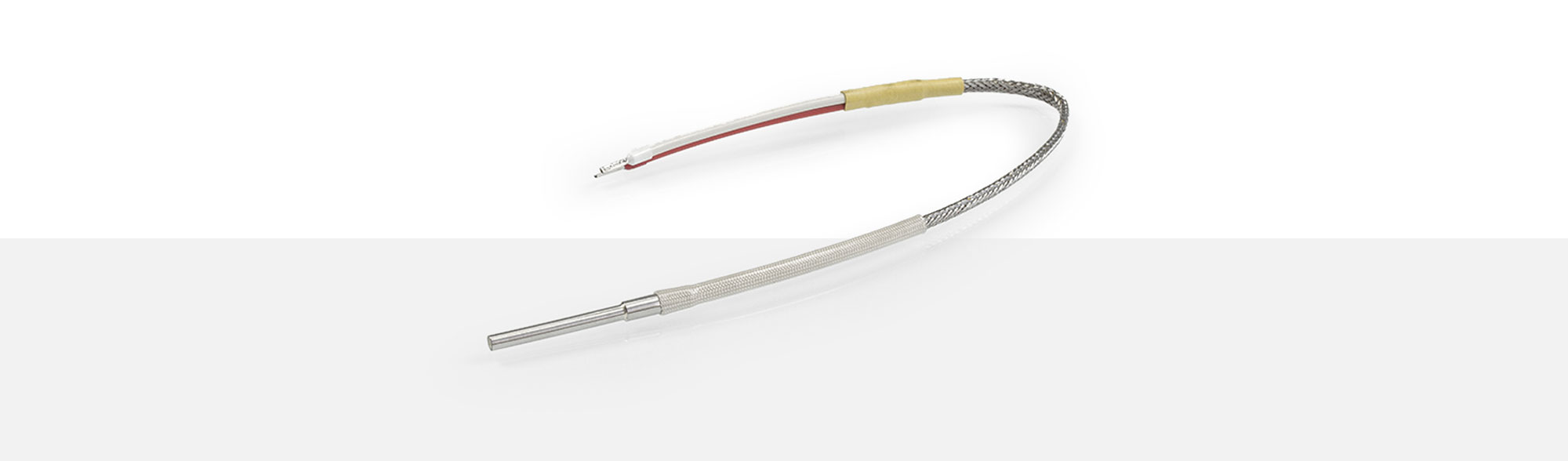

Plug-in resistance sensors are ideal for all possible application of temperature measuring. They are available as straight and right-angle design. There are clamp-screws, screws, clips and stop rings available for fitting. Springs with special-fiberglass hose and 400°C heat resistant varnish are standard. Standard leads are galvanized copper wires with PTFE and fiberglass insulation covered by stainless steel metal braid. The PWF 2 with metal braided leads and two stainless steel tube sections Ø 3.5 x 0.4 x 35 mm and Ø 4.5 x 0.5 x 15 mm. The Ø 4.5 mm tube serves as metal braided leads strain relief.  PWF 2 is as well in other fitting depths available.

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • two-wire circuit as standard design
  • operating temperature: up to 260 °C
  • isolated
  • sensor tip:
    Ø 3.5 x 30 mm immersion depth
  • 60 mm fiberglass hose as standard anti-kink protection - 400°C heat resistant varnish
  • up to 260°C
    operating temperature
  • Ø 3.5x30mm
    sensor tip
  • 60 mm fiberglass
    anti-kink protection

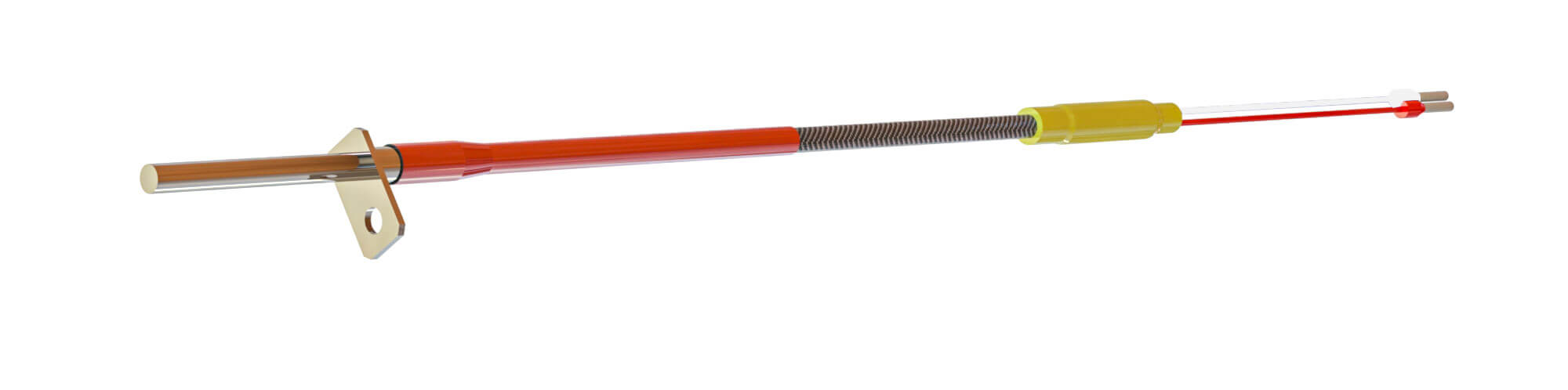

PWF 2 plug-in sensor

Please find following our standard leads for PWF 2 Resistance sensors listed. Others are available on request.

part# cross section temperature range outer dimension
1298296 2x0.22 mm²
Cu-tinned
-50 °C up to +260 °C 3.80 ±0.05 mm

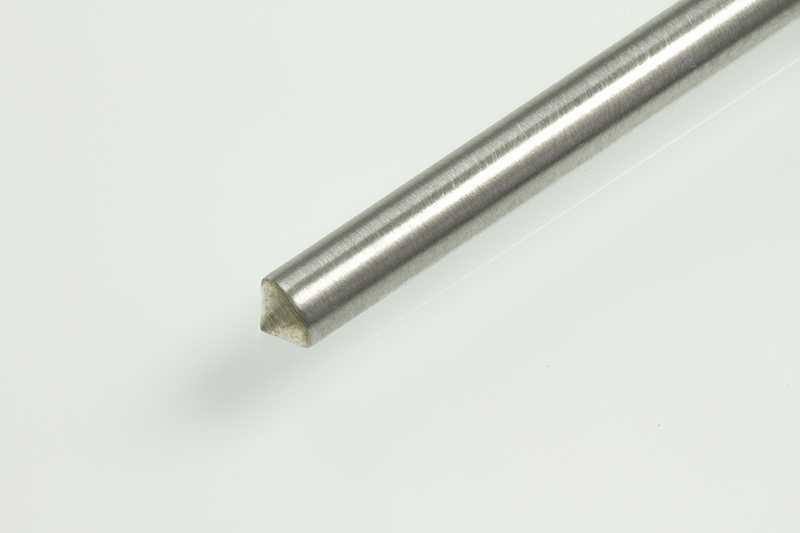

Sensor tips

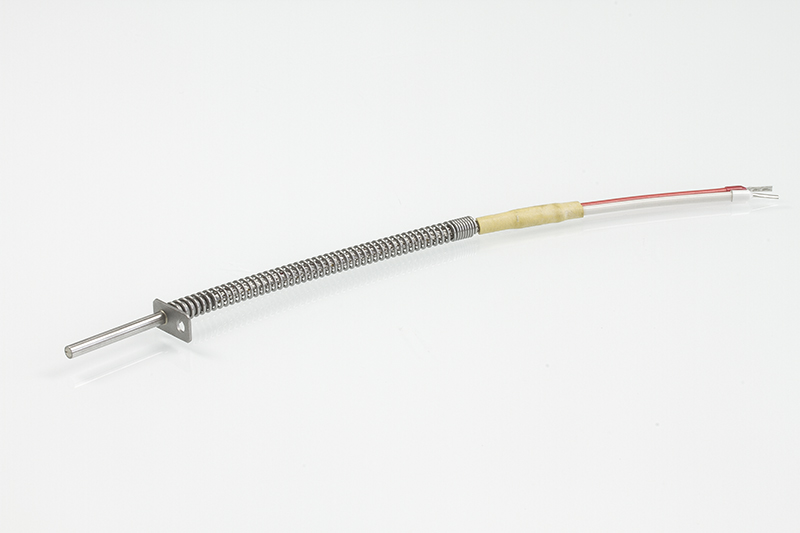

Fastening plate

Fastening plate

part# 1250043
dimension 8 x 15 mm
thickness 1 mm
boreholes 1 x Ø 3,5 mm
1 x Ø 3,3 mm
hole distances 7,5 mm
edges bevelled
material stainless steel

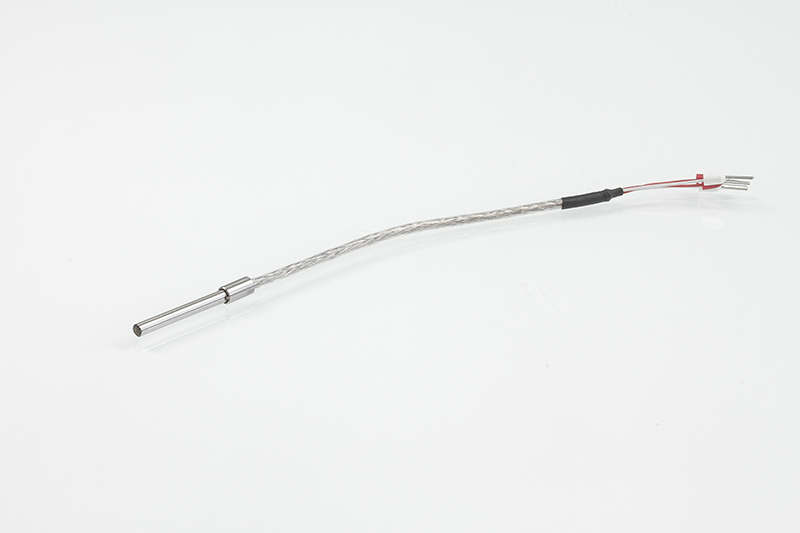

design examples

    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    2-pin plug T3260 part# 1201415



    4-pin plug T3200 part# 1103624
      socket T3301 part# 1200723

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
