Melt Resistance Probes

MWF 116

APPLICATION

Melt probes are designed for the usage at extrusion sides. Sword shaped, conical and plane measure tips allow a good temperature recording. Accordingly to the thread melt probes can be screwed at standard holes of the extruder. It is to select between single and double thermocouple and isolated or not isolated design. There is no justification of the conical sensor tip at the flow direction required. The standard length of the sensor tip is 15 mm, other lengths are available. The passage of the sensor and the leads is strain relieved and with Ø 8 x 65 mm anti-kink protection spring. The sensor parts are out of own production and manufactured on ultra-modern CNC-machinery.

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • operating temperature: up to 600 °C at sensor tip
  • isolated
  • standard two-wire circuit
  • M18x1.5 screw-in thread
  • conical sensor tip
  • conical
    sensor tip
  • M18x1.5mm
    screw-in thread
  • 2 wire circuit
    standard - opt. 3 wire circuit

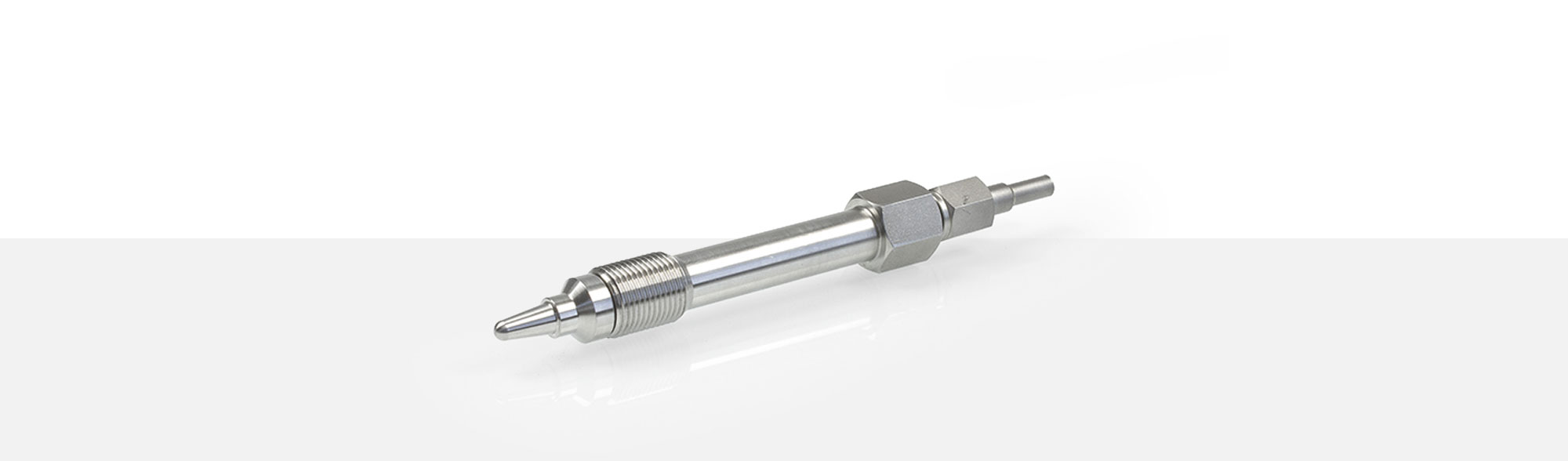

MWF 116 Melt Probe

Please find following our standard leads for MWF 116 Resistance sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1201354 2x0,35 mm²
Cu-nickel plated
-50 °C until +260 °C 4.6 x 2.8 mm
1340642 3x0,25 mm²
Cu-tinned
-60 °C until +260 °C 3.40 ±0.15 mm
1266897 4x0,18 mm²
Cu-nickel plated
-50 °C until +260 °C 3.90 ±0.15 mm
1307789 4x0,22 mm²
Cu-tinned
-50 °C until +350 °C 4.00 ±0.15 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 A# 1200716
      socket T3201 A# 1200721





    2-pin plug T3260 A# 1201415



    4-pin plug T3200 A# 1103624
      socket T3301 A# 1200723

    Resistance Sensor plug connectors

    The standard plug connectors are due to their construction reverse-polarity protected and up to 120 °C temperature stable. The round U type contact pins are out of copper (plus pin Ø 4 mm - minus pin Ø 4.7 mm). The plug is white and suitable for cross sections up to 1 mm². We recommend to assemble a strain relief with the plug and socket. This avoids the relieve of the leads from the plug. A brass ferrule will be provided, please state lead diameter.

    2-pin plug A# 1200716
      socket A# 1200721
      ferrule A# 2211002





    3-pin plug A# 1201415
      socket A# 2211012
      ferrule A# 2211019
