Melt Resistance Probes

MWF 119

APPLICATION

Melt probes are designed for the usage at extrusion sides. Sword shaped, conical and plane measure tips allow a good temperature recording. Accordingly to the thread melt probes can be screwed at standard holes of the extruder. It is to select between single and double thermocouple and isolated or not isolated design. There is no justification of the conical sensor tip at the flow direction required. To increase the endurance of the MWF 119 the cone is hard chrome plated. With M4x5 mm earth bold at holding hexagon nut with 27 mm key size. The D-LA connection head is standard with this design. The sensor parts are out of own production and manufactured on ultra-modern CNC-machinery.

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • operating temperature: up to 600 °C at sensor tip
  • isolated
  • standard two-wire circuit
  • M14x1.5 screw-in thread
  • D-LA connection head
  • Form DL-A
    connection head
  • M14x1.5mm
    screw-in thread
  • Cone
    hard Chrome plated

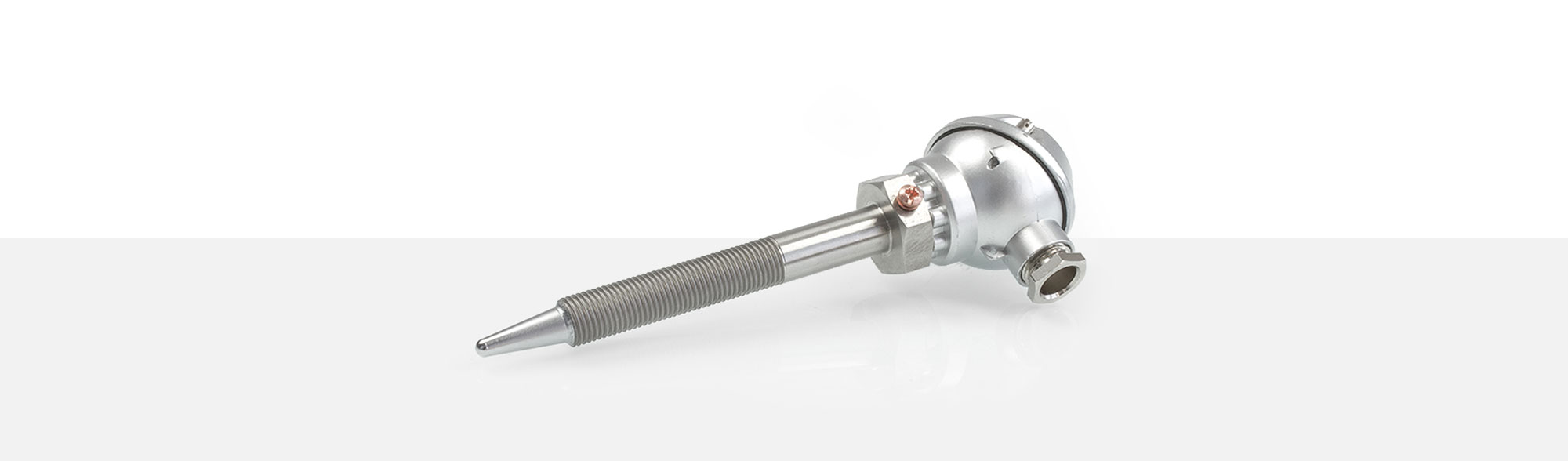

MWF 119 Melt Probe

Please find following our standard leads for MWF 119 Resistance sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1308376 2x0.22 mm²
Cu-tinned
-50 °C until +350 °C 3.50 ±0.15 mm
1298296 2x0.22 mm²
Cu-tinned
-50 °C until +260 °C 3.80 ±0.05 mm
1258824 2x0.25 mm²
Cu-tinned
-50 °C until +260 °C 3.30 ±0.10 mm
1201354 2x0.35 mm²
Cu-nickel plated
-50 °C until +260 °C 4.6 x 2.8 mm
1201352 2x0.38 mm²
Cu-nickel plated
-50 °C until +260 °C 3.45 x 1.95 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C until +260 °C 3.40 ±0.15 mm
1266897 4x0.18 mm²
Cu-nickel plated
-50 °C until +260 °C 3.90 ±0.15 mm
1307789 4x0.22 mm²
Cu-tinned
-50 °C until +350 °C 4.00 ±0.15 mm
1300580 4x0.22 mm²
Cu-tinned
-90 °C until +260 °C 3.50 ±0.10 mm
1307865 4x0.25 mm²
Cu-tinned
-25 °C until +180 °C 4.50 ±0.15 mm
