Accessories

Connection flanges

APPLICATIONS

Connection flanges, counter flanges or screw sockets are used for easy installation of Thermocouples and Resistance Sensors. Connection flanges can be fixed variable on the sensor tube. Screw sockets are screwed with their connecting thread. The ceramic sealing cord is gas-tight to 1 bar.

for 15 mm protection tube diameters
counter flange: out of grey iron sliding
screw socket: out of steel or anti-rust steel sliding
ceramic sealing

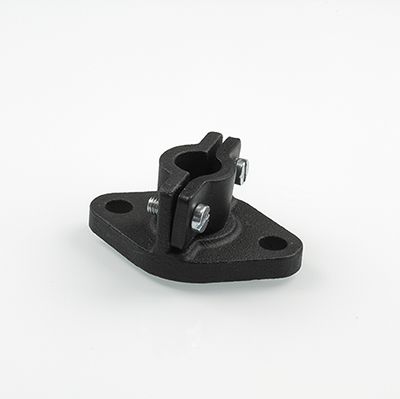

Connection flange

counter flange out of grey iron

for 15 mm protection tube diameter
part# 2211309

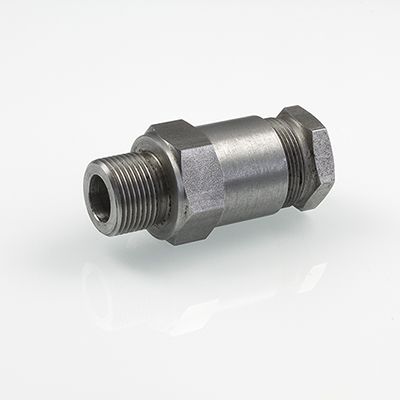

Screw socket

Shiftable out of steel or rust-free steel, ceramic braid sealing, gas thight up to approx. 1 bar

with thread for 15 mm protection tube diameter:
G 1/2 A	part# 2211306
G 3/4 A	part# 2211307
G 1 A	part# 2211308
1.0305 material

markerProductAnimation

Downloads

Temperature-Sensors-stock-program.pdf (120.8 KiB)
