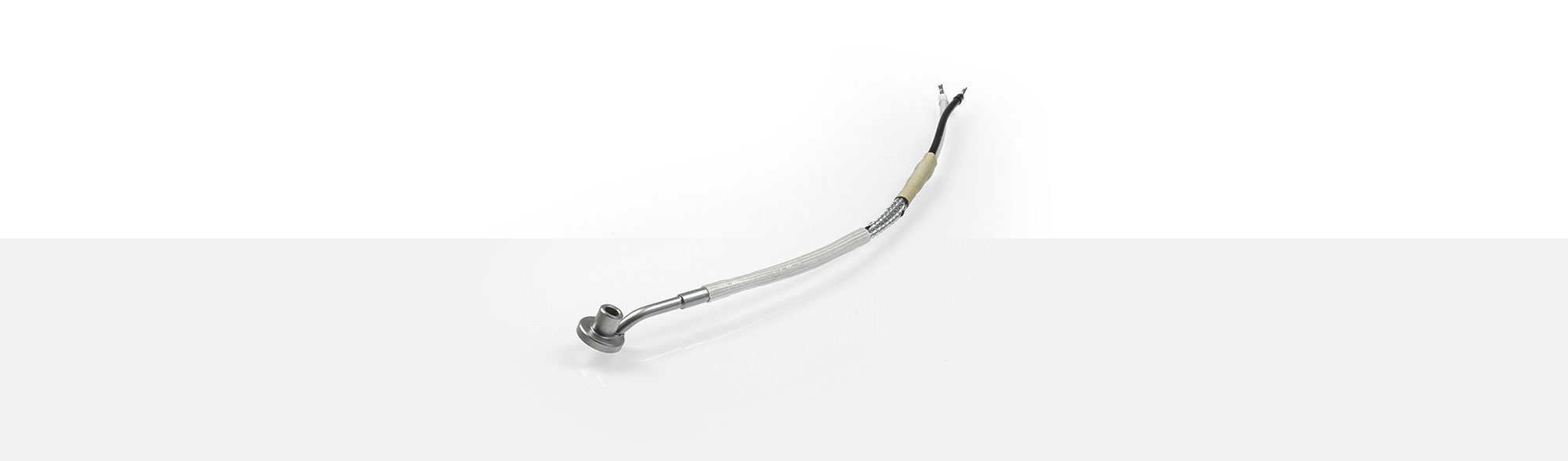

Surface Mounting/Tool Sensors

TEF 13

APPLICATIONS

Surface Mounting/Tool Sensors are for measuring round or plane surfaces. There is an Ø 3.5 mm hole between the TEF 13 sensor ring and Ø 7 mm holding shaft where the Ø 3.5 x 30 mm thermocouple is inserted and soldered. The measure surface is grinded plane. A M4 screw serves as central fastening. The passage of compensating wire and protection tube is 7 mm conical strain relieved. Anti-kink protections are selectable.  Ø 6 x 100 mm springs or special fiberglass hose with heat resistant varnish are standard.

  • operating temperature: up to 400 °C
  • sensor ring: Ø 14 / 7 x 3 / 10 mm
  • isolated or non-isolated
  • 60 mm fiberglass hose as standard anti-kink protection
  • up to 400°C
    operating temperature
  • 60mm fibreglass
    anti-kink protection
  • Ø 14/7 x 3/10 mm
    sensor ring

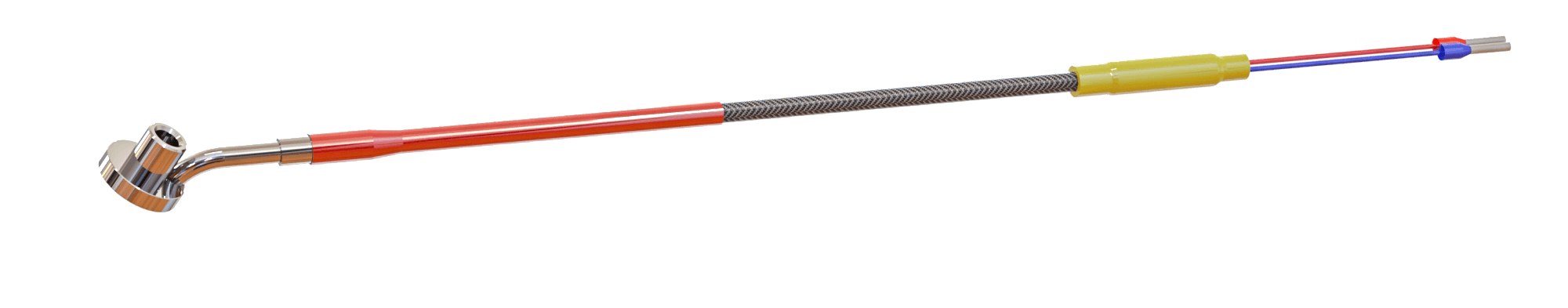

TEF 13 Surface Mounting/Tool Sensors

Please find following our standard thermo and compensating wires for TEF 13 thermocouples listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
1200455 2x0,22 mm² -50 °C up to +400 °C approx. 3,40 mm
1307289 2x0,22 mm² -40 °C up to +180 °C 4,00 mm ± 0,10 mm



Fe-CuNi type J

part# cross section temperature range outer diameter
1222528 2x0,35 mm² -50 °C up to +400 °C approx. 3,40 mm
2239028 2x0,35 mm² -40 °C up to +180 °C approx. 3,40 mm

NiCr-Ni type K

part# cross section temperature range outer diameter
1200471 2x0,50 mm² -50 °C up to +400 °C approx. 3,50 mm



    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    2-pin plug T3260 part# 1201415



    4-pin plug T3200 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3260 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Thermocouple plug connectors

    J type plug A9.1 part# 1107127
      socket A10.1 part# 1107128
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299





    K type plug A9.2 part# 1209136
      socket A10.2 part# 1209141
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
