Plug-in Sensors

TEF 2

APPLICATIONS

Plug-in sensors are ideal for all possible application of temperature measuring. They are available as straight and right-angle design. There are clamp-screws, screws, clips and stop rings available for fitting. Springs with special-fiberglass hose and 400 °C heat resistant varnish are standard. Furthermore are PVC-PFA-fiberglass thermo and compensating wires as well as fiberglass with metal braided meshing available. The TEF 2 with metal braided leads and two times Ø 4.5 x 0.5 x 15 mm stainless steel tube sections. The Ø 4.5 mm tube serves as metal braided leads strain relief.  TEF 2 is as well in other fitting depths available.

  • operating temperature: up to 400 °C
  • sensor tip:

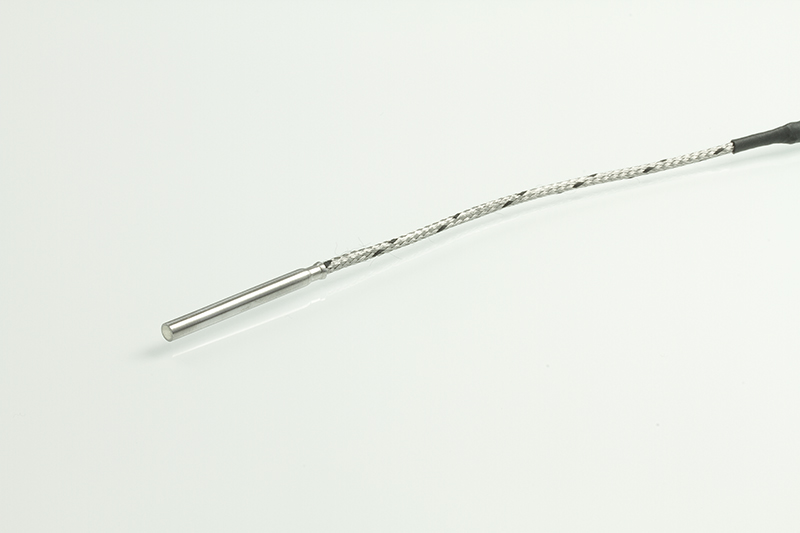

    Ø 3,5 x 30 mm Immersion depth
  • isolated or non-isolated
  • as single or double element

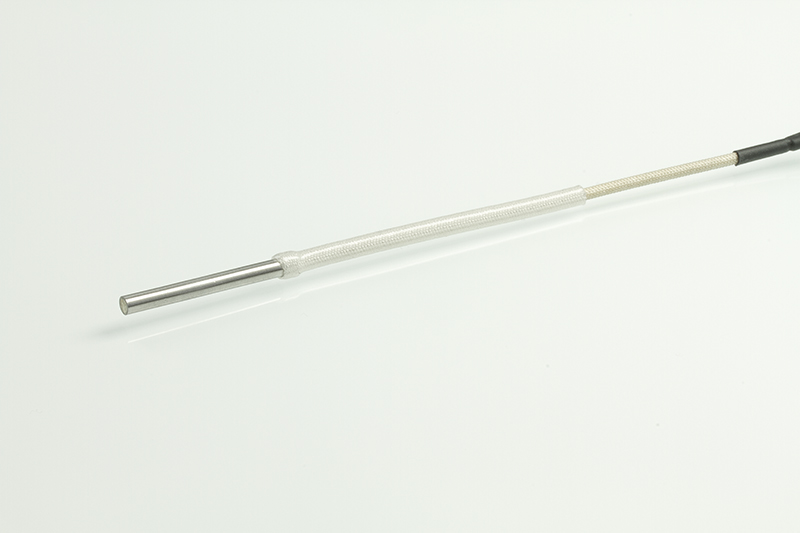

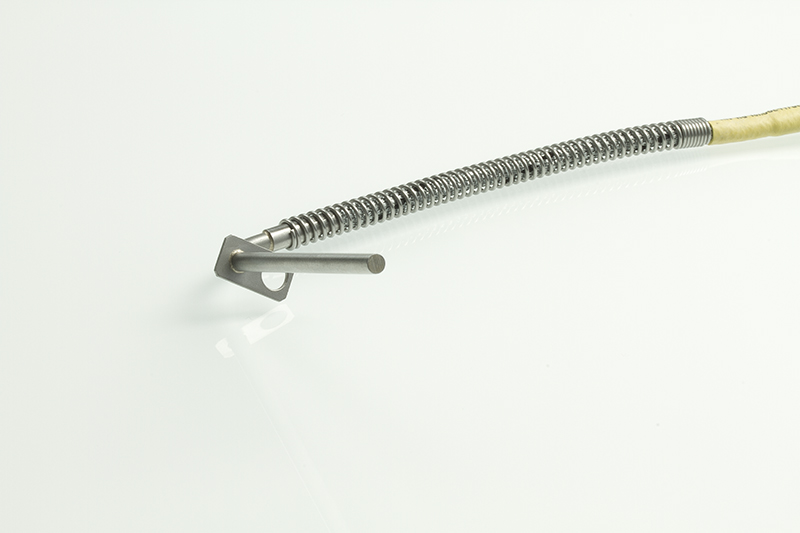

  • 60 mm fiberglass hose as standard anti-kink protection
  • up to 400°C
    operating temperature

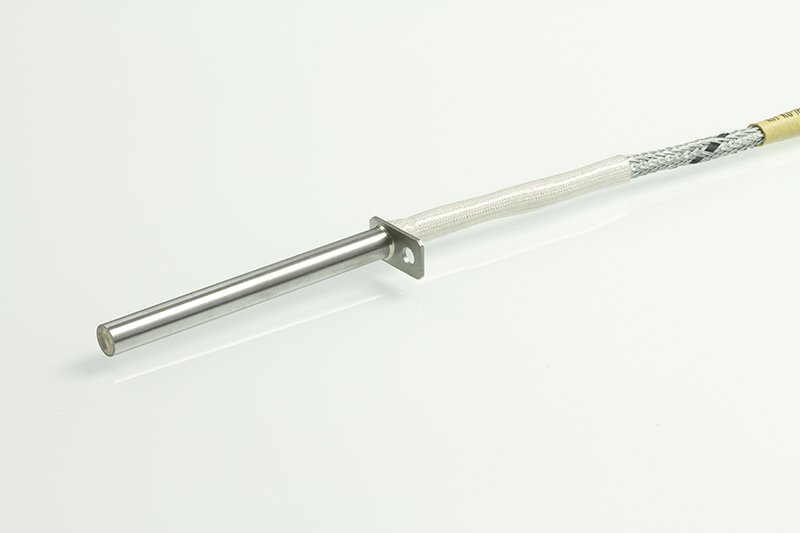

  • Ø 3.5 x 30 mm
    sensor tip
  • Ø 4.5 x 15 mm
    fastening clip

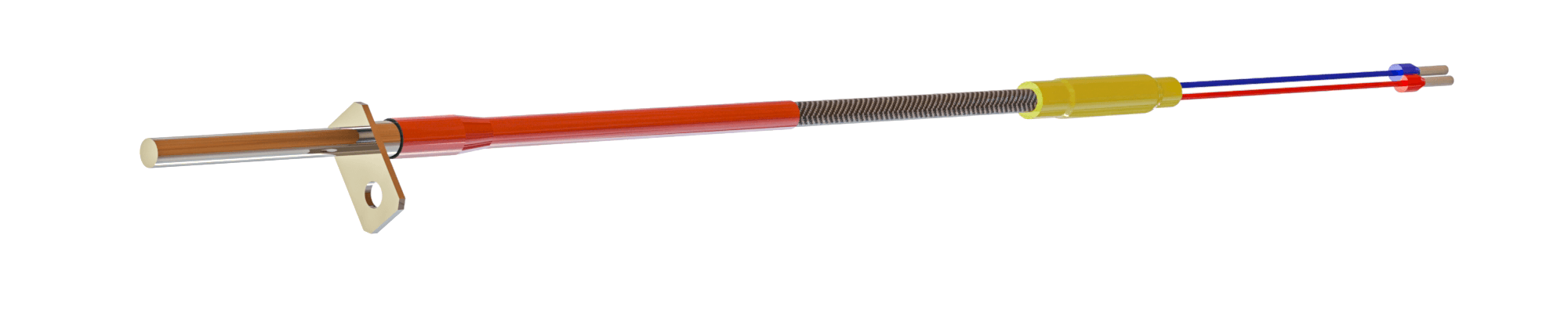

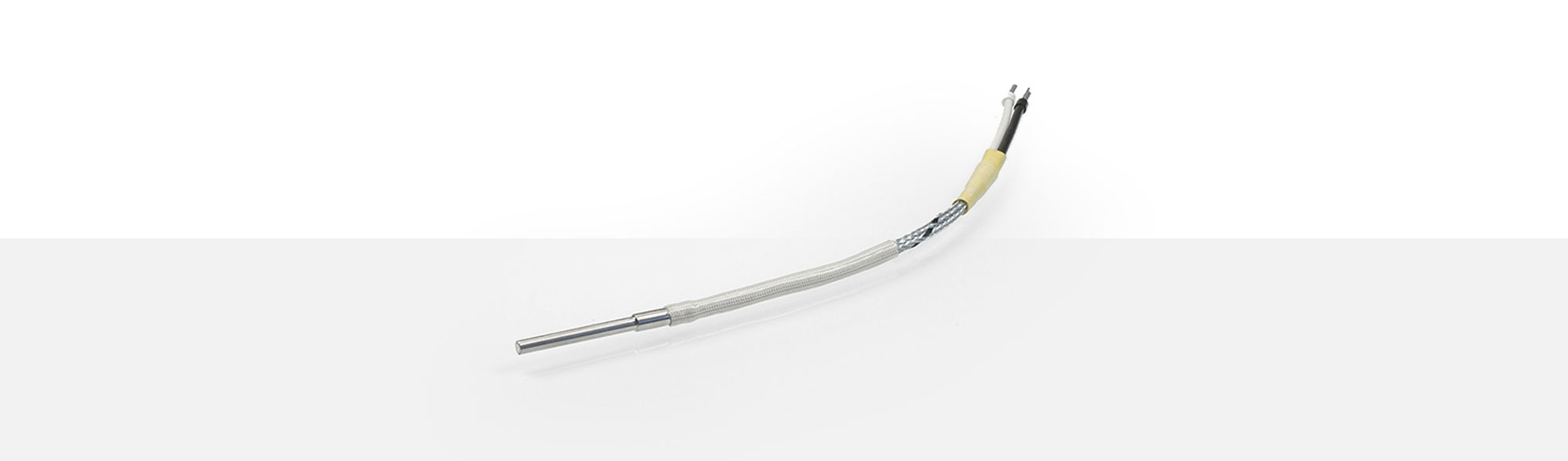

TEF 2 Plug-in Sensor

Please find following our standard thermo and compensating wires for TEF 2 thermocouples listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
1200455 2x0,22 mm² -50 °C up to +400 °C approx. 3,40 mm
1200456 4x0,22 mm² -50 °C up to +400 °C 3,80 mm max.



Fe-CuNi type J

part# cross section temperature range outer diameter
1229818 4x0,22 mm² -50 °C up to +400 °C approx. 3,60 mm
1222528 2x0,35 mm² -50 °C up to +400 °C approx. 3,60 mm
2239028 2x0,35 mm² -50 °C up to +650 °C approx. 3,40 mm

NiCr-Ni type K

part# cross section temperature range outer diameter
1298584 4x0,22 mm² -50 °C up to +400 °C 4,00 mm max.
1200471 2x0,50 mm² -50 °C up to +400 °C approx. 3,50 mm

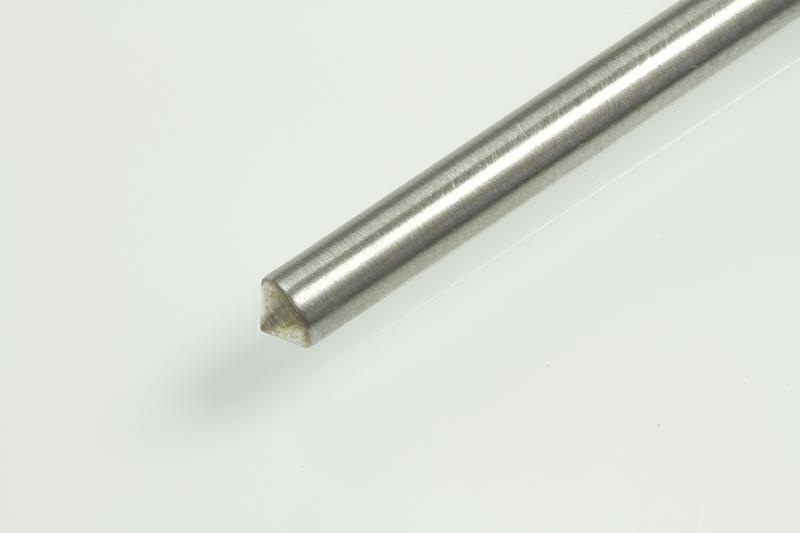

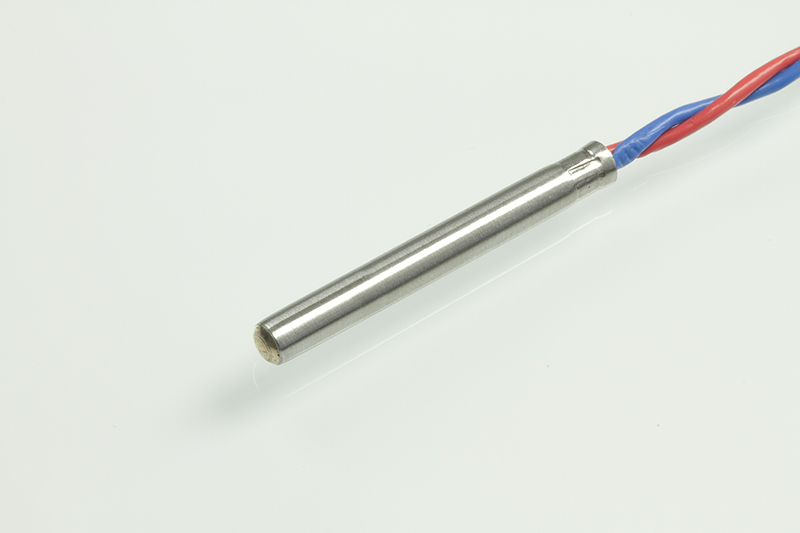

sensor tips

design examples

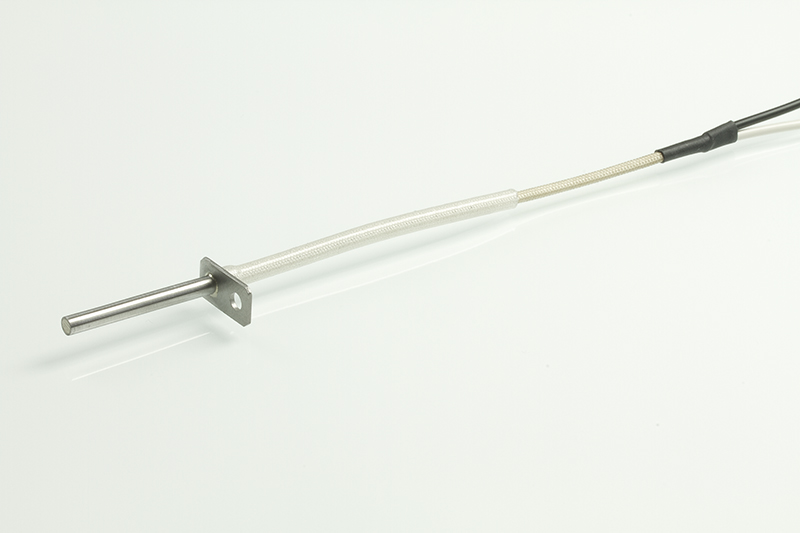

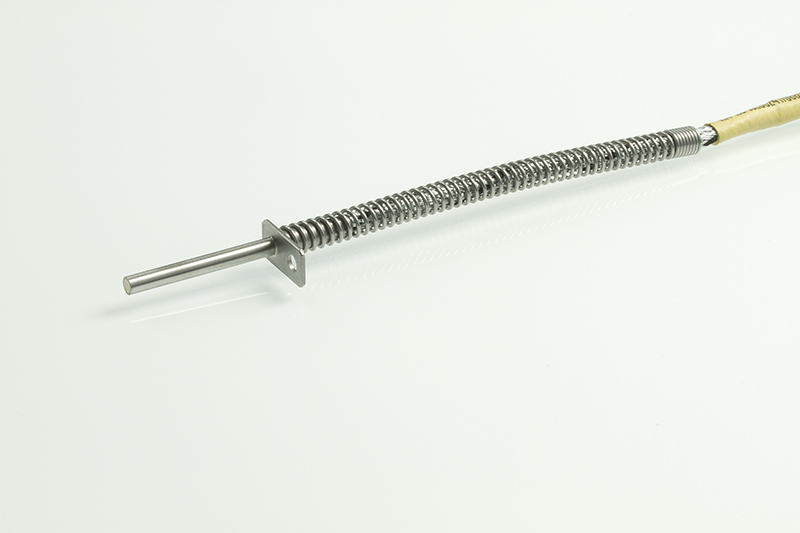

Fastening clip

Fastening clip

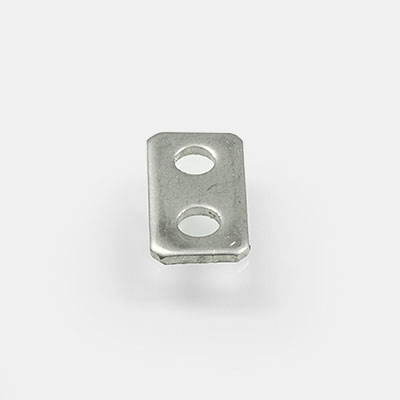

part# 1250043
dimension 8 x 15 mm
thickness 1 mm
boreholes 1 x Ø 3,5 mm
1 x Ø 3,3 mm
hole distances 7,5 mm
edges bevelled
material stainless steel

    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    2-pin plug T3260 part# 1201415



    4-pin plug T3200 part# 1103624
      socket T3301 part# 1200723

    Thermocouple plug connectors

    J type plug A9.1 part# 1107127
      socket A10.1 part# 1107128
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299

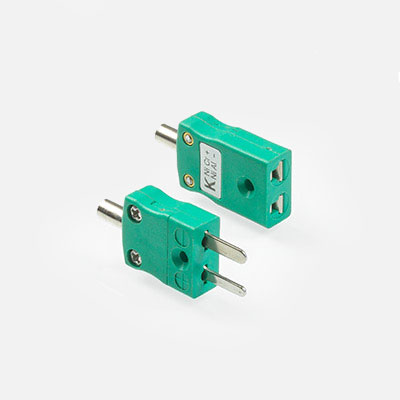

    K type plug A9.2 part# 1209136
      socket A10.2 part# 1209141
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299

    Miniature - Thermocouple plug connectors

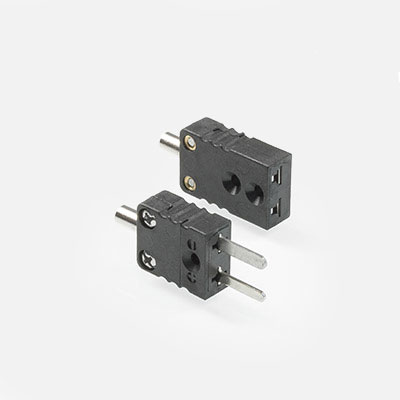

    J type mini plug A12.1 part# 1269361
      mini socket A13.1 part# 1269362
      ferrule 2x0,50 mm² part# 1269363





    K type mini plug A12.2 part# 1209147
      mini socket A13.2 part# 2104331
      ferrule   part# 1269363

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
