Melt Probe

MTF 106

APPLICATIONS

Melt probes are designed for the usage at extrusion sides. Sword shaped, conical and plane measure tips allow a good temperature recording. Accordingly to the thread melt probes can be screwed at standard holes of the extruder. The MTF 106 is with two different measure points. The first measure point is at the Ø 3 mm plane sensor tip and the second is at the conical supporting surface.  The sensor parts are out of own production and manufactured on ultra-modern CNC-machinery.

  • operating temperature: up to 400 °C
  • non-isolated
  • two different measure points
  • M12x1 thread
  • right-angle exit
  • up to 400°C
    operating temperature
  • M12x1
    thread
  • Ø 3mm
    sensor tip - flat

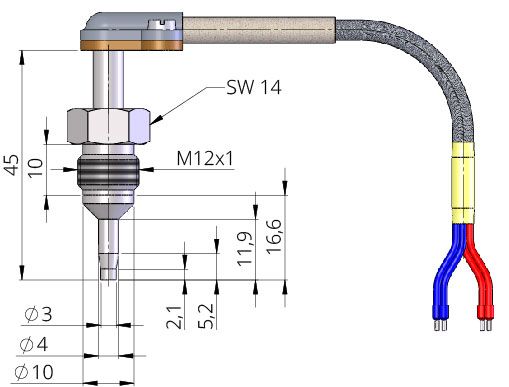

MTF 106 Melt Probe

Please find following our standard thermo and compensating wires for MTF 106 thermocouples listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
1200465 2x1.00 mm² -50 °C up to +400 °C approx. 4.50 mm



Fe-CuNi type J

part# cross section temperature range outer diameter
1229818 4x0.22 mm² -50 °C up to +400 °C approx. 3.60 mm

NiCr-Ni type K

part# cross section temperature range outer diameter
1298584 4x0,22 mm² -50 °C up to +400 °C 4,00 mm max.

    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    2-pin plug T3260 part# 1201415



    4-pin plug T3200 part# 1103624
      socket T3301 part# 1200723

    Miniature - Thermocouple plug connectors

    J type mini plug A12.1 part# 1269361
      mini socket A13.1 part# 1269362
      ferrule 2x0,50 mm² part# 1269363





    K type mini plug A12.2 part# 1209147
      mini socket A13.2 part# 2104331
      ferrule   part# 1269363
