Melt Probe

MTF 107

APPLICATION

Melt probes are designed for the usage at extrusion sides. Sword shaped, conical and plane measure tips allow a good temperature recording. Accordingly to the thread melt probes can be screwed at standard holes of the extruder.  It is to select between single and double thermocouple and isolated or not isolated design. The thermocouple plug connector is solid connected with the turned part. The sensor parts are out of own production and manufactured on ultra-modern CNC-machinery.

  • operating temperature: up to 600 °C
  • isolated or non-isolated
  • single or double thermocouple
  • ½” UNF- 20 screw-in thread
  • plane measure surface
  • with thermocouple plug connector
  • up to 600°C
    operating temperature

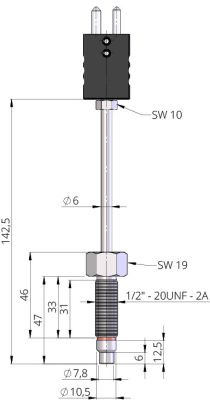

  • 1/2" -UNF-2A
    screw-in thread

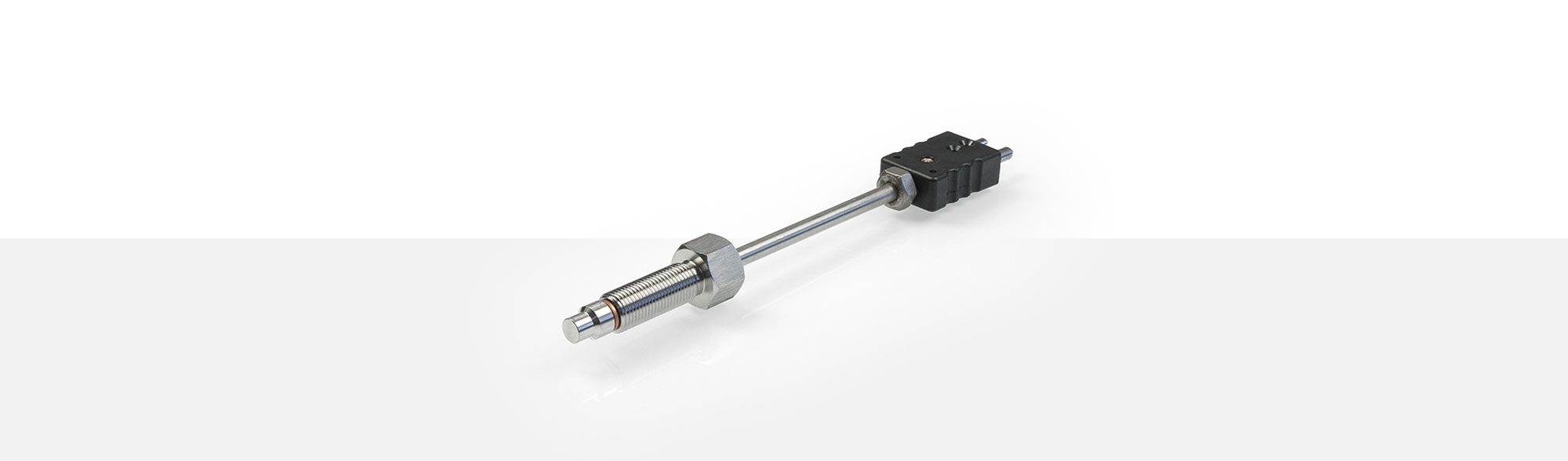

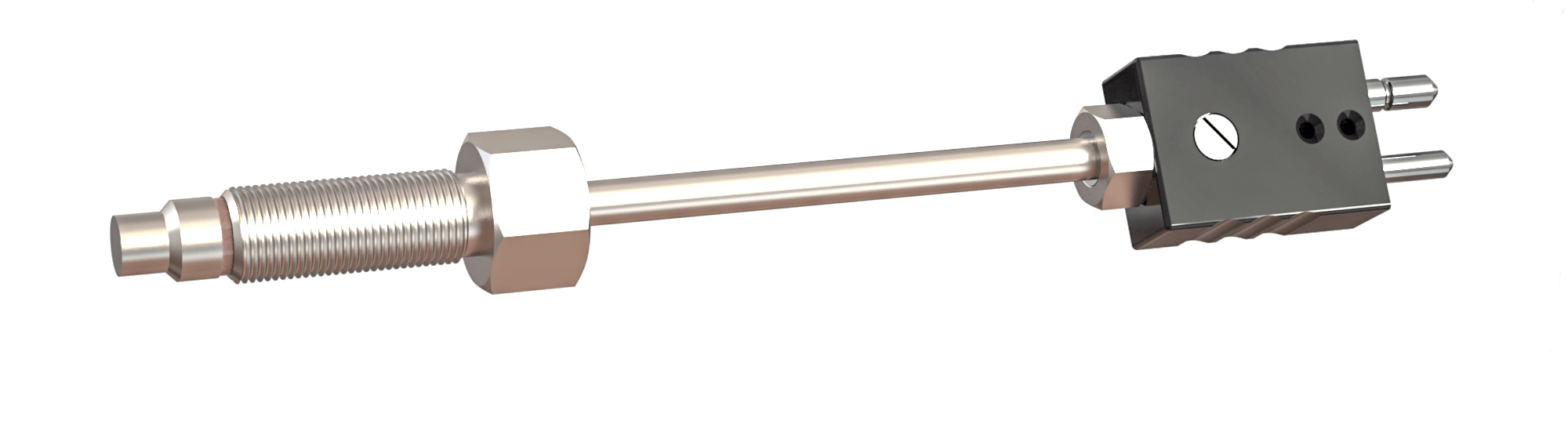

MTF 107 Melt Probe

    Thermocouple plug connectors

    J type plug A9.1 A# 1107127
      socket A10.1 A# 1107128
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299





    J type plug A9.2 A# 1107127
      socket A10.2 A# 1107128
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299

    Duplex - Thermocouple plug connectors

    J type duplex plug   A# 1209139
      duplex socket   A# 1209144
      strain relief 2x1,00 mm² A# 1349298
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299





    J type duplex plug   A# 2105264
      duplex socket   A# 1302891
      strain relief 2x1,00 mm² A# 1349298
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299
