Melt Probe

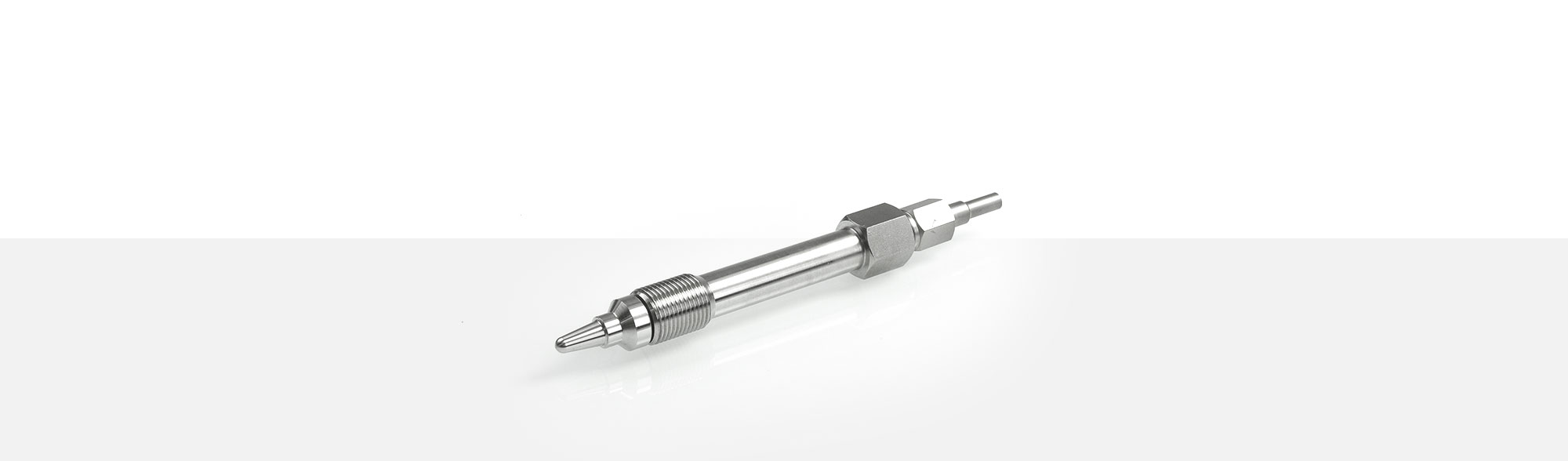

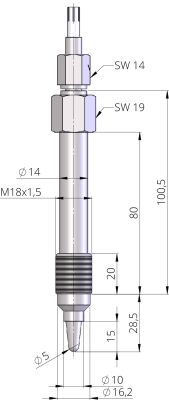

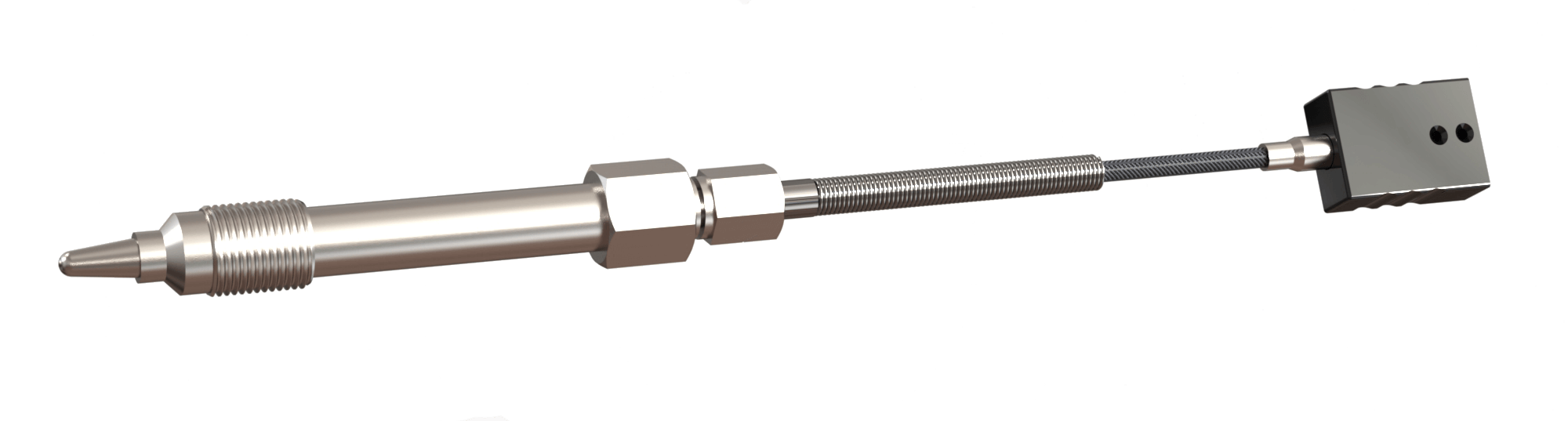

MTF 116 Melt Probe

APPLICATION

Melt probes are designed for the usage at extrusion sides. Sword shaped, conical and plane measure tips allow a good temperature recording. Accordingly to the thread melt probes can be screwed at standard holes of the extruder. It is to select between single and double thermocouple and isolated or not isolated design. There is no justification of the conical sensor tip at the flow direction required. The standard length of the sensor tip is 15 mm, other lengths are available. The passage of the sensor and the leads is strain relieved and with Ø 8 x 65 mm anti-kink protection spring. The sensor parts are out of own production and manufactured on ultra-modern CNC-machinery.

  • operating temperature:
    up to 600 °C at measure tip
  • isolated or non-isolated
  • single or double thermocouple
  • M18x1.5 screw-in thread
  • conical sensor tip
  • up to 600°C
    operating temperature
  • M18x1.5
    screw-in thread
  • Ø 8x65 mm
    anti-kink protection

MTF 116 Melt Probe

    Miniature - round plugs with screw connection

    2-pin plug T3200 A# 1200716
      socket T3201 A# 1200721





    2-pin plug T3260 A# 1201415



    4-pin plug T3200 A# 1103624
      socket T3301 A# 1200723

    Round plugs with screw connection

    3-pin plug T3079 A# 1103631
      socket T3080 A# 1200749





    5-pin plug T3260 A# 1103635
      socket T3084 A# 1200750



    3-pin plug T3008 A# 1103627





    5-pin plug T3012 A# 1119173



    Thermocouple plug connectors

    J type plug A9.1 A# 1107127
      socket A10.1 A# 1107128
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299





    J type plug A9.2 A# 1107127
      socket A10.2 A# 1107128
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299

    Duplex - Thermocouple plug connectors

    J type duplex plug   A# 1209139
      duplex socket   A# 1209144
      strain relief 2x1,00 mm² A# 1349298
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299





    J type duplex plug   A# 2105264
      duplex socket   A# 1302891
      strain relief 2x1,00 mm² A# 1349298
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard scoket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
