Special Sensors

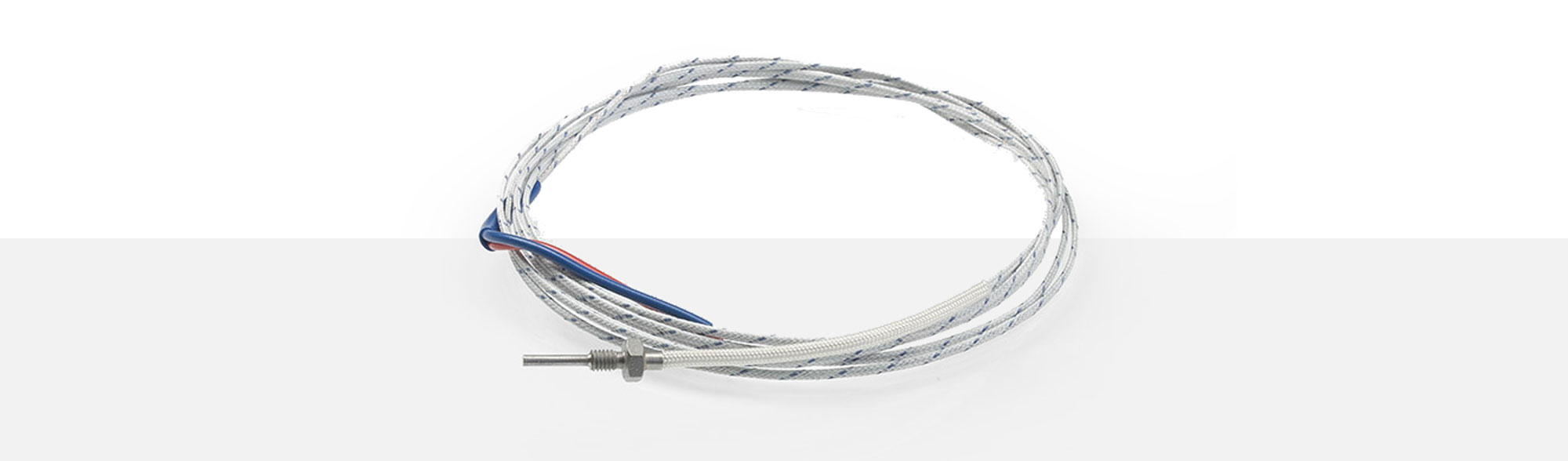

TEF 31

APPLICATIONS

The here listed thermocouples are mainly customized designs. If you have any queries regarding temperature recording we are more than happy to assist you here. We manufacture form single items up to high volume. Ask us for your temperature sensor!

Screw-in thermocouples are very suitable for surface measurements. They are screwed direct into the component and are available in various diameters and thread sizes. The small TEF 31 sensor diameter offers a fast reaction. The TEF 31 has a 7 mm key size and is therefore easily to screw into the component.

  • operating temperature: up to 250 °C
  • sensor tip:
    Ø 2 x 10 mm
  • with M4 x 6 thread, 7 mm key size
  • non-isolated
  • single thermocouple
  • up to 250°C
    operating temperature
  • Ø 2x10 mm
    sensor tip
  • M4x6 mm
    thread

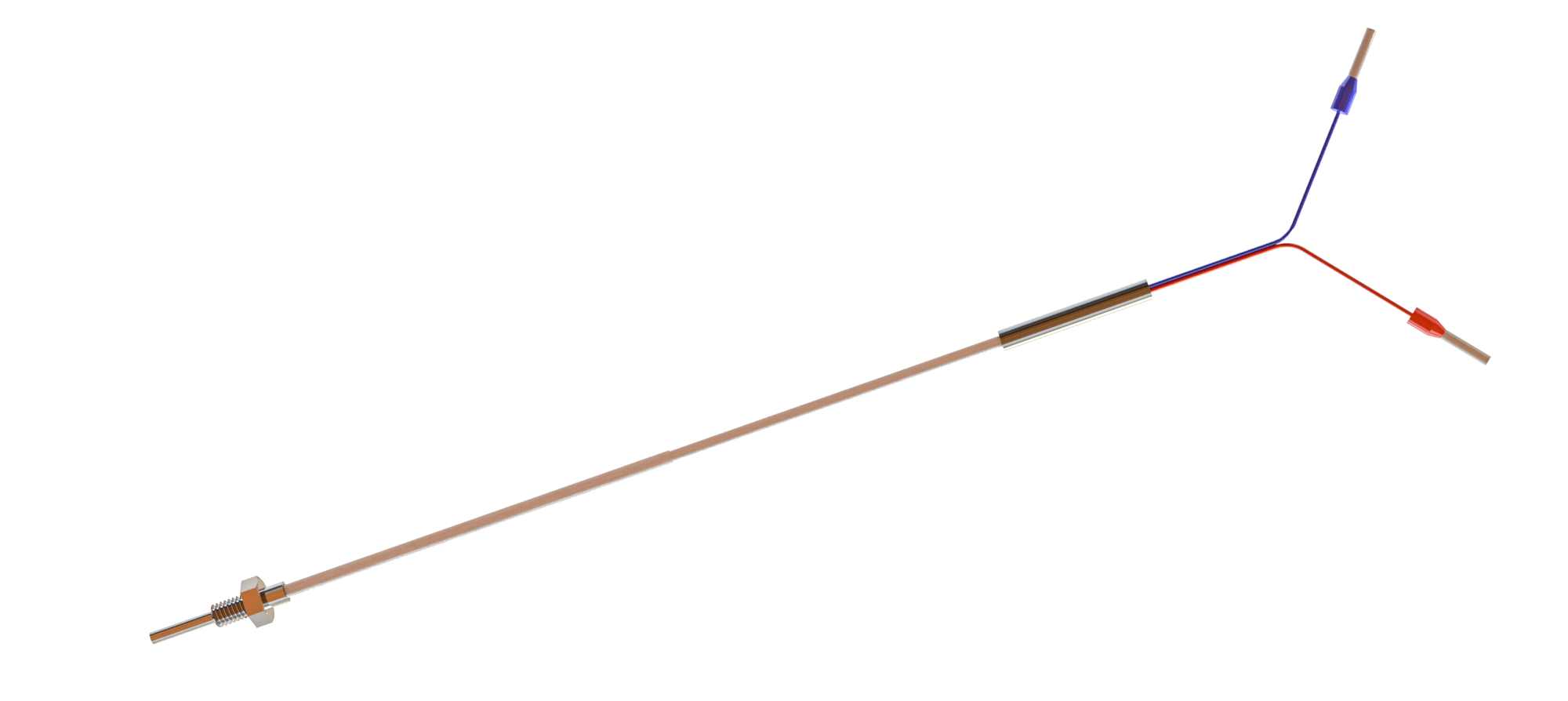

TEF 31 Special Sensor

Please find following our standard thermo and compensating wires for TEF 31 thermocouples listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
1200458 2x0.5 mm² up to +250 °C max. 2,0 x 1,2 mm

Fe-CuNi type J

part# cross section temperature range outer diameter
2113765 2x0.22 mm² up to +400 °C max. approx. 1,9 x 1,3 mm

NiCr-Ni type K

part# cross section temperature range outer diameter
1200472 2x0.50 mm² -40 °C up to +400 °C 2.0 x 1.2 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    2-pin plug T3260 part# 1201415



    4-pin plug T3200 part# 1103624
      socket T3301 part# 1200723

    Miniature - Thermocouple plug connectors

    J type mini plug A12.1 part# 1269361
      mini socket A13.1 part# 1269362
      ferrule 2x0,50 mm² part# 1269363





    K type mini plug A12.2 part# 1209147
      mini socket A13.2 part# 2104331
      ferrule   part# 1269363

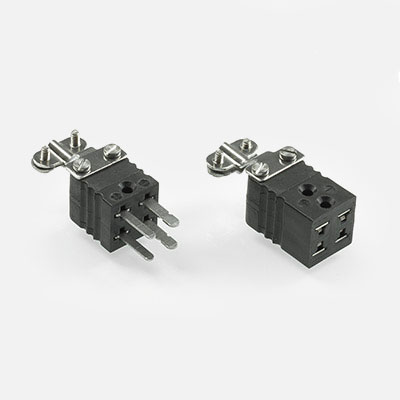

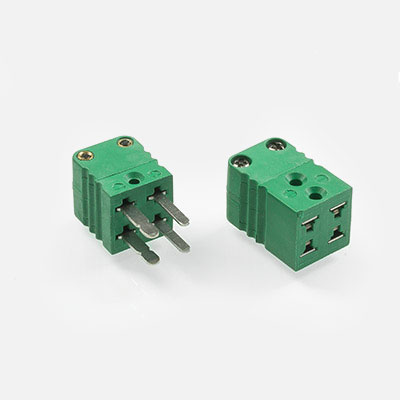

    Miniature Duplex - Thermocouple plug connectors

    J type duplex mini plug part# 2105183
      duplex mini socket part# 1209140
      ferrule part# 1269363





    K type duplex mini plug part# 2105186
      duplex mini socket part# 2105188
      ferrule part# 1269363

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
