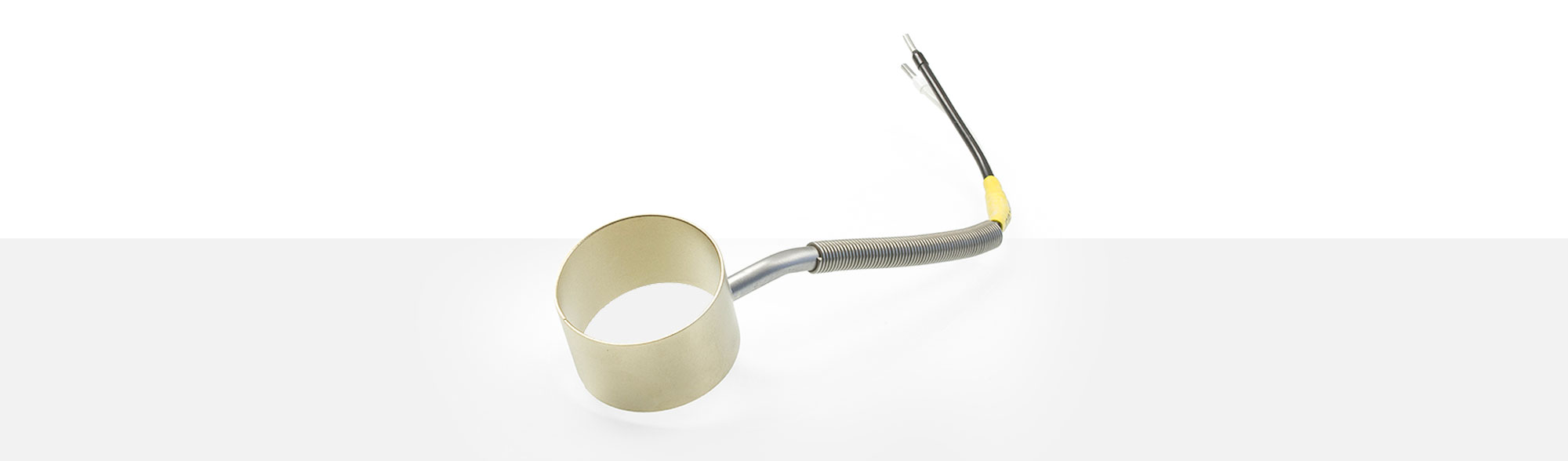

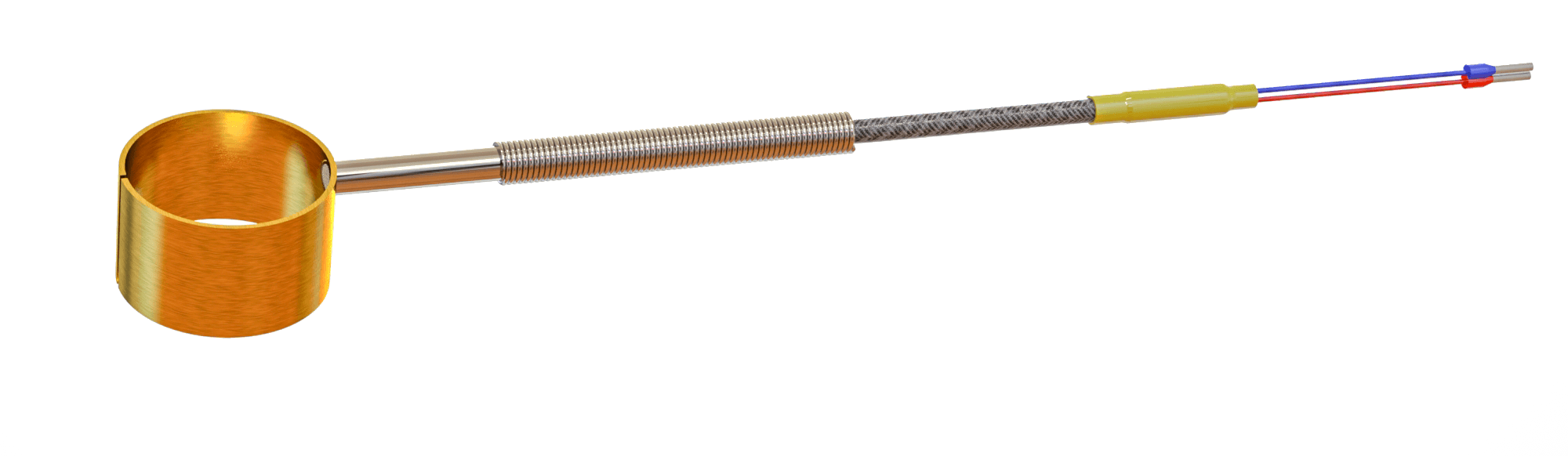

Surface Sensor

TEF 19

APPLICATION

TEF 19 thermocouple is suitable as shimming sensor from small Band Heaters. With the inferior of the brass baffle plate the clamp slot of the Band Heater will be enlarged for the sensor. Please indicate the diameter and width of the Band Heater when ordering. Next to the standard designs of the protection tube are much more customized variations possible. Standard exit directions:

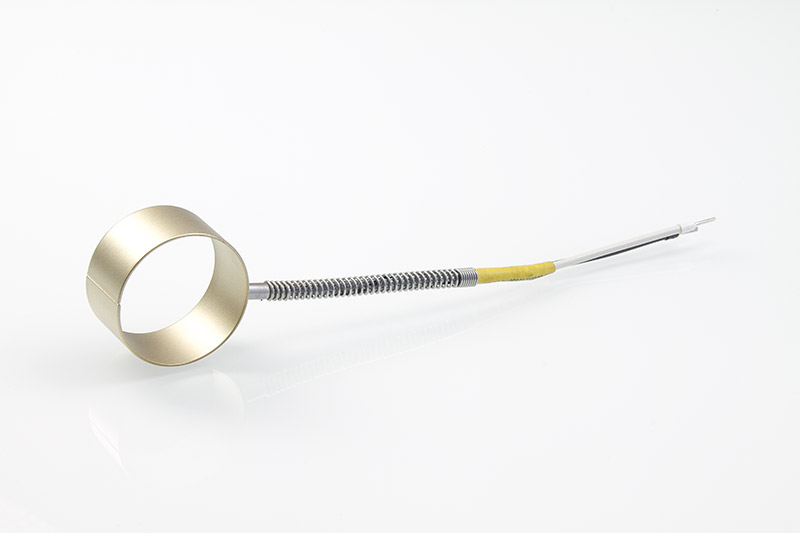

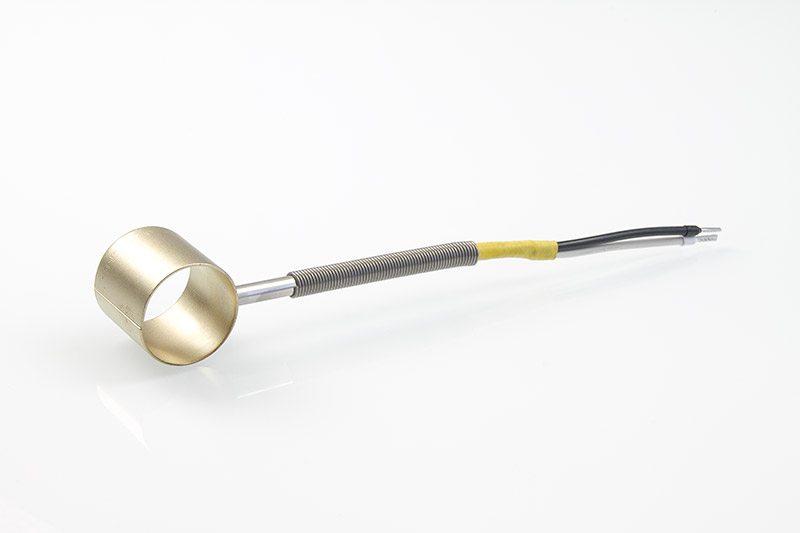

  • radial code no. T19-0006

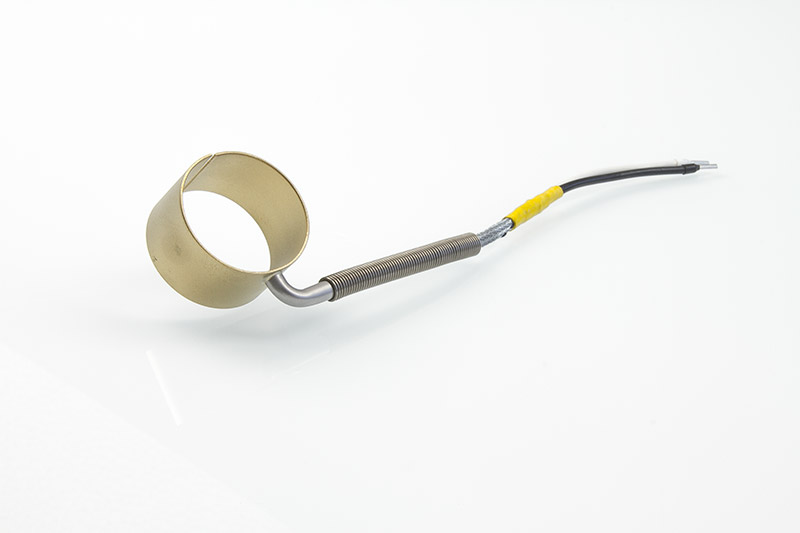

  • tangential code no. T 19-0024

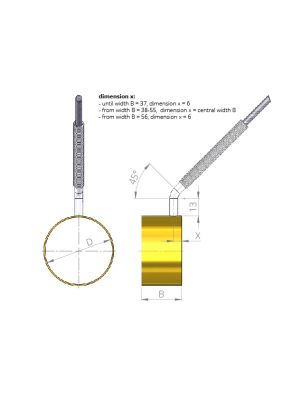

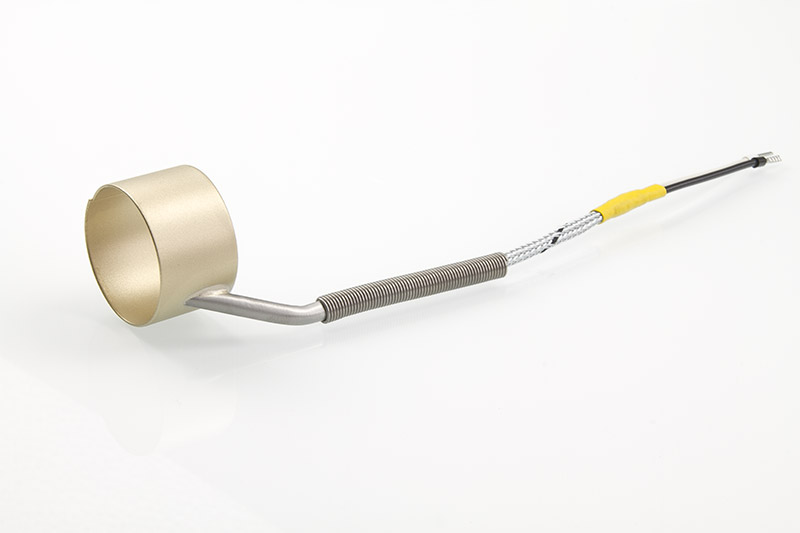

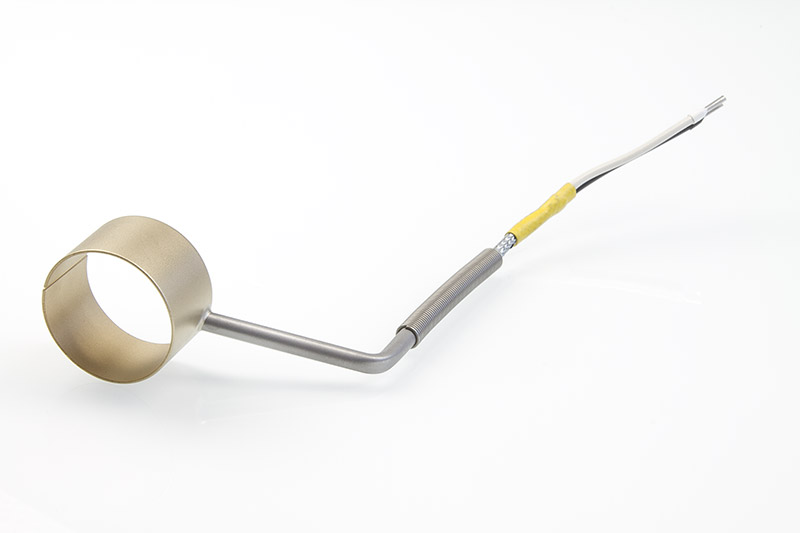

  • axial 45° code no. T19-002

The TEF 19 sensor tube is Ø 6 x 40 mm long. The passage of the sensor tube to the compensating wire is strain relieved and with a Ø 8 x 65 mm anti-kink protection spring.

  • operating temperature: up to 400 °C
  • isolated or non-isolated
  • single or double thermocouple
  • Ø 8 x 65 mm anti-kink protection spring
  • 1 mm brass baffle plate
  • up to 400°C
    operating temperature
  • Ø 8 x 65 mm
    anti-kink protection
  • ca. 1 mm
    brass baffle plate

TEF 19 Surface Sensors

Please find following our standard thermo and compensating wires for TEF 19 thermocouples listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
1200455 2x0.22 mm² -50 °C until +400 °C ca. 3.40 mm
1200456 4x0.22 mm² -50 °C until +400 °C 3.80 mm max.
1200464 2x1.00 mm² -50 °C until +400 °C ca. 4.50 mm
1200465 2x1.00 mm² -50 °C until +400 °C ca. 4.50 mm
1256523 2x1.00 mm² -50°C until +500 °C ca. 4.50 x 2.60 mm

Fe-CuNi type J

part# cross section temperature range outer diameter
1229818 4x0.22 mm² -50 °C until +400 °C ca. 3.60 mm
1231037 2x0.50 mm² -50 °C until +400 °C ca. 3.90 mm
1201349 2x1.00 mm² -50 °C until +400 °C 4.60 mm max.

NiCr-Ni type K

part# cross section temperature range outer diameter
1298584 4x0.22 mm² -50 °C until +400 °C 4.00 mm max.
1200471 2x0.50 mm² -50 °C until +400 °C ca. 3.50 mm
1200473 2x1.00 mm² -50 °C until +400 °C ca. 4.50 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 A# 1200716
      socket T3201 A# 1200721





    2-pin plug T3260 A# 1201415



    4-pin plug T3200 A# 1103624
      socket T3301 A# 1200723

    Round plugs with screw connection

    3-pin plug T3079 A# 1103631
      socket T3080 A# 1200749





    5-pin plug T3260 A# 1103635
      socket T3084 A# 1200750



    3-pin plug T3008 A# 1103627





    5-pin plug T3012 A# 1119173







    J type plug A9.2 A# 1107127
      socket A10.2 A# 1107128
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard scoket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2

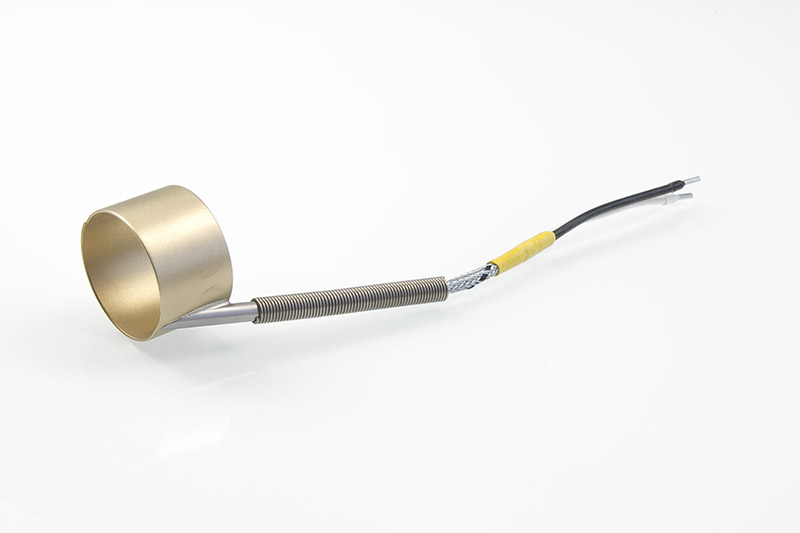

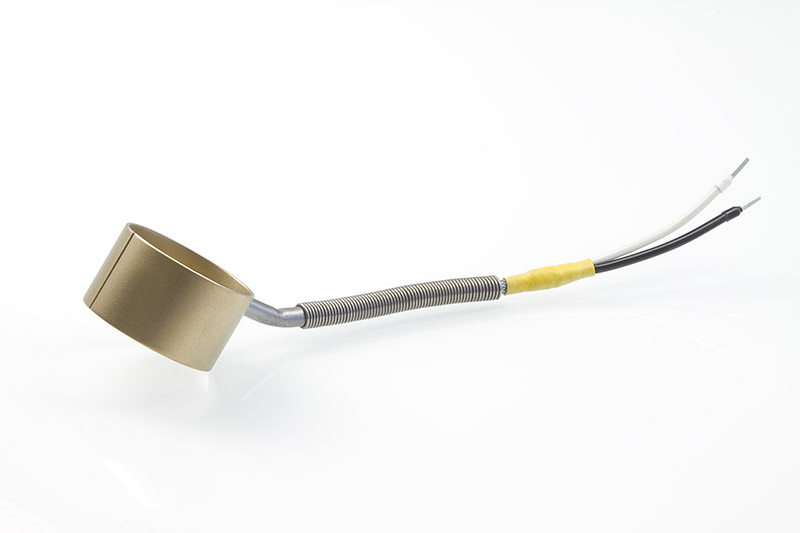

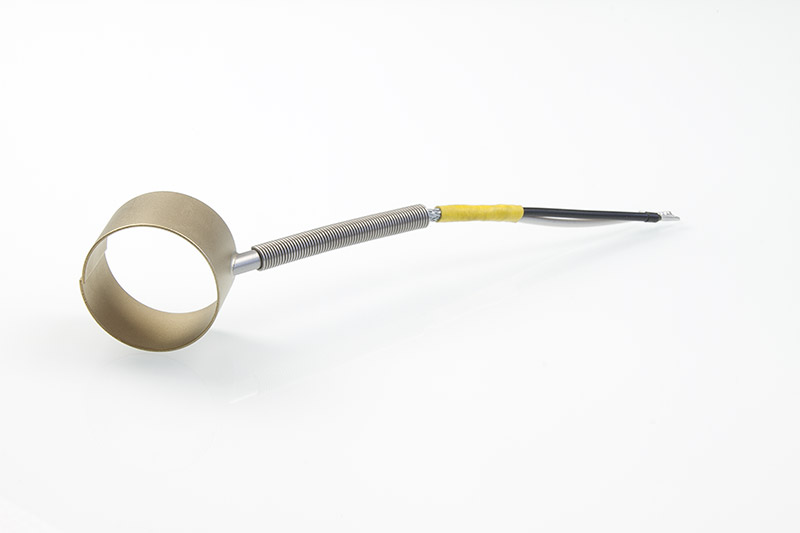

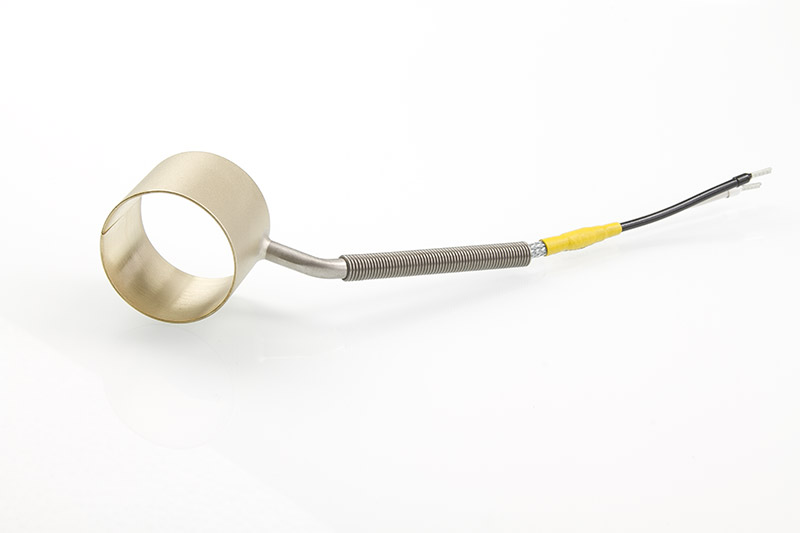

    Design examples
