Surface Sensor

TEF U

APPLICATION

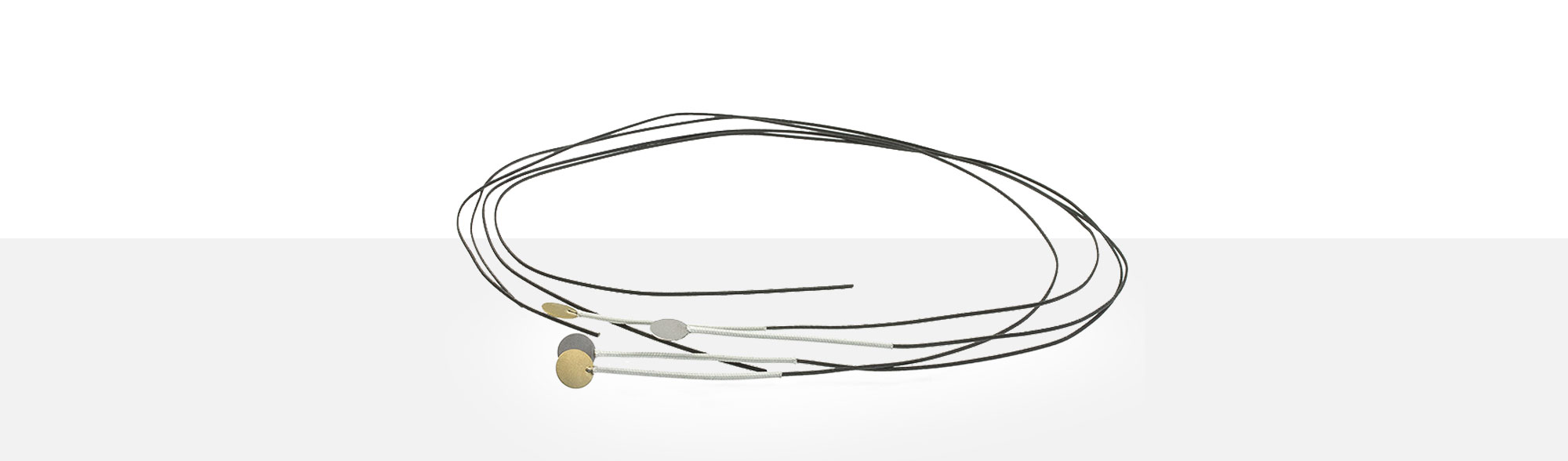

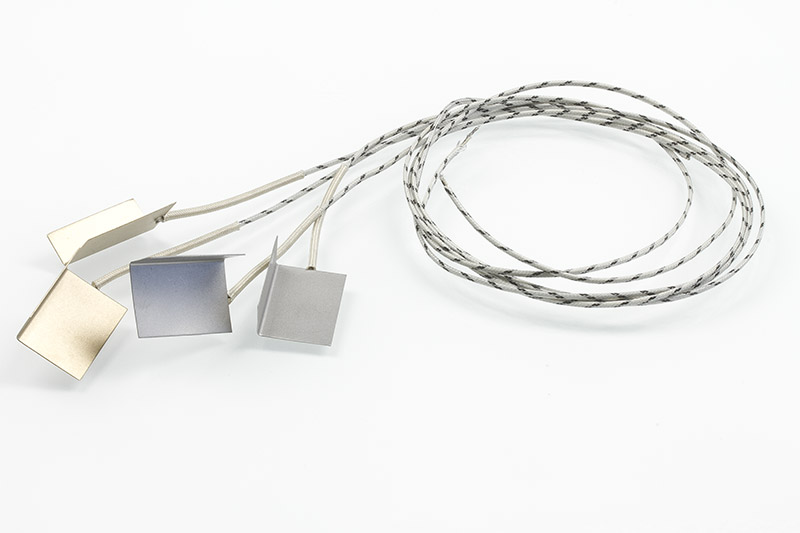

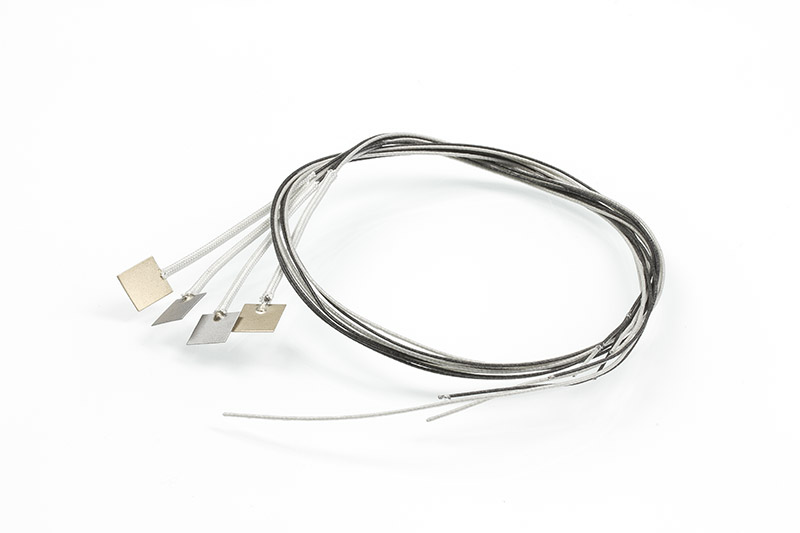

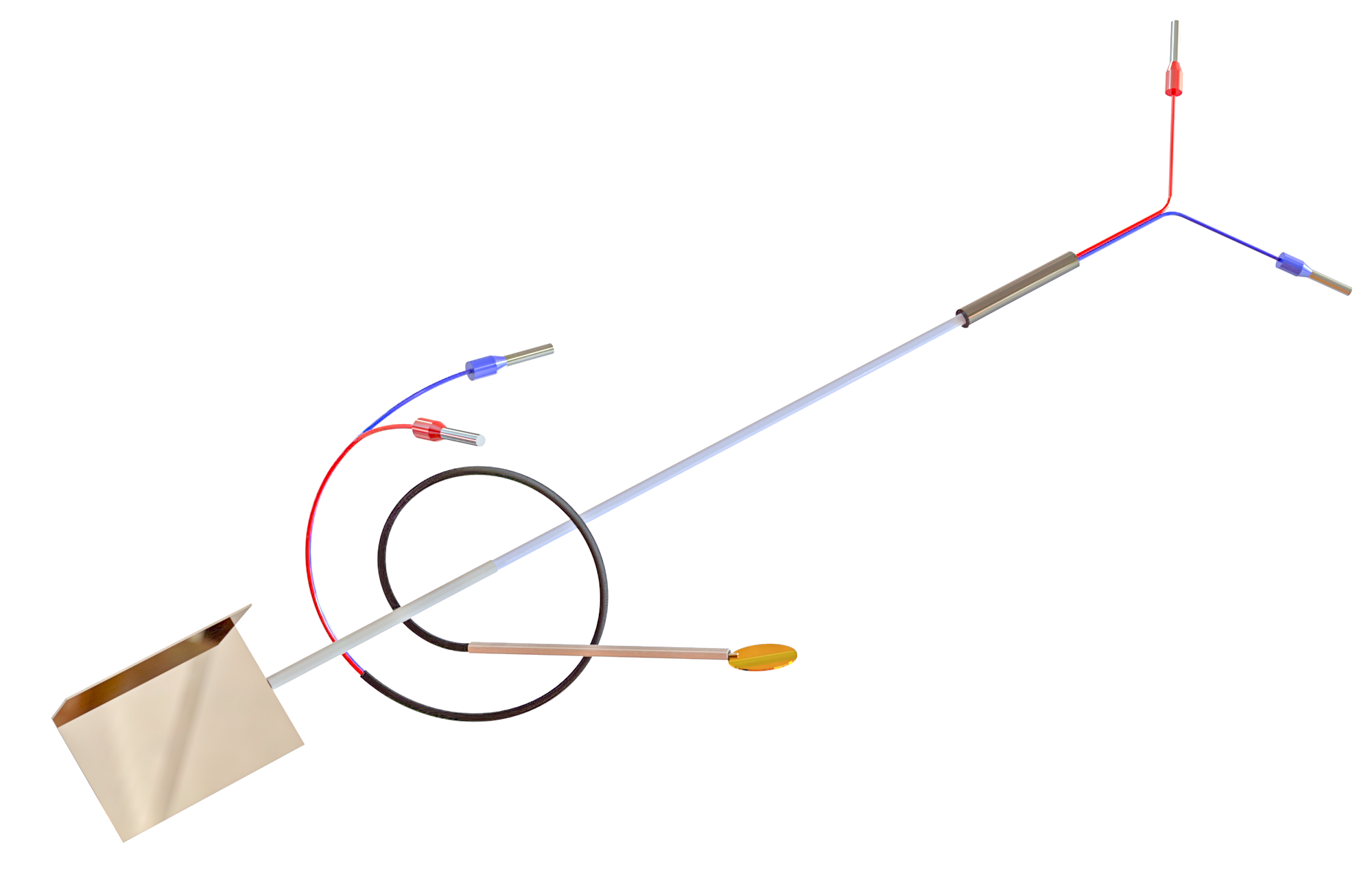

This application is as thermo pair out of single or together insulated thermo wires attached on the Ø 10.0 x 0.3 mm stainless steel plate. The contact plates are available in several sizes and thicknesses available and with 50 mm fiberglass hose as anti-kink protection. A humid-free measure surrounding is required for this leaf thermocouple.

  • operating temperature: up to 300 °C
  • Ø 10 x 0.3 mm dimension
  • 1.4301 stainless steel
  • standard lead length: 2,000 mm
  • up to 300°C
    operating temperature
  • Ø 10x0.3 mm
    contact plate
  • 50 mm GLS
    anti-kink protection

TEF U Surface Sensors

Please find following our standard thermo and compensating wires for TEF U thermocouples listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
1200458 2x0.50 mm² until +250 °C max. 2.0 x 1.2 mm
2113782 2x Ø 0.5 mm until +400 °C max. 1.6 x 0.8 mm

Fe-CuNi type J

part# cross section temperature range outer diameter
2113765 2x0.22 mm² until +400 °C max. 1.9 x 1.3 mm
2113777 2x0.095 mm² until +400 °C max. 1.3 x 0.8 mm
2113789 2x Ø 0.5 mm until +350 °C max. 1.6 x 0.8 mm

NiCr-Ni type K

part# cross section temperature range outer diameter
1200472 2x0.50 mm² -40 °C until +400 °C 2.0 x 1.2 mm
2113784 2x Ø 0.5 mm until +350 °C max. 1.6 x 0.8 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 A# 1200716
      socket T3201 A# 1200721





    2-pin plug T3260 A# 1201415



    4-pin plug T3200 A# 1103624
      socket T3301 A# 1200723

    Miniature - Thermocouple plug connectors

    J type mini plug A12.1 A# 1269361
      mini socket A13.1 A# 1269362
      ferrule 2x0,50 mm² A# 1269363





    J type mini plug A12.2 A# 1209147
      mini socket A13.2 A# 2104331
      ferrule   A# 1269363
