Band heaters

KHK

Band Heater , temperatures up to 400°C, injection molding, extrusion, holes, cutouts, thermocouple connector, radiant heating, ceramic insulated

APPLICATIONS

KHK ceramic insulated Band Heaters are proven on all common machinery of the injection moulding and extrusion industry.

Options

various dimensions and connection versions
other voltage, single or multi-phase, star or delta connection
with holes and/or thermocouple bridges
additional cut outs
other clamp gap
multi part construction or segment heaters
with warning sign – “Attention – hot surface”
with pressure spring lock
as UL version

up to 400°C
operating temperature
about11mm
wall thickness

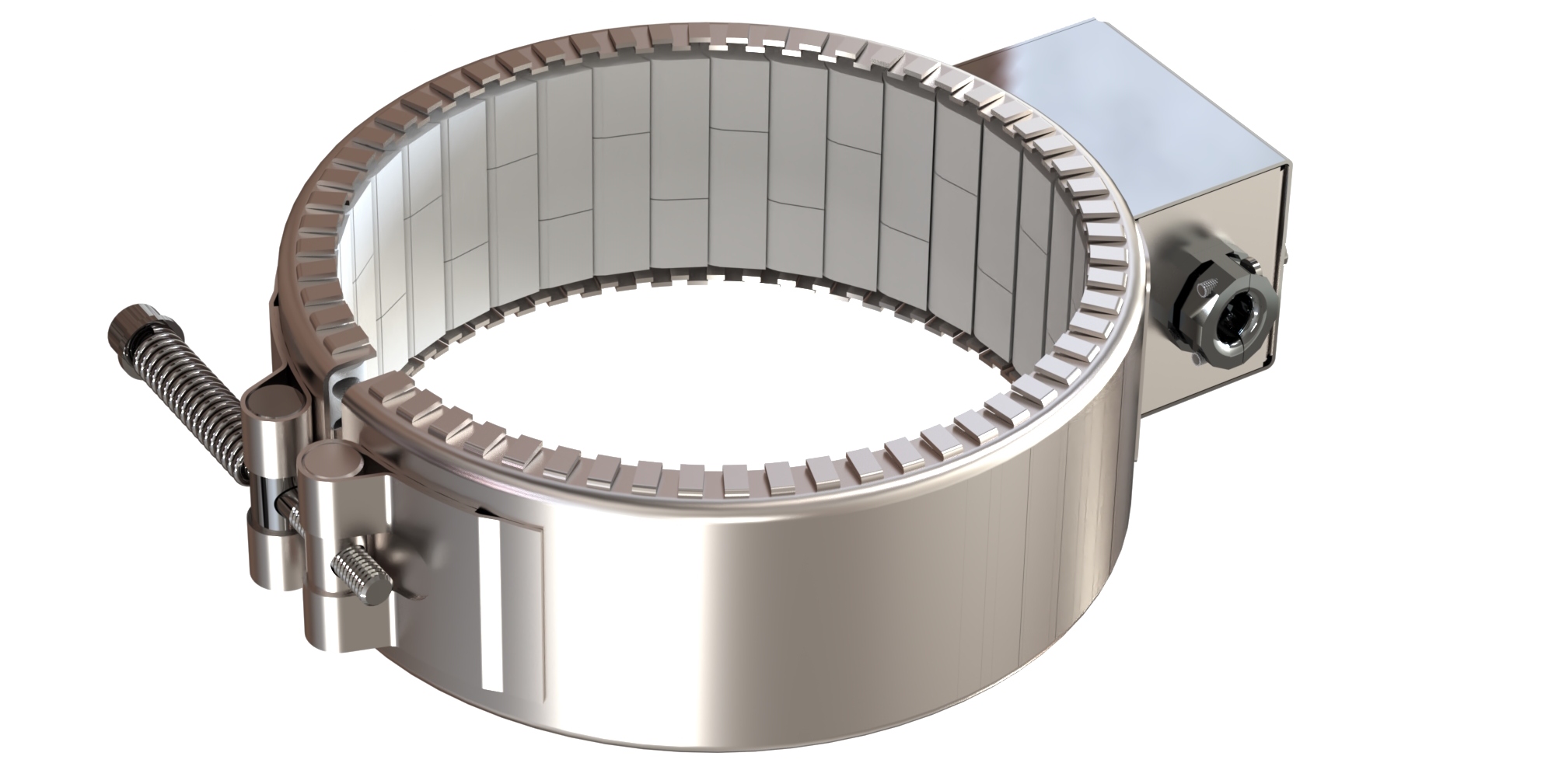

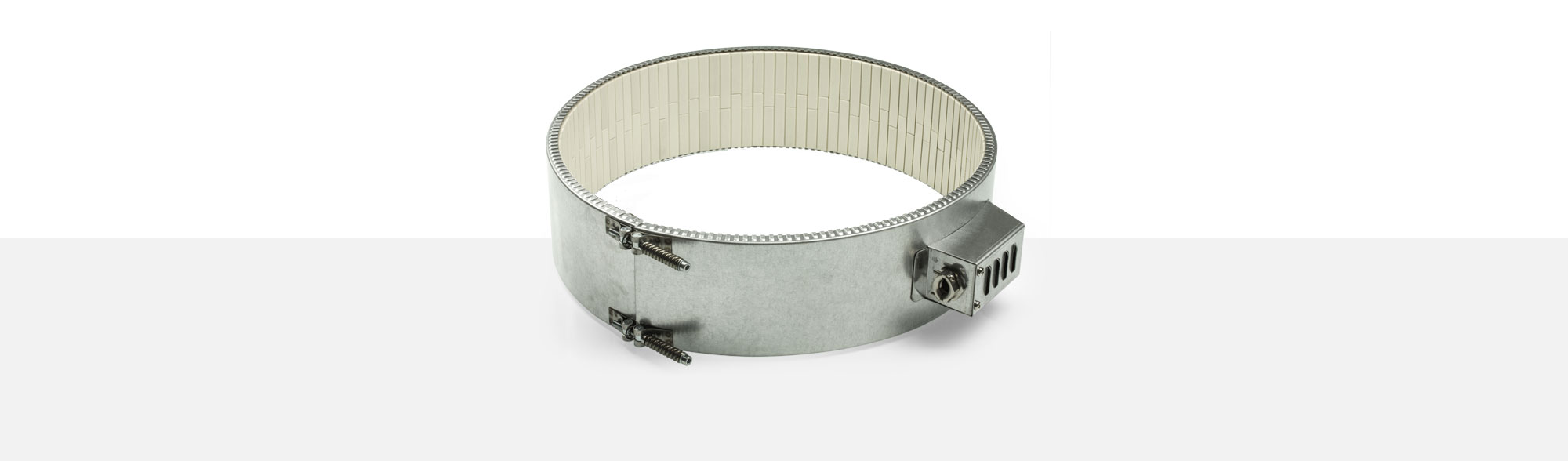

KHK Band Heater

Band Heater , temperatures up to 400°C, injection molding, extrusion, holes, cutouts, thermocouple connector, radiant heating, ceramic insulated

Connection

different connection options possible
(cable connection axial, radial or tangential)

Holes and cut outs

with holes and/or thermocouple bridges
additional cut outs

type	minimum dimensions		type	maximum dimensions (one-piece design)
	diameter	length		diameter¹	length
KHK	60mm	28mm	KHK	500mm	500mm
¹ larger diameters on request in multi-piece design

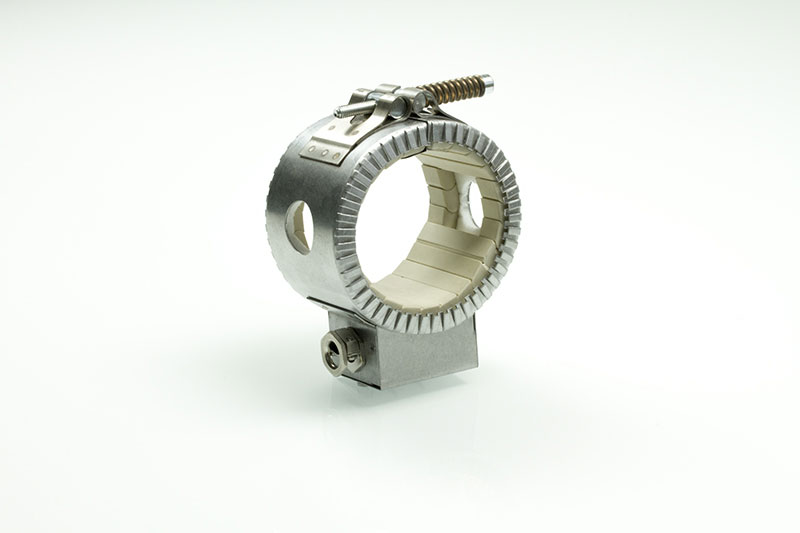

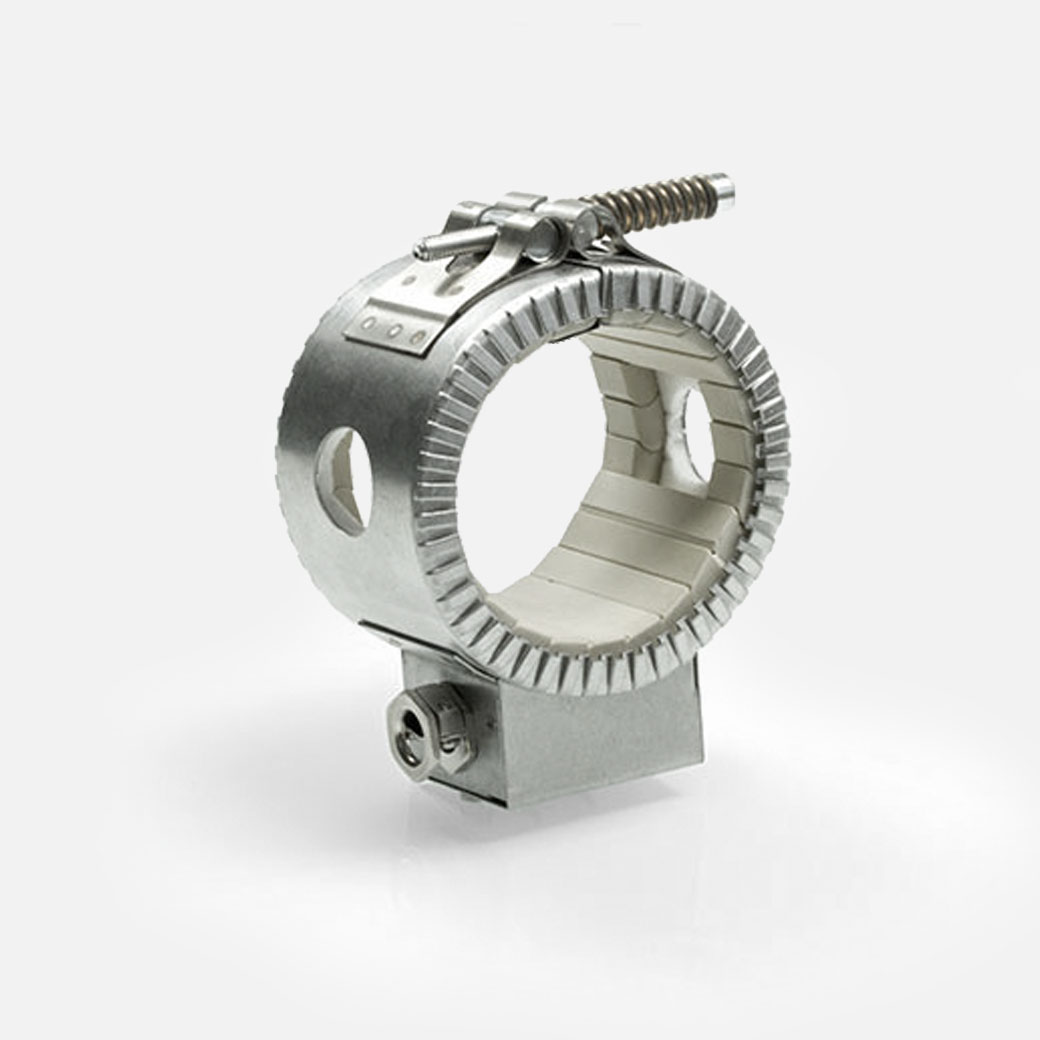

Band Heater , temperatures up to 400°C, injection molding, extrusion, holes, cutouts, thermocouple connector, radiant heating, ceramic insulated — Ceramic Band Heater with holes for operating temperatures up to 400°C

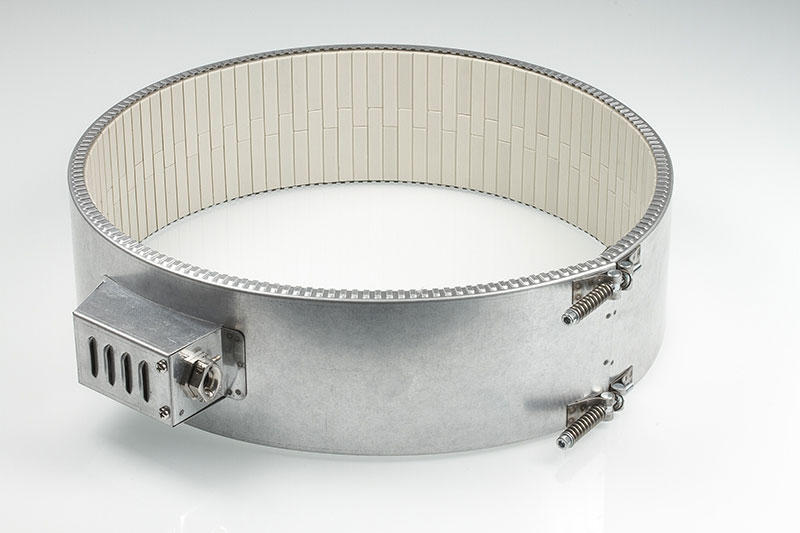

Band Heater , temperatures up to 400°C, injection molding, extrusion, holes, cutouts, thermocouple connector, radiant heating, ceramic insulated — Ceramic insulated Band Heater with disc spring lock and clamp connection

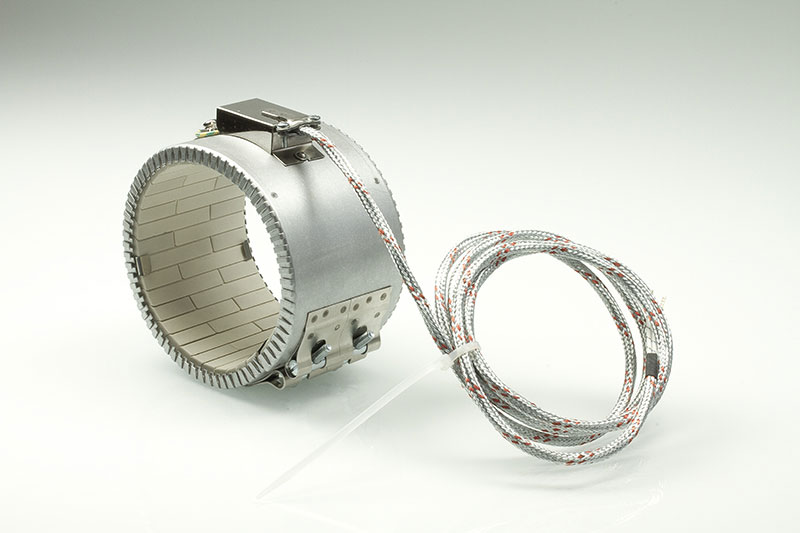

Band Heater , temperatures up to 400°C, injection molding, extrusion, holes, cutouts, thermocouple connector, radiant heating, ceramic insulated — Ceramic Band Heater with direct connection for operating temperatures up to 400°C

markerProductAnimation

Downloads

Band Heater , temperatures up to 400°C, injection molding, extrusion, holes, cutouts, thermocouple connector, radiant heating, ceramic insulated
