Tubular Heaters
ERC/ERCH Screw-in Tubular Heaters

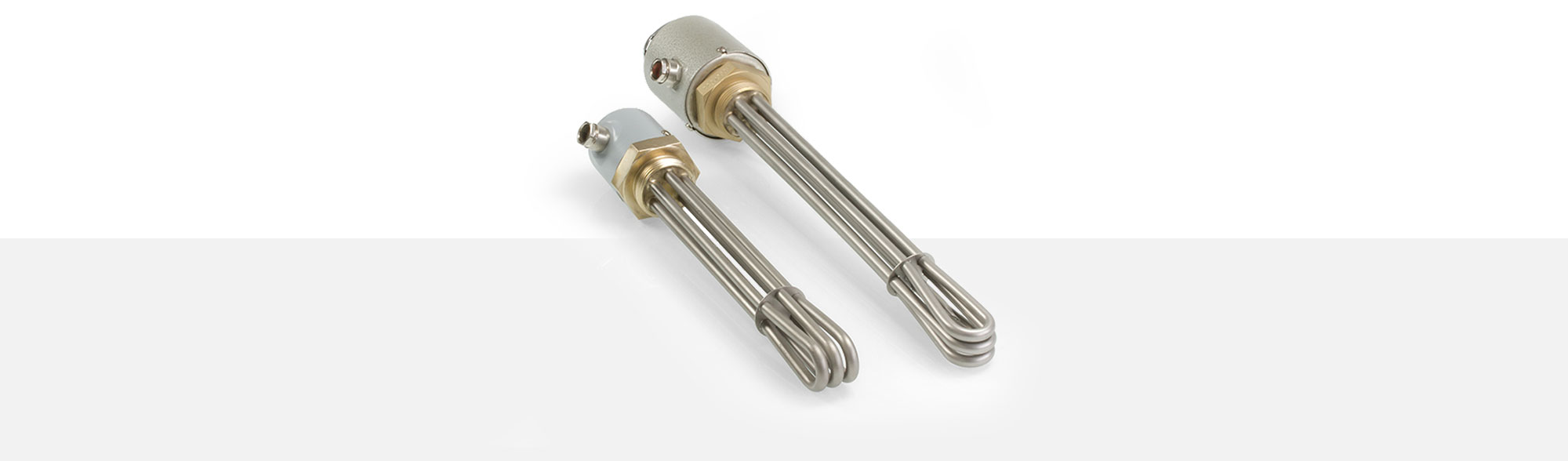

Screw-in Tubular Heaters

ERC/ERCH

APPLICATIONS

Screw-in Tubular Heaters are used for the heating of liquid baths such as water bath, oil baths, photographic baths and cleaning baths as well as for gas and air heating.

Options

with steel, brass or stainless steel thread nipple
variable fitting depths
several heater circuits available
covers or normed casings up to IP67 protection
with leads
with limiter or thermostat/controller
with Temperature Sensor at sensor tube

	ERC	ERCH	ERC AL/AK
threaded nipple	steel / brass / stainless steel
cover	IP 00	cap IP 52	aluminium casing IP 65
options	sensor tube	controller or limiter leads sensor tube	controller or limiter leads sensor tube
immersion length	140 - 3000 mm
operating voltage	standard 230V, 230/400V and 400V, other up to 500V available on request
performance	as per customer request and technical possibility
high voltage stability	as per EN 60204
insulation resistance	as per EN 60204

variable
fitting depths
up to IP67
protection

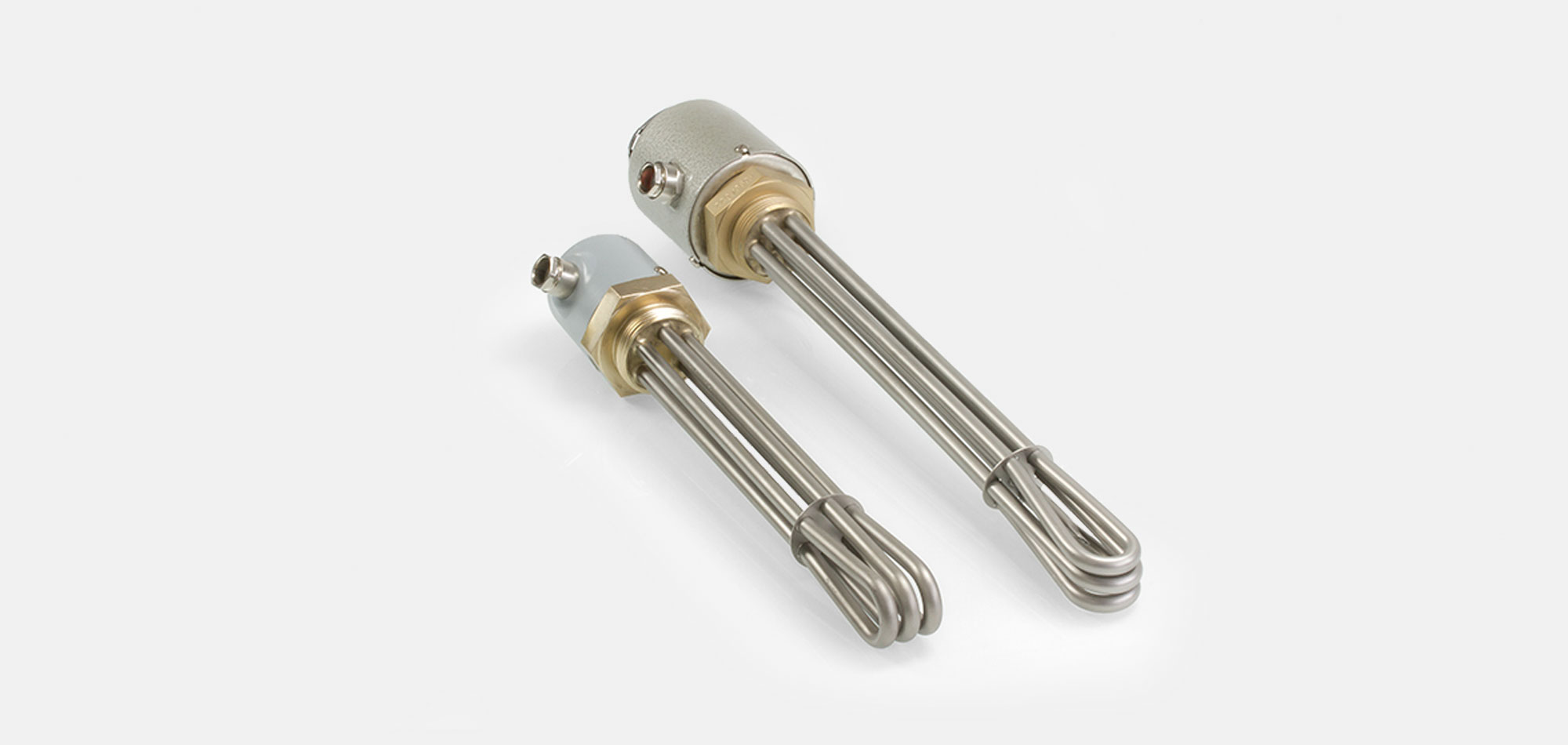

Screw-in Tubular Heater

Connection examples

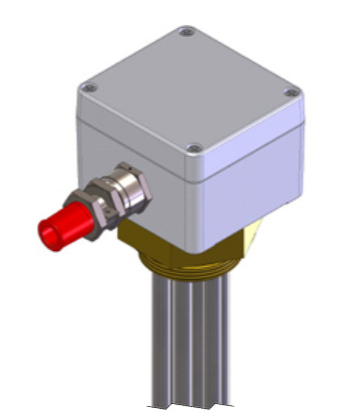

ERC

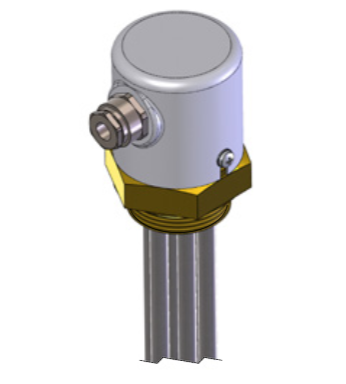

ERCH

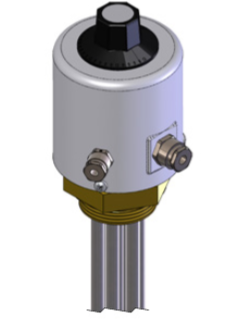

ERCH with controller

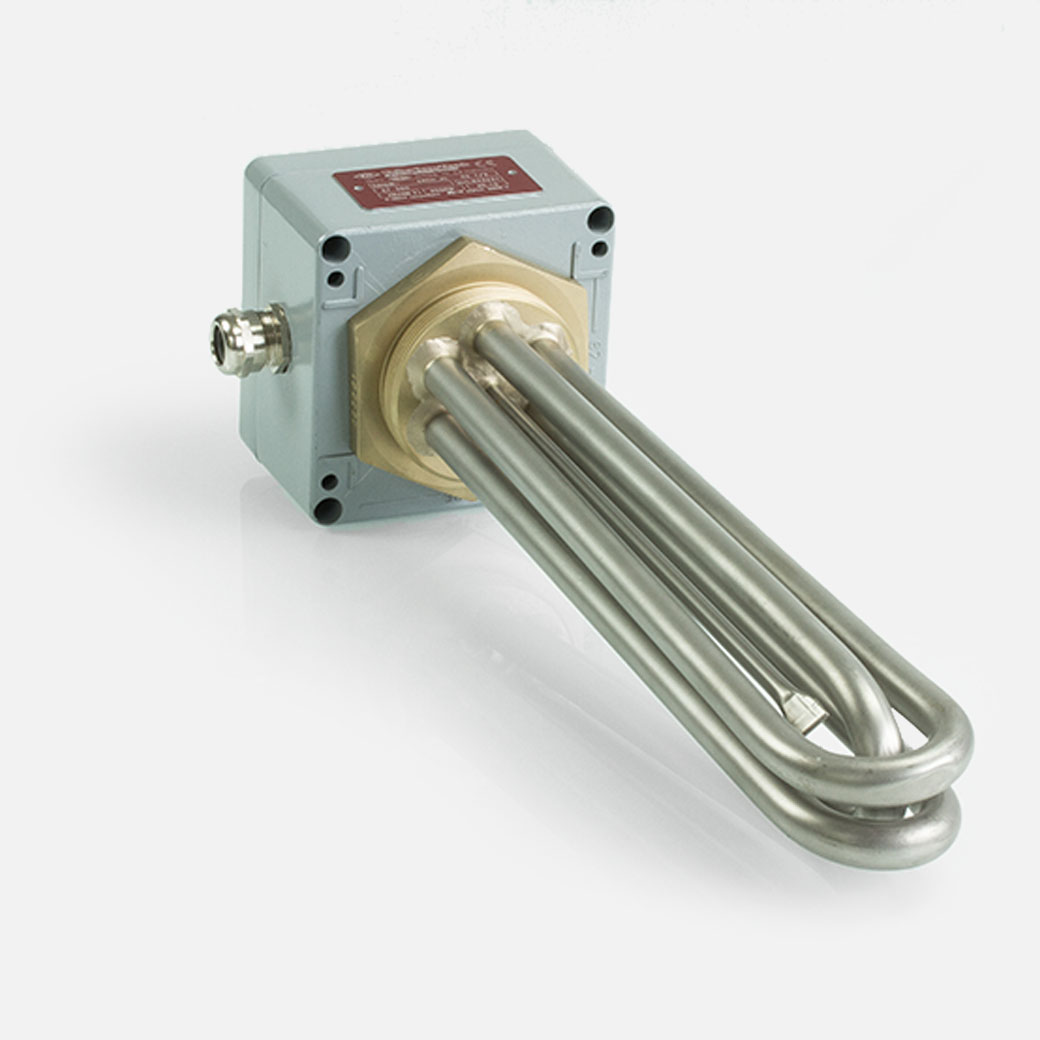

ERC-AL/AK
