Industrial Oven Systems and Pre-Heat devices

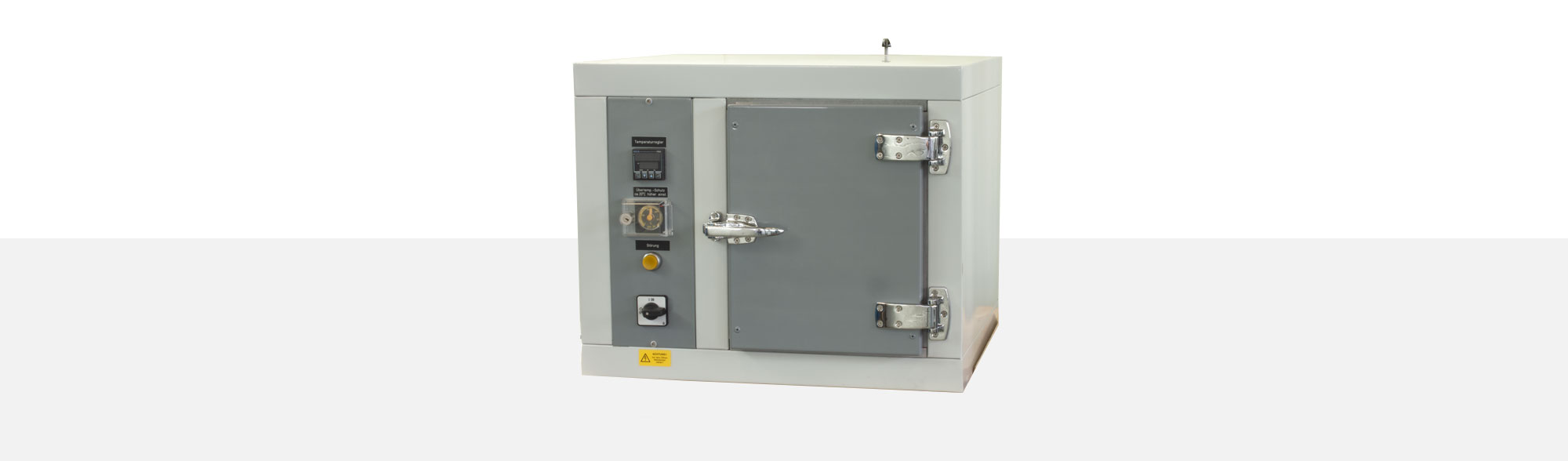

LABORATORY OVENS design examples

APPLICATIONS

Laboratory Ovens find their application within research, development, medicine, microbiology and much more industrial sectors. Examples are incubators, steaming cabinets or circulation cabinets. As multi-chamber oven they are used as well within chemistry, energy & refinery and as environment catalyses.

Details

  • operating voltage:
    230 Volt, 1-phase/N/PE 50/60 Hz – designs without bottom heating
    230/400 Volt, 3-phases/N/PE 50/60 Hz – designs with bottom heating
  • outer tank standard painting: high-gloss RAL 7035 light-grey
  • door standard varnish: satin-finish RAL 7046 tele-grey
  • stainless steel internal tank and bearings
  • single-leaf door
Temperature control
LT 1 thermostat overheat cut-off device with resetting knob
LT 2 without control unit, heat and engine load on terminal strips, 2 sensors
LT 3 + 4 + 5 ECO 24 electronic temperature control,
electronic over heat cut-off
solid-state-relay main switch
fitted at plug-in control slot


Options

  • voltage and wattage variations
  • operating temperature variations
  • painting, multi-colour available as per customer request
  • labeling and documentation in various languages
  • plate or grid bearing (drawers)
  • electronic program controller
  • timer function, turns on after adjusted time (max 99h 59 min) (on request as well off)
  • 2nd additional measure point for external measuring
  • external control and monitoring possibility
  • viewing window at oven door for visual control
  • 1.4541 or 1.4301 stainless steel external and internal tank
  • interior lightning
  • LT2 and LT3 standard designs optional with additional bottom heating available (with three-phase Connection)

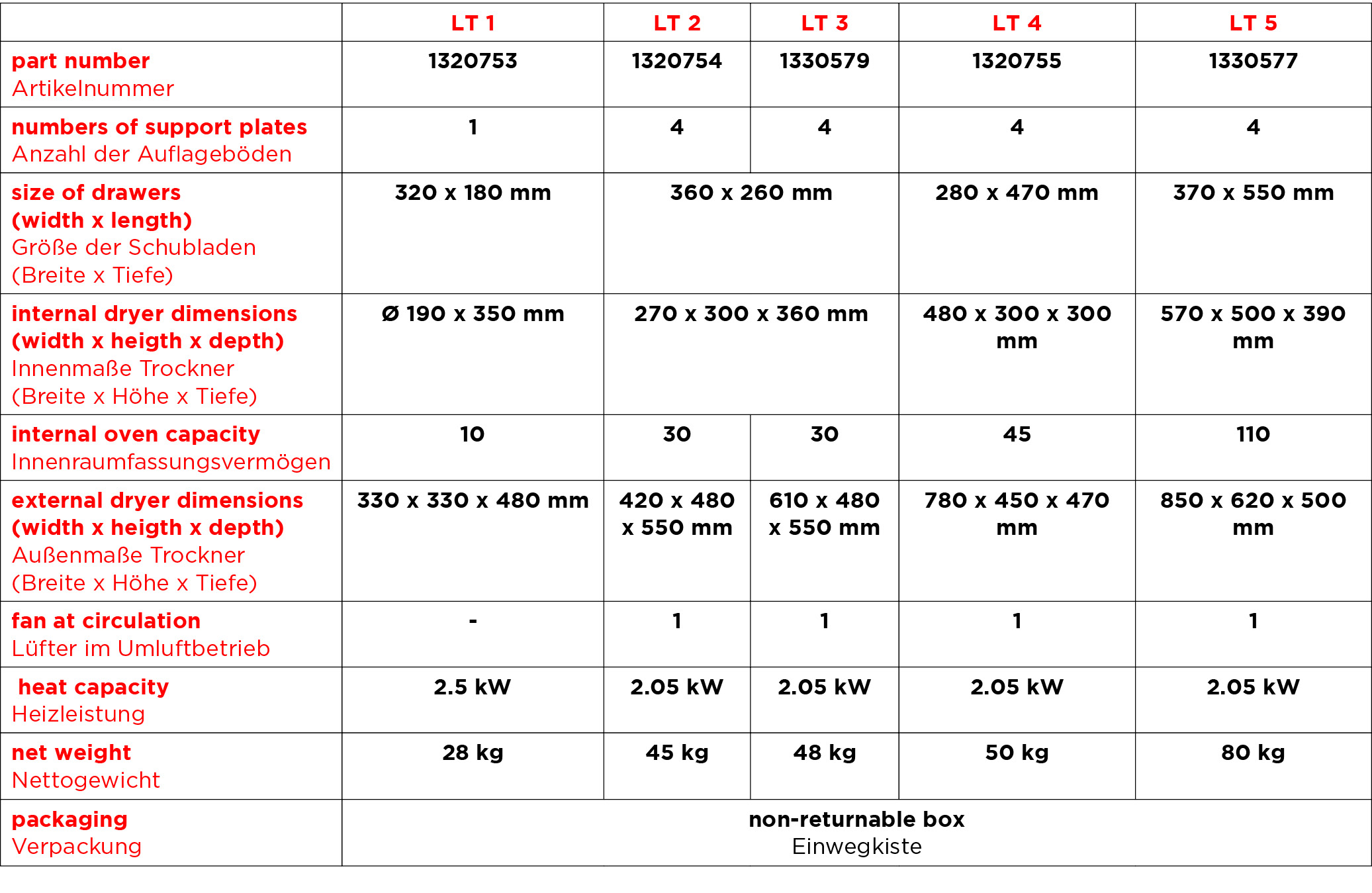

  • 5
    standard designs
  • up to 2.5kW
    heat capacity
  • up to 110l
    internal oven capacity
