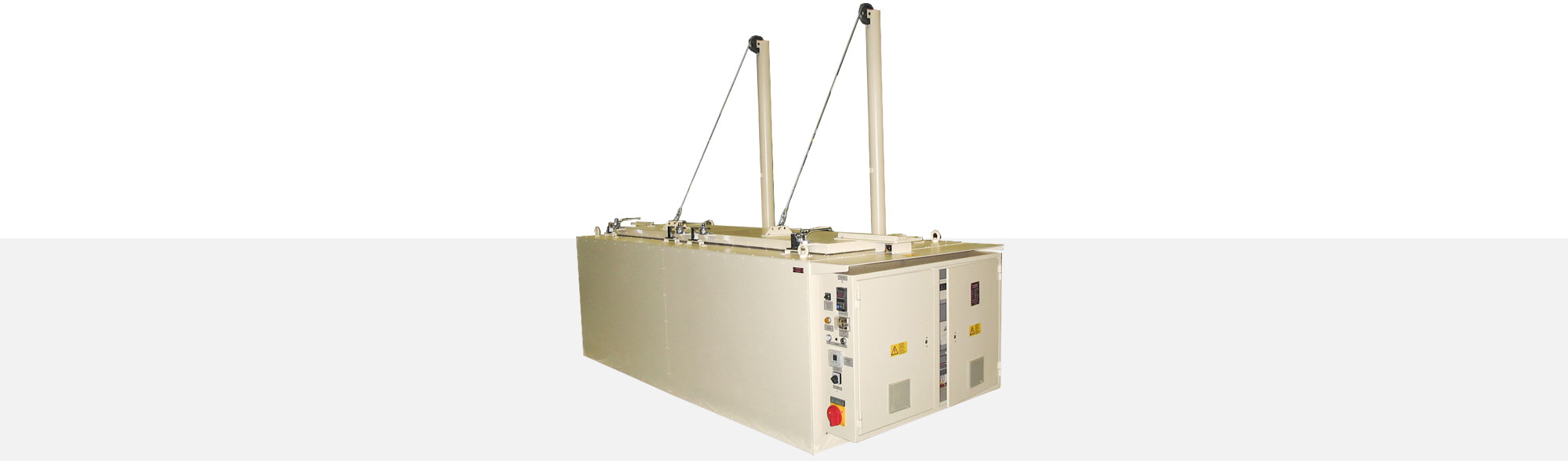

Chest Ovens

APPLICATION

When extraction of the dry material is only to handle from above, e.g. heavy, bulky tools Chest Ovens find their application. Our Chest Ovens offer the possibility with simple pulley cover openings and protected integral tension springs. The opening of smaller devices is supported with gas springs.

Options

  • voltage and wattage variations
  • operating temperature variations
  • painting, multi-colour available as per customer request
  • labelling and documentation in various languages
  • falvanized, hot-dip aluminized steel plate or stainless steel internal tank
  • massive and stable steel plate or stainless steel supporting shelves for heavy loading material
  • electronic PID temperature control with load circuit contactor or solid state relay
  • temperature control with self-improvement function, process alarm for further processing available
  • multi-tank oven
  • electronic digital clock timer
  • operating hours counte
  • timer function, turns on after adjusted time (max 99h 59 min) (on request as well off)
  • program controller with up to 20 programs each with 16 segments
  • signal and warning light as per requested function
  • shutter plates at air-entering side for subsequent temperature improvement
  • multichannel diagram writer for documentation of temperature process
  • interfaces as per customer specification
  • bis 500°C
    operating temperature
  • heavy parts
    safely loaded
  • lid opening
    supported

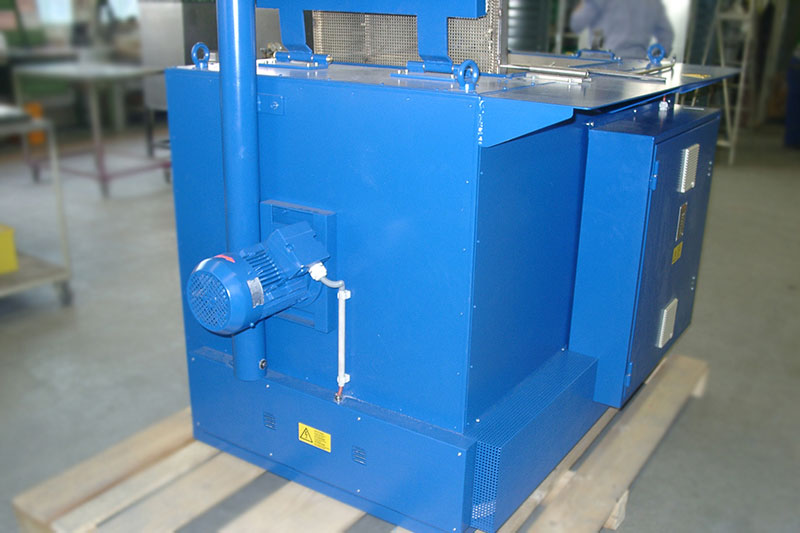

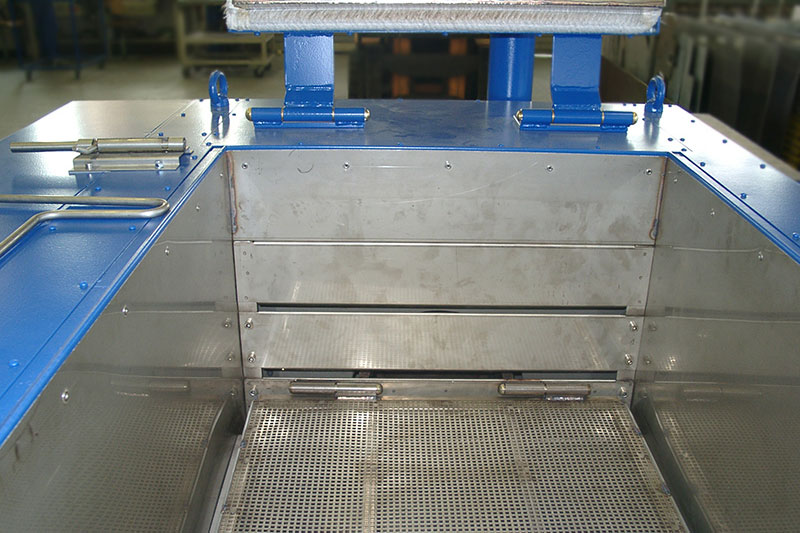

Example 1 - up to 350 °C - 650 x 850 x 700 mm - part# 1357098



  • 650 x 850 x 700 mm
    (width x depth x height)
  • operating temperature: up to 350 °C
  • heat capacity: 15 kW
  • circulation air blower: 1.1 kW
  • air guidance: horizontal



This Chest Oven is for pre-heating of five nozzle packets or Spinning pumps with a weight of 150 kg each.

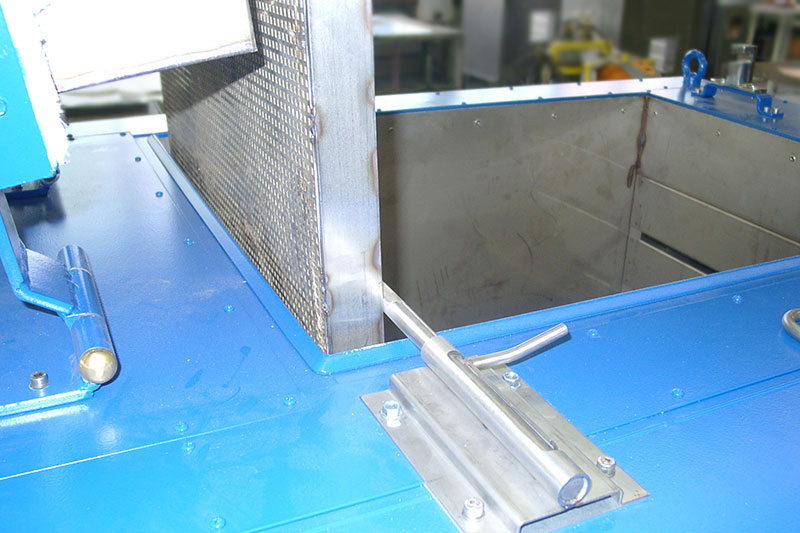

CONSTRUCTION

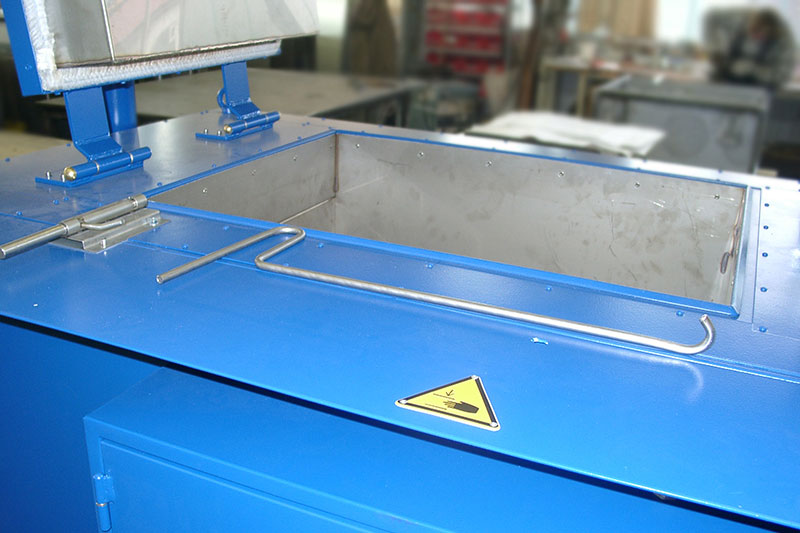

  • with a ceiling crane the nozzle packets can be removed easily from the top
  • integral protected tension springs supports the operator when opening the cover

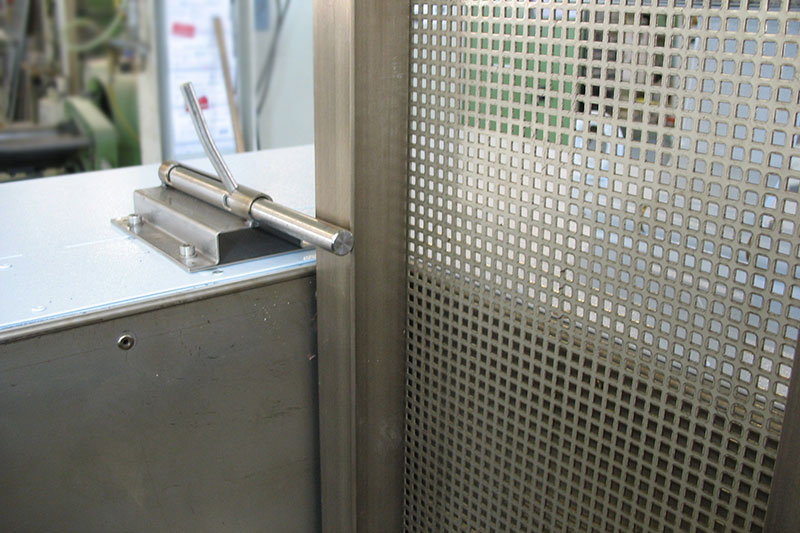

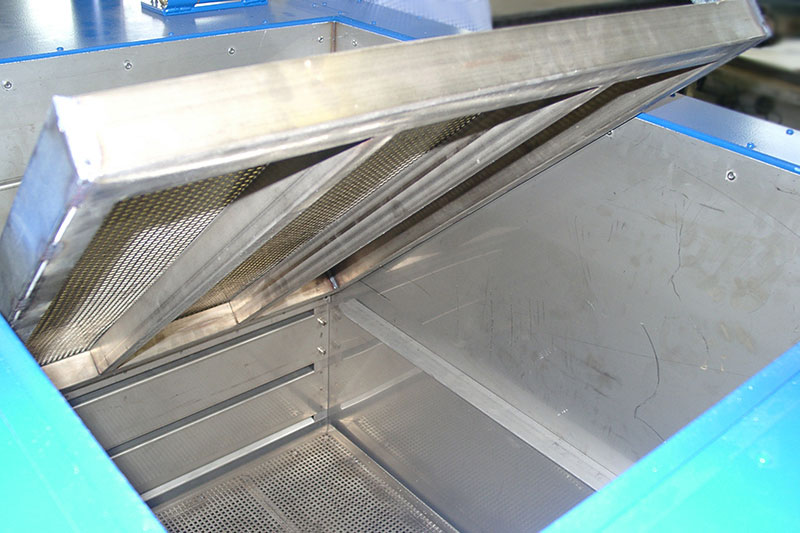

  • 2nd loading level available via retractable hinge

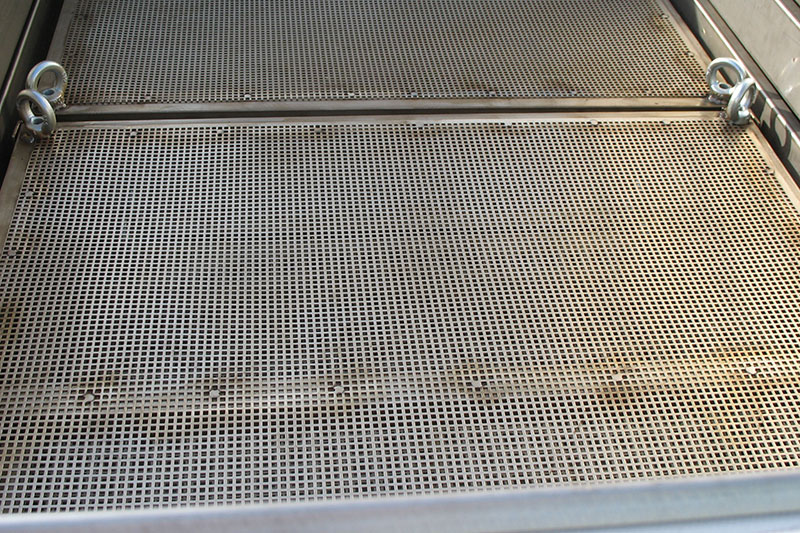

  • stainless steel tube frames with perforated stainless steel cover loading levels
  • high quality 1.4828 Tubular Heater heating element
  • 1.4301 stainless steel internal tank
  • 150 mm insulation to reduce heat loss
  • electronic temperature control with separate electronic temperature protection
  • painting: RAL 505 signal-blue structure

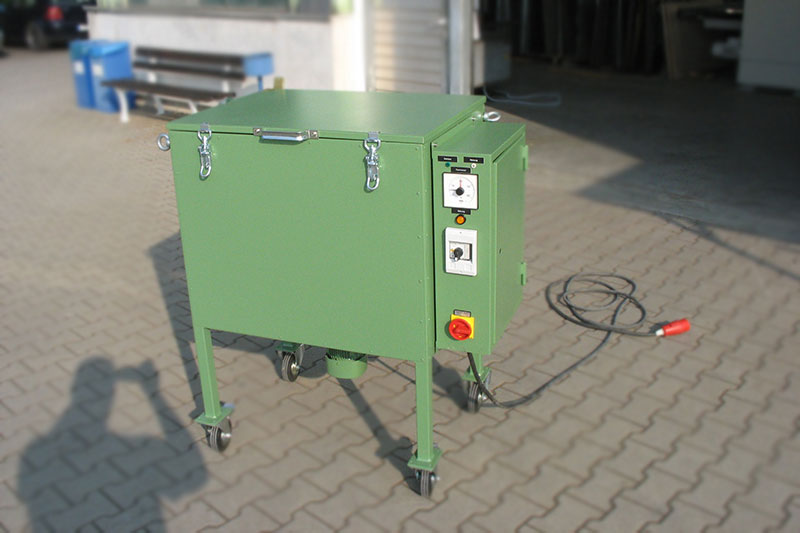

Example 2 - up to 100 °C - 480 x 480 x 330 mm - part# 2058492



  • 480 x 480 x 330 mm
    (width x depth x height)
  • operating temperature: up to 100 °C
  • heat capacity: 2.25 kW
  • circulation air blower: 0.25 kW
  • air guidance: horizontal



This Chest Oven is for pre-heating solvent-free thermoplastic synthetic handles for further processing with synthetic barrels.

CONSTRUCTION

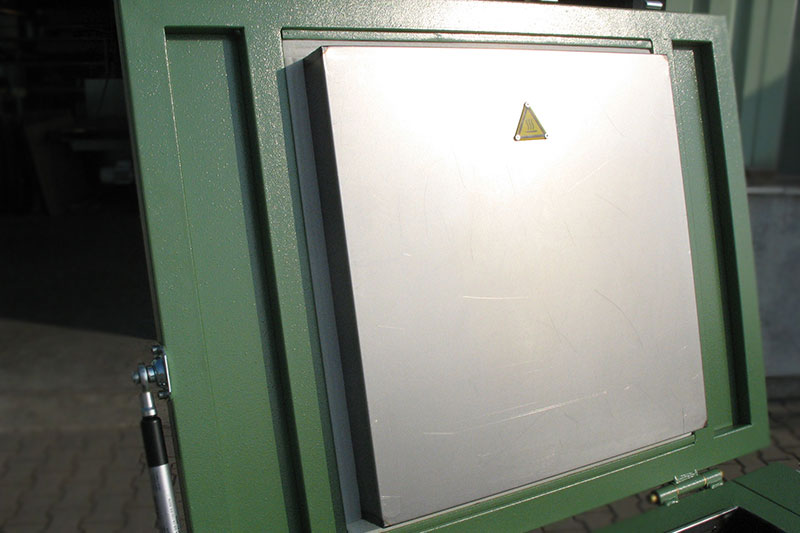

  • gas springs supports the operator when opening the cover

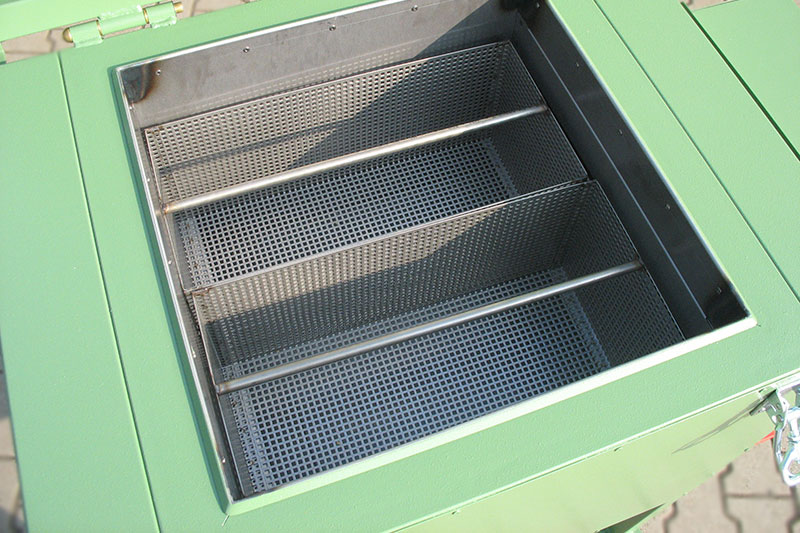

  • two removable perforated stainless steel baskets side by side
  • base with fixed rollers and pulleys
  • control with microstate and separate temperature protection
  • painting: RAL 6011 reseda-green structure

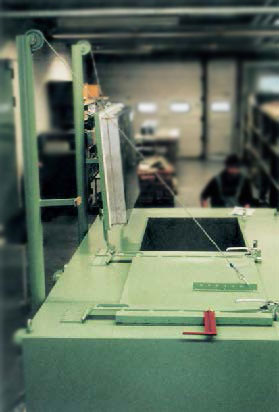

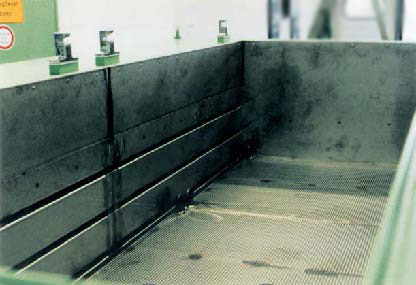

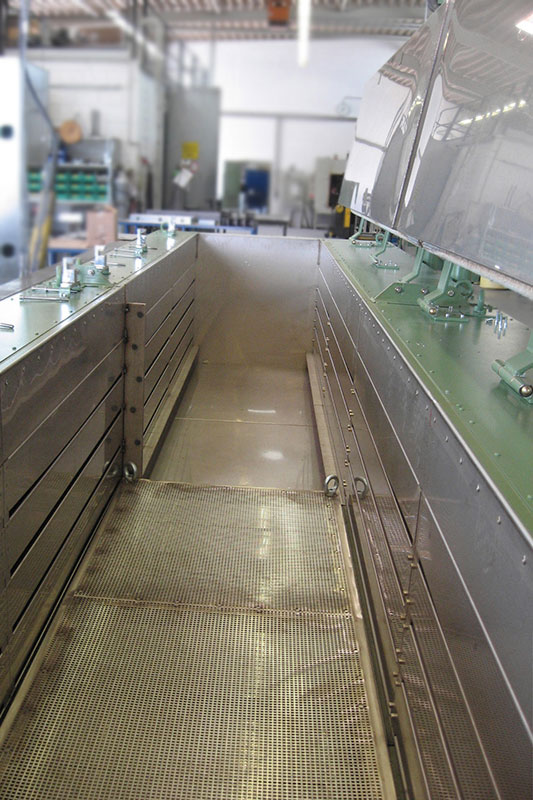

Example 3 - up to 350 °C - 4,700 x 700 x 600 mm - part# 1364880



  • 4,700 x 700 x 600 mm
    (width x depth x height)
  • operating temperature: up to 350 °C
  • heat capacity: 60 kW
  • circulation air blower: 4 x 1.1 kW
  • air guidance: horizontal



This Chest Oven is for pre-heating one nozzle packet with a total weight of 1,500 kg. Nozzle packet dimension: 4,300 x 250 x 250 mm (length x width x height)

CONSTRUCTION

  • with a ceiling crane the nozzle packets can be removed easily from the top
  • integral protected tension springs supports the operator when opening the cover
  • two parted design
  • stainless steel tube frames with perforated stainless steel cover loading levels
  • high quality 1.4828 tubular heater heating element
  • 1.4301 stainless steel internal tank
  • 150 mm insulation to reduce heat loss
  • electronic temperature control with separate electronic temperature protection with three
  • limit signalling devices
  • painting: RAL 6011 reseda-green structure

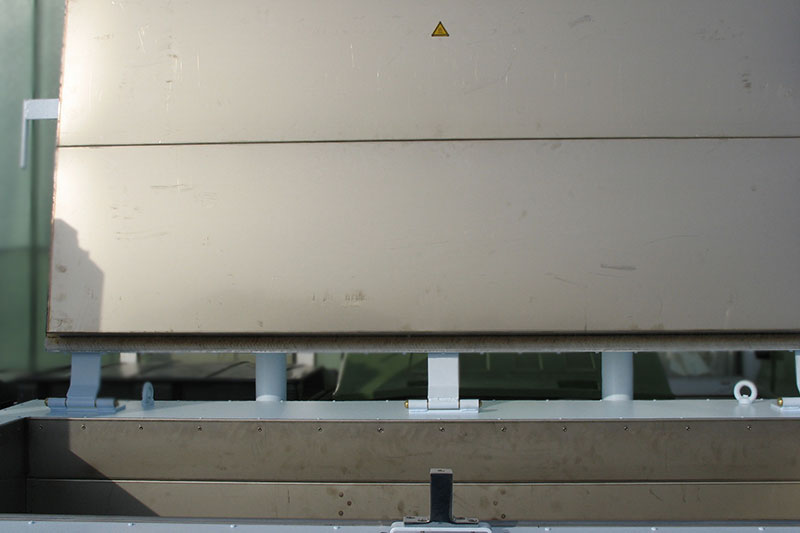

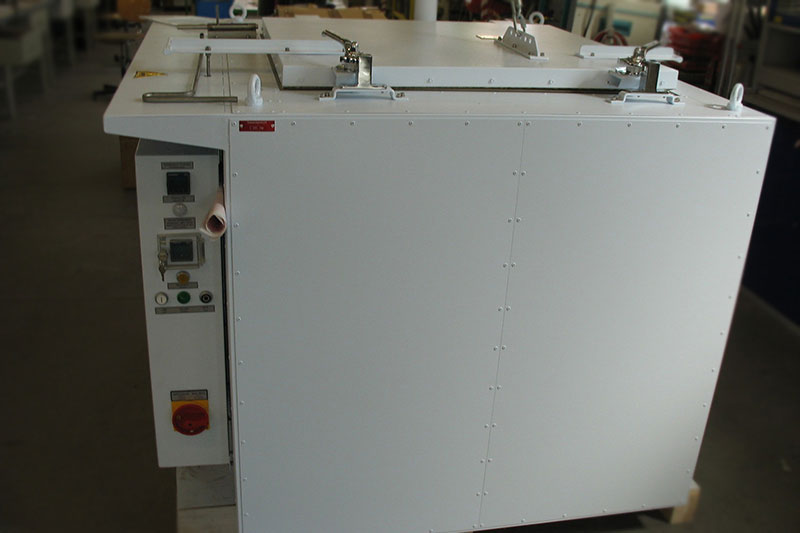

Example 4 - up to 350 °C - 950 x 850 x 700 mm - part# 2050489



  • 950 x 850 x 700 mm
    (width x depth x height)
  • operating temperature: up to 350 °C
  • heat capacity: 19 kW
  • circulation air blower: 1.1 kW
  • air guidance: horizontal



This transit-chest oven is for pre-heating eight nozzle packets or spinning pumps with weight of 115 kg each.

CONSTRUCTION

  • with a ceiling crane the nozzle packets can be removed easily from the top
  • integral protected tension springs supports the operator when opening the cover

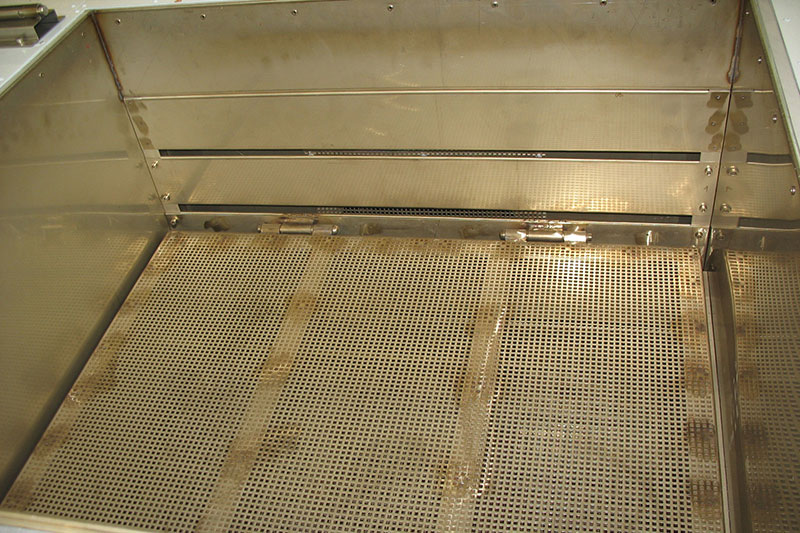

  • 2nd loading level available via retractable hinge
  • stainless steel tube frames with perforated stainless steel cover loading levels
  • high quality 1.4828 Tubular Heater heating element
  • 1.4301 stainless steel internal tank
  • 150 mm insulation to reduce heat loss
  • electronic temperature control with separate electronic temperature protection
  • painting: NCS 0510 R90B light-grey structure

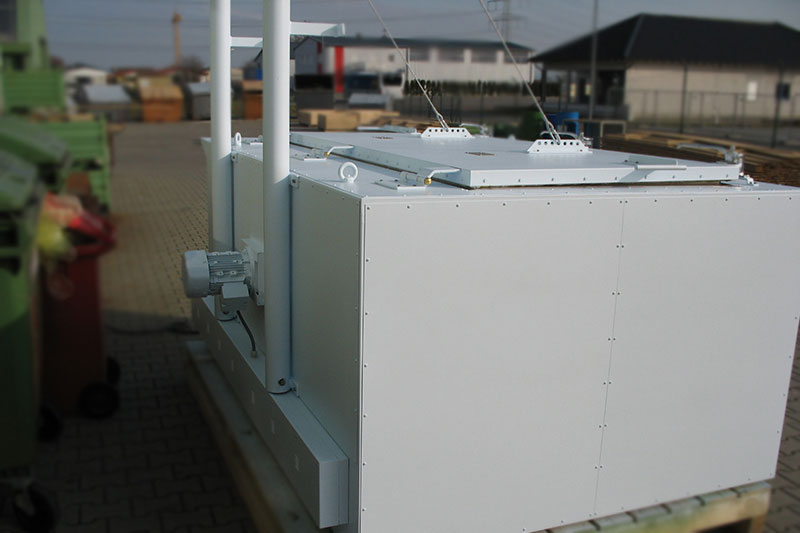

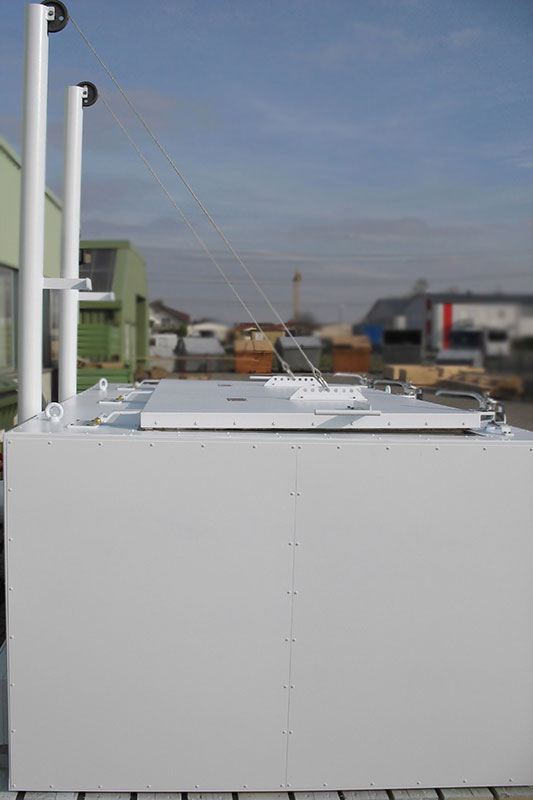

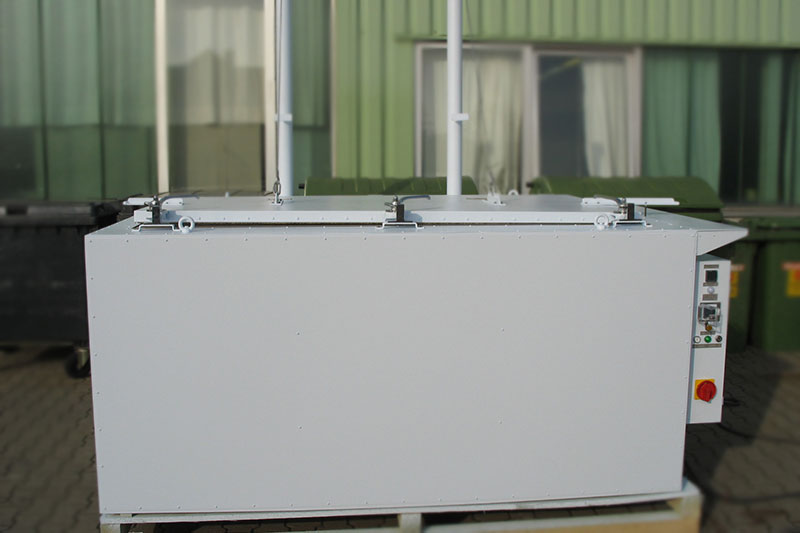

Example 5 - up to 350 °C - 2,100 x 1,050 x 700 mm - part# 1366093



  • 2,100 x 1,050 x 700 mm
    (width x depth x height)
  • operating temperature: up to 350 °C
  • heat capacity: 24 kW
  • circulation air blower: 1.1 kW
  • air guidance: horizontal



This Chest Oven is for pre-heating four nozzle packets or spinning pumps with weight of 175 kg each.

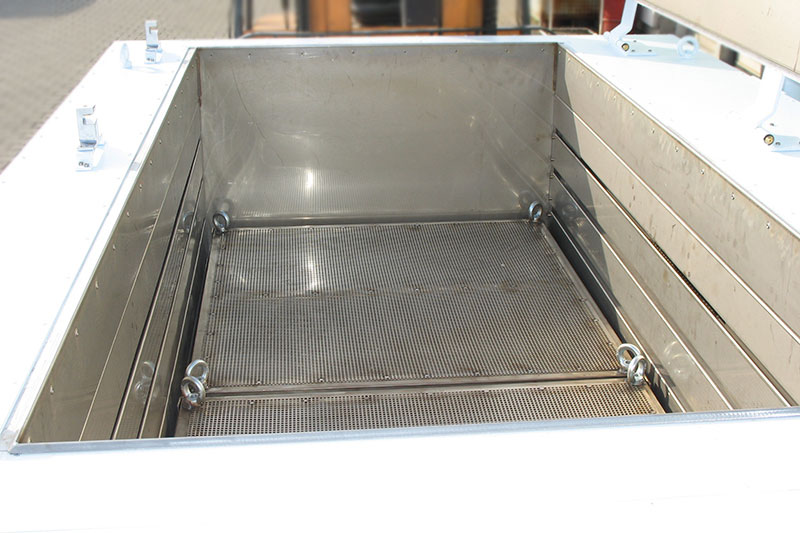

CONSTRUCTION

  • with a ceiling crane the nozzle packets can be removed easily from the top

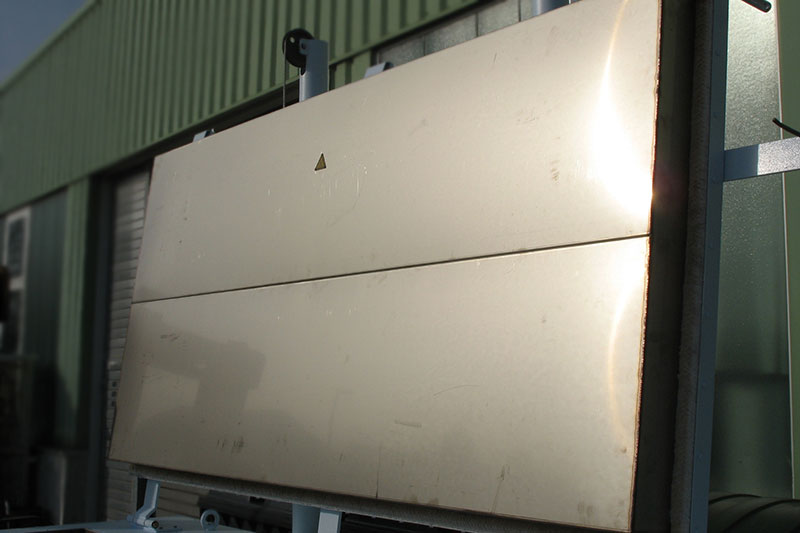

  • integral protected tension springs supports the operator when opening the cover
  • two stainless steel tube frame insertions with perforated stainless steel cover loading levels
  • high quality 1.4828 Tubular Heater heating element
  • 1.4301 stainless steel internal tank
  • 150 mm insulation to reduce heat loss
  • electronic temperature control with separate electronic temperature protection
    painting: NCS 0510 R90B light-grey structure
Example 6 - up to 350 °C - 2,660 x 850 x 800 mm - part# 1050396



  • 2,660 x 850 x 800 mm
    (width x depth x height)
  • operating temperature: up to 350 °C
  • heat capacity: 35 kW
  • circulation air blower: 2 x 1.1 kW
  • air guidance: horizontal













This Chest Oven is for pre-heating 18 nozzle packets or spinning pumps with weight of 120 kg each.

CONSTRUCTION

  • with a ceiling crane the nozzle packets can be removed easily from the top
  • integral protected tension springs supports the operator when opening the cover
  • two stainless steel tube frame insertions with perforated stainless steel cover loading levels
  • high quality 1.4828 Tubular Heater heating element
  • 1.4301 stainless steel internal tank
  • 200 mm insulation to reduce heat loss
  • electronic temperature control with separate electronic temperature protection
  • painting: RAL 6021 pale-green structure
