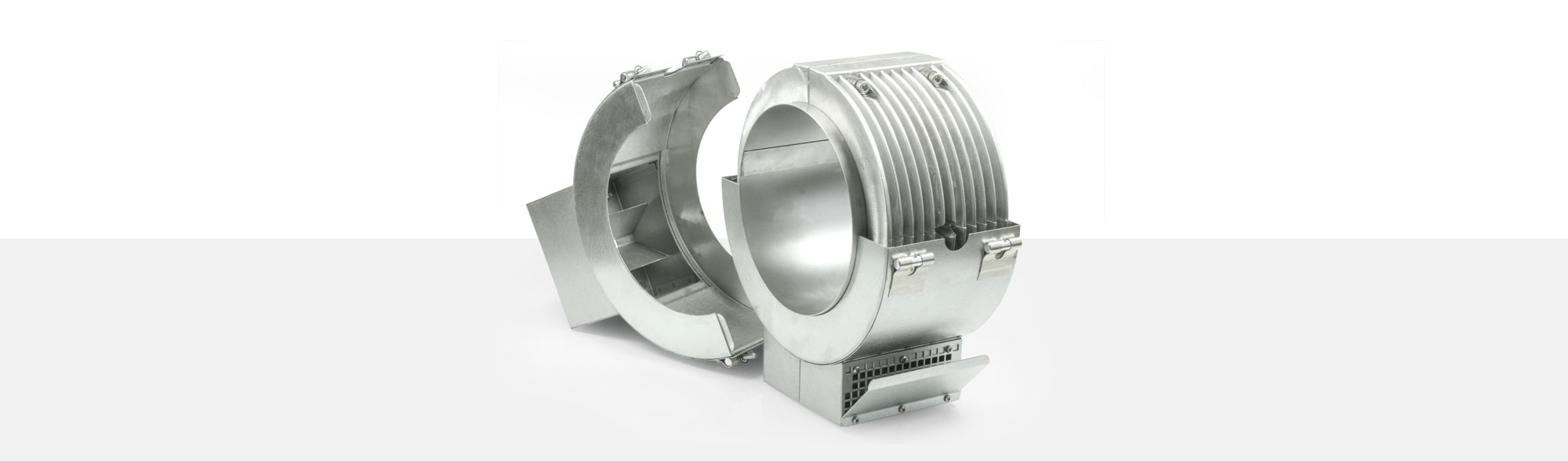

HEAT-COOL-COMBINATIONS

Cast

APPLICATIONS

operating temperature aluminium: up to 450 °C brass: up to 650 °C (measured at the heated side) Applications The robust Heat-Cool-Combination out of cast material are used for the heating and cooling of extrusion machinery.

minimal pre-heat time at highest possible cooling capacity optional with air or liquid cooling
best possible heat and cool distribution

Options

various dimensions and clamp-/ connection versions up to IP 67 protection
other voltage and/or wattage
EX-protected design with ATEX-certificate
additional with insulation, cooling jacket or casted cooling tube
cooling rip versions as per consultation
orientation to heating or cooling
various shapes and machining on own chill-/ sandcasting and modern CNC centres
with holes and cut outs
temperature control with integral temperature sensors

aluminium

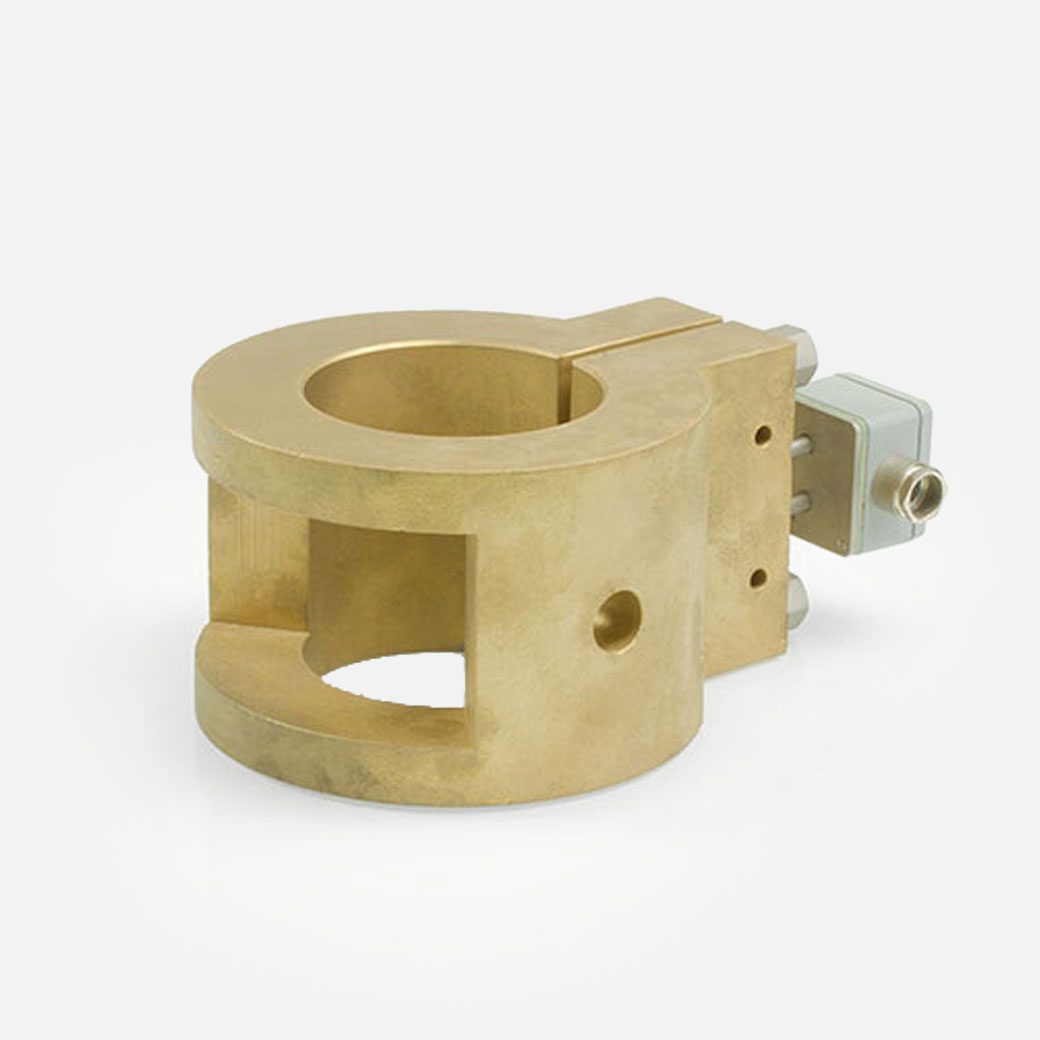

or brass
cooling
air or liquid cooling

Cast HEAT-COOL-COMBINATION

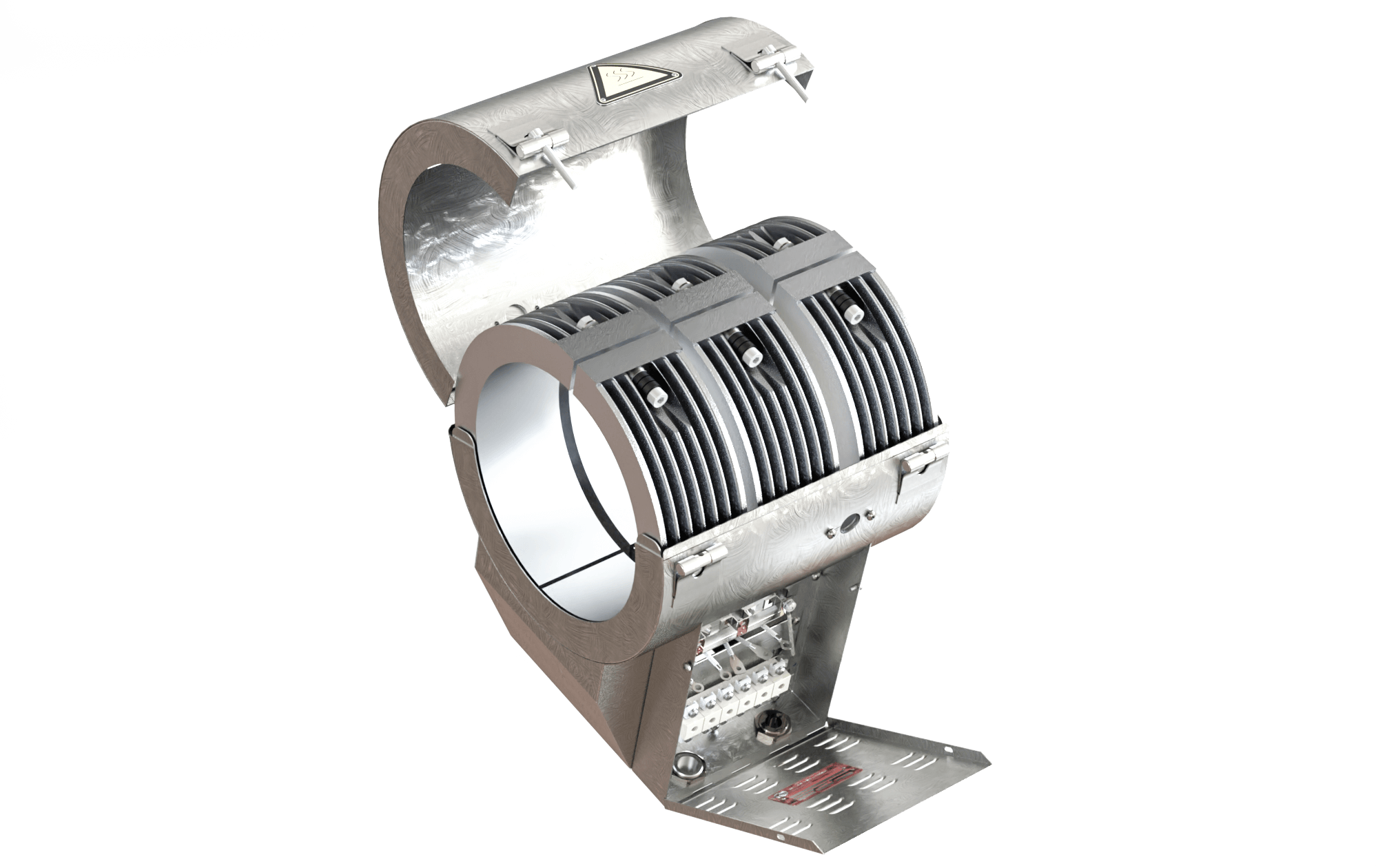

Construction

Heating and cooling function over the entire zone length
Half-shell heating and cooling jacket
Ribbed surface
Increased radiation area
Variations of cooling fins on request

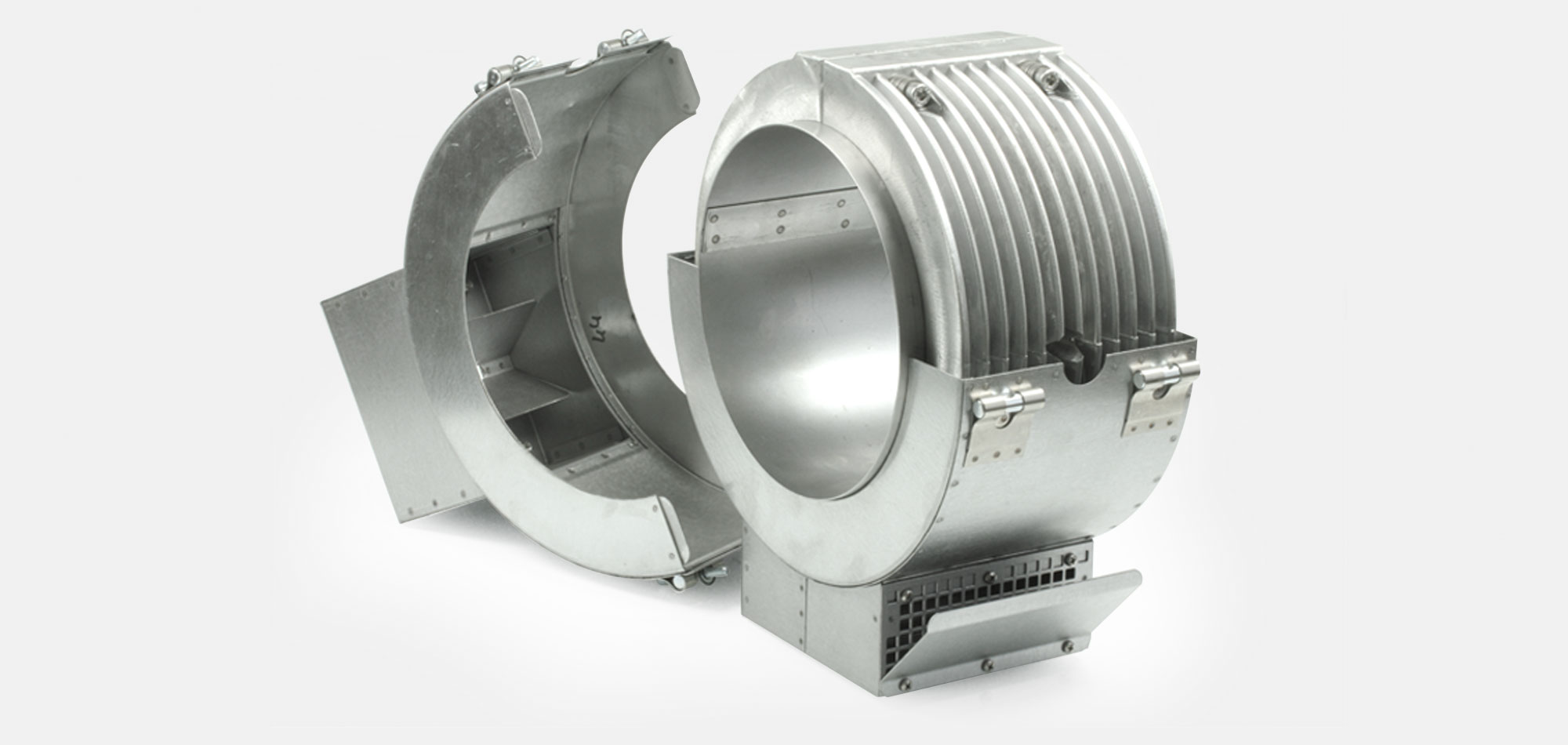

Construction with air cooling and standard cooling fins

Kühlrippen

A (distance standard cooling fins)	B (height standard cooling fins)	C (total height)
10 mm	15 mm	30 mm
12 mm	20 mm	35 mm
15 mm	30 mm	45 mm

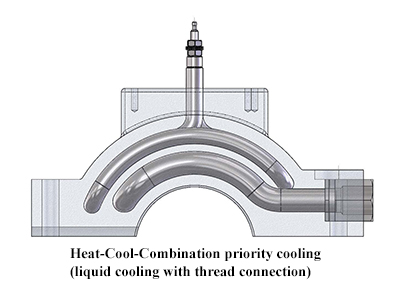

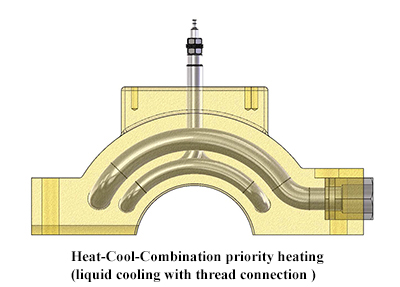

Construction with liquid cooling and without cooling fins

Tubular Heaters are cast together with cooling tubes
standard strength 35 - 45 mm, others on request
water or heat transfer oil can be used as cooling liquid
alignment to central as heating or cooling is possible

Electrical connection

Connection wiring routed to terminals as required
Different fan connection variants
Cable design as desired

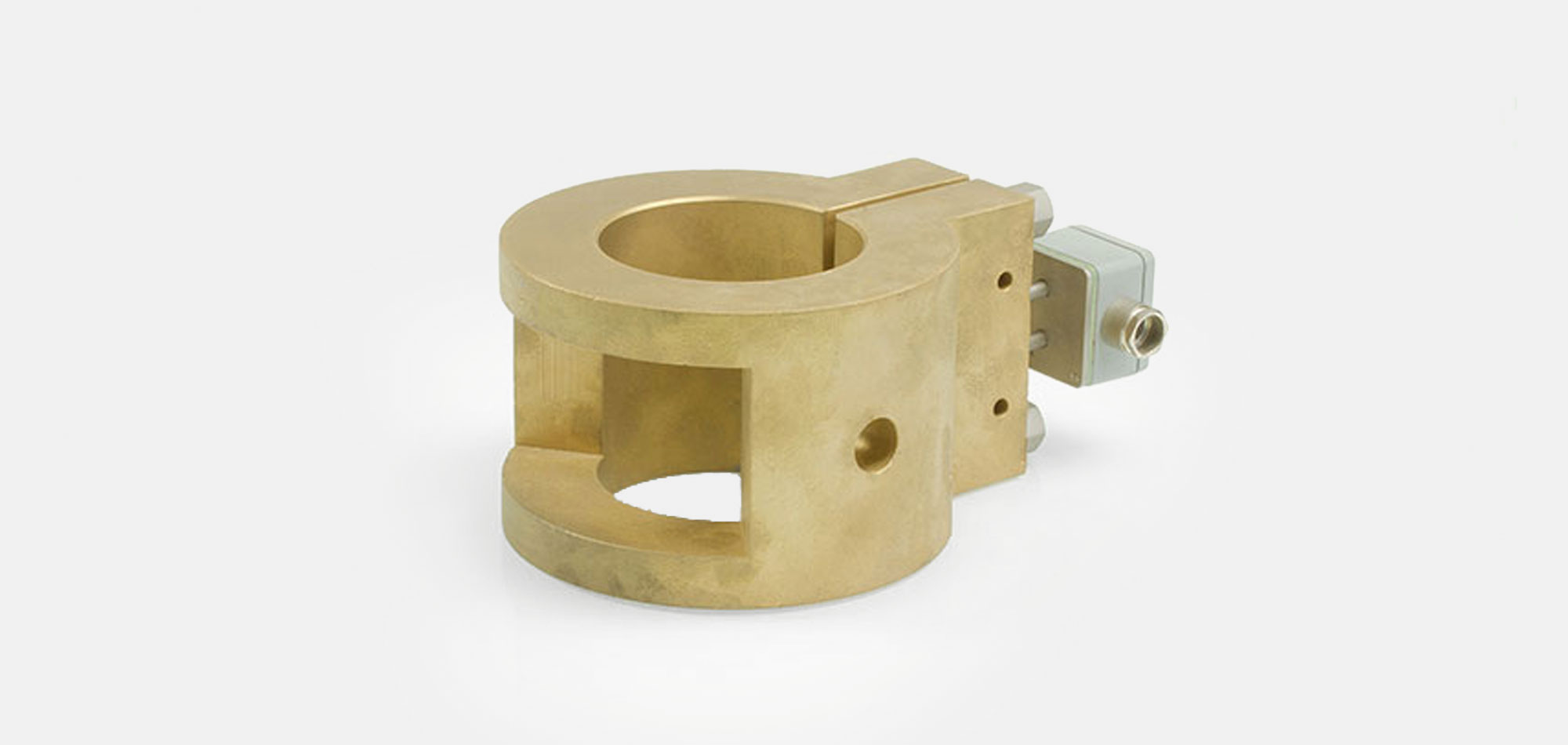

Holes and cut outs

with through holes
holes for temperature control (see data sheet for temperature sensors)
cut outs with cladding as specified

	Cast Heat-Cool-Combination
height of lip	from 30 mm
diameter	30 mm - 600 mm
length	from 50 mm
length per segment	from 50 mm
