Industrial Oven Systems and Pre-Heat devices

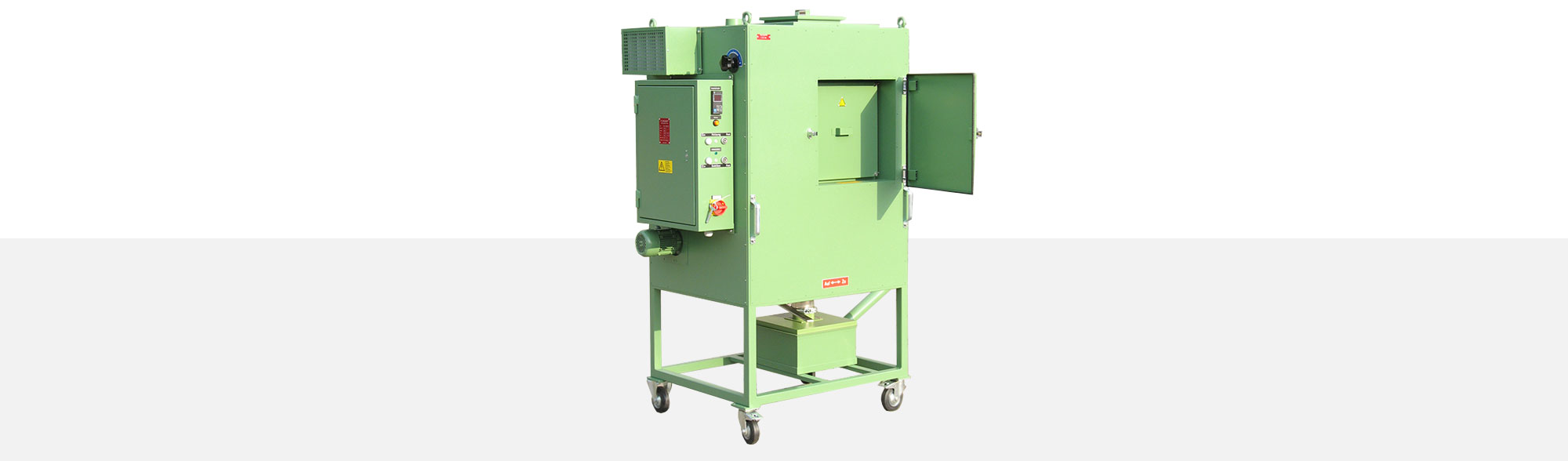

Silo Dryers standard designs

APPLICATION

Warm-air-dryers are used for drying and pre-heating solvent-free synthetic granulates. Advantages here are:

  • enlarged plasticizing capacity
  • quality improvement
  • quality assurance
  • improved flow behaviour


Surface humidity at granulate will be achieved with non-hygroscopic synthetics (e.g. PE, PP,PS, etc.) with unfavourable storage, large temperature differences and condensate with high air humidity.  A pre-heating is necessary to remove condense humidity. Several machinery can be served by one dryer.

Details

  • operating voltage: 3 x 400 Volt, 3-phases/PE 50 Hz
  • control voltage: 230 Volt via transformer
  • temperature control:
  • industrial electronic controller
  • range: 0 up to 150 °C
  • measuring element: Pt 100
  • temperature protection:
  • capillary thermostat
  • range: 60 up to 200 °C, heater turn-off and visual signal with over heat
  • capacity circuit: conductor
  • permanent sound level: < 70 db (A) measured in front of 1 m to the
  • terminal box at 1.6 m height
  • rhermal safety: class 2 as per IEC 519-2 section 13.4
  • cleaning port: 400 x 200 mm at side wall
  • internal tank material: 1,4541 or 1,4301 stainless steel
  • air regulation: adjustable fresh-, circulation and exhaust air slide
  • exhaust chimney: Ø 70 mm
  • insulation: 60 mm all sides

Options

  • voltage and wattage variations
  • operating temperature variations
  • painting, multi-colour available as per customer request
  • labelling and documentation in various languages
  • electronic digital clock timer
  • operating hours counter
  • timer function, turns on after adjusted time (max 99h 59 min) (on request as well off)
  • high pressure blowers related to enforced heat capacity for enlarged air flow
  • easy-change fine air filter with difference pressure monitor and filter change monitor
  • base as per customer requirement
  • cut outs at cover for conveyors as per customer requirement
  • sockets for conveyors at terminal box
  • material withdrawal container/tank as indicated
  • interfaces as per customer specification

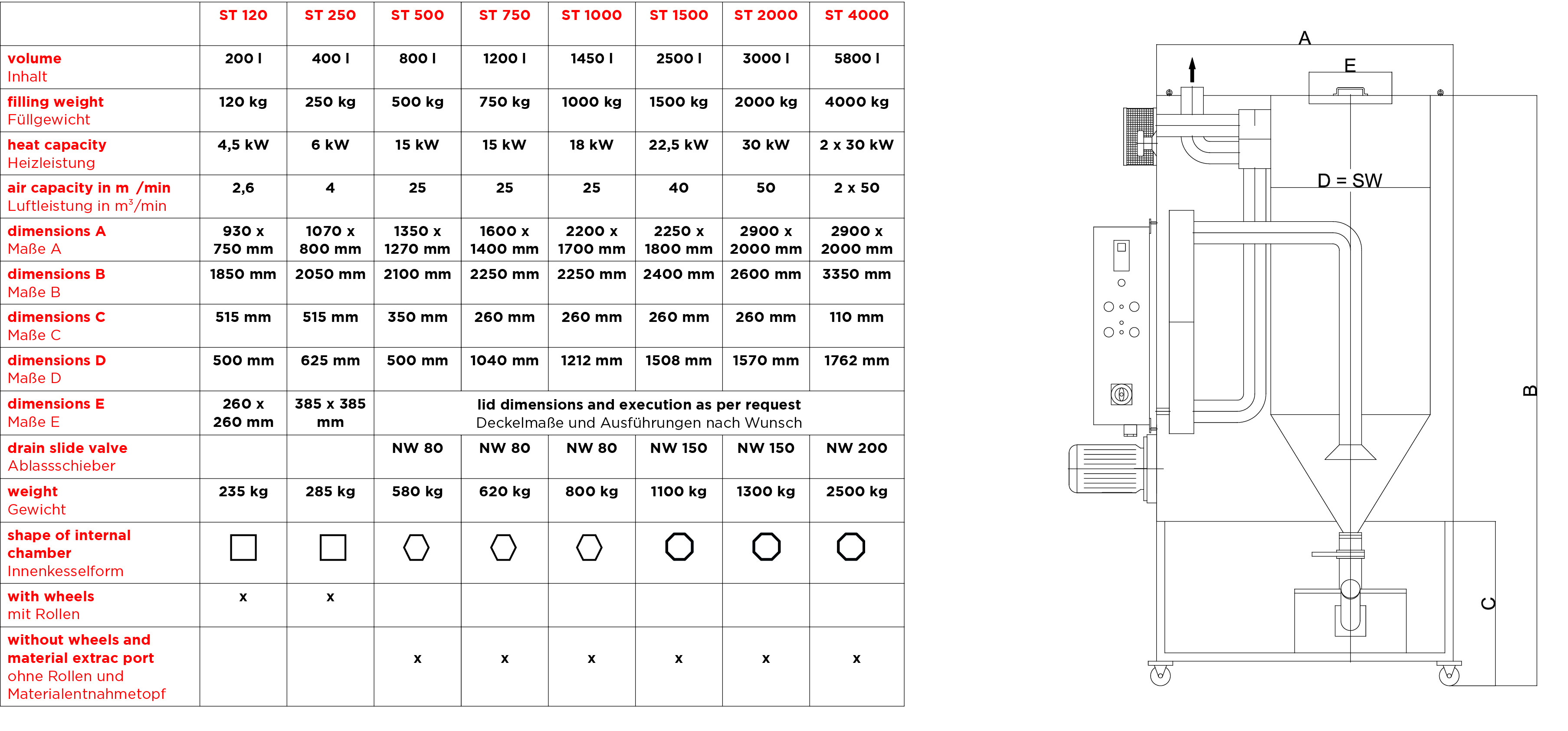

  • 8
    standard versions
  • up to180°C
    operating temperature
  • up to 5800L
    interior volume
