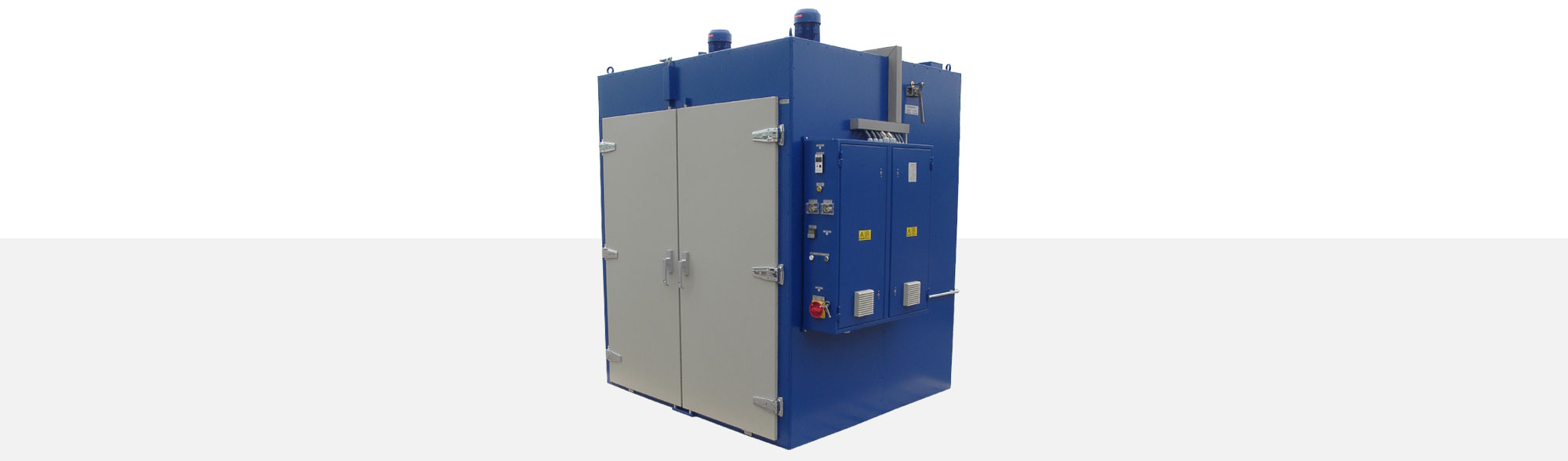

Industrial Oven Systems and Pre-Heat devices

with capacity distribution for each zone

APPLICATION

Efficient loading is provided with loading trolleys, or for pulse drying of textiles (T-shirts, Jeans, etc.), synthetic parts (hydraulic hoses) and others. The designs of trolleys are as per application requirements. Drying times can be realised via time relays, temperature drop with door opening is considered. The removal of the loading trolley takes place after acoustical signal. By opening the doors the time relay will be reset. With new loading the next drying process starts.

Options

  • voltage and wattage variations
  • operating temperature variations
  • painting, multi-colour available as per customer request
  • labelling and documentation in various languages
  • galvanized, hot-dip aluminized steel plate or stainless steel internal tank
  • aluminium or stainless steel drawers
  • perforated (square or round available) drawer bottoms
  • stable and massive charging frames for heavy materials are available
  • electronic PID temperature control with load circuit contactor or solid state relay
  • temperature control with self-improvement function, process alarm for further processing available
  • multi-tank oven
  • doors on front and back side
  • electronic digital clock timer
  • operating hours counter
  • timer function, turns on after adjusted time (max 99h 59 min) (on request as well off)
  • program controller with up to 20 programs each with 16 segments
  • signal and warning light as per requested function
  • viewing window at oven door for visual control
  • shutter plates at air-entering side for subsequent temperature improvement
  • accessible execution with interior unlocking device for the door and if requested additional emergency lamp corresponding to machinery guideline 2006/42/EG
  • multichannel diagram writer for documentation of temperature process
  • interfaces as per customer specification
  • bis 500°C
    Einsatztemperatur
  • Trocknung
    per Takt
  • rationelle
    Beladung

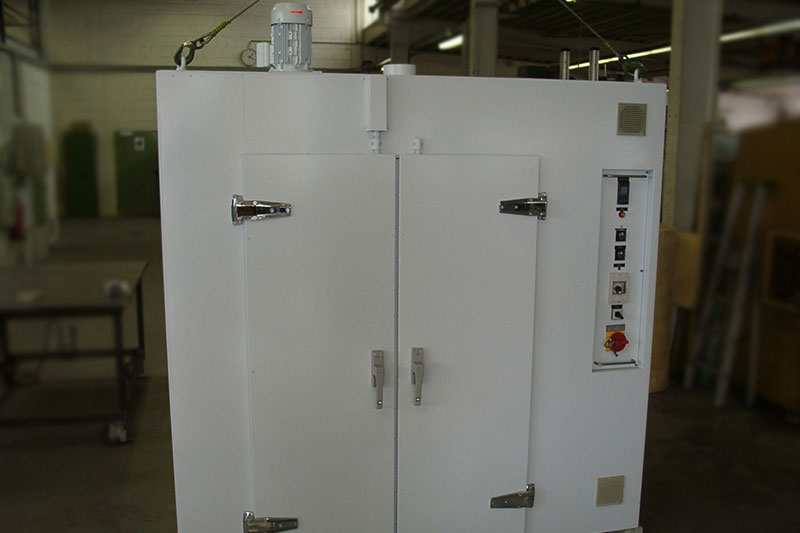

Example 1 - up to 170 °C - 1,100 x 850 x 1,600 mm - part# 1356739



  • 1,100 x 850 x 1,600 mm
    (width x depth x height)
  • operating temperature: up to 170 °C
  • heat capacity: 22.5 kW
  • circulation blower: 1.1 kW
  • air guidance: horizontal

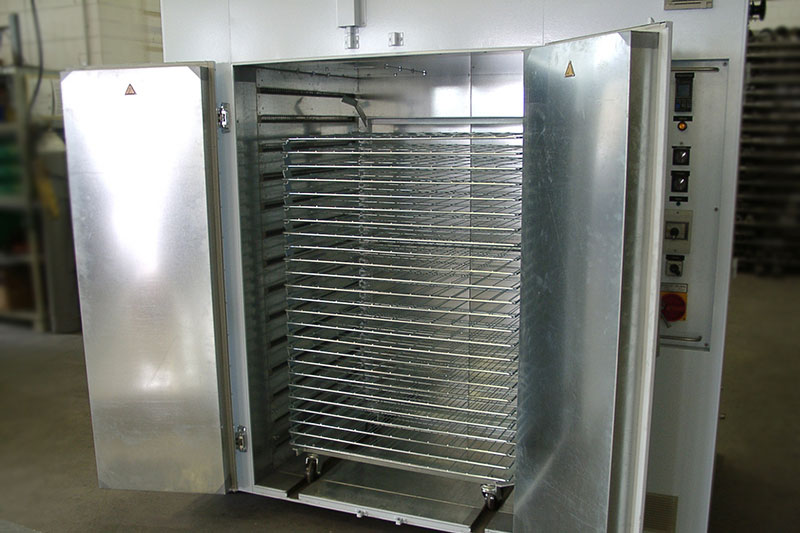

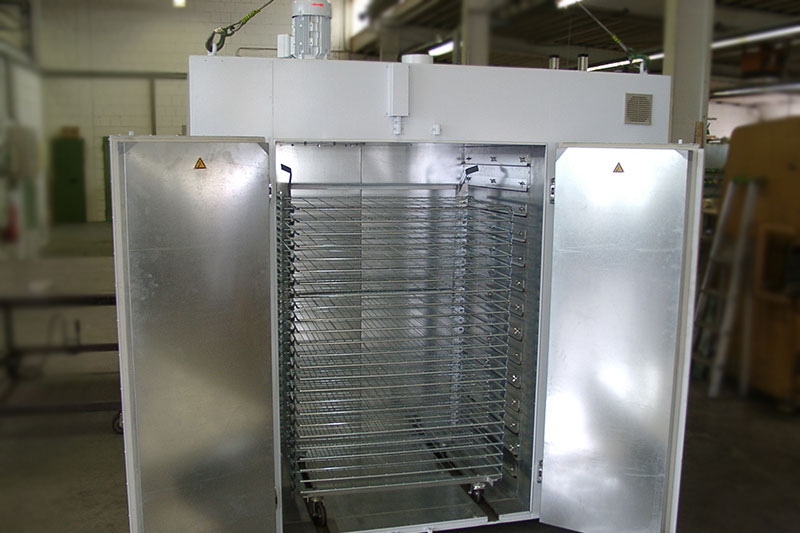

This Circulation/Fresh Air Oven with loading trolley is used for drying and fixation of flock coated textiles and insertion trolley with 25 insertion slides (600 x 900 mm).

CONSTRUCTION

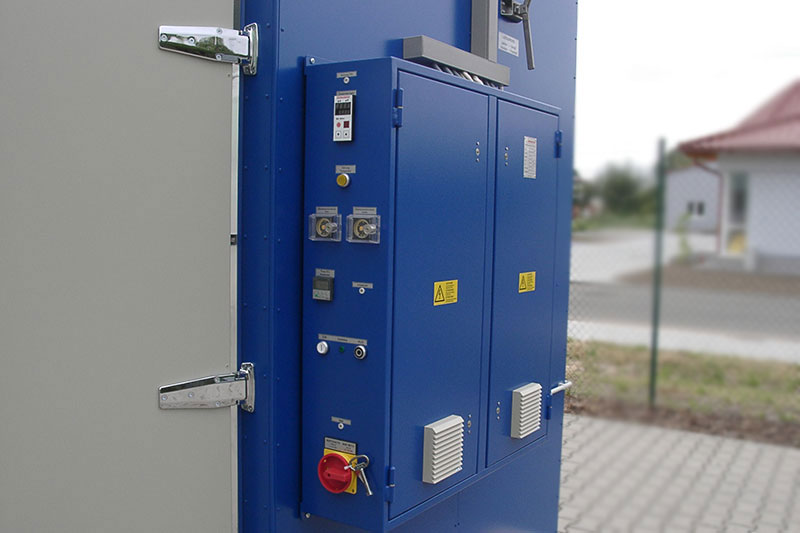

  • electronic temperature control with electronic temperature protection
  • master slave temperature control with two temperature sensors for quick heat-up time and precise temperature guidance at operating set area
  • operating pulse control:
  • time relay activation after reaching operating temperature
  • after set trying time acoustical signal
  • time relay will be set back after door opening and acoustical signal turns off
  • part-time fresh air automatic, time and temperature controlled

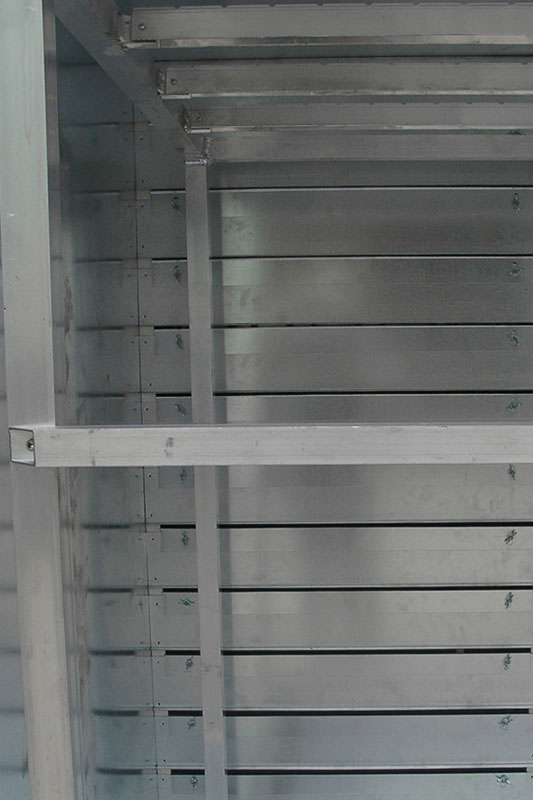

  • trolley with hinged levels
  • galvanized steel plate internal tank
  • load circuit: solid state relay

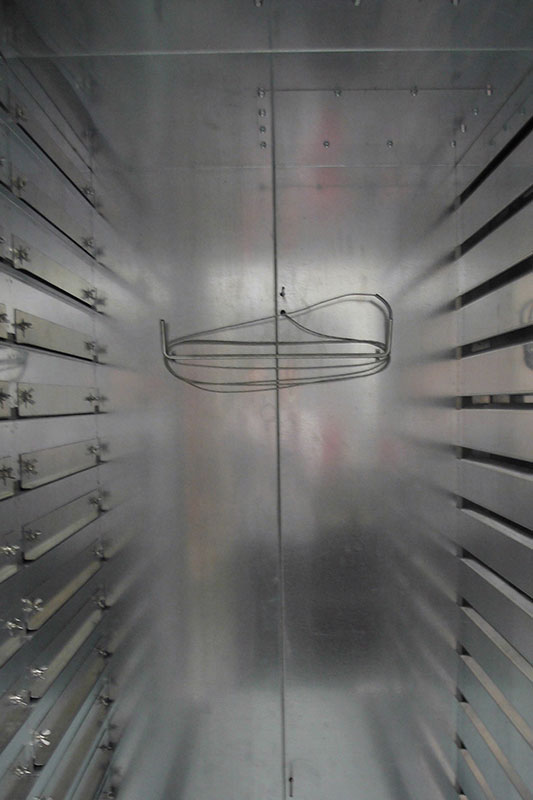

  • shutter plates at air-entering side for subsequent temperature improvement
  • insulation: 100 mm all sides
  • painting: RAL 7032 stone-grey structure / RAL 5010 gentian-blue structure

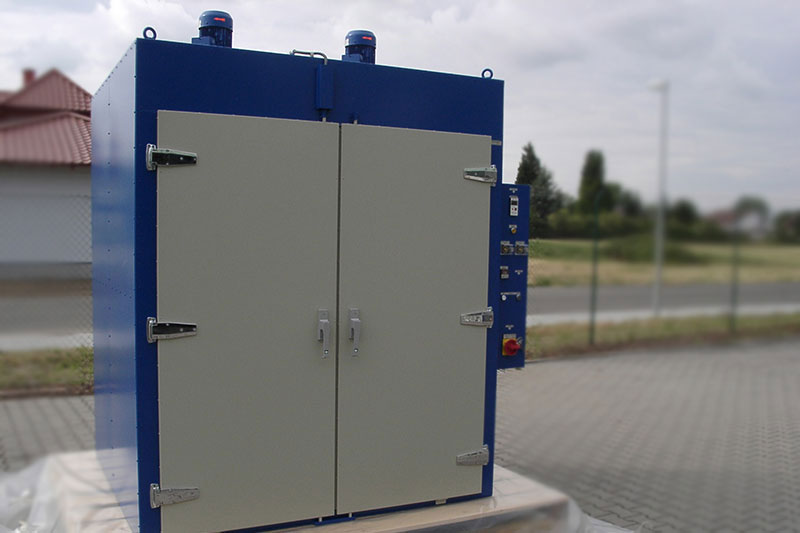

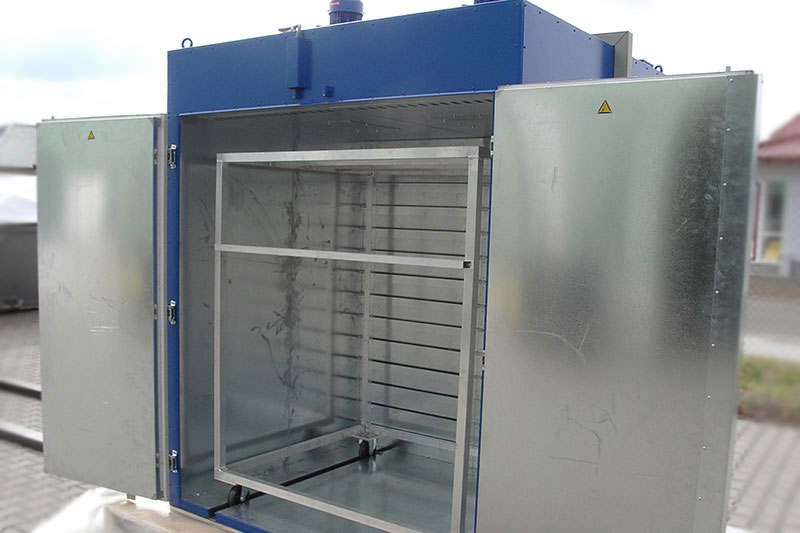

Example 2 - up to 160 °C - 1,650 x 1,300 x 1,850 mm - part# 1366490



  • 1,650 x 1,300 x 1,850 mm
    (width x depth x height)
  • operating temperature: up to 160 °C
  • heat capacity: 30 kW
  • circulation blower: 2 x 1.1 kW
  • air guidance: vertical



This Circulation/Fresh Air Oven with loading trolley is used for drying and fixation of trousers and jackets, which are processed with solvent-free paintings.

CONSTRUCTION

  • electronic temperature control with two electronic temperature protections
  • operating pulse control:
    time relay activation after reaching operating temperature
    after set trying time acoustical signal
    time relay will be set back after door opening and acoustical signal turns off
    part-time fresh air automatic, time and temperature controlled

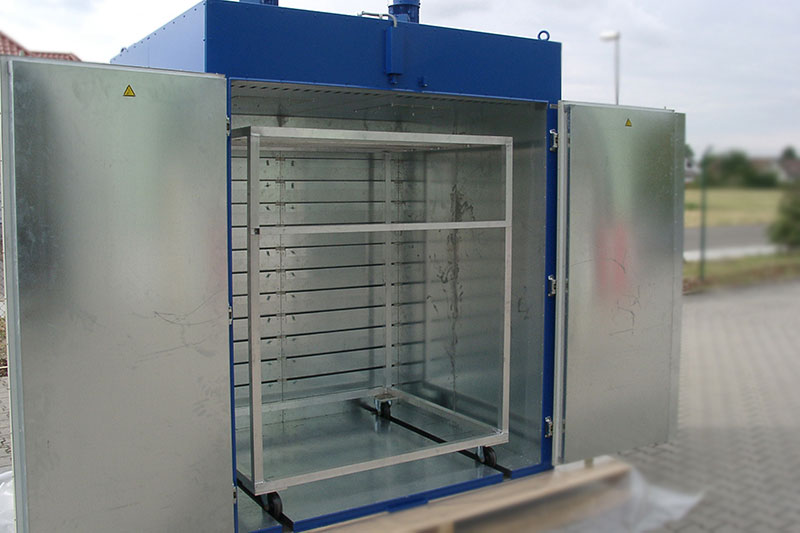

  • aluminium profile tube trolley with grab handles for jackets and trousers on coat-hangers. Carvings avoids sliding coat-hangers
    galvanized steel plate internal tank
  • load circuit: solid state relay
  • shutter plates at air-entering side for subsequent temperature improvement
  • insulation: 100 mm all sides
  • painting: RAL 7032 stone-grey structure / RAL 5010 gentian-blue structure

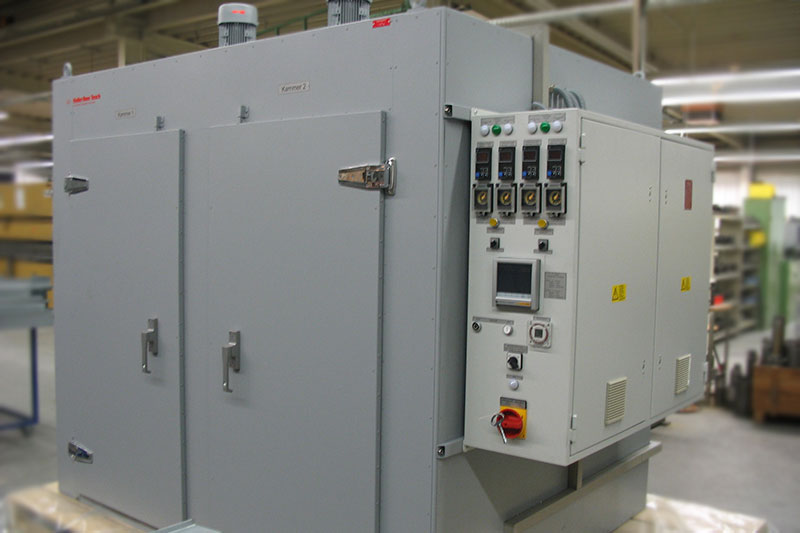

Example 3 - up to 70 °C - 800 x 1,600 x 1,600 mm - part# 2010457



  • 2 chambers each
    800 x 1,600 x 1,600 mm
    (width x depth x height)
  • operating temperature: up to 70 °C
  • heat capacity: 18 kW

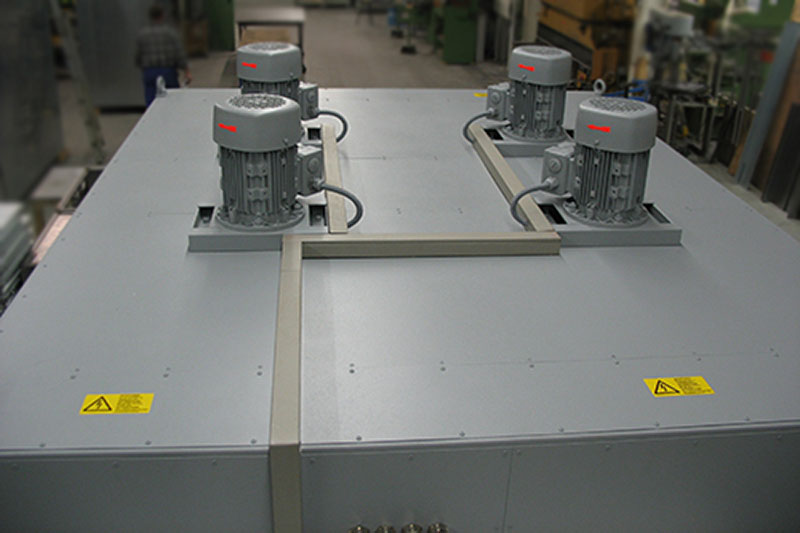

  • circulation blower: 4 x 1.1 kW
  • air guidance: horizontal



This Circulation/Fresh Air Oven with loading trolley is used for 0.33 l material non-returnable beverage can heating. The density of the beverage cans is tested under temperature. The cans are filled with non-flammable, non-explosive fluids.

CONSTRUCTION

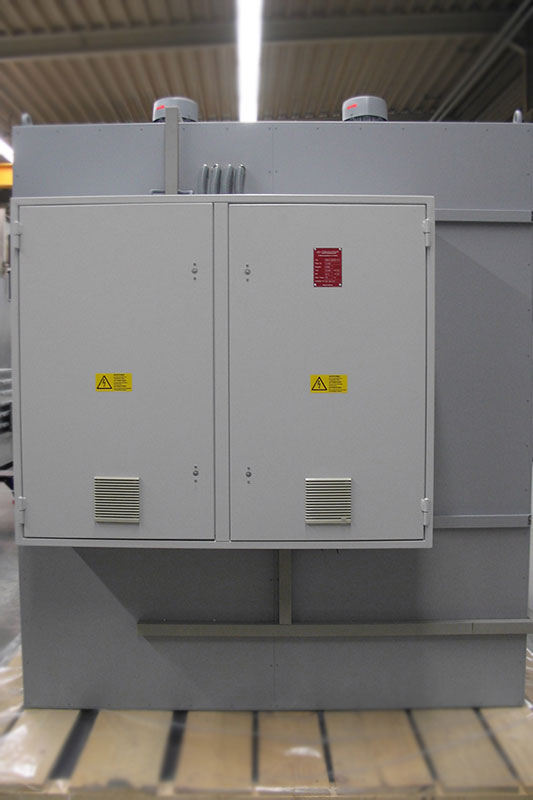

  • dryer with two separate chambers next to each other
  • four-channel temperature control with four electronic temperature protections
  • six-channel diagram writer for documentation of internal and product temperature (manual sensor)
  • steel profile tube trolley, RAL 7040 window-grey painted for 25 trays. Each tray for 21 aluminium cans, with eight stainless steel insertion angular pairs. Each pair for three trays per level. With two fixed rollers and two pulleys Ø 125 mm
  • load circuit: solid state relay
  • shutter plates at air-entering side for subsequent temperature improvement
  • insulation: 60 mm all sides
  • painting: RAL 7032 window-grey structure / RAL 5010 light-grey structure
