Industrial Oven Systems and Pre-Heat devices

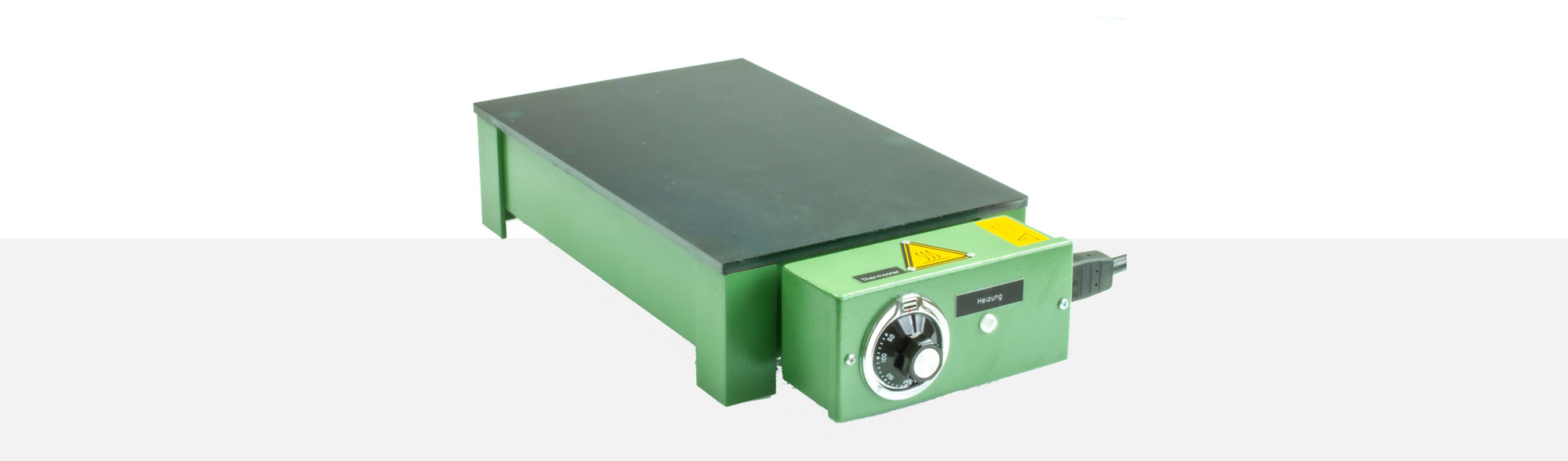

HEATING PLATES

APPLICATION

Heating Plates are suitable for wax heating as well as heating of coil bodies and metallic moulds. Designs with covers avoid heat loos and improve the temperature distribution of the Heating Plate.



Options

  • voltage and wattage variations
  • operating temperature variations
  • painting, as per customer request
  • other dimensions
  • electronic digital clock timer
  • stainless steel, aluminium, brass, copper or steel polished working plates
  • working plates as carrier for provided pre-heat plates of various designs
  • covers for working plate /li>
  • with base as heating table
  • working plate with floated frame
  • temperature control with capillary thermostat and actual temperature display



Construction
operating temperature up to 300 °C max.
working plate 8 mm raw steel plate
operating voltage 230V, 1-phase/PE/N 50 Hz
mains connection via plug,
matching socket will be provided
temperature control capillary thermostat 50 – 300 °C
temperature tolerance ± 7 ° C
control light yellow, as switching status indicator
clear, as switching additional indicator
base 95 mm high
base standard painting RAL 6011 reseda-green structure
base insulation inlay 60 mm



  • up to 300°C
    operating temperature

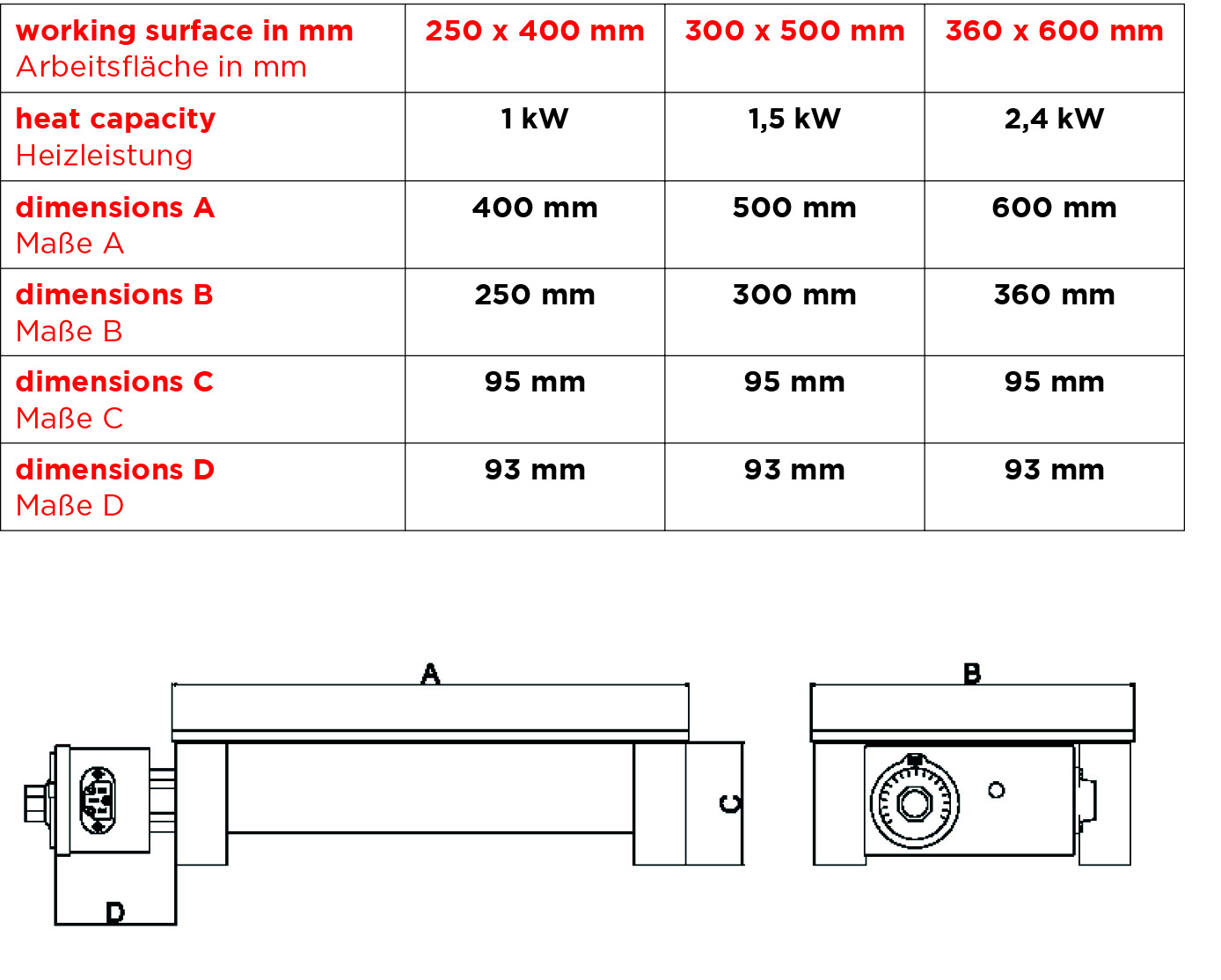

  • Standard 1
    400 x 250 x 95 mm
  • Standard 2
    500 x 300 x 95 mm
  • Standard 3
    600 x 360 x 95 mm
