APPLICATION

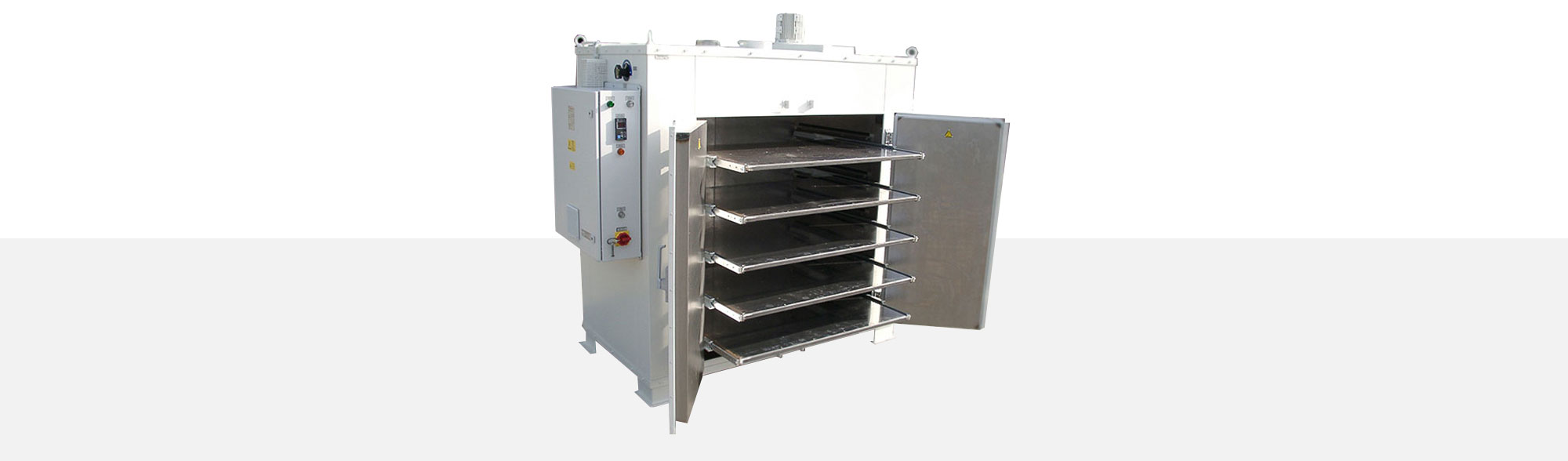

As single- or multi-chamber oven the drawer ovens offer a high variability. Matched to the size of to be dried material and drying temperature these ovens are following the demands of the customers. Bashing plates on single drawers avoid the escape of warm air out of the dryer with extracted drawers. Synthetic plates (2,000 x 2,900 mm) can be put and preheated on the teflon-coated drawers. These drawers in combination with base units offer an un-resistant extraction of the material. The material is easily to extract. The drying times are indicated via single time relays. The process is indicated by visual and acoustic signals for each drawer. The start of the drying time occurs with a micro switch automatically. It is as well possible to interlock single drawers that a premature extract is not possible. Dryers with linear bearings are used e.g. within tyre production. The loading is manual or with an indoor crane.

Options

  • voltage and wattage variations
  • operating temperature variations
  • painting, multi-colour available as per customer request
  • labelling and documentation in various languages
  • galvanized, hot-dip aluminized steel plate or stainless steel internal tank
  • stainless steel or aluminium drawers
  • perforated steel plate drawer bottom available (square or round punching)
  • electronic PID temperature control with load circuit contactor or solid state relay
  • temperature control with self-improvement function, process alarm for further processing available
  • multi-tank oven
  • doors on front and back side
  • electronic digital clock timer operating hours counter timer function, turns on after adjusted time (max 99h 59 min) (on request as well off) program controller with up to 20 programs each with 16 segments signal and warning light as per requested function viewing window at oven door for visual control shutter plates at air-entering side for subsequent temperature improvement accessible execution with interior unlocking device for the door and if requested additional emergency lamp corresponding to machinery guideline 2006/42/EG multichannel diagram writer for documentation of temperature process interfaces as per customer specification
  • bis 300°C
    Betriebstemperatur
  • Luftführung
    horitontal/vertikal
  • Beladung
    von Hand oder Kran
Example 1 - up to 220 °C - 3,000 x 2,100 x 1,600 mm - part# 1361482



  • 3,000 x 2,100 x 1,600 mm
    (width x depth x height)
  • operating temperature: up to 220 °C
  • heat capacity: 45 kW
  • circulation air blower: 3 x 1.1 kW
  • air guidance: vertical



This oven with linear bearing is used to pre-heat thermoplastic synthetic plates (dimensions 2,900 x 2,000 mm) before having a forming procedure.

Construction

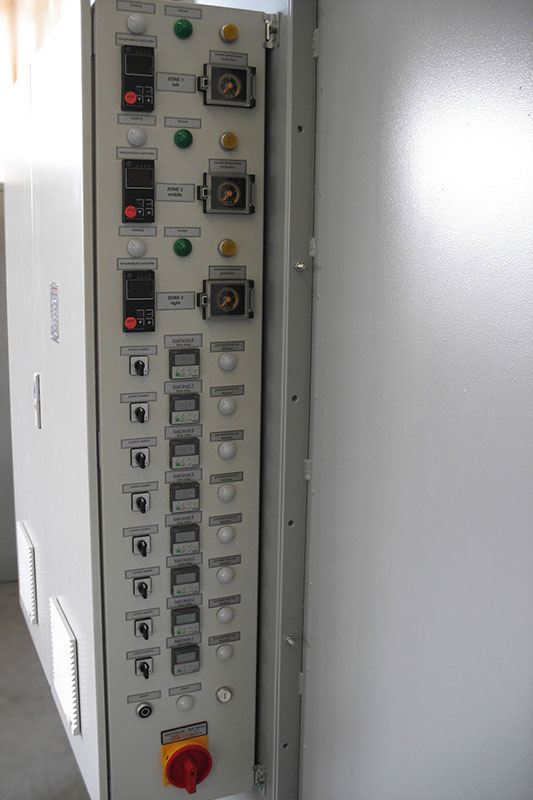

  • electronic temperature control with three control points
  • electronic over heat cut-off devices out of three electronic temperature protection controllers

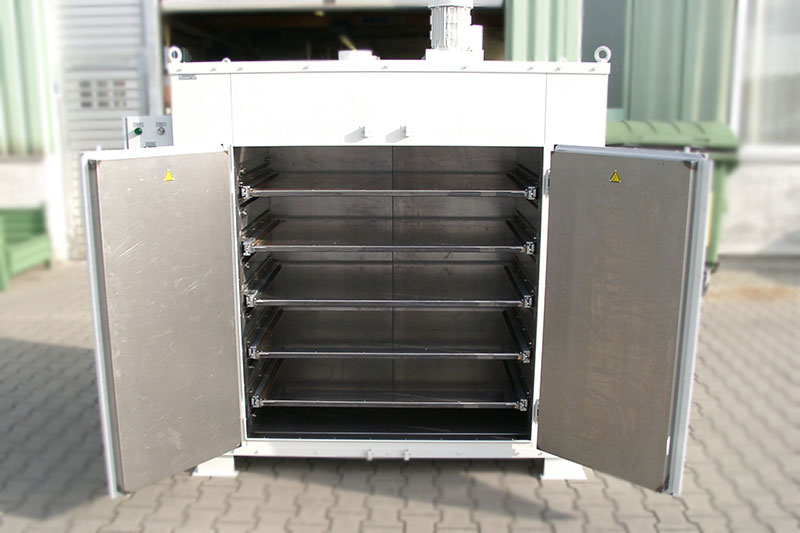

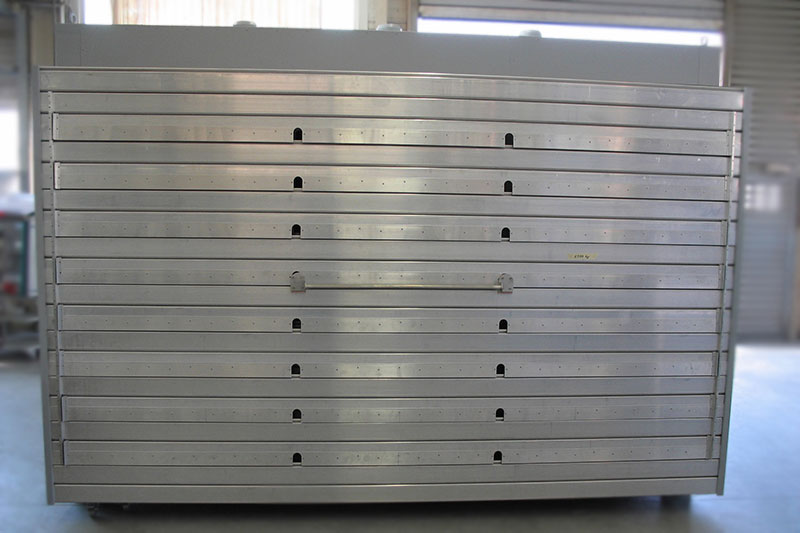

  • eight loading levels, teflon coated to carry synthetic plates with ball bearing base units (2,000 mm)
  • varying time of each level adjustable with time relay, visual signal after procedure
  • position switch resets corresponding time relay after extraction
  • galvanized steel plate internal tank
  • double oven door with positive opening operation out of aluminium flap
  • load circuit: solid state relay

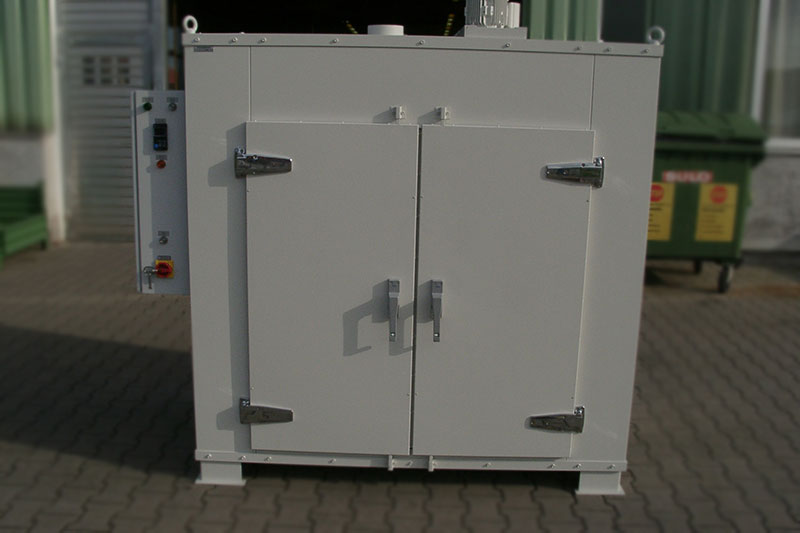

Example 2 - up to 120 °C - 1,200 x 750 x 1,220 mm - part# 1357387



  • 1,200 x 750 x 1,220 mm
    (width x depth x height)
  • operating temperature: up to 120 °C
  • heat capacity: 13.5 kW
  • circulation air blower: 1.1 kW
  • air guidance: horizontal
  • This oven with linear bearing is used for heating solvent-free steel parts.


    Constuction

    • electronic temperature control
    • temperature protection

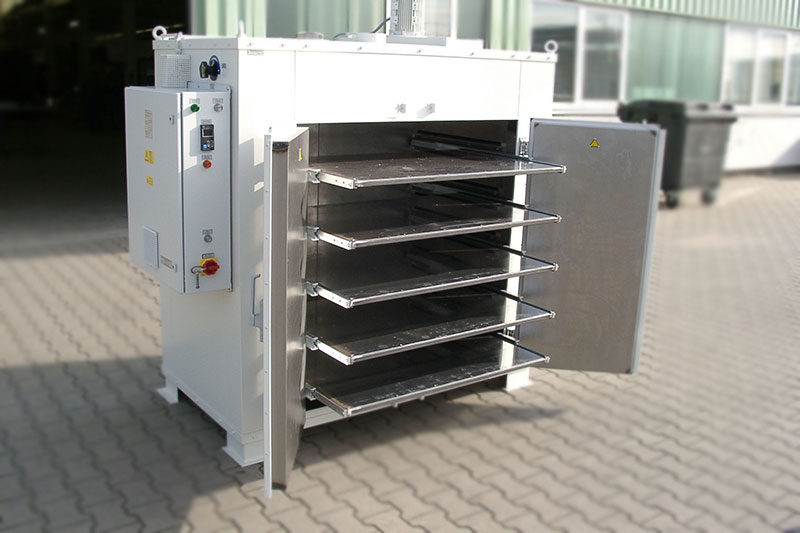

    • five loading drawers for steel parts
    • drawers are with ball bearing part units (450 mm). Loading capacity per drawer: static 150 kg
    • wiring of components as per customer indication
    • steel plate internal tank
    • load circuit: solid state relay
    • shutter plates at air-entering side for subsequent improvement of temperature tolerance
    • electrical adjustable fresh and circulation air slide for front and back area
Example 3 - up to 150 °C - 300 x 600 x 950 mm - part# 2011704



  • 300 x 600 x 950 mm
    (width x depth x height)
  • operating temperature: up to 150 °C
  • heat capacity: 3 x 2 kW

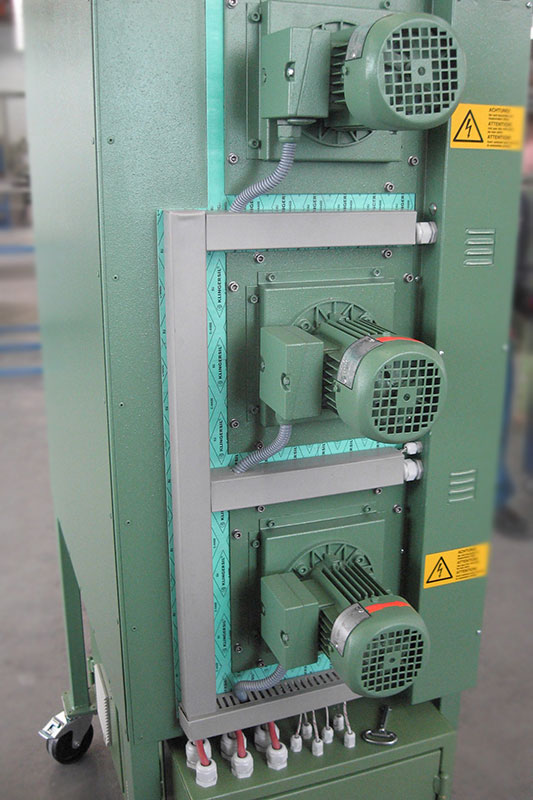

  • circulation air blower: 3 x 0.18 kW
  • air guidance: horizontal

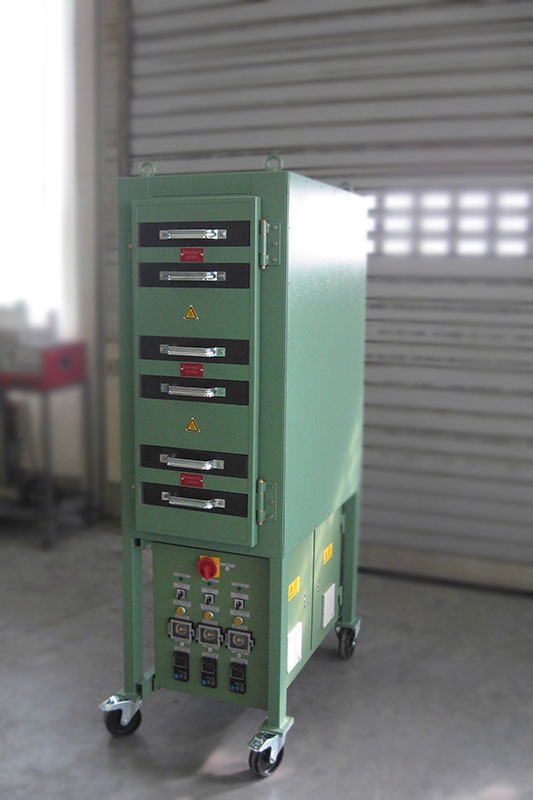

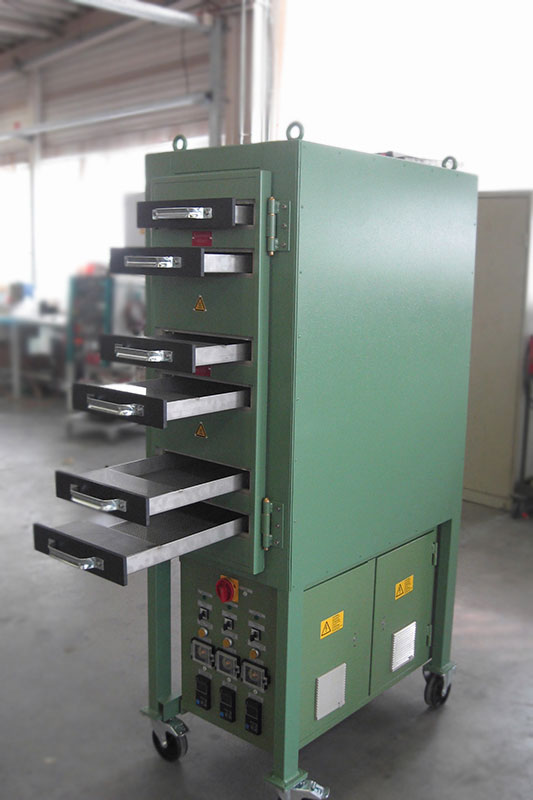

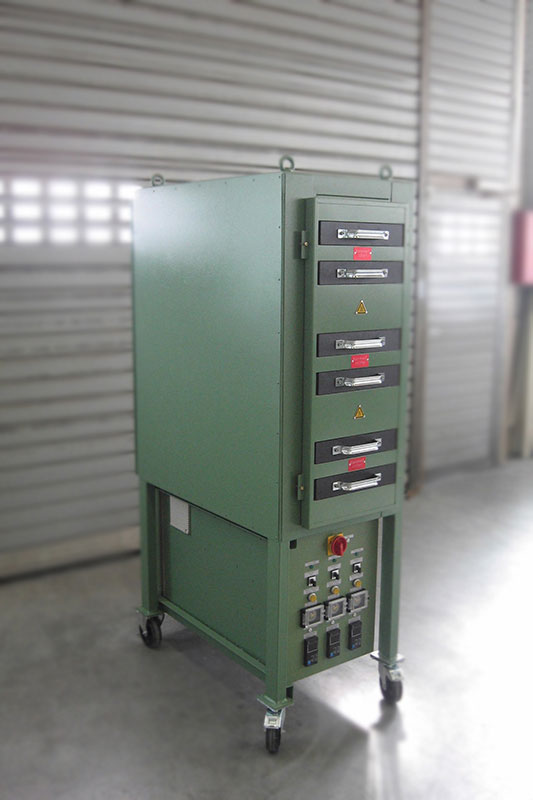

This drawer oven is used for heating solvent-free synthetic parts.

AUSFÜHRUNG

  • electronic temperature control with three control points
  • electronic over heat cut-off devices out of three electronic temperature protection controllers

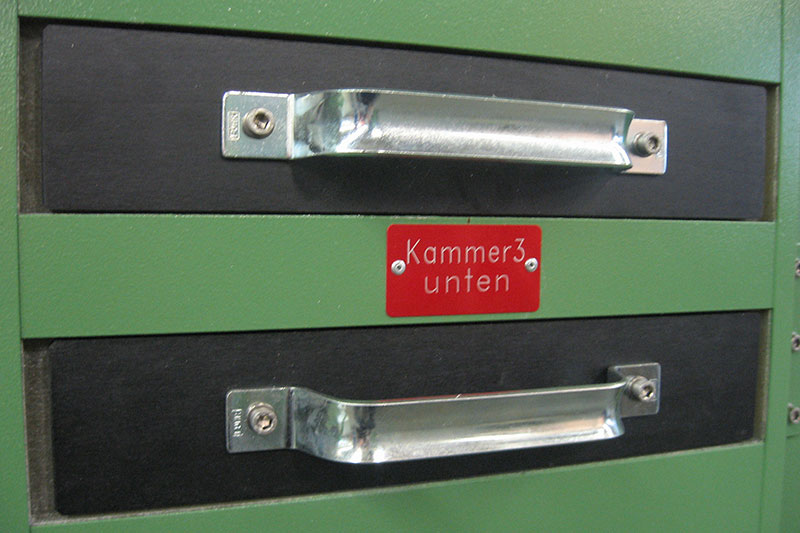

  • round perforated stainless steel drawers with heat insulated handle cover at front side
  • drawers with partition plate to avoid air exit with open drawers
  • shutter plates at air-entering side for subsequent improvement of temperature tolerance
  • base with fixed rollers and pulleysv
  • galvanized steel plate internal tank
