HEAT-COOL-COMBINATIONS

HKK

Heat-Cool-Combination, temperatures up to 400°C, extrusion, injection molding, recycling systems, blowers, air cooling, insulation, ceramic insulated

APPLICATIONS

The HKK ceramic insulated Heat-Cool-Combinations are mainly used in the extrusion sector. In individual cases they are as well suitable for polymer processing.

Options

various dimensions and connection versions
other voltage and/or wattage
with holes and/or thermocouple bridges
cut outs with lining as indicated /li>
other clamp gap
inged cooling jacket
with quick lock
additional integral insulation layer
outer touch protection
other cooling jacket material, e.g. stainless steel
blower connection versions
with self-locking flap at air exit
with blower

ceramic
heating
air blower
cooling
up to 400°C
operating temperature

HKK Heat-Cool-Combination

Heat-Cool-Combination, temperatures up to 400°C, extrusion, injection molding, recycling systems, blowers, air cooling, insulation, ceramic insulated

Construction

layout: part coverage (1/3 cooling and 2/3 heating surface)
assembly design: heater: single or multi part; cooling jacket: semi-monocoque design

Electrical connection

cable channel
cable fitting
plug connection

Holes and cut outs

with holes and/or thermocouple bridges
cut outs with coverage as per indication

	HKK
height of lip	standard 35 mm, others on request
diameter	60 mm - 500 mm
length	100 mm - 1000 mm
length per segment	from 28 mm

Options

others voltages
with holes and/or thermocouple connectors
cut outs with coverage as per indication
other clamp gap
hinged cooling jacket
with quick lock
additional integrated insulation
external contact protection
other cooling jacket material, e.g. stainless steel
different blower connections options
with self-locking lid at air exit
blower

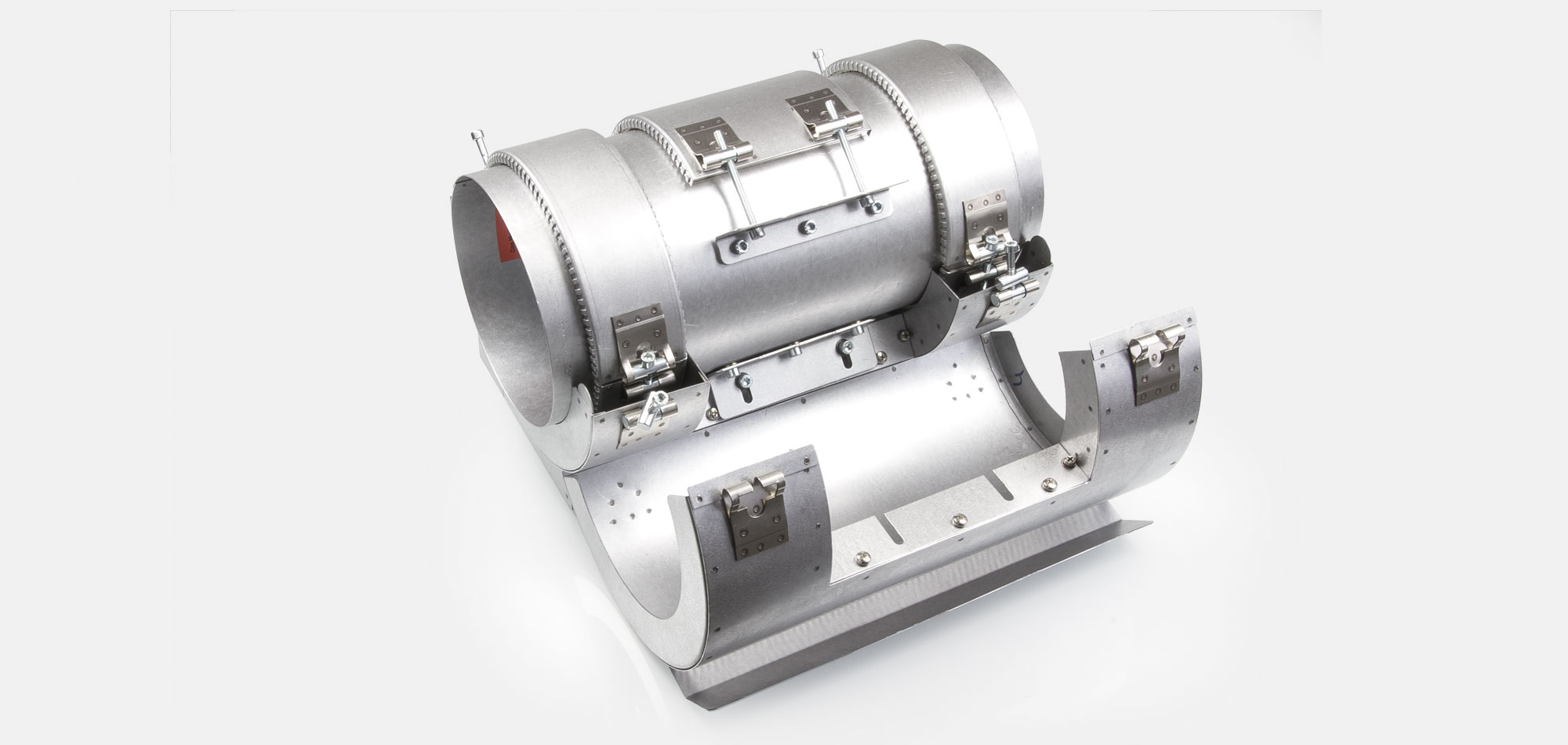

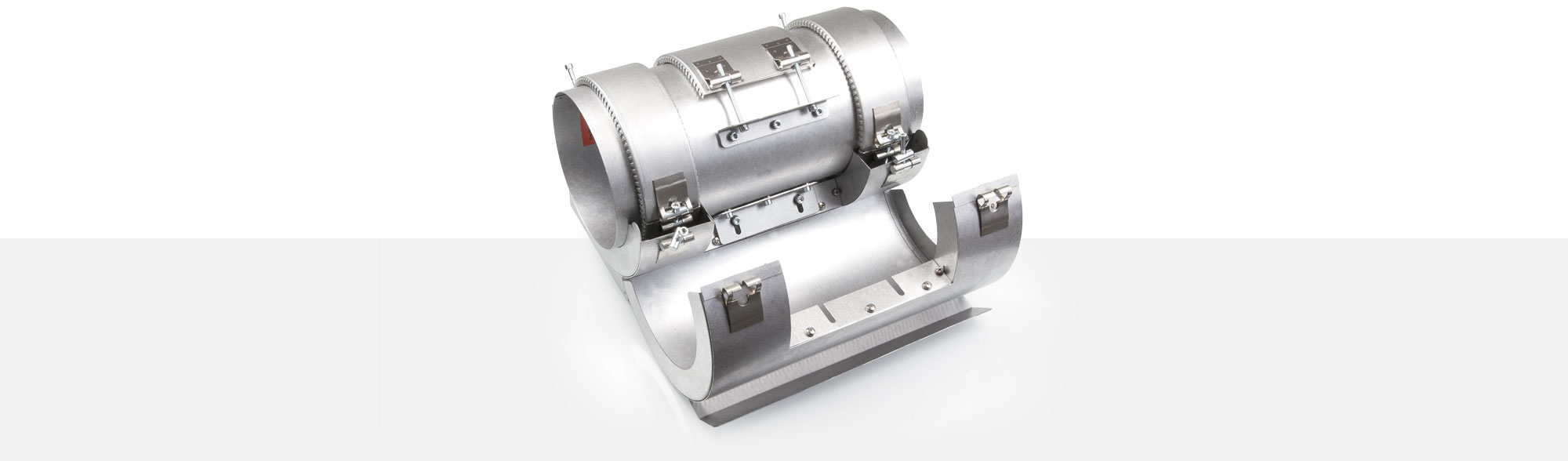

Heat-Cool-Combination, temperatures up to 400°C, extrusion, injection molding, recycling systems, blowers, air cooling, insulation, ceramic insulated — Heat-Cool-Combination with Ceramic Band Heaters with an open cooling jacket

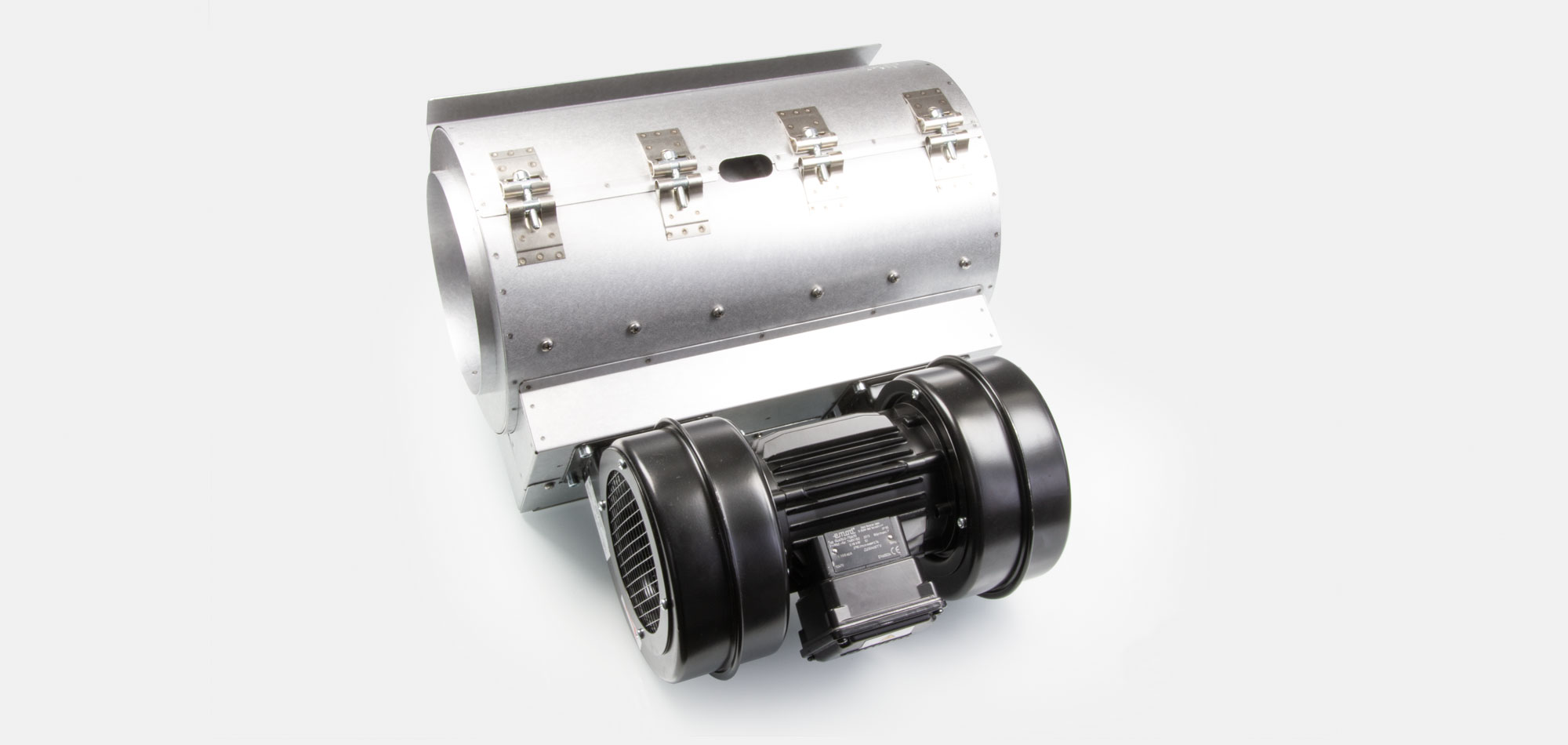

Heat-Cool-Combination, temperatures up to 400°C, extrusion, injection molding, recycling systems, blowers, air cooling, insulation, ceramic insulated — Ceramic-Heat-Cool-Kombination with air blower for operating temperatures up to 400°C
