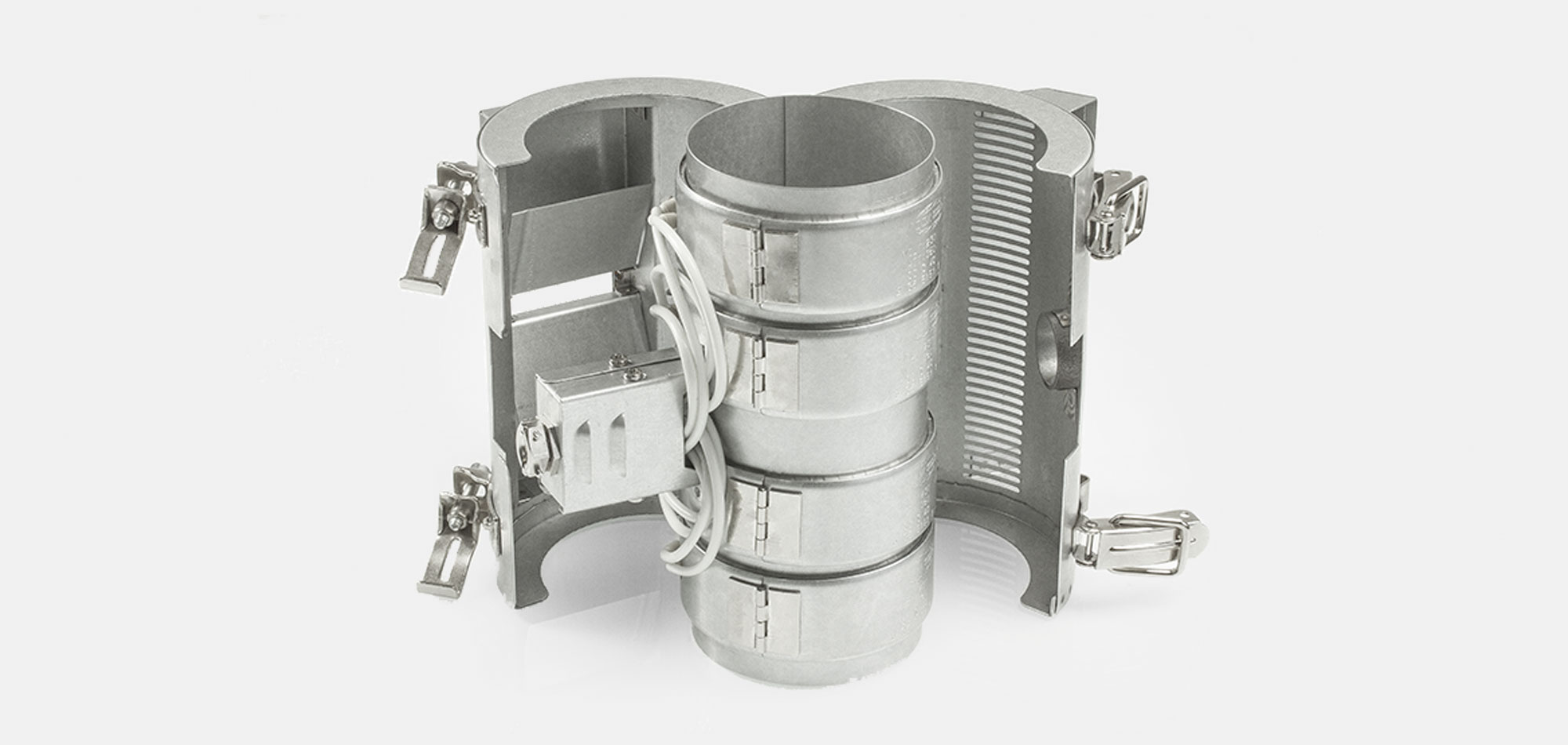

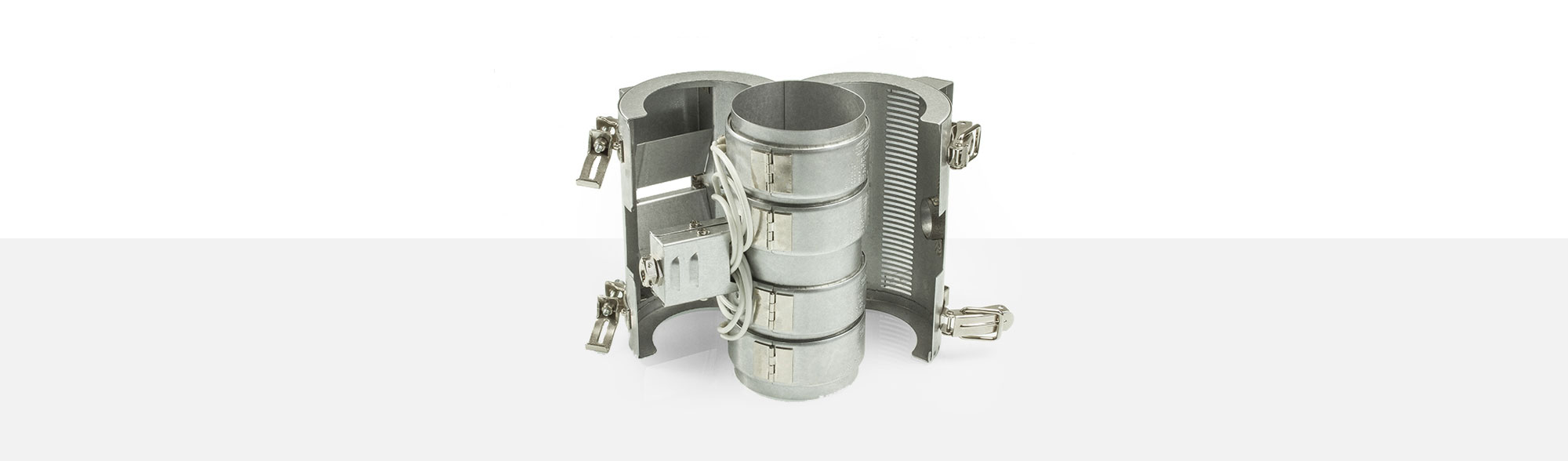

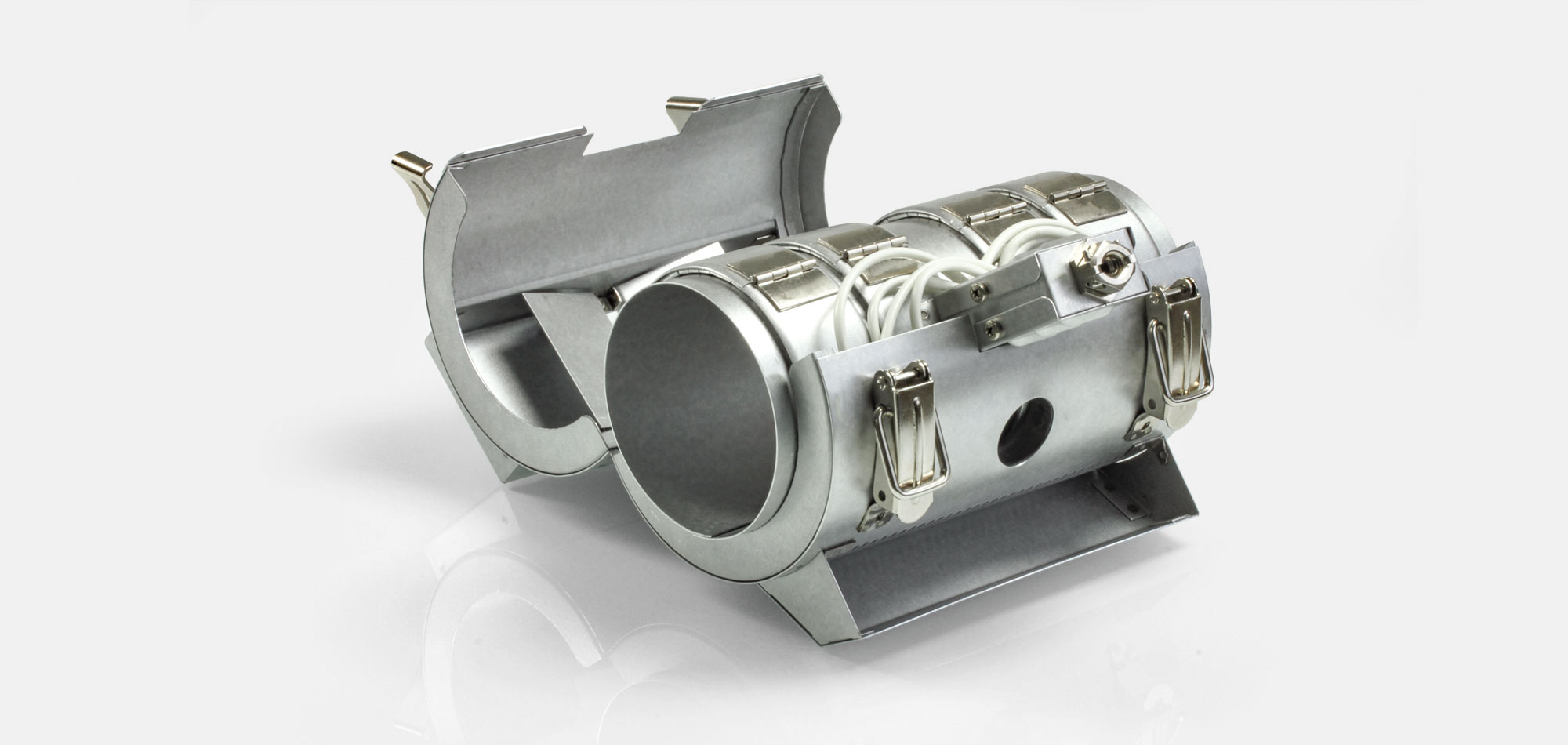

HEAT-COOL-COMBINATIONS

HKZ

APPLICATIONS

Heat-Cool-Combinations are mainly used in the extrusion sector. In individual cases they are as well suitable for processing PVC or similar materials on injection moulding machinery. They find as well application with Recycling devices.

Options

  • various dimensions and connection versions
  • other voltage and/or wattage
  • with holes and/or thermocouple bridges
  • cut outs with lining as indicated
  • other clamp gap
  • hinged cooling jacket
  • with quick lock
  • additional integral insulation layer
  • outer touch protection
  • other cooling jacket material, e.g. stainless steel
  • blower connection versions
  • with self-locking flap at air exit
  • with blower
  • Glimmer
    Heizung
  • Luftgebläse
    Kühlung
  • bis 280°C
    operation temperature

Holes and cut outs

  • with holes and/or thermocouple bridges
  • cut outs with coverage as per indication



  HKZ
height of lip Standard 35 mm, andere auf Anfrage
diameter 55 mm - 500 mm
lenght 100 mm - 1000 mm
lenght per segment ab 20 mm

Electrical connection

  • cable channel
  • cable fitting
  • plug connection

different blower connection options

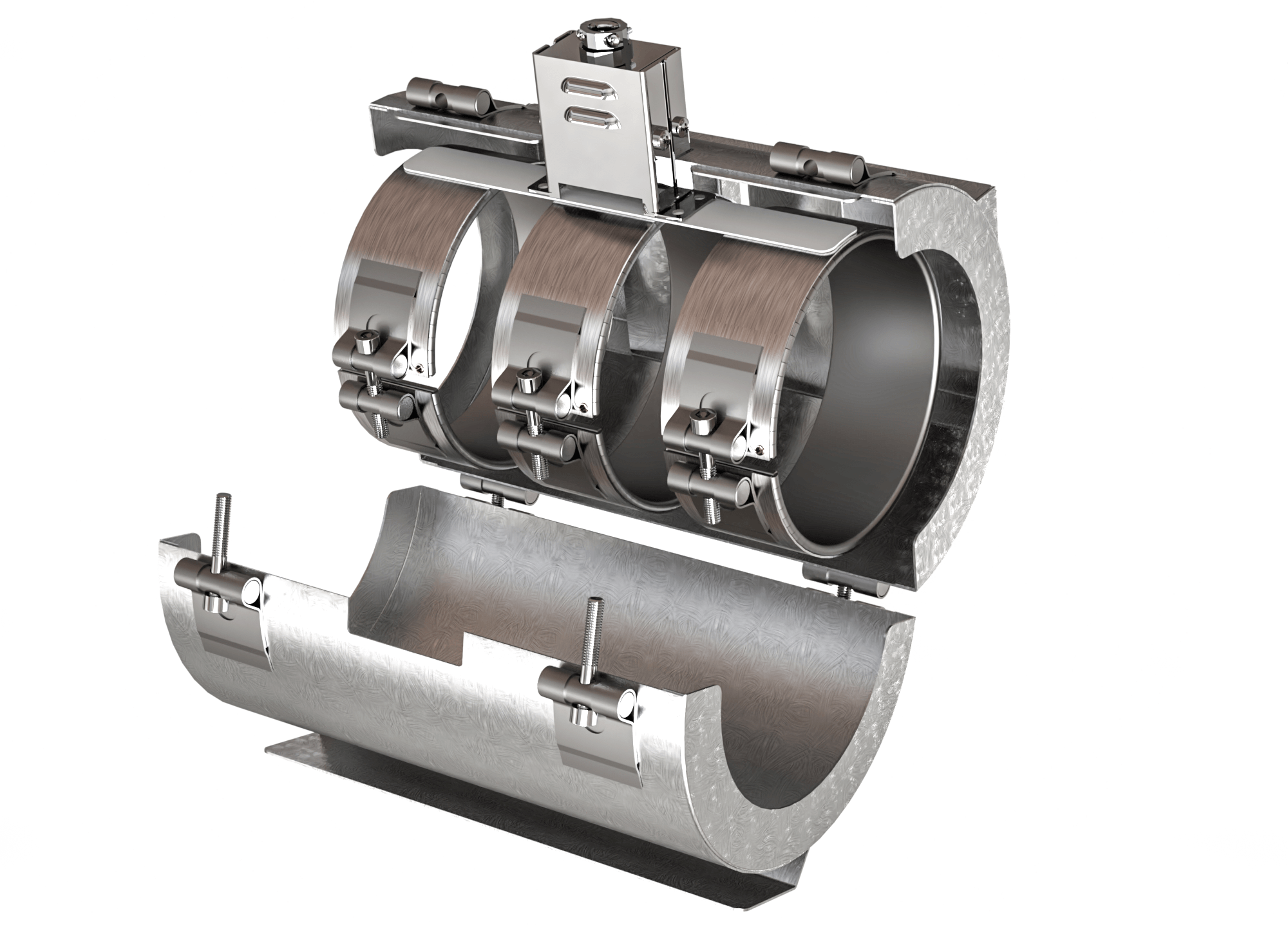

Construction

  • layout: part coverage (1/3 cooling and 2/3 heating surface)
  • assembly design: heater: single or multi part; cooling jacket: semi-monocoque design
