Industrial Oven Systems and Pre-Heat devices

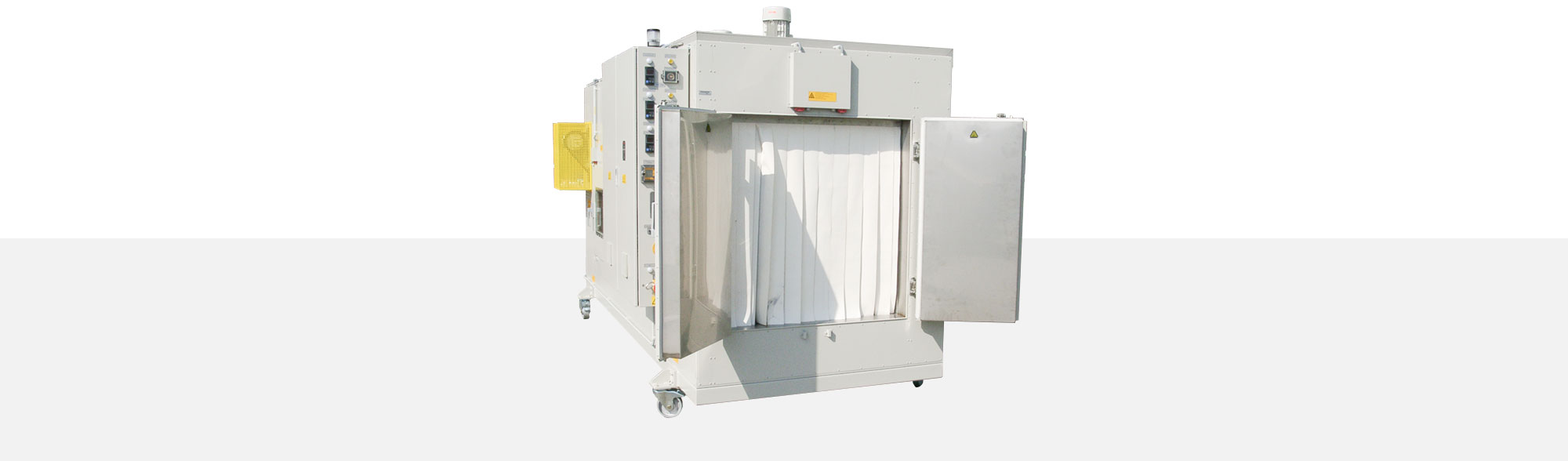

Circulation/Fresh Air Ovens design examples

APPLICATIONS

These dryers are suitable for various application within industrial drying:

  • drying of synthetic granulates
  • annealing of synthetic components
  • heating of various parts out of metal, rubber, ceramic, paper, etc.

We select for every drying job the perfect air guidance. According to customers

  • component size
  • component arrangement
  • loading capacity

we select either vertical, horizontol or double-sided air guidance.The best flow possibility of the parts inside the dryer will be allways considered. If steam, moisture or similar will be release durching the drying or annealing process dryers with fresh, circulation or exhaust air slides are recommended. A continuous adjustable ventilation flap system is feeding fresh air equal volumes of exhaust air will be steamed out with a tube socket. This exhaust tube socket can be enlarged with tube to lead the saturated air outside. There are drawers, support bearing with perforated plates or complete supporting racks for loading inside. The Dryer has 100 mm high foods which allows an easy loading with a lift truck. Dryer designs with base plates allow a direct loading/access to dryer with racks. For subsequent temperature improvement we offer adustable shutter plates at air entering side. The adjustment is as per requirements. There are as well solution for limited space available.  Dryers in two-parted designs can pass small doors to be placed and fitted at the correct spot. For an already realised project we "put a dryer aside" to achieve maximum internal tank heights with limited alignment height. See design example 3 - part# 2008235.

Options

  • voltage and wattage variations
  • operating temperature variations
  • painting, multi-colour available as per customer request
  • labelling and documentation in various languages
  • galvanized, hot-dip aluminized steel plate or stainless steel internal tank
  • aluminium or stainless steel drawers
  • perforated (square or round available) drawer bottoms
  • stable and massive charging frames for heavy materials are available
  • electronic PID temperature control with load circuit contactor or solid state relay
  • temperature control with self-improvement function, process alarm for further processing available
  • multi-tank oven
  • doors on front and back side
  • electronic digital clock timer
  • operating hours counter
  • timer function, turns on after adjusted time (max 99h 59 min) (on request as well off)
  • program controller with up to 20 programs each with 16 segments
  • signal and warning light as per requested function
  • viewing window at oven door for visual control
  • shutter plates at air-entering side for subsequent temperature improvement
  • accessible execution with interior unlocking device for the door and if requested additional emergency lamp corresponding to machinery guideline 2006/42/EG
  • multichannel diagram writer for documentation of temperature process
  • interfaces as per customer specification
  • up to 350°C
    operating temperature
  • drying
    of metal and ruber etc.
  • tempering
    of plastic parts

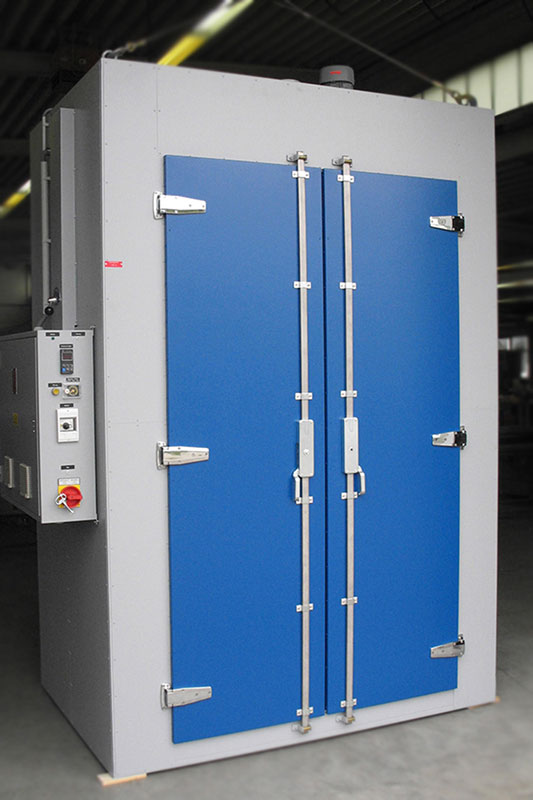

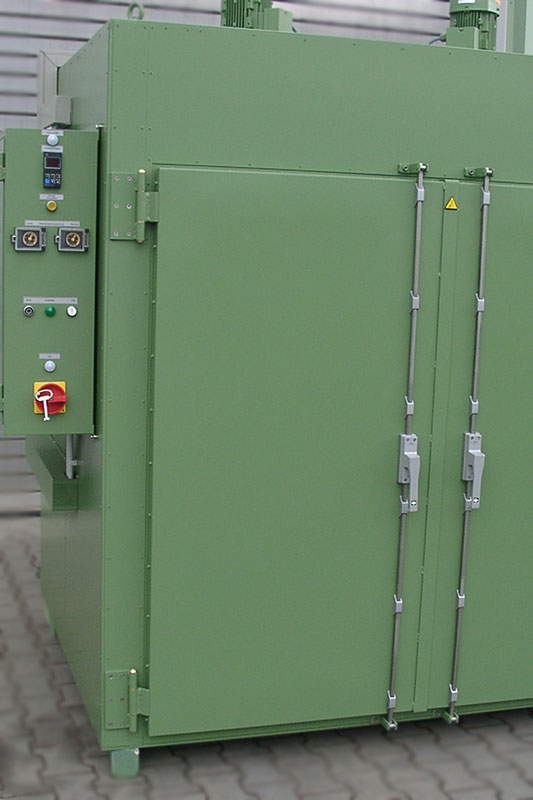

Example 1 - up to 250 °C - 1,700 x 1,100 x 1,600 mm - part# 1363585



  • 1.700 x 1.100 x 1.600 mm
    (width x depth x height)
  • operating temperature: up to 250 °C
  • heat capacity: 40 kW
  • circulation blower: 2 x 1.1 kW
  • air guidance: vertical

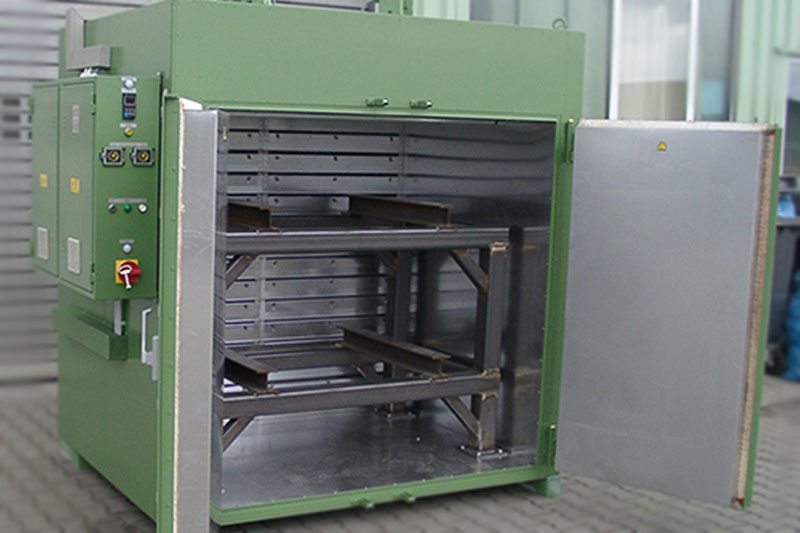

This Circulation/Fresh Air Oven is used for heating 2 solvent-free steel tools: size of 1st tool: 1,200 x 900 x 300 mm high (ca. 1,800 kg) size of 2nd tool: 1,200 x 900 x 200 mm high (ca. 1.200 kg)

Construction

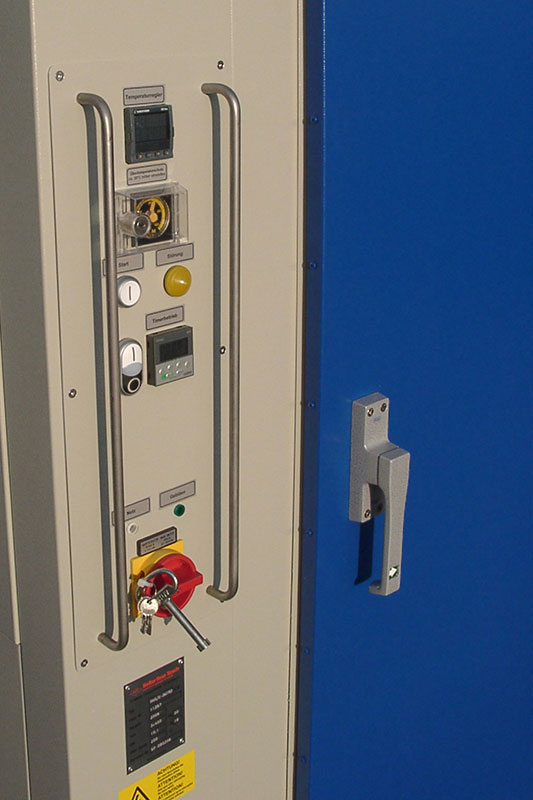

  • electronic temperature control with two electronic temperature protection

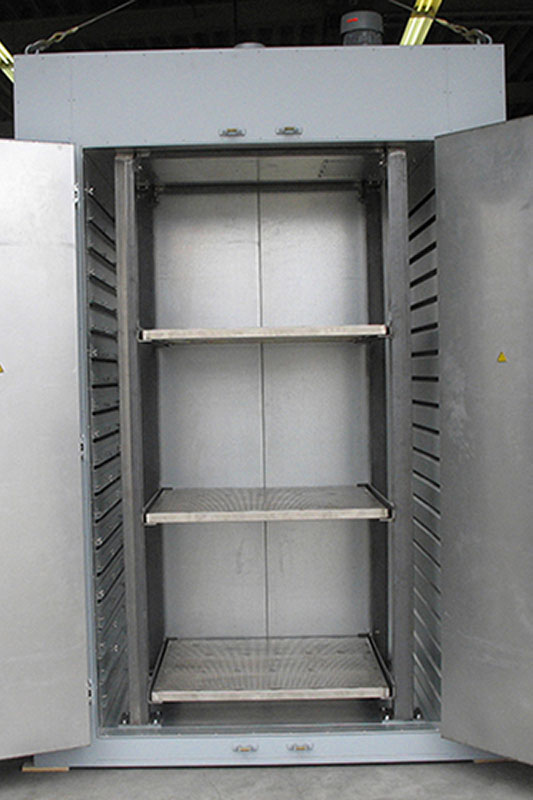

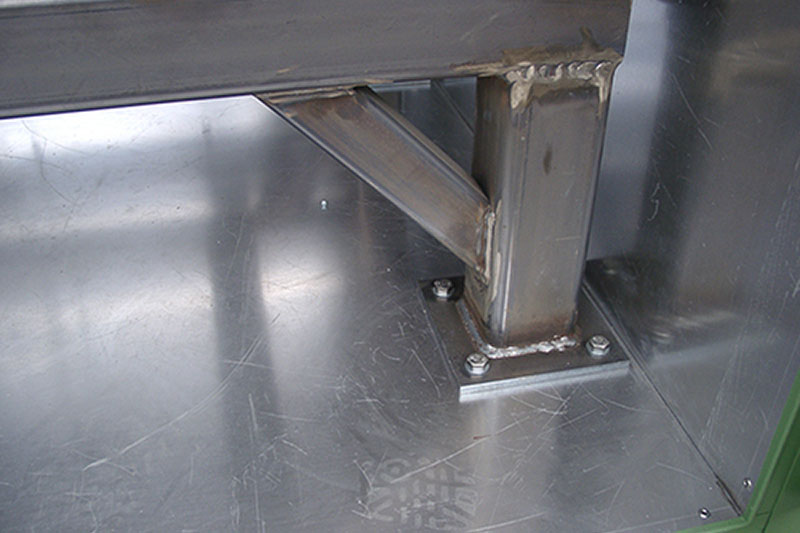

  • two loading leves for tool support, out of profile tube construstion with four double flange carriers
  • the rack is screwed at oven
  • 8 mm thick steel base plate, loading capacity of bottom: 3 tons
  • aluminsed steel plate internal tank
  • load circuit: solid state relay
  • shutter plates at air-entering side for subsequent temperature improvement
  • insulation: 150 mm all sides
  • painting: RAL 6011 reseda-green structure
Example 2 - up to 250 °C - 1,050 x 1,000 x 2,000 mm - part# 1362878



  • 1.050 x 1.000 x 2.000 mm
    (width x depth x height)
  • operating temperature: up to 250 °C
  • heat capacity: 25 kW
  • circulation blower: 1.5 kW
  • air guidance: horizontal

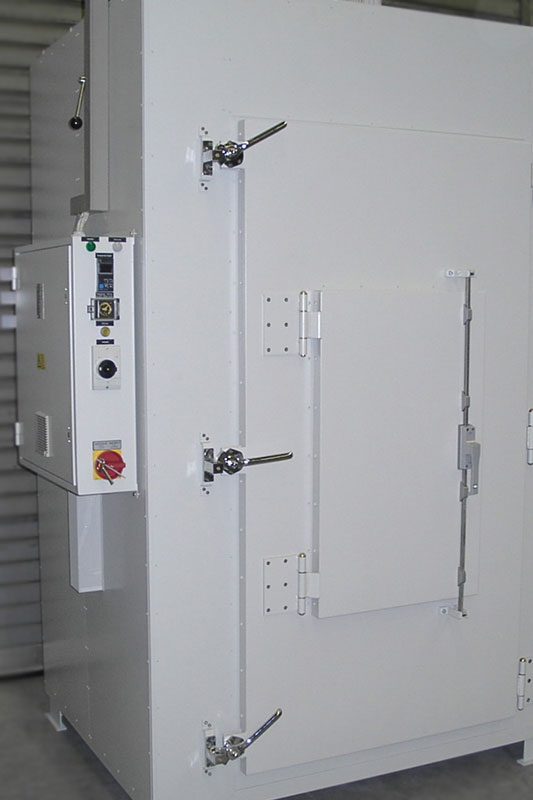

This Circulation/Fresh Air Oven is used for drying and heating of solvent-free synthetic parts. The requirement of heating small amounts has been realised in a „door-to-door system“. There is a hinged rack for loading in the oven. The small door avoids heat loss with loading and unloading of parts.

Construction

  • electronic temperature control with electronic temperature protection

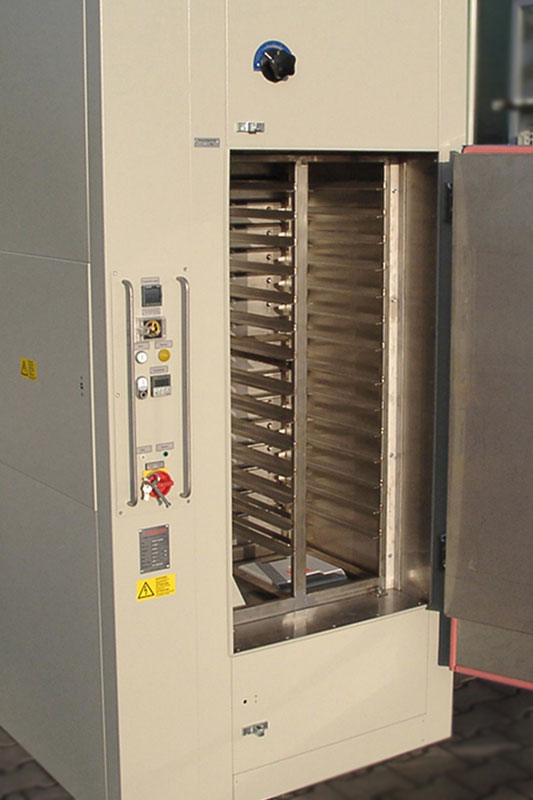

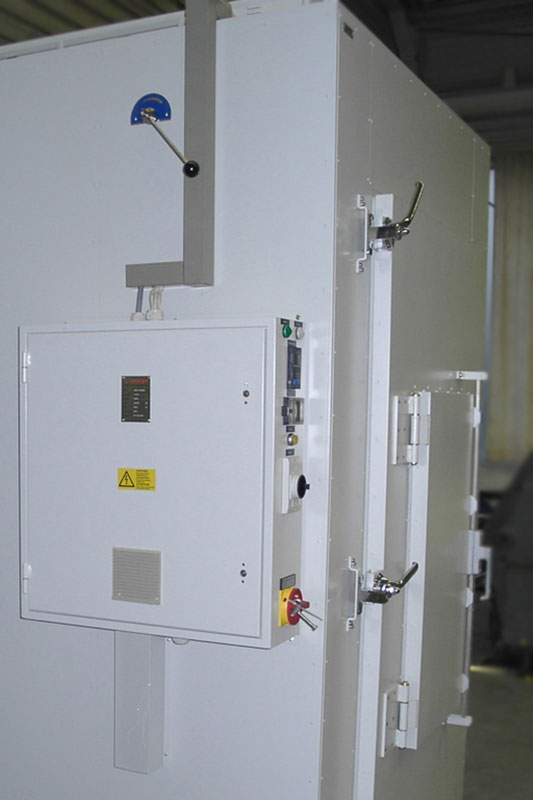

  • small loading door at main door, left side fitted: size 600 mm wide x 1,000 mm high

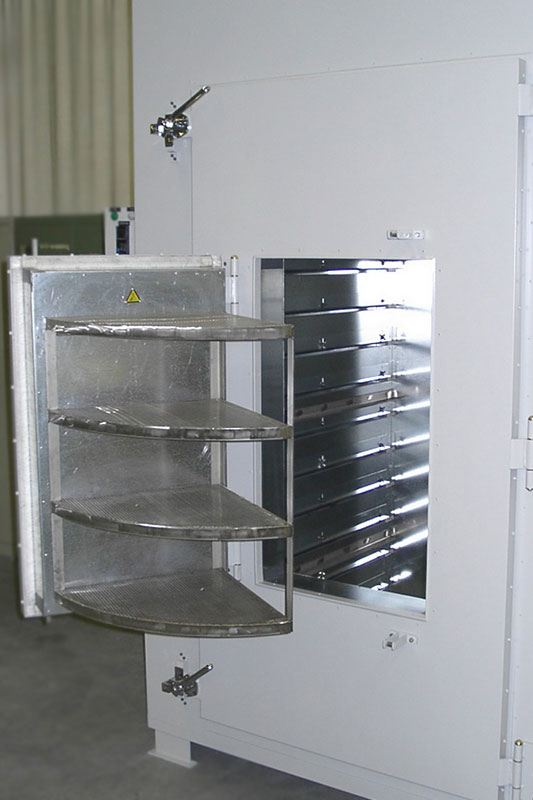

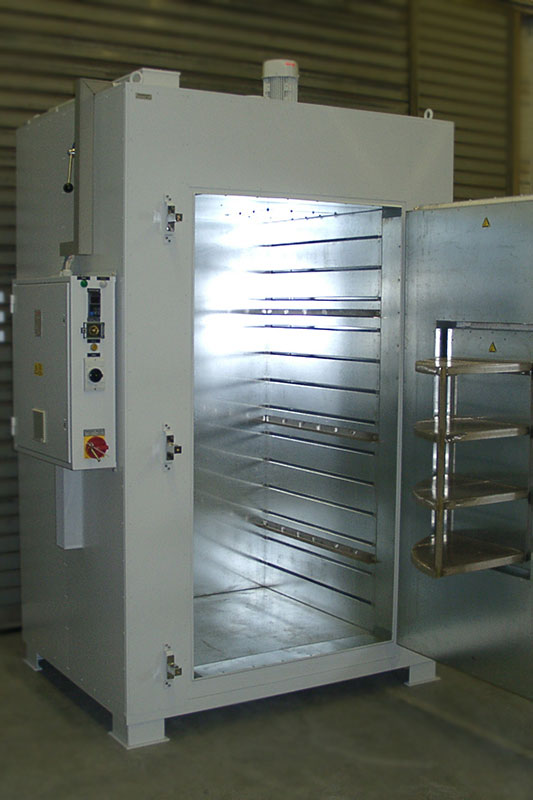

  • hinged loading rack with 3 semicircle shaped, perforated covers (5 x 5 mm punching) supports at door internal side
  • galvanised steel plate internal tank
  • load circuit: solid state relay
  • shutter plates at air-entering side for subsequent temperature improvement
  • Insulation: 150 mm all sides reduces heat loss
  • painting: RAL 7035 ligth-grey structure
Example 3 - up to 300 °C - 1,200 x 1,200 x 1,940 mm - part# 2008235



  • 1,200 x 1,200 x 1,940 mm
    (width x depth x height)
  • operating temperature: up to 300 °C
  • heat capacity: 27 kW
  • ciruclation blower: 2 x 1.5 kW
  • air guidance: vertical

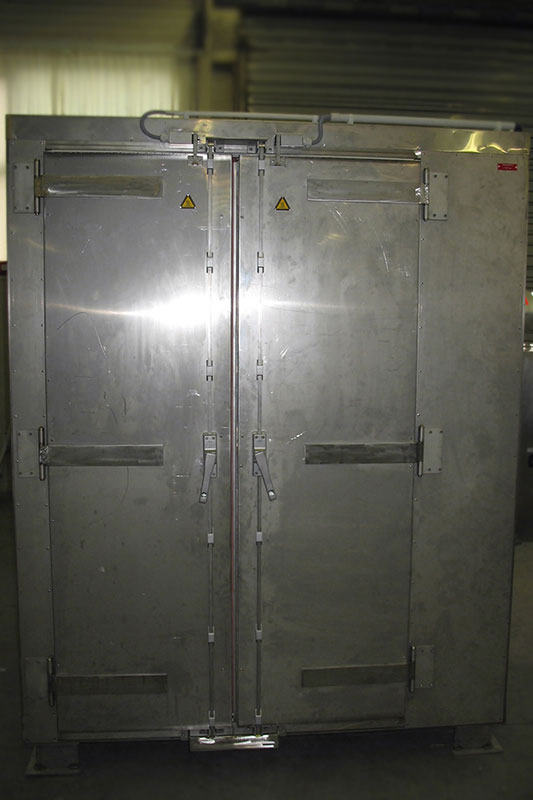

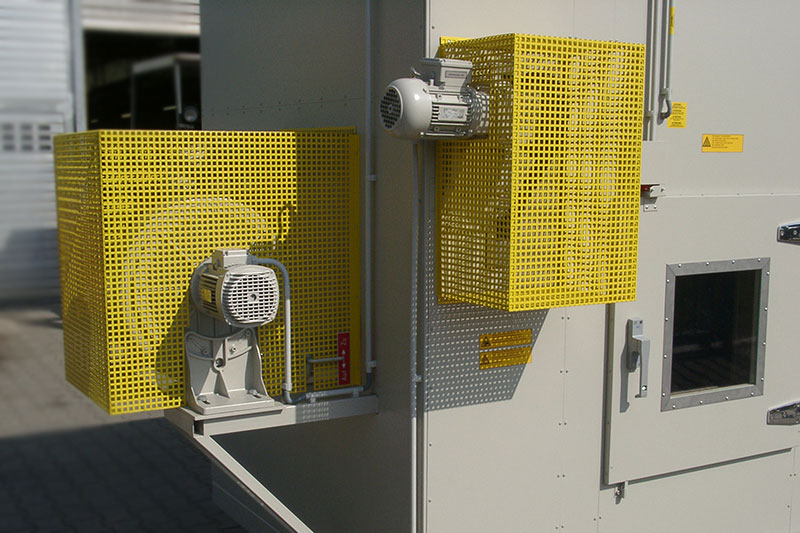

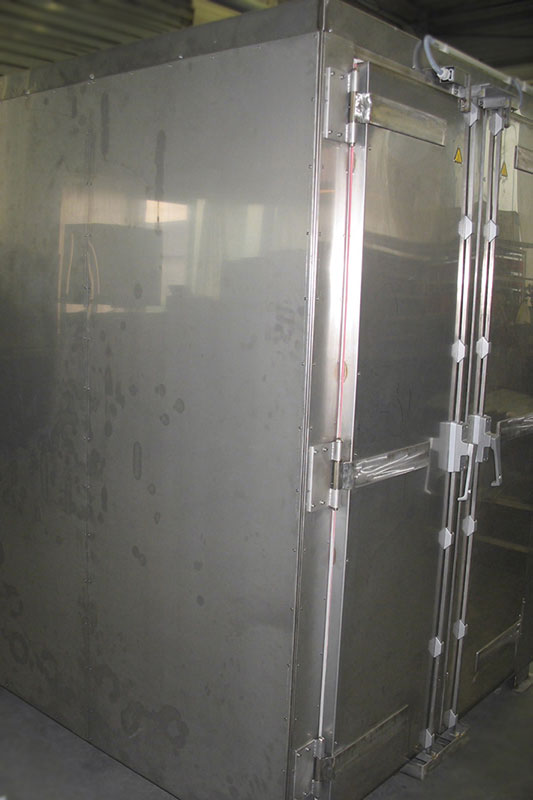

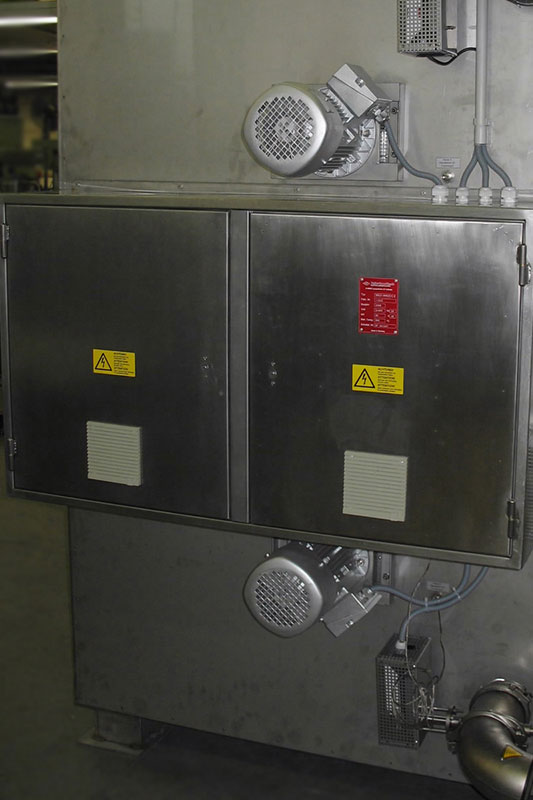

This Circulation/Fresh Air Oven is used for drying cermic filling materials (medicine application) in stainless steel barrels. Corresponding to hygiene requirements the internal and external tank is out of stainless steel. The arrangement and the required temperature tolerance is realised by lateral fitted blowers.

CONSTRUCTION

  • electronic temperature control with two electronic temperature protections

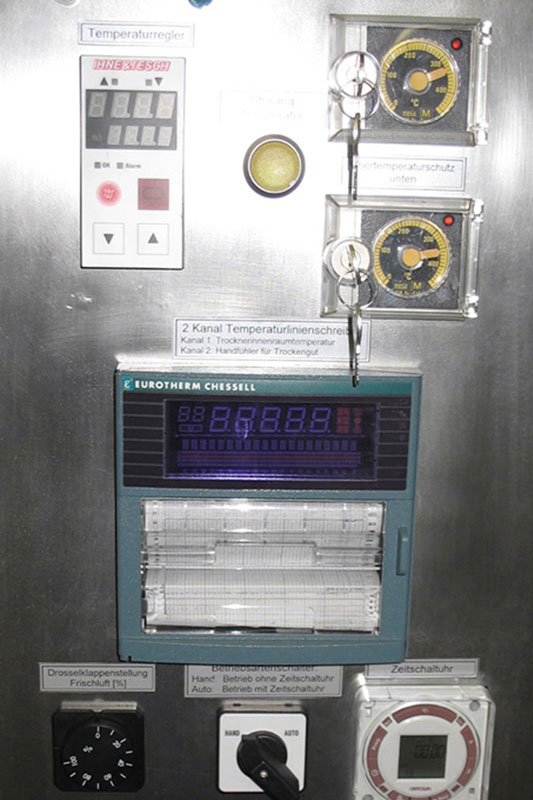

  • 2-channel continiuous line recorder inclusive printer (date, time) for internal temperature and product temperature (manual sensor) monitor the drying process
  • ventilation flaps for fresh air boos are controlable via potentiometer
  • supporting bottoms for barrels with a load capacity of 600 kg each
  • load circuit: solid state relais

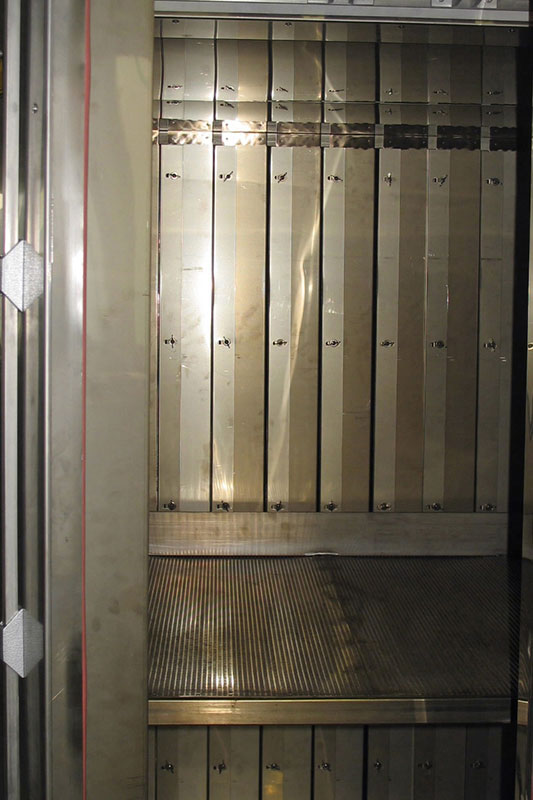

  • shutter plates at air-entering side for subsequent temperature tolerance improvement
  • insulation: 150 mm all sides reduces heat loss
  • empty oven temperature distribution at 250 °C operating temperature and heated oven ± 5K

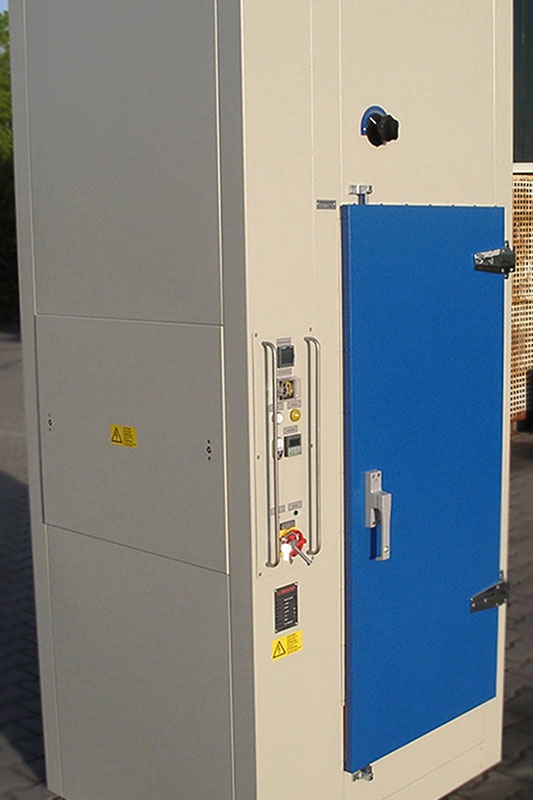

Example 4 - up to 150 °C - 525 x 600 x 1,160 mm - part# 1317290



  • 525 x 600 x 1,160 mm
    (width x depth x height)
  • operating temperature: up to 150 °C
  • heat capacity: 9 kW
  • circulation blower: 1.1 kW
  • air guidance: vertical



This Circulation/Fresh Air Oven is used for polymerisation of solvent-free silicone adhesive as well as for bake out of silicone socketing material and epoxy resin within the prodution of power semiconductors.

CONSTRUCTION

  • electronic temperature control with electronic temperature protection
  • the terminals are at the linear slot in the left side wall
  • outer dryer sheathing as per customer request
  • stainless steel plate internal tank
  • load circuit: solid state relais
  • weekly clock timer for dryer pre-heating
  • shutter plates at air-entering side for subsequent temperature improvement
  • insulation: 100 mm all sides reduces heat loss
  • painting: RAL 7031 light-grey structure / door: RAL 5010 gentian-blue structure

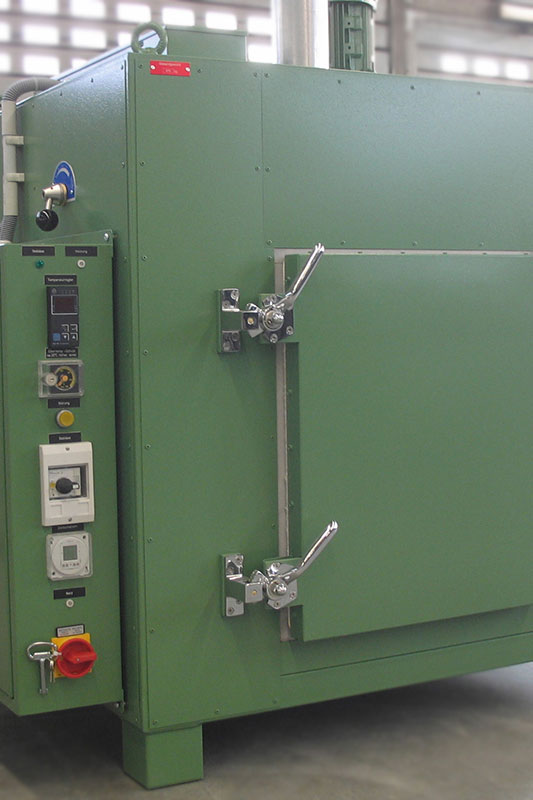

Example 5 - up to 300 °C - 520 x 600 x 620 mm - part# 1367599



  • 520 x 600 x 620 mm
    (width x depth x height)
  • operating temperature: up to 300 °C
  • heat capacity: 7.5 kW
  • circulation blower: 1.1 kW
  • air guidance: horizontal



This Circulation/Fresh Air Oven is used for heating of solvent-free thermoplastic synthetics and steel components.

CONSTRUCTION

  • electronic temperature control with electronic temperature protection
  • stainless steel plate internal boiler

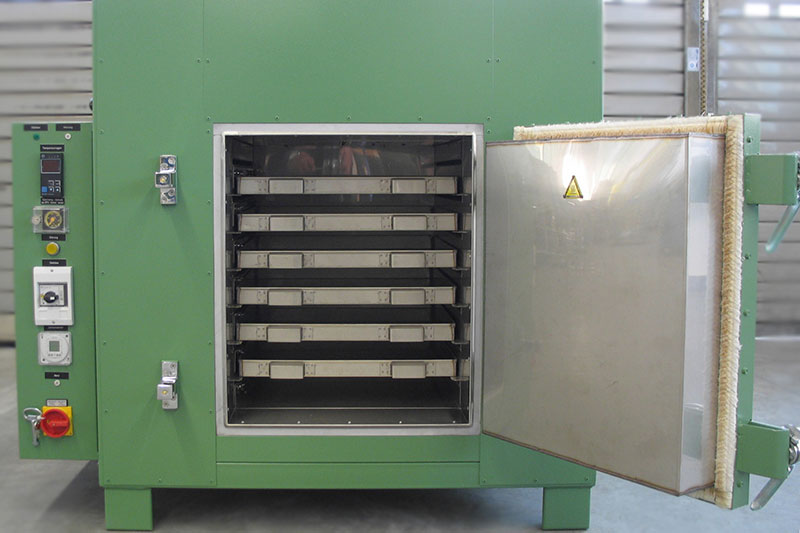

  • 6 stainless steel drawers 500 mm x 550 mm x 40 mm high
  • load circuit: solid state relais
  • weekly clock timer for dryer pre-heating
  • shutter plates at air-entering side for subsequent temperature improvement
  • insulation: 150 mm all sides reduces heat loss
  • painting: RAL 6011 reseda-green structure
Example 6 - up to 180 °C - 1,200 x 3,800 x 1,200 mm - part# 1362867



  • 1,200 x 3,800 x 1,200 mm
    (width x depth x height)
  • operating temperature: up to 180 °C
  • heat capacity: 36 kW
  • circulation blower: 3 x 1.5 kW
  • air guidance: vertical

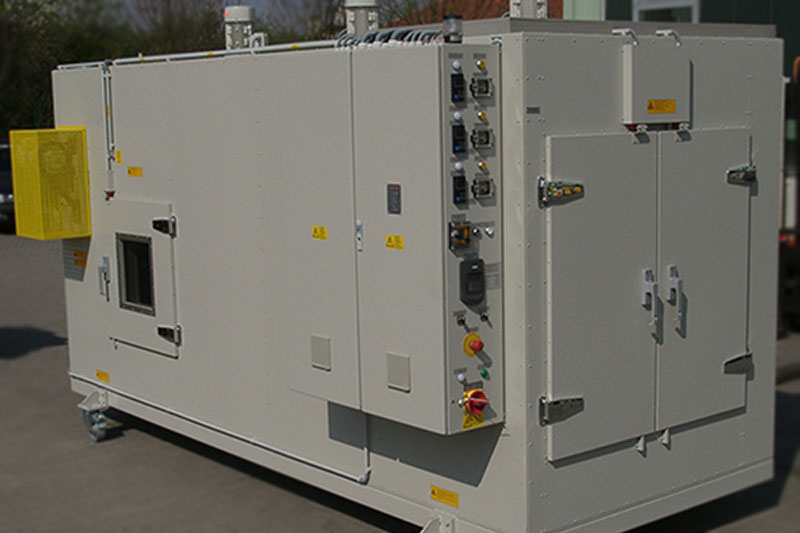

This Circulation/Fresh Air Oven is used for heating solvent-free synthetic tubes before forming procedure. Twisting of the tubes in connection with the warm air flow offers an equal heating.

CONSTRUCTION

  • three zone temperature control with electronic temperature protection for exact temperature control
  • stainless steel plate internal tank

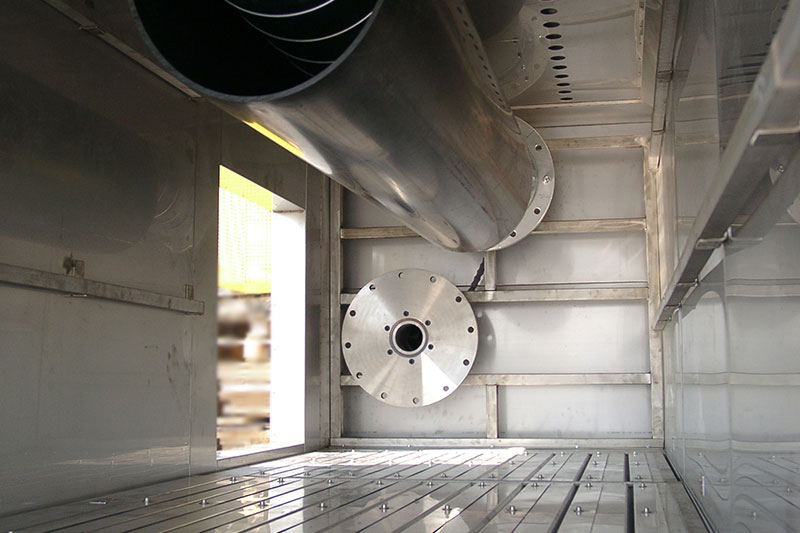

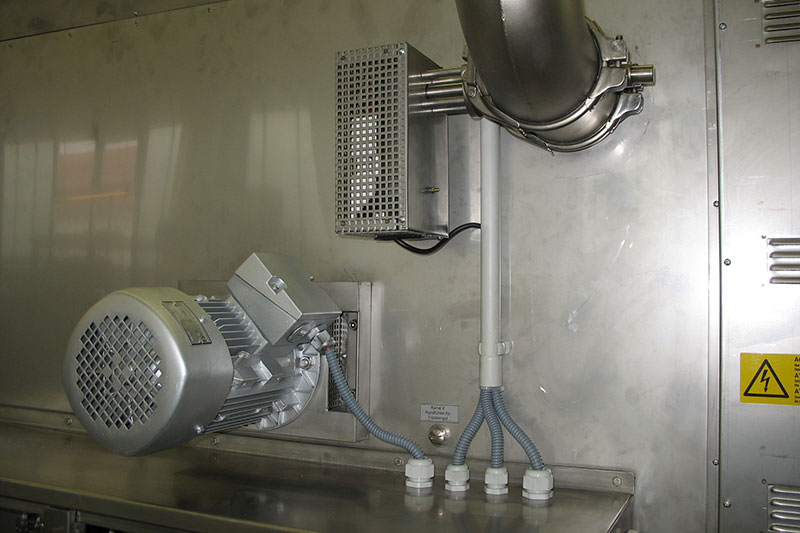

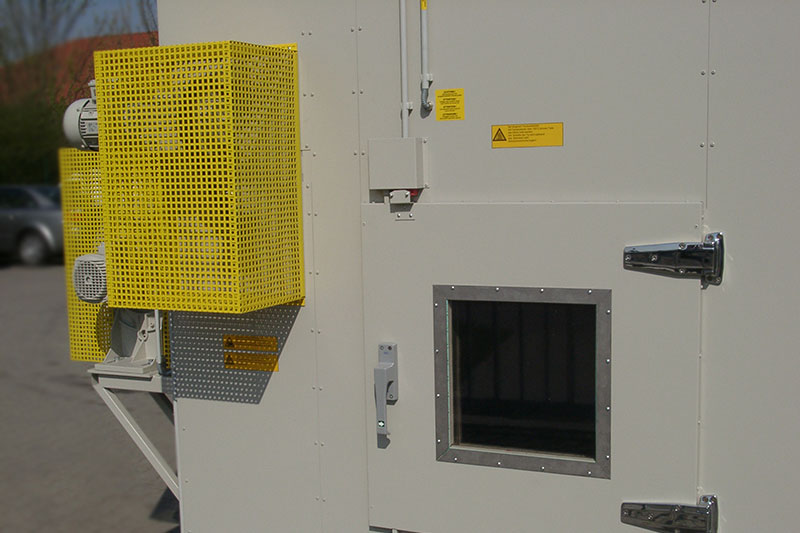

  • flanged medium pressure blower at backside of oven for axial air flow within the tubes. The addtional butterfly valve is responsable for the control of the air volume.

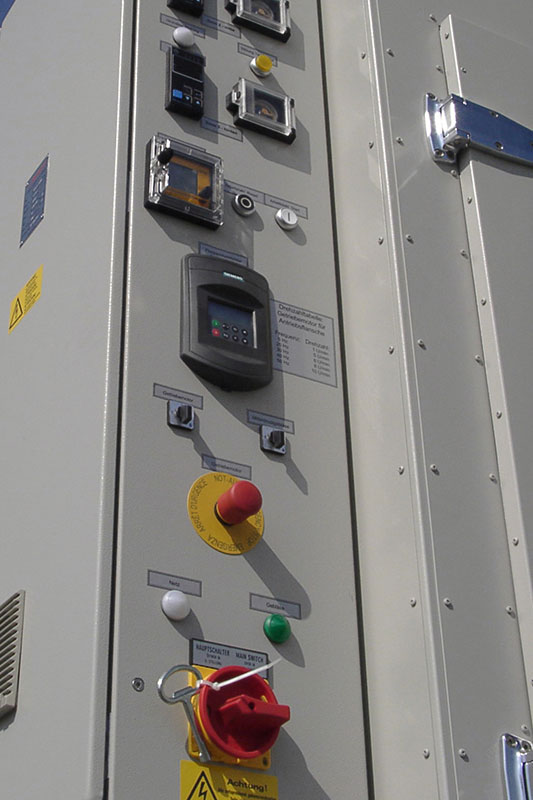

  • frequent controlled drive motor back at left side wall. The norm flange at the drive motor offeres the support of the to be heated tubes.
  • lateral revision door with heat resistant glass window

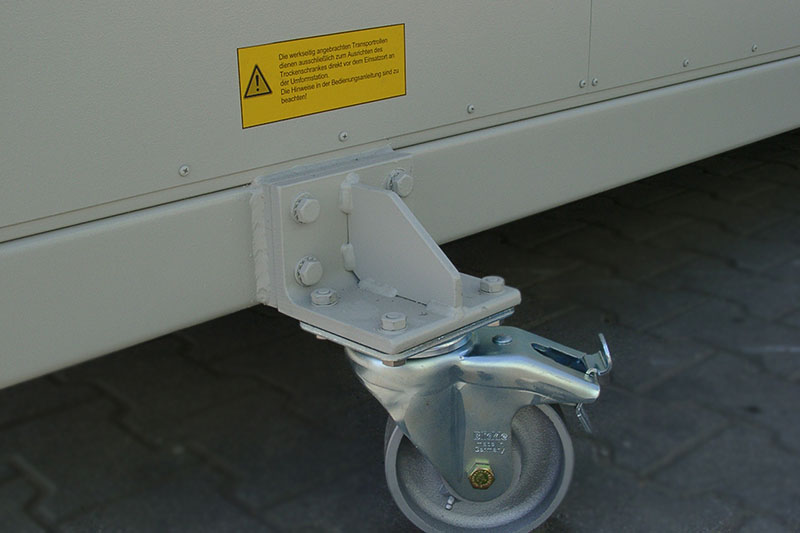

  • fixed rollers and pulley allow alignment of dryer at forming station
  • load circuit: solid state relais
  • time lapse control via timer inclusive visual signal after process
  • weekly clock timer for dryer pre-heating
  • shutter plates at air-entering side for subsequent temperature improvement

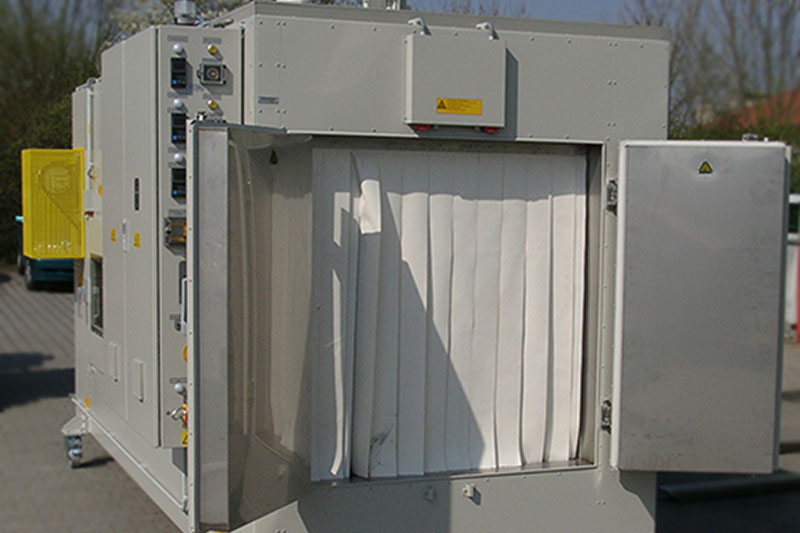

  • 120 mm insulation and strap curtain reduces heat loss
  • painting: RAL 7044 silk-grey structure
Example 7 - up to 200 °C - 1,100 x 600 x 1,500 mm - part# 2000347



  • 1.100 x 600 x 1.500 mm
    (B x T x H)
  • operating temperature: up to 200 °C
  • heat capacity: 19.5 kW
  • circulation blower: 1.5 kW
  • air guidance: horizontal



This Circulation/Fresh Air Oven is used for drying of clean and wet supporting plates.

Construction

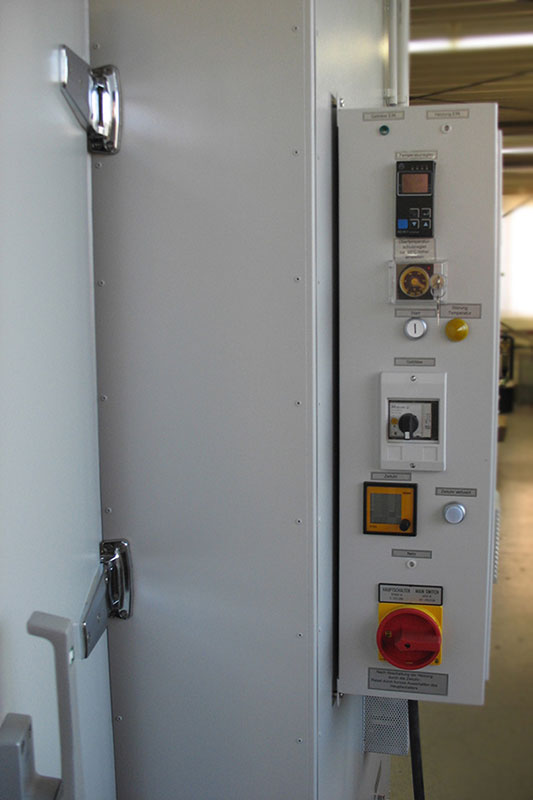

  • electronic temperature control with electronic temperature protection
  • stainless steel plate internal tank

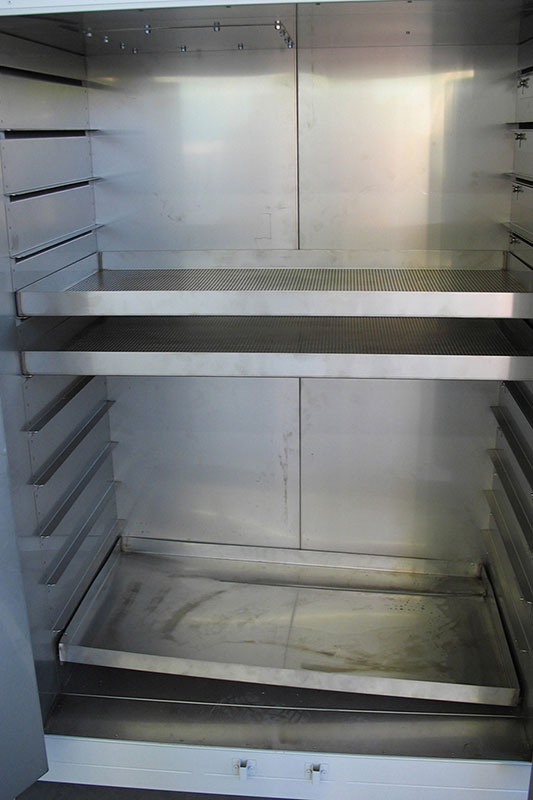

  • internal tank with collection tray for condensate with exit pipe
  • 2 stainless steel drawers 1,095 mm x 590 mm x 50 mm high with perforated (5 x 5 mm punching) bottom
  • load circuit: solid state relais
  • time lapse control via timer inclusive visual signal after process
  • shutter plates at air-entering side for subsequent temperature improvement

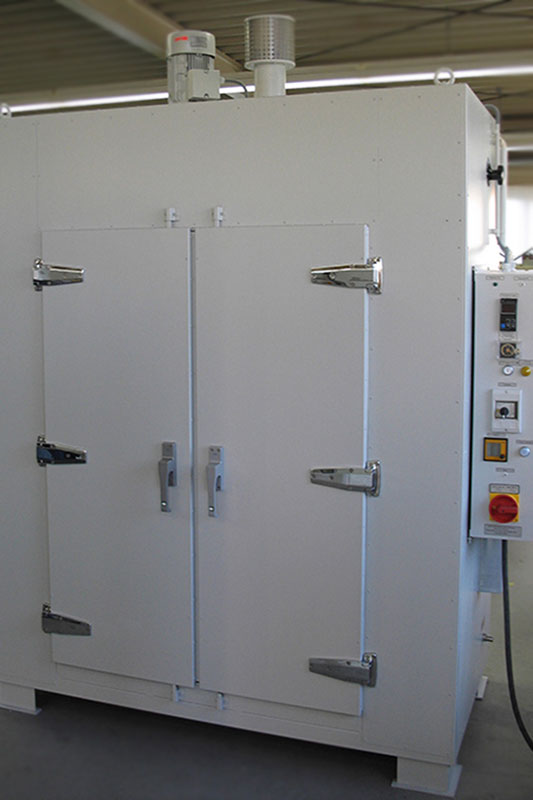

  • fresh air socket for in-coming air with filter casing
  • Insulation: 150 mm all sides reduces heat loss
  • painting: RAL 7035 light-grey structure
Example 8 - up to 140 °C - 1,100 x 600 x 1,500 mm - part# 2013907



  • 1.100 x 600 x 1.500 mm
    (width x depth x height)
  • operating temperature: up to 140 °C
  • heat capacity: 22.5 kW
  • circulation blower: 1.1 kW
  • air guidance: horizontal



This Circulation/Fresh Air Oven is used fro drying solvent-free, thermoplastic ABS rolls.

Construction

  • electronic temperature control with electronic temperature protection
  • galvanised steel plate internal tank

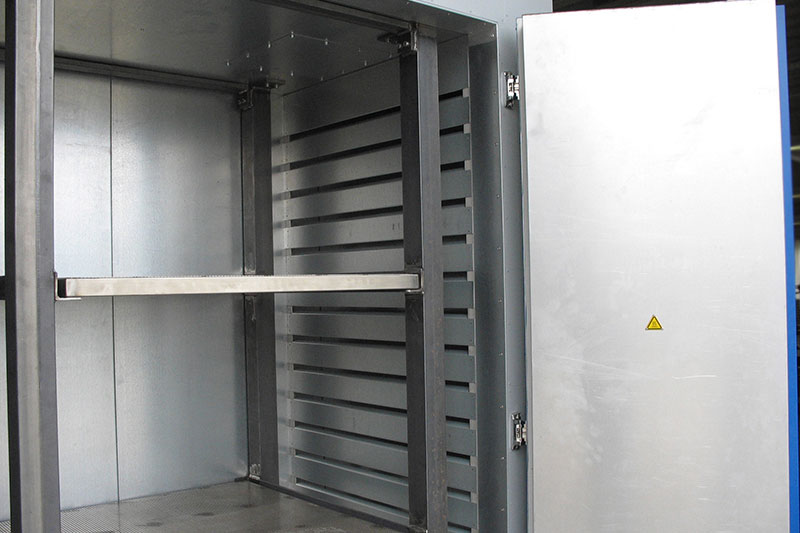

  • Dryer with interal rack out of 3 support angle pairs 60 x 60 x 6 mm
  • 3 support bearings 980 x 980 x 42 mm high consists out of stainless steel right-angle tube frame (60 x 40 mm) with stabiliser bars
  • suppot bearings with perforated plates (5 x 5 mm punching), loadable up to 500 kg max (area load). Free height between plates: 700 mm
  • load circuit: solid state relais
  • left door is to open from inside
  • shutter plates at air-entering side for subsequent temperature improvement
  • Insulation: 120 mm all sides reduces heat loss
  • painting: RAL 7001 silver-grey structure / door RAL 5010 gentian-blue structure
