Head Sensors

PWF 310

APPLICATIONS

Resistance sensors with connection heads are for solid, fluid or gaseous mediums. They are used for example at pipelines, within Heater and oven constructions. The interchangeable gauge slide is a standard Pt100 class B with two-wire circuit. Three- and four wire circuits resistance sensors class A as per IEC 751 are as well available. The B-shaped connection head is for surrounding temperatures up to 100 °C. BBK-heads goes up to 120 °C. The PWF 310 are manufactured with protection tube diameters of 9 mm and 11 mm. The fitting length is free selectable from 160 mm.  A G ½” screw-in pivot is welded on the protection tube for fastening

  • B model
  • connection head shape B, BUS, BUZ, BBK
  • interchangeable Pt100 gauge slide
  • fitting via G ½” pivot
  • with neck tube (145 mm as per norm)
  • fitting length: 160 – 400 mm
  • for temperatures from -50 °C up to +600 °C
  • PWF 315 without neck tube
  • interchangeable
    gauge slide
  • 160 - 400 mm
    fitting length
  • -50°C up to +600°C
    temperatures

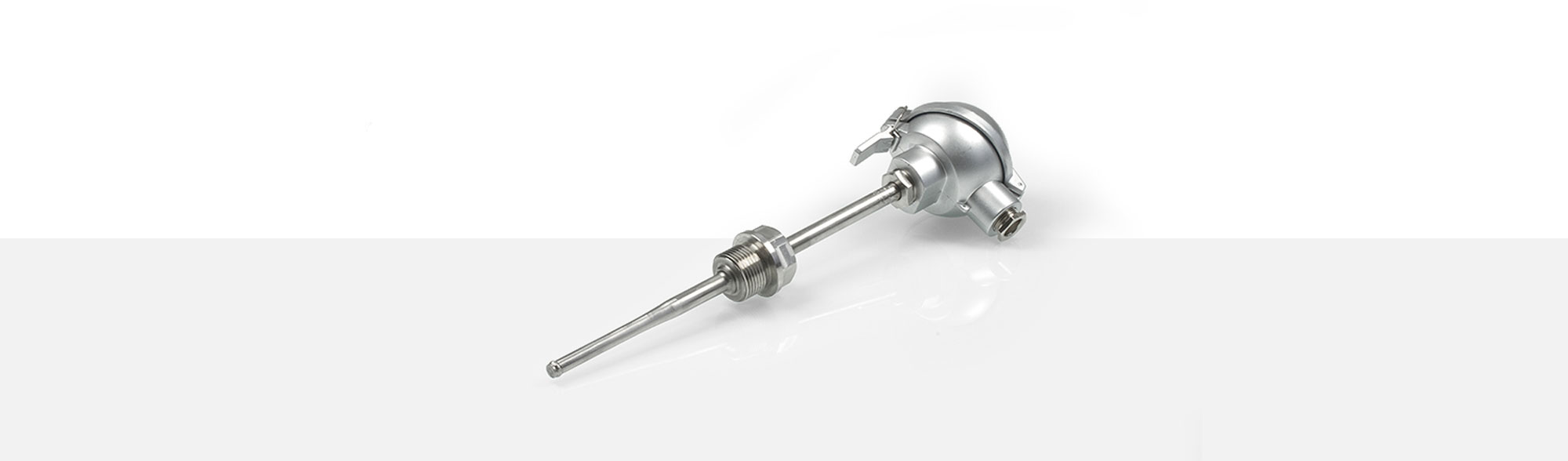

PWF 310 Head Sensor

Please find following our standard leads for PWF 310 Resistance sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1308376 2x0.22 mm²
Cu-tinned
-50 °C up to +350 °C 3.50 ±0.15 mm
1298296 2x0.22 mm²
Cu-tinned
-50 °C up to +260 °C 3.80 ±0.05 mm
1258824 2x0.25 mm²
Cu-tinned
-50 °C up to +260 °C 3.30 ±0.10 mm
1201354 2x0.35 mm²
Cu-nickel plated
-50 °C up to +260 °C 4.6 x 2.8 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C up to +260 °C 3.40 ±0.15 mm
1266897 4x0.18 mm²
Cu-nickel plated
-50 °C up to +260 °C 3.90 ±0.15 mm
1307789 4x0.22 mm²
Cu-tinned
-50 °C up to +350 °C 4.00 ±0.15 mm
1300580 4x0.22 mm²
Cu-tinned
-90 °C up to +260 °C 3.50 ±0.10 mm
1307865 4x0.25 mm²
Cu-tinned
-25 °C up to +180 °C 4.50 ±0.15 mm



Resistance Sensor plug connectors

The standard plug connectors are due to their construction reverse-polarity protected and up to 120 °C temperature stable. The round U type contact pins are out of copper (plus pin Ø 4 mm - minus pin Ø 4.7 mm). The plug is white and suitable for cross sections up to 1 mm². We recommend to assemble a strain relief with the plug and socket. This avoids the relieve of the leads from the plug. A brass ferrule will be provided, please state lead diameter.



2-pin plug part# 2211006
  socket part# 2211010
  ferrule part# 2211002





3-pin plug part# 2211007
  socket part# 2211012
  ferulle part# 2211019

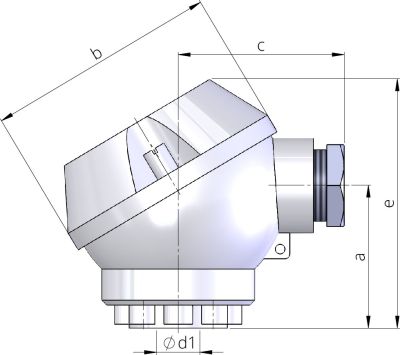

B model connection heads are for Thermocouples and Resistance Sensors as per DIN 43729.

Standard connection heads are with M20 x 1.5 cable screw union with rubber sealing which limits the temperature to 80 °C max. With silicone sealings there are temperatures up to 200 °C possible.

type protection clamping base material d1 mm part number
B IP54
IP54
IP68
IP68
B aluminium die-cast 10.5
15.3
M24x1.5
G 1/2"
2211195
2211194
1200350
2211196
loose cover, fitted with two screws
BUS IP54
IP68
IP68
B aluminium die-cast 15.3
M24x1.5
G 1/2"
2211198
2211201
2211202
hinged cover with crank quick fastener
BUZ IP54
IP68
IP68
B aluminium die-cast 15.3
M24x1.5
G 1/2"
2211203
2211204
2211205
hinged cover with slotted screw
BBK IP54
IP68
IP68
B synthetic Polyamide 15.3
M24x1.5
G 1/2"
2211206
2211207
2211208
with screw cover




Connection base for connection head model B, BUS, BUZ and BBK

number of connections for Thermocouples/Resistance sensors part number
2 1200351
4 1208920
6 2211312

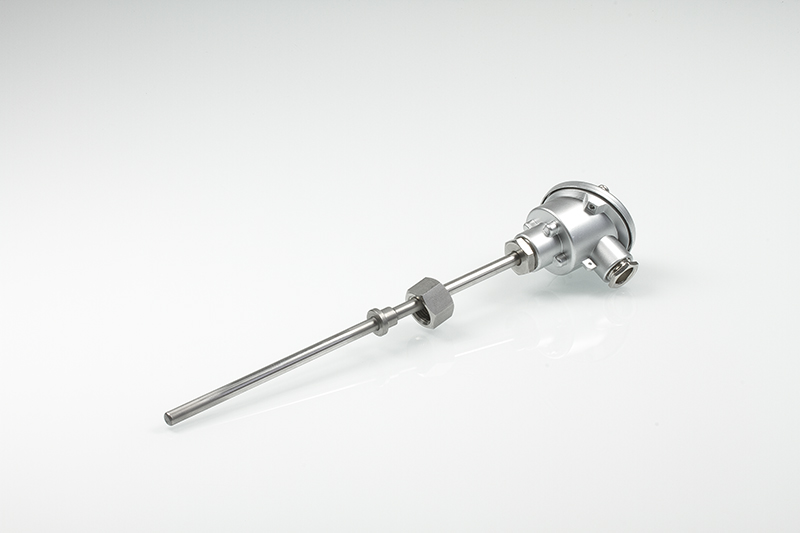

Design examples
