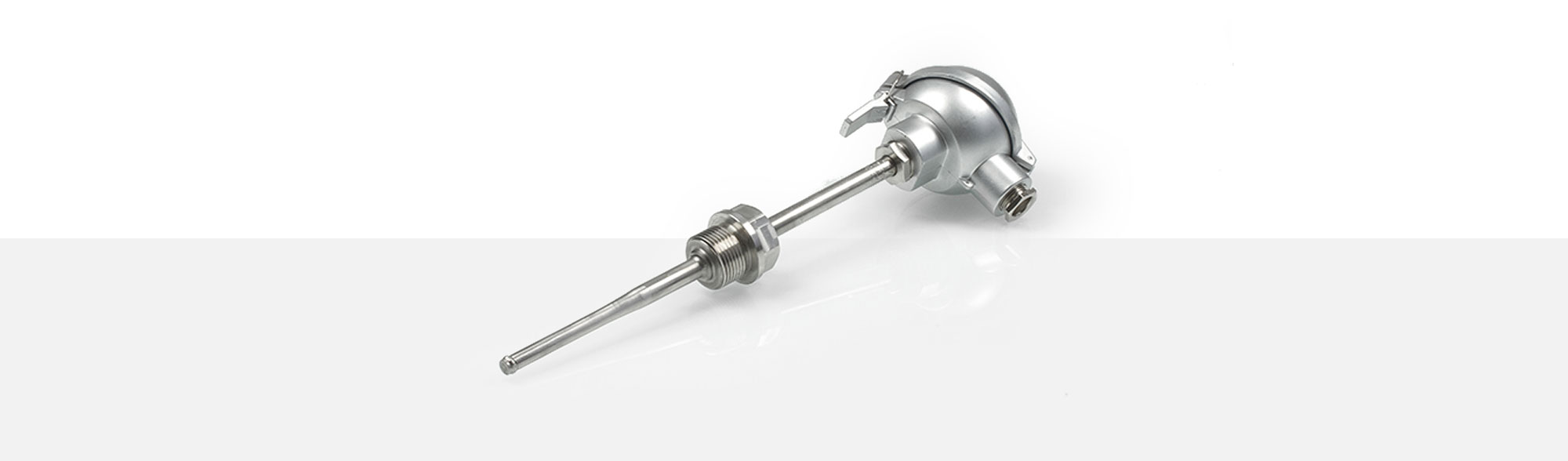

Head Sensors

PWF 320

APPLICATION

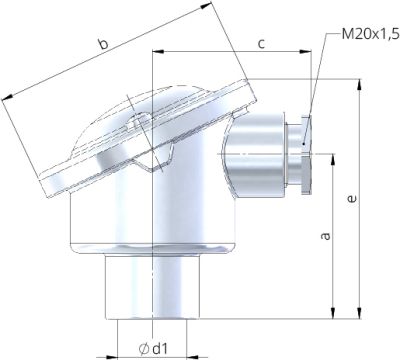

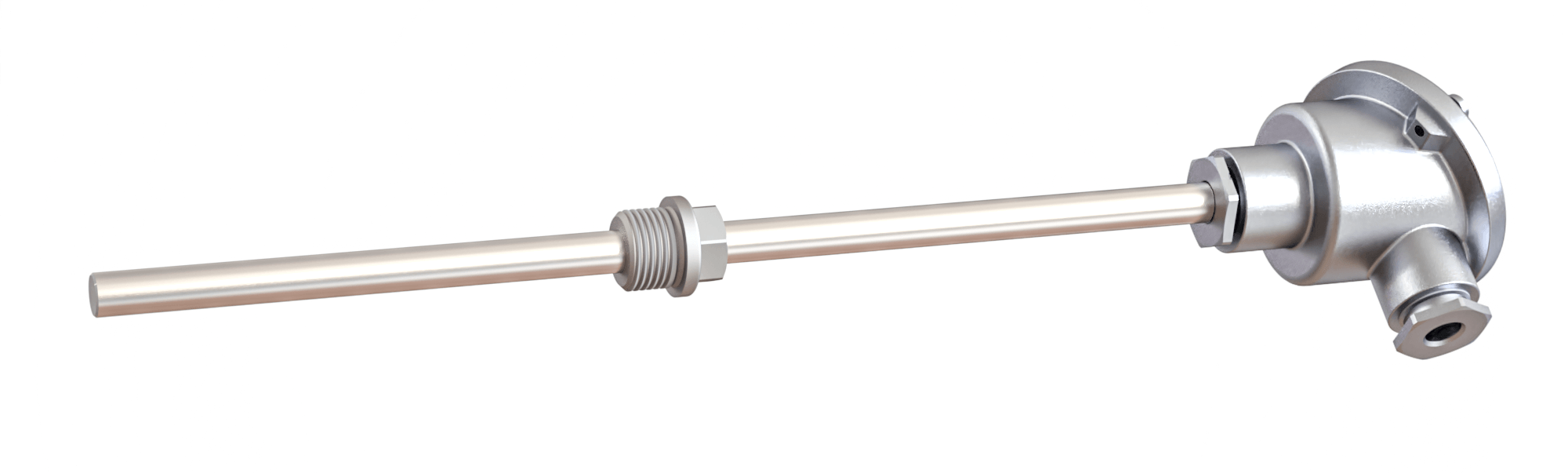

Resistance sensors with connection heads are for solid, fluid or gaseous mediums. They are used for example at pipelines, within Heater and oven constructions. The interchangeable gauge slide is a standard Pt100 class B with two-wire circuit. Three- and four wire circuits resistance sensors class A as per IEC 751 are as well available. The B-shaped connection head is for surrounding temperatures up to 100 °C. BBK-heads goes up to 120 °C. The PWF 310 is manufactured with protection tube diameters of 11 mm and 14 mm. The fitting length is free selectable from 160 mm.  A G 1” screw-in pivot is welded on the protection tube for fastening.

  • C model
  • connection head shape B, BUS, BUZ, BBK
  • interchangeable Pt100 gauge slide
  • fitting via G 1” screw-in pivot
  • with neck tube (145 mm as per norm)
  • fitting length: 160 – 400 mm
  • tube diameters: 11 mm and 14 mm
  • for temperatures from -50 °C to +600 °C
  • PWF 325 without neck tube
  • 160 - 400 mm
    fitting length
  • 11 / 14 mm
    tube diameters
  • -50°C to +600°C
    temperatures
