Surface Resistance Sensors

PWF A

APPLICATIONS

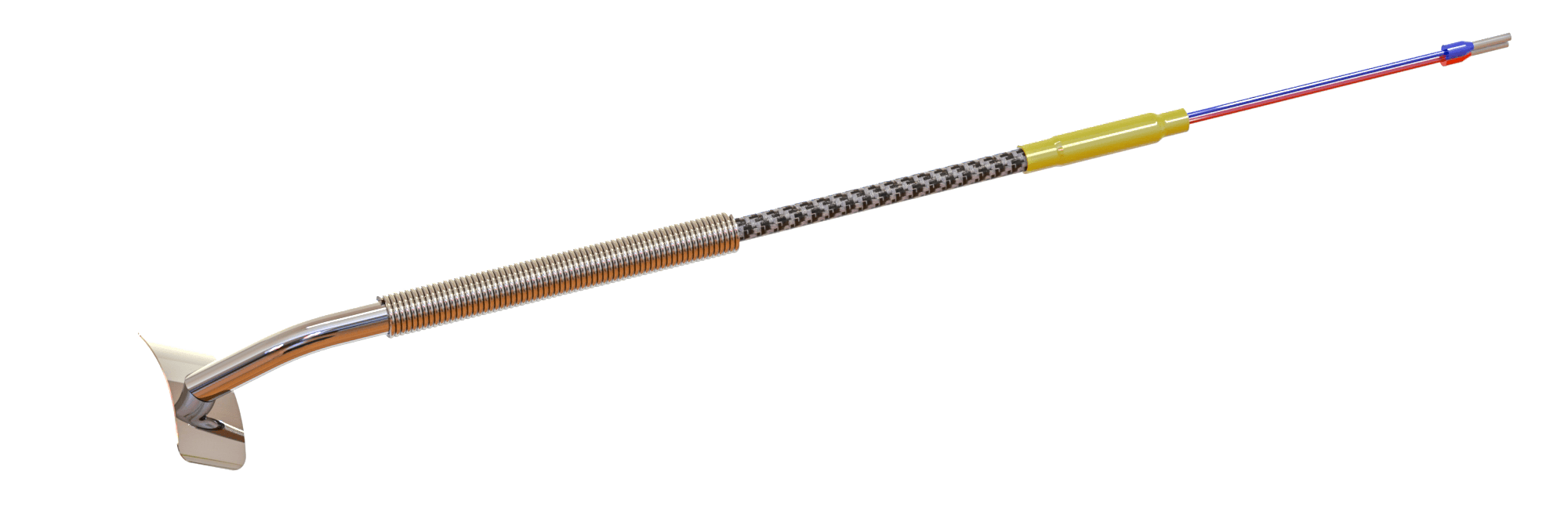

PWF A sensor is for temperature registration at pipeline and with all cylindrical shapes. It is a common sensor at gaps of Band Heaters. Gap slot minimum size = 6 mm. The temperature recording is at the bottom of the contact plate. R 30 is the standard bending radius of the contact plate. The passage of the sensor tube to the compensating wire is strain relieved and with a Ø 8 x 66 mm anti-kink protection spring as mechanical protection.

  • Pt100 gauge slide as per DIN EN 60751 – class B
  • standard two-wire circuit
  • operating temperature: up to 260 °C
  • isolated
  • contact plate: Ø 30 x 15 x 0.3 mm
  • Ø 60 mm bend stainless steel
  • 30° wire strain relieved
  • Ø 8 x 66 mm anti-kink protection spring
  • PT-100
    gauge slide
  • 30°
    wire strain
  • Ø8x66mm
    anti-kink protection spring

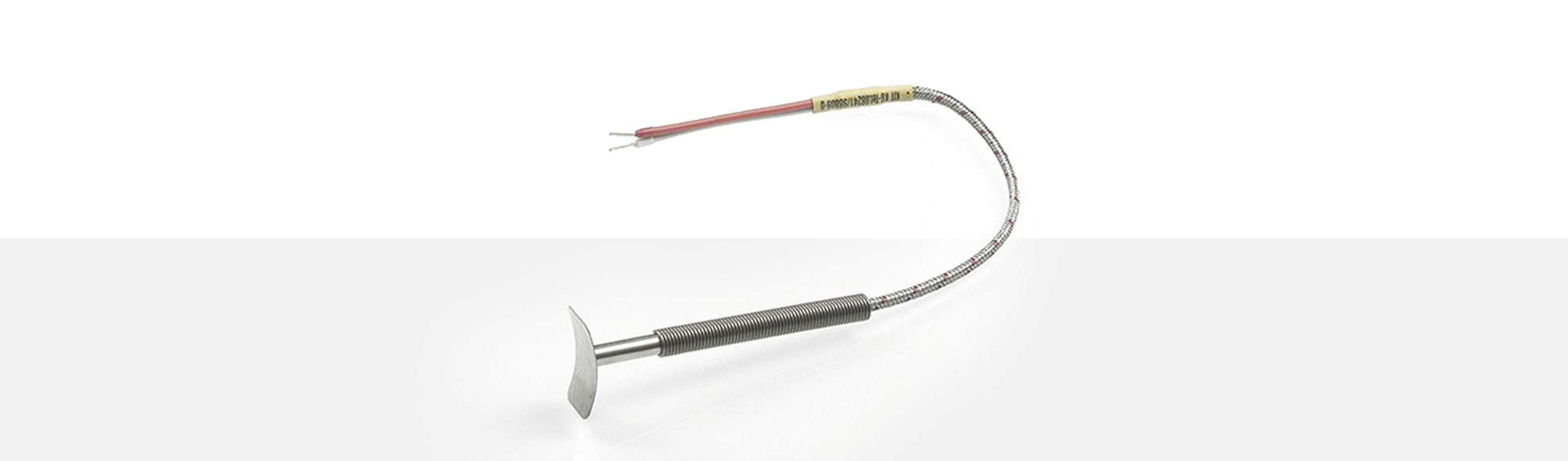

PWF A Surface Sensor

Please find following our standard leads for PWF A Resistance sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1201354 2x0.35 mm²
Cu-nickel plated
-50 °C up to +260 °C 4.6 x 2.8 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C up to +260 °C 3.40 ±0.15 mm
1307789 4x0.22 mm²
Cu-tinned
-50 °C up to +350 °C 4.00 ±0.15 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    3-pin plug T3260 part# 1201415
      socket T3261 part# 1200722



    4-pin plug T3300 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3083 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
