Accessories

Screw-in nipples

APPLICATIONS

For all our various designs of bayonet sensors we have the matching screw-in nipple ex-stock available. Due to our own production we are able to manufacture form single items up to high volume.

  • design with key size e.g. type N4
  • cylindrical design Ø 12 mm, e.g. type N30
  • cylindrical design Ø 14 mm e.g. type N32
  • design with pin locking e.g. type N11
  • design with bayonet cut out e.g. type EN31

N4 Screw-in nipple

N4 G3/8" screw-in nipple

part# 1204429
thread G 3/8"
thread length 6 mm
total length 27 mm
key size 17
shaft diameter 14,5 mm
inner diameter 9 mm
material nickel plated
steel
pulled pins 2

N4 G1/4" screw-in nipple

part# 1204428
thread G 1/4"
thread length 6 mm
total length 27 mm
key size 17
shaft diameter 14,5 mm
inner diameter 9 mm
material nickel plated
steel
pulled pins 2

N4 M14x1,5 screw-in nipple

part# 1204427
thread M 14 x 1,5
thread length 6 mm
total length 27 mm
key size 17
shaft diameter 14,5 mm
inner diameter 9 mm
material nickel plated
steel
pulled pins 2

N5/N6 Screw-in nipple

N5/N6 M10 x 1 x 28 mm

screw-in nipple

part# 2110750
thread M10 x 1
thread length 10 mm
total length 28 mm
diameter 14
shaft diameter 10,3 mm
inner diameter 6,3 mm
material nickel plated
steel
pulled pins 2

N5/N6 M10 x 28 mm

screw-in nipple

part# 2110749
thread M10
thread length 10 mm
total length 28 mm
diamter 14
shaft diameter 10,3 mm
inner diameter 6,3 mm
material nickel plated
steel
pulled pins 2

N5/N6 M12 x 28 mm

screw-in nipple

part# 2110753
thread M12
thread length 10 mm
total length 28 mm
diameter 14
shaft diameter 10,3 mm
inner diameter 6,3 mm
material nickel plated
steel
pulled pins 2

N5/N6 M12 x 1 x 28 mm

screw-in nipple

part# 2110754
thread M12 x 1
thread length 10 mm
total length 28 mm
diameter 14
shaft diameter 10,3 mm
inner diameter 6,3 mm
material nickel plated
steel
pulled pins 2

N5/N6 M14 x 28

screw-in nipple

part# 2110751
thread M14
thread length 10 mm
total length 28 mm
diamter 14
shaft diameter 10,3 mm
inner diameter 6,3 mm
material nickel plated
steel
pulled pins 2

N5/N6 M14 x 1,5 x 28 mm

screw-in nipple

part# 2110752
thread M14 x 1,5
thread length 10 mm
total length 28 mm
key size 14
shaft diameter 10,3 mm
inner diameter 6,3 mm
material nickel plated
steel
pulled pins 2

N5/N6 G 1/4" x 28 mm

screw-in nipple

part# 2110756
thread G 1/4"
thread length 10 mm
total length 28 mm
diameter 14
shaft diameter 10,3 mm
inner diameter 6,3 mm
material nickel plated
steel
pulled pins 2

N5/N6 1/8-NPT x 28 mm

screw-in nipple

part# 2110748
thread 1/8-NPT-27
thread length 10 mm
total length 28 mm
diameter 14
shaft diamter 10,3 mm
inner diameter 6,3 mm
material nickle plated
steel
pulled pins 2

N5/N6 G 3/8" x 28 mm

screw-in nipple

part# 2110755
thread G 3/8"
thread length 10 mm
total length 28 mm
diameter 18
shaft diameter 10,3 mm
inner diameter 6,3 mm
material nickel plated
steel
pulled pins 2

N11 Screw-in nipple



N11 M14 x 1,5 x 25 mm

screw-in nipple

part# 1302965
thread M14 x 1,5
thread length 10 mm
total length 25 mm
shaft diameter 15 mm
inner diameter 11 mm
material nickel plated
steel
furrow for pins Ø 13 x 3,5 mm

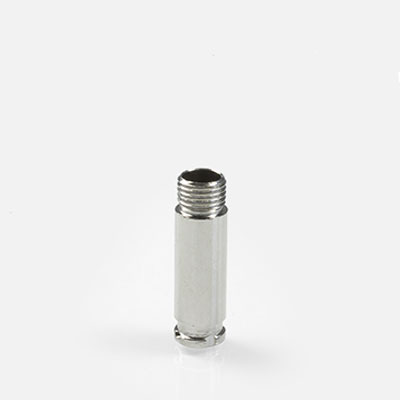

N11 M14 x 1,5 x 50 mm

screw-in nipple

part# 1204424
thread M14 x 1,5
thread length 10 mm
total length 50 mm
shaft diameter 15 mm
inner diameter 11 mm
material nickel plated
steel
furrow for pins Ø 13 x 3,5 mm

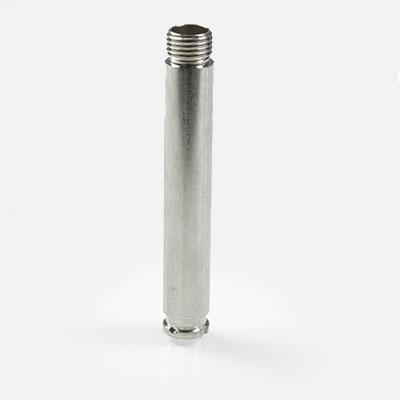

N11 M14 x 1,5 x 100 mm

screw-in nipple

part# 1205906
thread M14 x 1,5
thread length 10 mm
total length 100 mm
shaft diameter 15 mm
inner diameter 11 mm
material nickel plated
steel
furrow for pins Ø 13 x 3,5 mm

N16 Screw-in nipple



N16 M10 x 1

screw-in nipple

part# 1208009
thread M10 x 1
thread length 10 mm
total length 25 mm
shaft length 12 mm
inner diameter   7 mm
material nickel plated
steel
pulled pins           2

N16 M12

screw-in nipple

part# 1204425
thread M12
thread length 10 mm
total length 25 mm
shaft diameter 12 mm
inner diamter 8,5 mm
material nickel plated
steel
pulled pins            2

N16 M12 x 1

screw-in nipple

part# 1205027
thread M12 x 1
thread length 10 mm
total length 25 mm
shaft diameter 12 mm
inner diameter 8,5 mm
material nickel plated
steel
pulled pins           2

N20/N21 Screw-in nipple



N20/N21 M12 x 1 x 35 mm

screw-in nipple

part# 1204426
thread M12 x 1
thread length 10 mm
total length 35 mm
shaft diameter 12 mm
inner diameter 9 mm
material nickel plated
steel
pulled pins             2

N30 Screw-in nipple



N30 M12 x 1 x 60 mm

screw-in nipple

part# 1204420
thread M12 x 1
thread length 10 mm
total length 60 mm
shaft length 12 mm
inner diamter 9 mm
material nickel plated
steel
pulled pins             2

N30 M12 x 1 x 80 mm

screw-in nipple

part# 1314889
thread M12 x 1
thread length 10 mm
total lenght 80 mm
shaft diameter 12 mm
inner diameter 9 mm
material nickel plated
steel
pulled pins             2

N31 Screw-in nipple

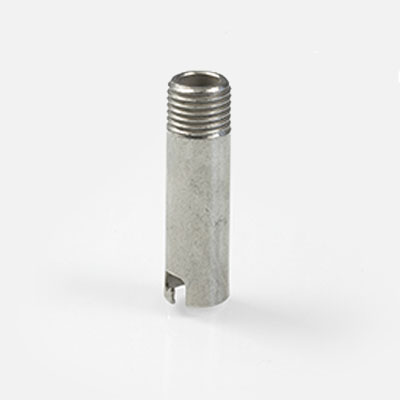

N31 M14 x 1,5 x 50 mm

screw-in nipple

part# 1204421
thread M14 x 1,5
thread length 10 mm
total length 50 mm
shaft diameter 14 mm
inner diameter 9 mm
material nickel plated
steel
pulled pins             2

N32 Screw-in nipple



N32 M12 x 1 x 40 mm

screw-in nipple

part# 1204422
thread M12 x 1
thread length 8 mm
total length 40 mm
shaft diameter 14 mm
inner diameter 9 mm
material nickel plated
steel
pulled pins             2

N32 M12 x 1 x 50 mm

screw-in nipple

part# 1306071
thread M12 x 1
thread length 8 mm
total length 50 mm
shaft diameter 14 mm
inner diameter 9 mm
material nickel plated
steel
pulled pins             2

N32 M12 x 1 x 60 mm

screw-in nipple

part# 1228595
thread M12 x 1
thread length 8 mm
total length 60 mm
shaft diameter 14 mm
inner diameter 9 mm
material nickel plated
steel
pulled pins             2

N32 M14 x 1,5 x 60 mm

screw-in nipple

part# 1229875
thread M14 x 1,5
thread length 10 mm
total length 60 mm
shaft diamter 14,5 mm
inner diamter 9 mm
material nickel plated
steel
pulled pins             2

N32 G 1/4" x 60 mm

screw-in nipple

part# 1343424
thread G 1/4"
thread length 10 mm
total length 60 mm
shaft diameter 14,5 mm
inner diameter 9 mm
material nickel plated
steel
pulled pins             2

Screw-in nipple N33



N33 G 1/8" x 23,5 mm

screw-in nipple

part# 1204423
thread G 1/8"
thread length 10 mm
total length 23,5 mm
shaft diameter 11 mm
inner diamter 7 mm
material Stahl
vernickelt
pulled pins             1
