Accessories

Plugs & Sockets

APPLICATION

Our round plugs with screw and bayonet connection have an internal strain relief. The compensating wires are soldered. Round plugs are IP45 protected and as well available with right-angle exit.
All contacts are out of thermal material. The plug connection between the sensor and the compensating wire is thermal-voltage free. They are non-permutableness because of various pin diameters (Ø 4 mm plus pin, Ø 4.7 mm minus-pin). The plug is 200 °C heat-resistant. The plugs are as well available with 3-pins and 4-pins. The miniature plugs have flat pins.

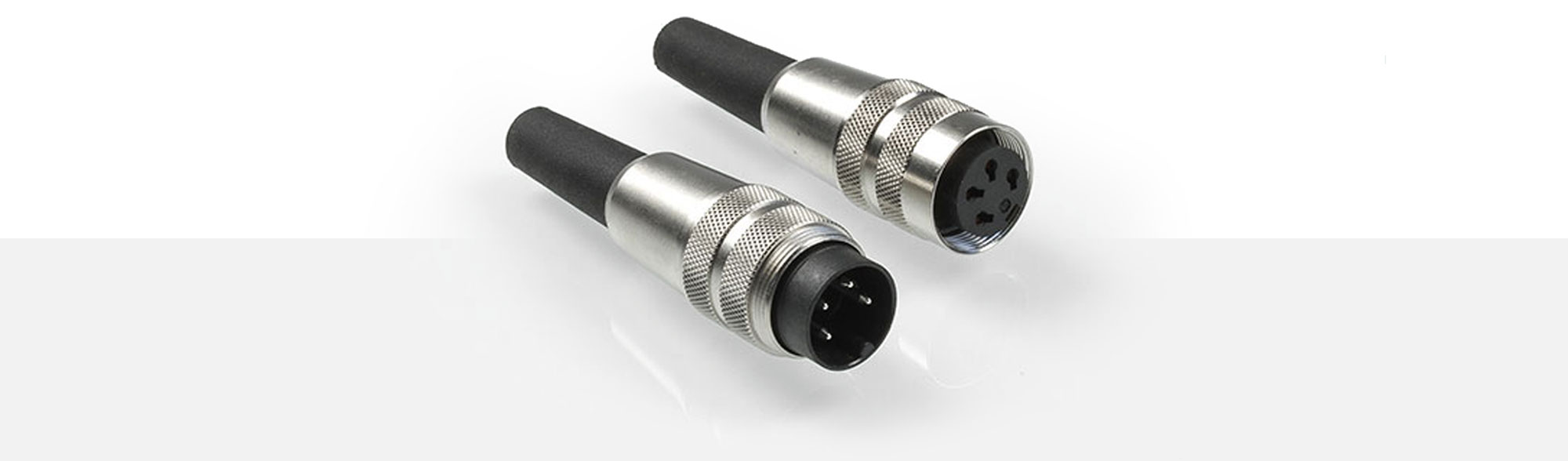

  • Round plug with screw connection
  • Round plug with bayonet connection
  • Standard and miniature temperature
    sensor plug connection
    2-polig Stecker T3200 part# 1200716
      Kupplung T3201 part# 1200721





    2-polig Stecker T3260 part# 1201415



    4-polig Stecker T3200 part# 1103624
      Kupplung T3301 part# 1200723
    3-polig Stecker T3079 part# 1103631
      Kupplung T3080 part# 1200749





    5-polig Stecker T3260 part# 1103635
      Kupplung T3084 part# 1200750



    3-polig Stecker T3008 part# 1103627





    5-polig Stecker T3012 part# 1119173



    Typ J Stecker A9.1 A# 1107127
      Kupplung A10.1 A# 1107128
      bei Querschnitt 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299





    Typ K Stecker A9.2 A# 1107127
      Kupplung A10.2 A# 1107128
      bei Querschnitt 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299
    Typ J Miniatur Stecker A12.1 A# 1269361
      Miniatur Kupplung A13.1 A# 1269362
      Quetschhülse 2x0,50 mm² A# 1269363





    Typ K Miniatur Stecker A12.2 A# 1209147
      Miniatur Kupplung A13.2 A# 2104331
      Quetschhülse   A# 1269363
    Typ J Duplex Stecker   A# 1209139
      Duplex Kupplung   A# 1209144
      Zugentlastung 2x1,00 mm² A# 1349298
      bei Querschnitt 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299





    Typ K Duplex Stecker   A# 2105264
      Duplex Kupplung   A# 1302891
      Zugentlastung 2x1,00 mm² A# 1349298
      bei Querschnitt 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299
    Typ J Duplex Miniatur Stecker A# 2105183
      Duplex Miniatur Kupplung A# 1209140
      Quetschhülse A# 1269363





    Typ K Duplex Miniatur Stecker A# 2105186
      Duplex Miniatur Kupplung A# 2105188
      Quetschhülse A# 1269363
    Lemo Kabeldurchmesser max. in mm
      Größen 0S 1S 2S 3S
      Standard Kupplung 3,7 4,2 4,2 4,2
      Einbau-Apparatedose
      Standard Stecker 3,7 4,2 4,2 4,2
