Air Sensor

TEF 23

APPLICATIONS

Air sensors are for temperature measuring of gaseous mediums. The sensor point is as per construction inside or outside the protection tube. Fast reaction is given by the perforated or oval cut outs at sensor tube. The passage of compensating wire to the protection tube is strain relieved. A spring is used as anti-kink protection. Clamping screws  or conical stop rings are used for fastening. Furthermore are PVC-PFA-fiberglass thermo and compensating wires as well as fiberglass with metal braided meshing available. Various immersion lengths are as well available.

  • operating temperature: up to 400 °C

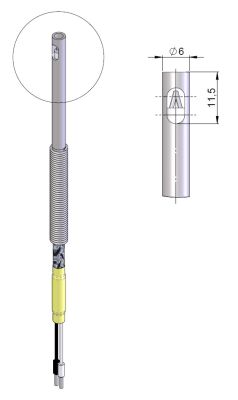

  • sensor point at 4 x 8 mm oval cut out
  • Ø 8 x 65 mm anti-kink protection spring
  • fast reaction time
  • up to 400°C
    operating temperature
  • 4x8mm
    cut out
  • Ø8x65mm
    anti-kink protection spring

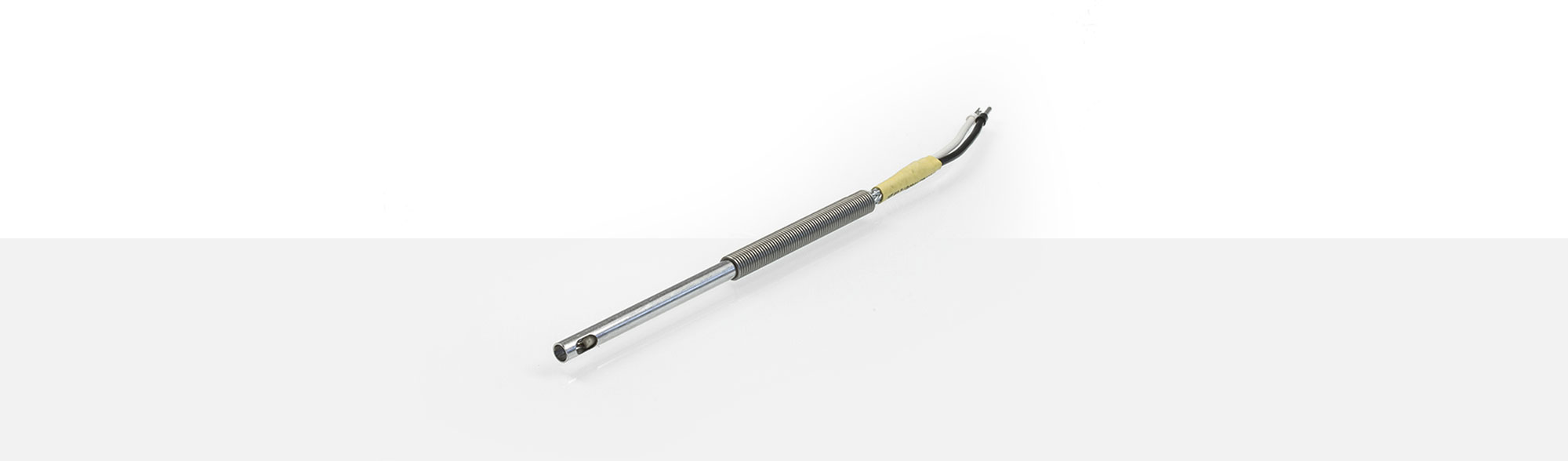

TEF 23 Air Sensor

Please find following our standard thermo and compensating wires for TEF 23 thermocouples listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
1200464 2x1.00 mm² -50 °C up to +400 °C approx. 4.50 mm
1200465 2x1.00 mm² -50 °C up to +400 °C approx. 4.50 mm
1256523 2x1.00 mm² -50°C up to +500 °C approx. 4.50 x 2.60 mm
2239070 2x1.00 mm² -50°C up to +500 °C approx. 5,00 x 3,20 mm

Fe-CuNi type J

part# cross section temperature range outer diameter
1201349 2x1.00 mm² -50 °C up to +400 °C 4.60 mm max.

NiCr-Ni type K

part# cross section temperature range outer diameter
1200473 2x1.00 mm² -50 °C up to +400 °C approx. 4.50 mm

Clamping screws

Clamping screws are variable adjustable at the sensor tube. It is a save and sealed connection at process entry. An advantages of the clamping screws is the easy assembly and disassembly of the Temperature Sensor. Various designs in various materials and threads for different diameters are available.

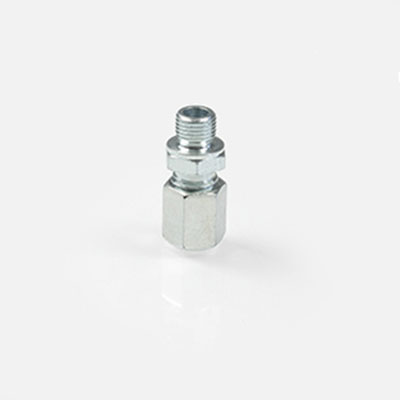

M10x1 clamping screw

part# 1358666
thread M10x1
thread length 8 mm
total length approx. 33 mm
key size of
screw nut
12 mm
internal Ø 6,2 mm
sealing ring Ø 6,2 mm
material nickel
plated steel

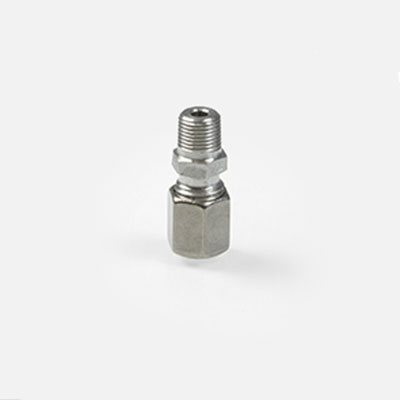

M10x1 clamping screw

part# 1216718
thread M10x1
thread length 8 mm
total length approx. 33 mm
key size of
screw nut
14
internal Ø 6,2 mm
sealing ring Ø 6,2 mm
material stainless
steel

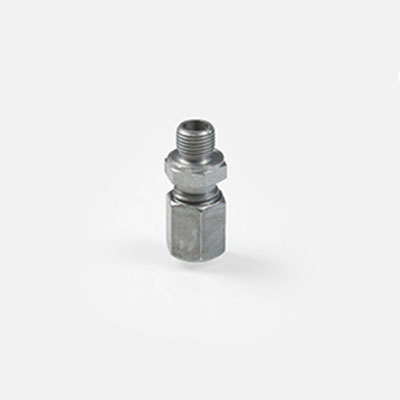

G 1/8" clamping screw

part# 1364567
thread G 1/8"
thread length 8 mm
total length approx. 33 mm
key size of
screw nut
14
internal Ø 6,2 mm
sealing ring Ø 6,2 mm
material phosphated
steel

    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    2-pin plug T3260 part# 1201415



    4-pin plug T3200 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3260 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Thermocouple plug connectors

    J type plug A9.1 part# 1107127
      socket A10.1 part# 1107128
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299





    K type plug A9.2 part# 1209136
      socket A10.2 part# 1209141
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
