Thermocouples

Screw-on flanges

APPLICATION

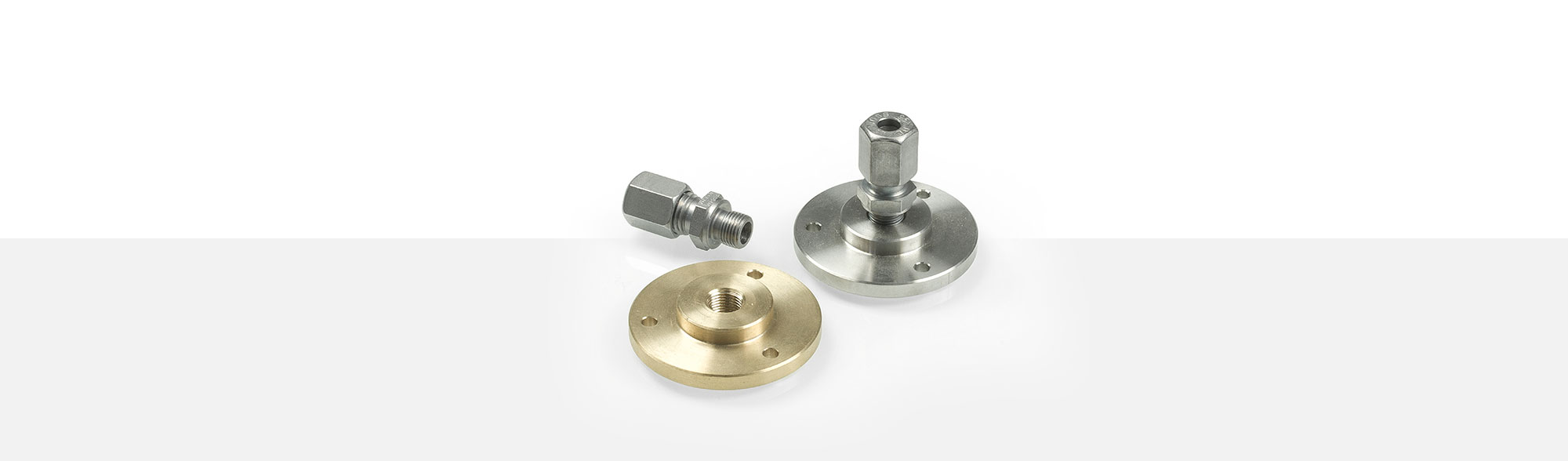

Screw-on flanges are for the pressure-free thermocouple fitting from ­Ø 1.5 mm to Ø 6.0 mm. The temperature sensors are screwed with the matching terminal screws into the screw-on flange. The flange can be fitted to the devices via three holes. The screw-on thread of the flange or terminal screw can be matched as per customer request.

  • screw-on flange with clamping screw
  • for pressure-free fitting of temperature
    sensors for Ø 1.5 mm until Ø 6 mm
  • Ø1.5-Ø6 mm
    thermocouples

Screw-on Flanges

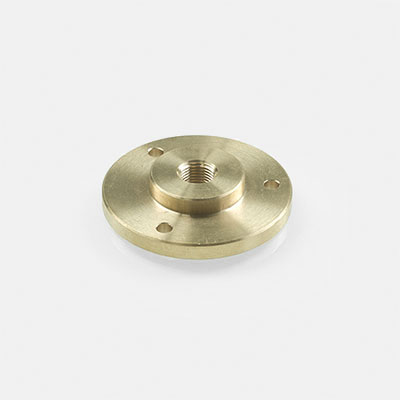

Brass screw-on flange

  • brass screw on flange
  • dimension:
    outer Diameter 50 mm
    total height 10 mm for flange plate 5 mm
  • three holes Ø 4 mm - 120° moved and 5,5 mm to edge
  • G 1/8" thread matching to terminal screw
  • suitable for sensors with Ø 1,5 mm up to Ø 6 mm

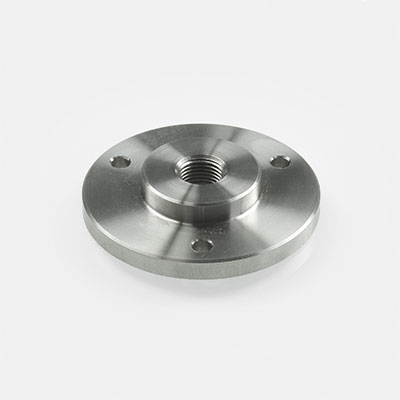

Stainless steel screw-on flange

  • stainless steel screw-on flange
  • dimension:
    outer diameter 50 mm
    total height 10 mm for
    flange plate 5 mm
    three holes Ø 4 mm – 120° moved and 5.5 mm to edge
  • G 1/8” thread matching to terminal screw
  • suitable for sensors with Ø 1.5 mm up to Ø 6 mm
