Thermocouples

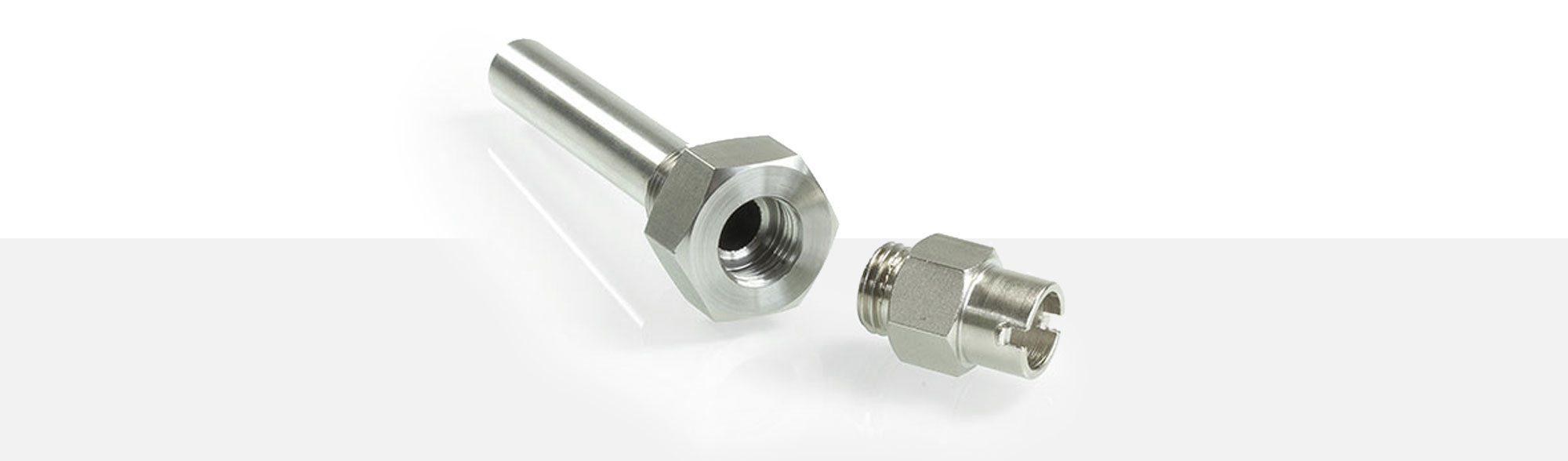

Screw-in protection sleeves

APPLICATION

Screw-in protection sleeves allow an assembly and disassembly of temperature sensors without system release.

  • available up to 100 mm fitting length
    (inclusive 10 mm thread)
  • various threads possible
    at process entry
  • G ¼” sensor screwing
  • various materials machined out of the full
  • up to 100 mm
    fitting length
  • G1/4"
    sensor screwing

Screw-in protection sleeves

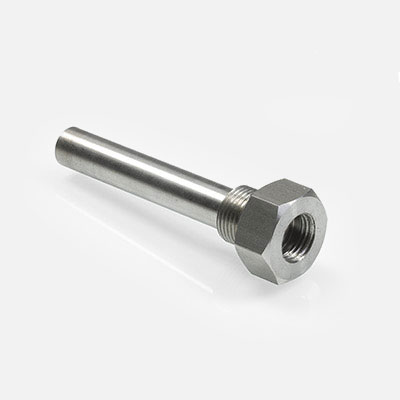

Screw-in protection sleeve

material stainless steel
1.4301
thermocouples Ø 8 mm
Ø 6 mm
diameters Ø 12 mm
Ø 10 mm
internal
borehole
Ø 8,5mm
Ø 6,5mm
Fitting depth
(customer request)
inclusive
thread
thread length 10 mm
key size 24
sensor screwing G1/4"
process-
connection

G 3/8"
G 1/2"
M18x1,5
M20x1,5

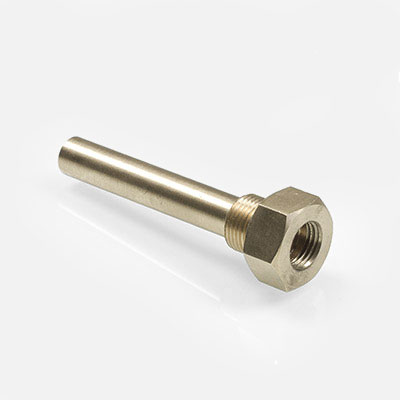

Screw-in protection sleeve

material brass
MS58
thermocouples Ø 8 mm
Ø 6 mm
diameter Ø 12 mm
Ø 10 mm
internal borehole Ø 8,5mm
Ø 6,5mm
fitting depth
(customer request)
inclusive
thread
thread length 10 mm
key size 24
sensor screwing G1/4"
process
connection

G 3/8"
G 1/2"
M18x1,5
M20x1,5
