Temperatursensoren

Befestigungs­laschen

APPLICATION

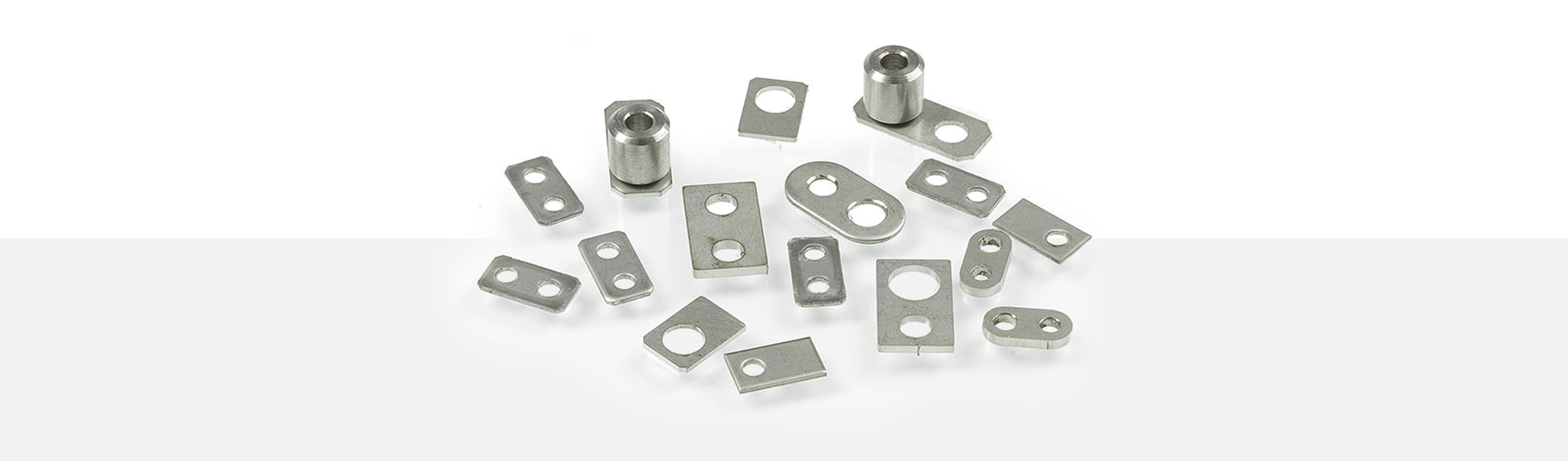

For fitting temperature sensors there is a huge choice of fastening plates available. The fastening plates are fitted to the sensor tube by soldering, pulse laser or welding. Special plates manufactured in-house are available.

  • for fitting temperature sensors
  • soldered, welded or laser fitted on sensor tube
  • special plates available
  • other
    fastening-plates

    on request

Fastening plates



Fastening plate

part# 1325091
dimension 7 x 14 mm
thickness 10 mm
borehole 1 x Ø 3,5mm
1 x Ø 3,0mm
hole distance 7 mm
edges rounded
material Stainless steel

Fastening plate

part# 1250043
dimension 8 x 15 mm
thickness 1 mm
borehole 1 x Ø 3,5 mm
1 x Ø 3,3 mm
hole distance 7,5 mm
edges bevelled
material stainless steel

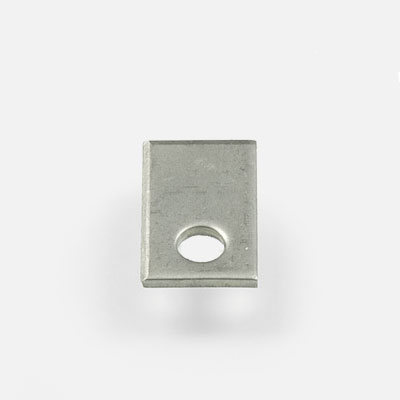

Fastening plate

part# 2038721
dimension 8 x 15 mm
thickness 1 mm
boreholes 1 x Ø 3,5 mm

hole distance -
edges straigth
material stainless steel

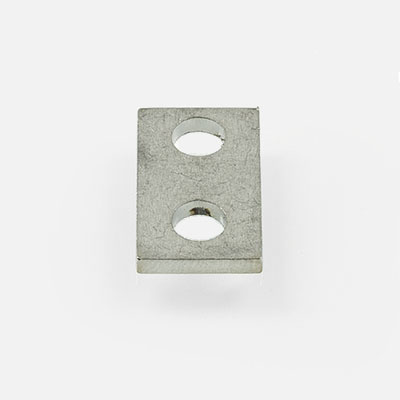

Fastening plate

part# 1344920
dimension 12 x 20 mm
thickness 2 mm
bore hole 2 x Ø 5 mm

hole distance 11 mm
edges straight
material stainless steel

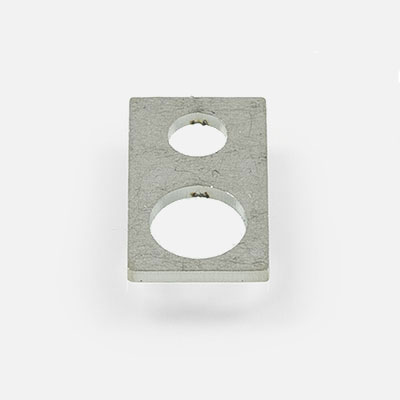

Fastening plate

part# 1352556
dimension 12 x 22 mm
thickness 1 mm
boreholes 1 x Ø 8,1 mm
1 x Ø 5 mm
hole distance 10 mm
edges straight
material stainless steel

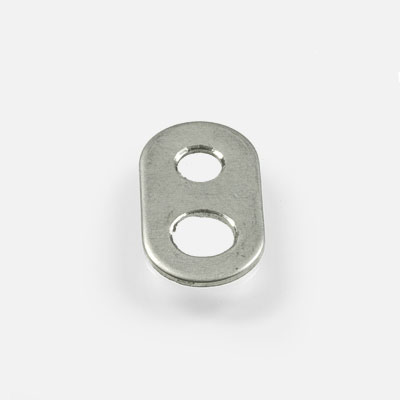

Fastening plate

part# 1249798
dimension 12 x 22 mm
thickness 1 mm
bore hole 1 x Ø 6 mm
1 x Ø 4,5 mm
hole distance 10 mm
edges rounded
material stainless steel

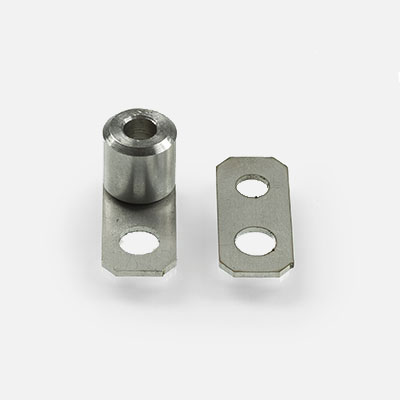

Fastening plate

part# 1303065
dimension 12x23 mm
with fitting tube
thickness 1 mm
bore holes 1 x Ø 5,5 mm
1 x Ø 4,5 mm
hole distance 11 mm
edges bevelled
material stainless steel
