Air Sensors

PWF 201

APPLICATION

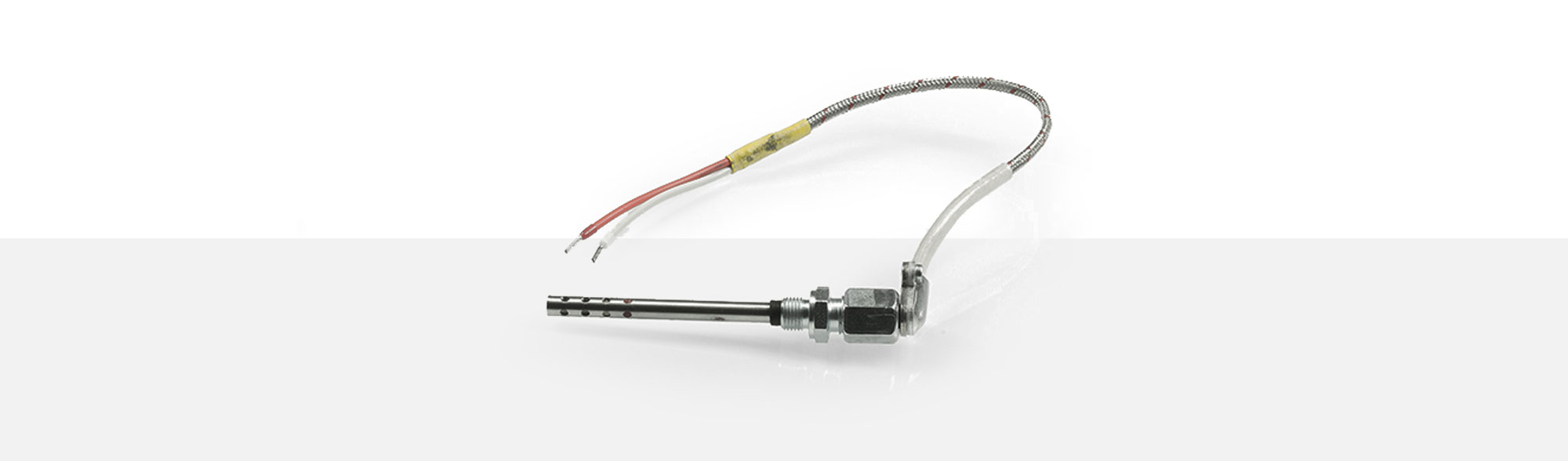

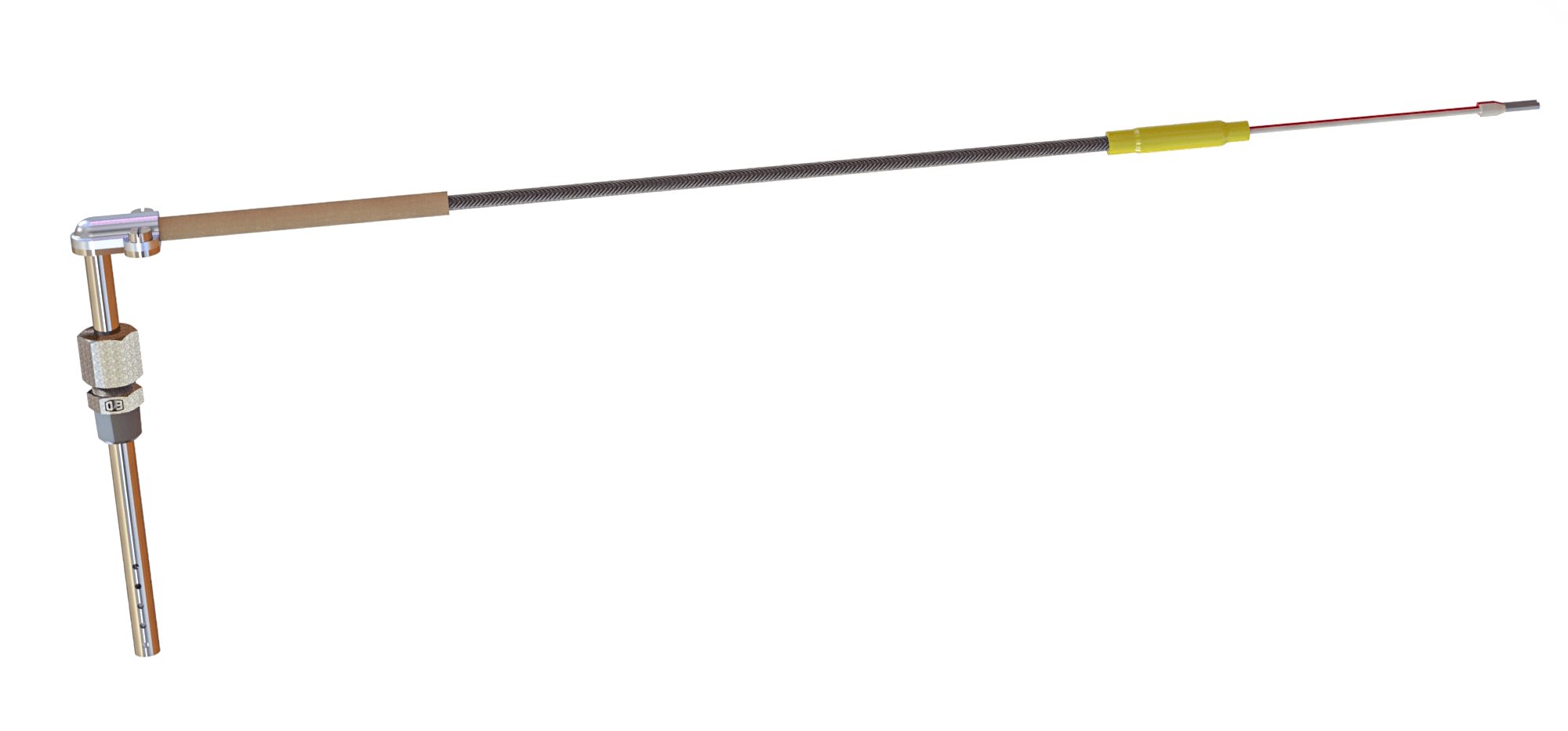

Air resistance sensors are for temperature measuring of gaseous mediums. The gauge slide is at the perforated part of the sensor tube. The PWF 201 is in straight and right-angle design available. A locking screw is used for fastening. Standard leads are galvanized copper wires insulated with PFA- and fiberglass insulation and covered by fiberglass and steel metal braid.

  • Pt100 gauge slide as per
    DIN EN 60751 – class A
  • two-wire circuit as standard design
  • operating temperature: up to 350 °C
  • isolated
  • Ø 6 x 100 mm perforated protection tube
  • clamping screw with M10x1 thread
  • up to 350°C
    operating temperature
  • Ø 6x100mm
    protection tube
  • M10x1
    thread

PWF 201 Air Sensors

Please find following our standard leads for PWF 1 Resistance sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1201354 2x0.35 mm²
Cu-nickel plated
-50 °C until +260 °C 4.6 x 2.8 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C until +260 °C 3.40 ±0.15 mm
1266897 4x0.18 mm²
Cu-nickel plated
-50 °C until +260 °C 3.90 ±0.15 mm
1307789 4x0.22 mm²
Cu-tinned
-50 °C until +350 °C 4.00 ±0.15 mm
1300580 4x0.22 mm²
Cu-tinned
-90 °C until +260 °C 3.50 ±0.10 mm
1307865 4x0.25 mm²
Cu-tinned
-25 °C until +180 °C 4.50 ±0.15 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 A# 1200716
      socket T3201 A# 1200721





    2-pin plug T3260 A# 1201415



    4-pin plug T3200 A# 1103624
      socket T3301 A# 1200723

    Round plugs with screw connection

    3-pin plug T3079 A# 1103631
      socket T3080 A# 1200749





    5-pin plug T3260 A# 1103635
      socket T3084 A# 1200750



    3-pin plug T3008 A# 1103627





    5-pin plug T3012 A# 1119173



    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard scoket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2

    Clamping screws

    Air resistance sensors are for temperature measuring of gaseous mediums. The gauge slide is at the perforated part of the sensor tube. The PWF 201 is in straight and right-angle design available. A locking screw is used for fastening. Standard leads are galvanized copper wires insulated with PFA- and fiberglass insulation and covered by fiberglass and steel metal braid.

    M10x1 clamping screw

    part# 1358666
    thread M10x1
    thread length 8 mm
    total length ca. 33 mm
    key size of
    screw nut
    12 mm
    internal Ø 6,2 mm
    sealing ring Ø 6,2 mm
    material nickel
    plated steel

    M10x1 clamping screw

    part# 1216718
    thread M10x1
    thread length 8 mm
    total length ca. 33 mm
    key size of
    screw nut
    14
    internal Ø 6,2 mm
    sealing ring Ø 6,2 mm
    material stainless
    steel

    G 1/8" clamping screw

    part# 1364567
    thread G 1/8"
    thread length 8 mm
    totale length ca. 33 mm
    key size of
    screw nut
    14
    internal Ø 6,2 mm
    sealing ring Ø 6,2 mm
    material phosphated
    steel
