Air Sensors

PWF 202

APPLICATIONS

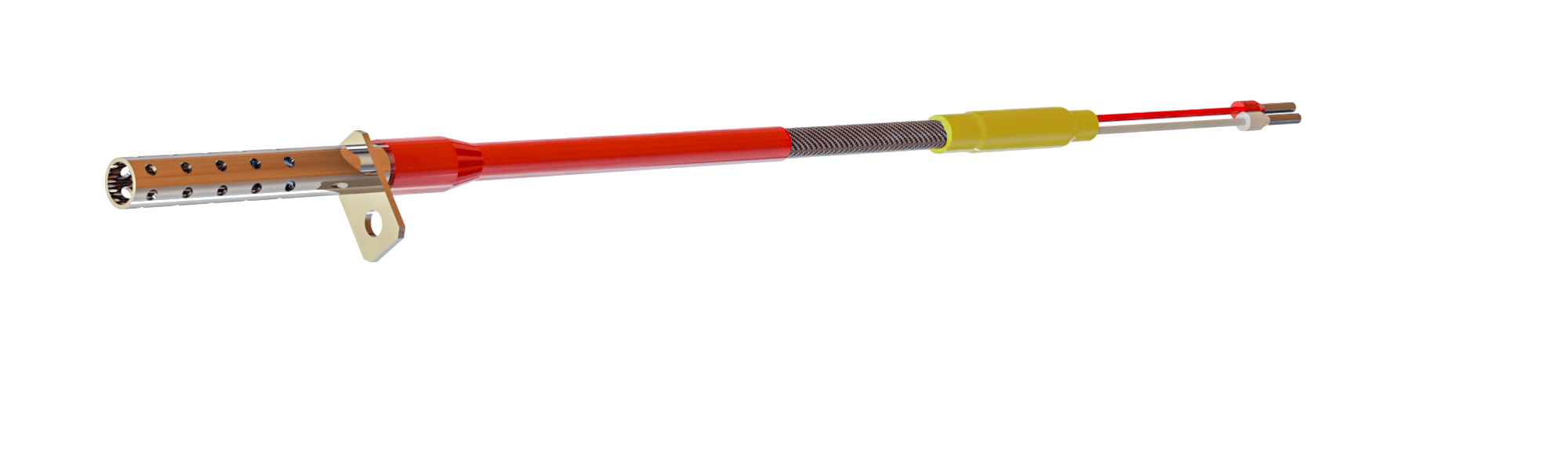

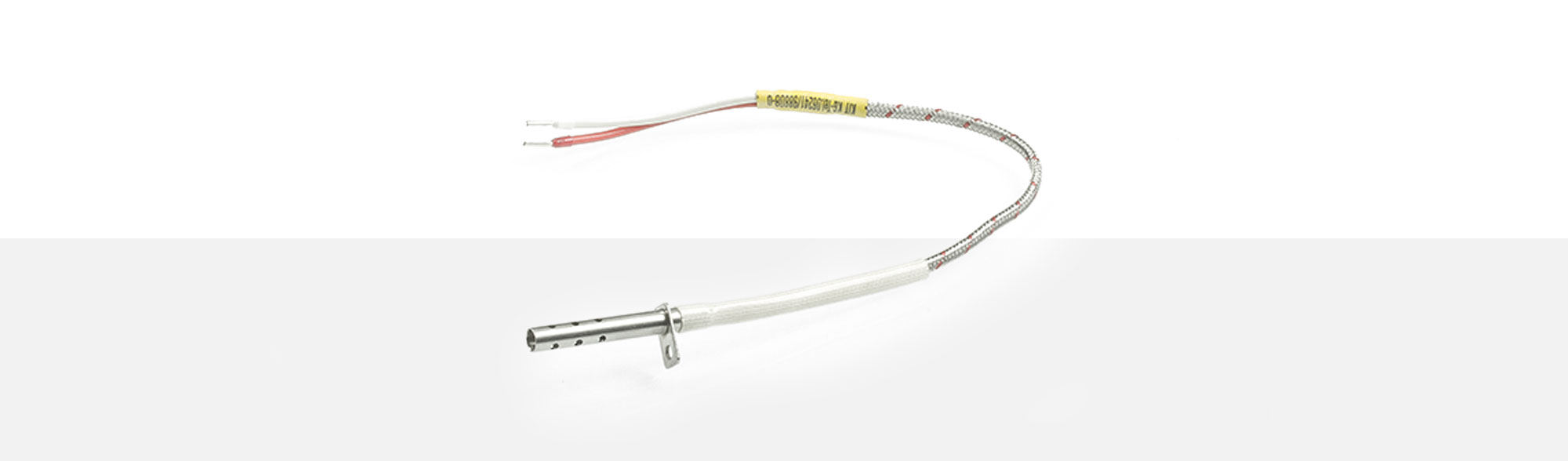

Air resistance sensors are for temperature measuring of gaseous mediums. The gauge slide is at the perforated part of the sensor tube. The PWF 202 is in straight design and with fastening strap. As anti-kink protection is a Ø 8 x 65 mm spring or 60 mm fiberglass hose available. Standard leads are galvanized copper wires insulated with PFA- and fiberglass insulation and covered by fiberglass and steel metal braid.

  • Pt100 gauge slide as per
    DIN EN 60751 – class A
  • operating temperature: up to 350 °C
  • isolated
  • Ø 6 x 34 mm perforated protection tube
  • with 15 x 8 mm fastening strap
    Ø 3 mm hole
  • up to 350°C
    operating temperature
  • Ø 6x34mm
    protection tube
  • 15x8mm
    fastening strap

PWF 202 Air Sensors

Please find following our standard leads for PWF 202 Resistance sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1201354 2x0.35 mm²
Cu-nickel plated
-50 °C up to +260 °C 4.6 x 2.8 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C up to +260 °C 3.40 ±0.15 mm
1266897 4x0.18 mm²
Cu-nickel plated
-50 °C up to +260 °C 3.90 ±0.15 mm
1307789 4x0.22 mm²
Cu-tinned
-50 °C up to +350 °C 4.00 ±0.15 mm
1300580 4x0.22 mm²
Cu-tinned
-90 °C up to +260 °C 3.50 ±0.10 mm
1307865 4x0.25 mm²
Cu-tinned
-25 °C up to +180 °C 4.50 ±0.15 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    3-pin plug T3260 part# 1201415
      socket T3261 part# 1200722



    4-pin plug T3300 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3083 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2

    Clamping screws

    Clamping screws are variable adjustable at the sensor tube. It is a save and sealed connection at process entry. An advantages of the clamping screws is the easy assembly and disassembly of the Temperature Sensor. Various designs in various materials and threads for different diameters are available.

    M10x1 clamping screw

    part# 1358666
    thread M10x1
    thread length 8 mm
    total length ca. 33 mm
    key size of
    screw nut
    12 mm
    internal Ø 6,2 mm
    sealing ring Ø 6,2 mm
    material nickel
    plated steel

    M10x1 clamping screw

    part# 1216718
    thread M10x1
    thread length 8 mm
    total length ca. 33 mm
    key size of
    screw nut
    14
    internal Ø 6,2 mm
    sealing ring Ø 6,2 mm
    material stainless
    steel

    G 1/8" clamping screw

    part# 1364567
    thread G 1/8"
    thread length 8 mm
    totale length ca. 33 mm
    key size of
    screw nut
    14
    internal Ø 6,2 mm
    sealing ring Ø 6,2 mm
    material phosphated
    steel
