Mineral Insulated Resistance Sensors

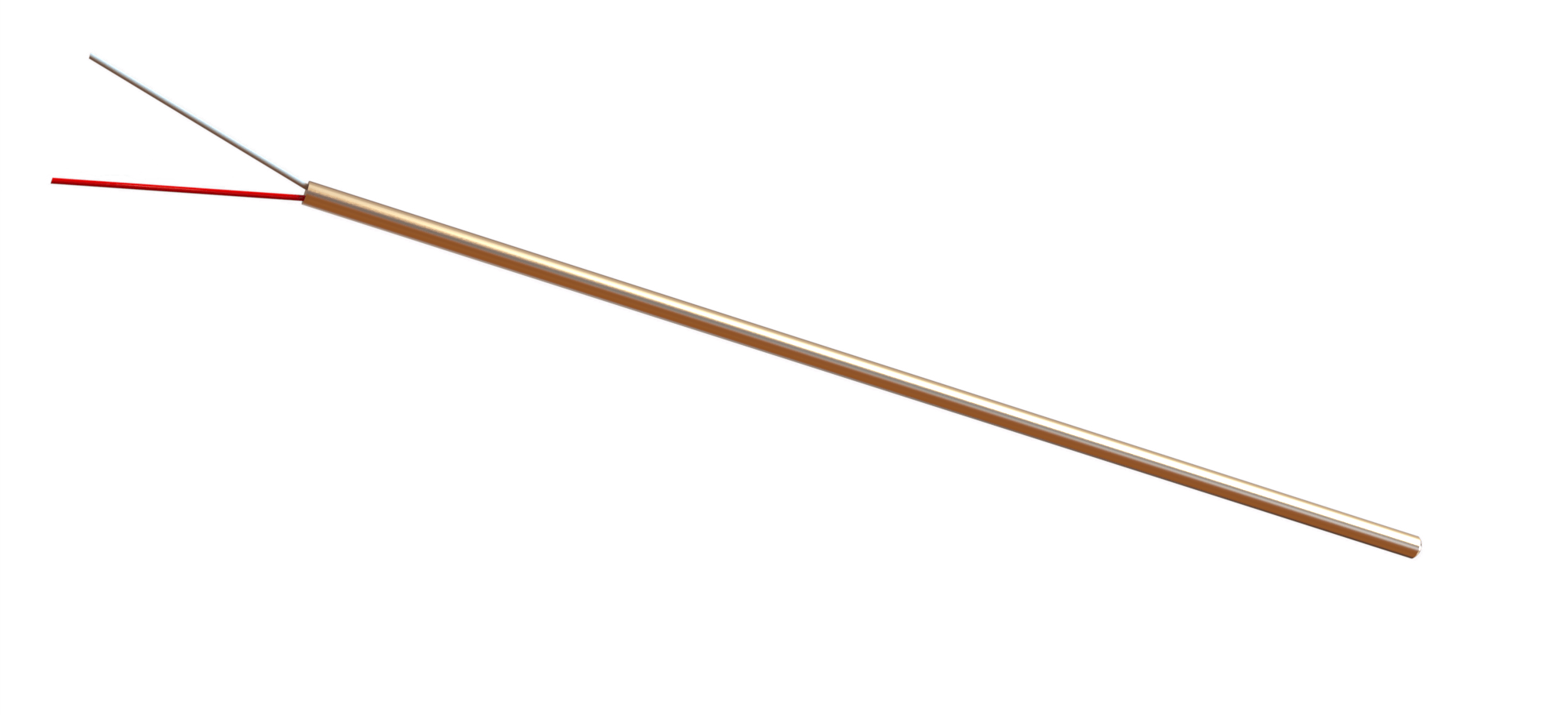

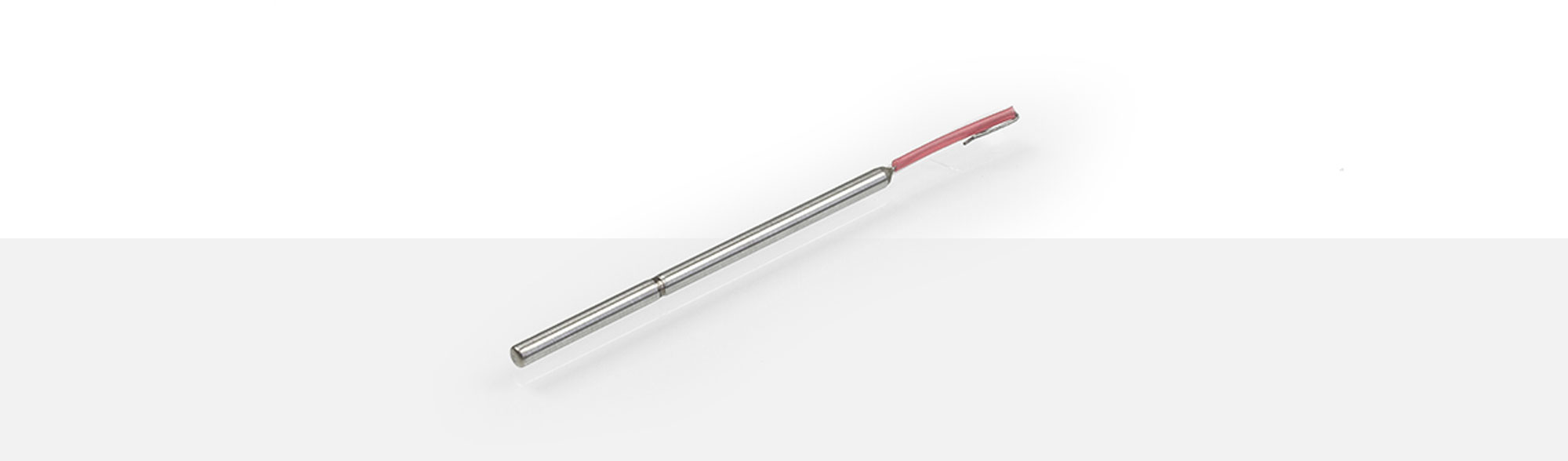

MW 0 Temperature Sensor


Due to their advantageous characteristics as flexibility, shock-resistant design and very fast reaction mineral insulated resistance sensor have many application ranges within the industrial sector. In flexible rust-free steel part are two or more heat resistant wires imbedded into Magnesium oxide. The Pt100 is installed into a rigid protection tube. The sensor leads are connected with the inner leads as and the jacket wire is soldered with the protection tube. 1.5 mm, 2.0 mm, 3.00 mm and 6.0 mm protection tube diameters are available. Please indicate the sensor length.

  • mineral insulated resistance sensor as
    per DIN EN 60751
  • operating temperature: up to 600 °C
  • standard design: with Pt100 resistance
    sensor in two-wire circuit – class B
  • two- or three-wire circuit available
  • 20 mm bare lead-ends, sealed with compound
  • 1.4541 jacket material
  • PT-100
    standard design
  • up to 600°C
    operating temperature
  • class B
    two-wire circuit

MW 0 Mineral Insulated Resistance Sensors
