Mineral Insulated Resistance Sensors

MW 2 Temperature Sensor

APPLICATIONS

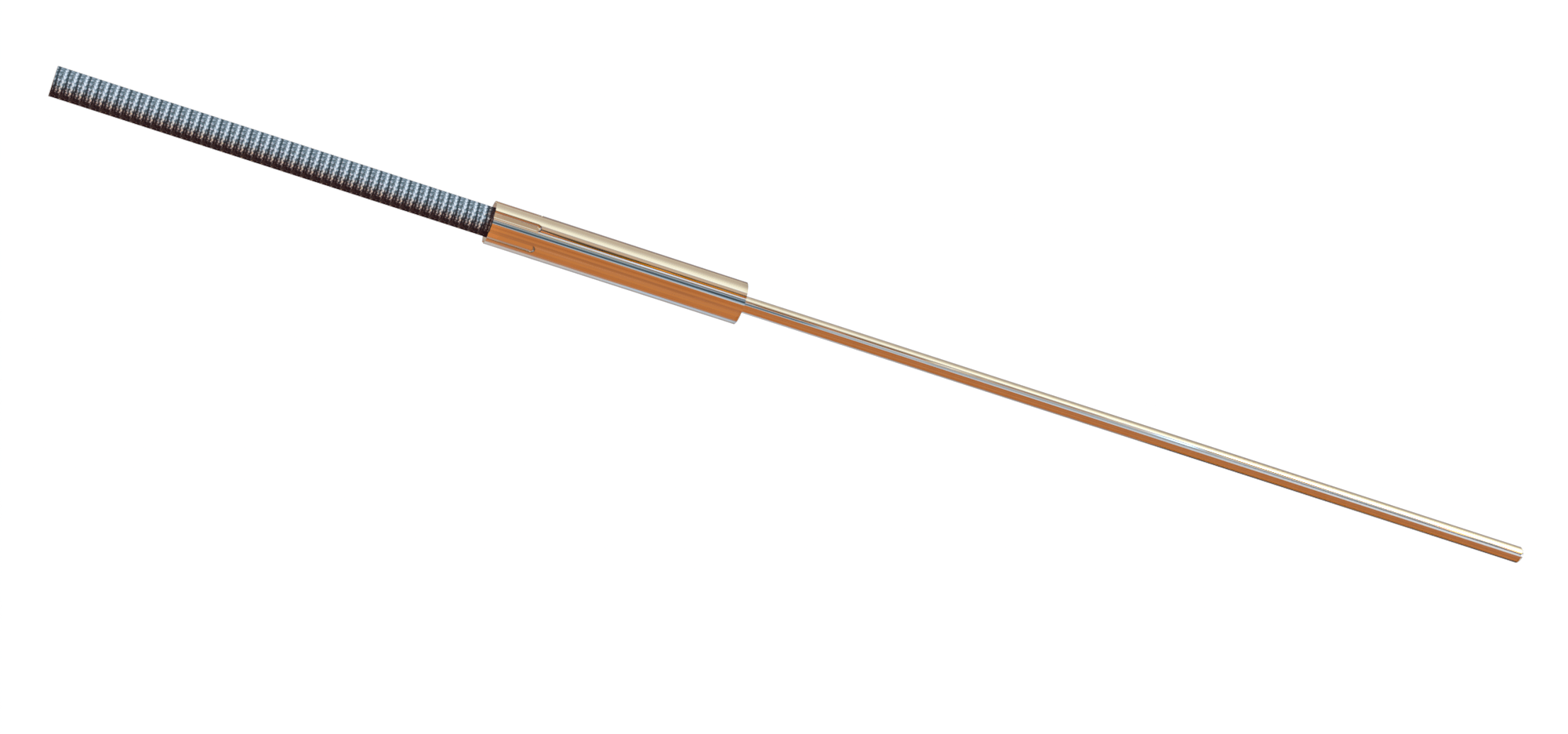

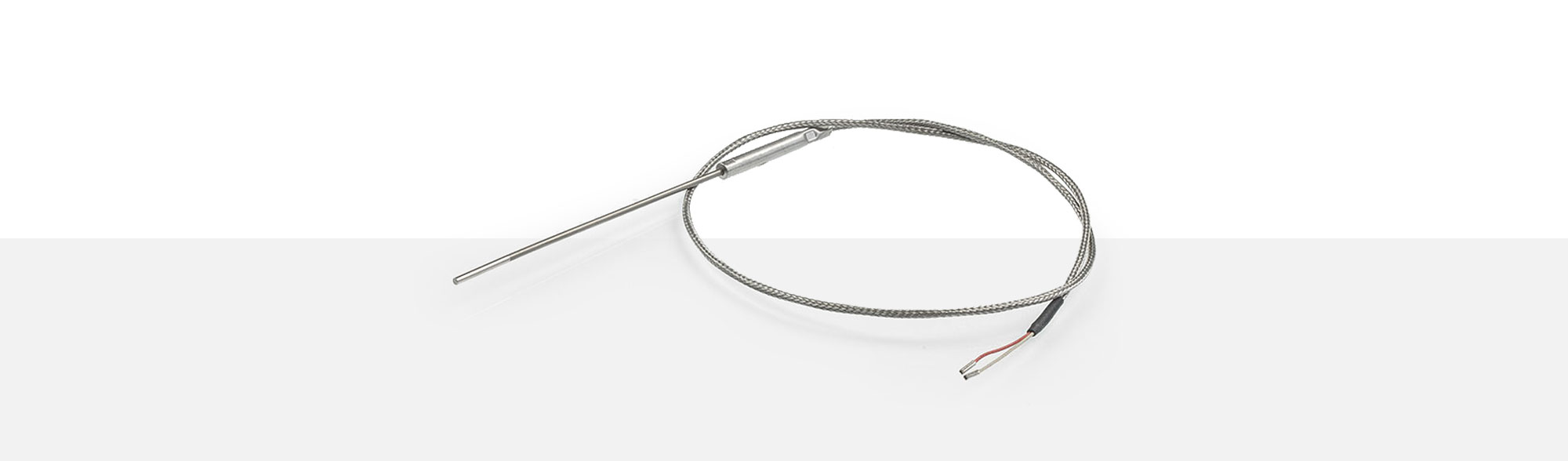

Due to their advantageous characteristics as flexibility, shock-resistant design and very fast reaction mineral insulated resistance sensor have many application ranges within the industrial sector. In flexible rust-free steel part are two or more heat resistant wires imbedded into Magnesium oxide. The Pt100 is installed into a rigid protection tube. The sensor leads are connected with the inner leads as and the jacket wire is soldered with the protection tube. 1.5 mm, 2.0 mm, 3.00 mm and 6.0 mm protection tube diameters are available. Please indicate the sensor length.The MW 2 has a connection with reinforced sleeve and 2,000 mm solid leads. Other lengths and leads are available. E.g.:

Single wires with PVC insulation – up to +80 °C
Single wires with silicone insulation – up to +180 °C
Single wires with PTFE insulation – up t0 +260 °C
Single wires with PTFE insulation and rust-free steel metal braid – up to +260 °C
Single wires with fiberglass insulation and rust-free steel metal braid – up to +350 °C

  • mineral insulated resistance sensor
    as per DIN EN 60751
  • operating temperature: up to 600 °C
  • standard design: with Pt100 resistance sensor
    in two-wire circuit – class B
  • 2,000 mm solid leads as standard
  • permanently connected cable
  • 1.4541 jacket material
  • up to 600°C
    operating temperature
  • class B
    two-wire circuit
  • PT-100
    standard design

MW 2 Mineral Insulated Resistance Sensors

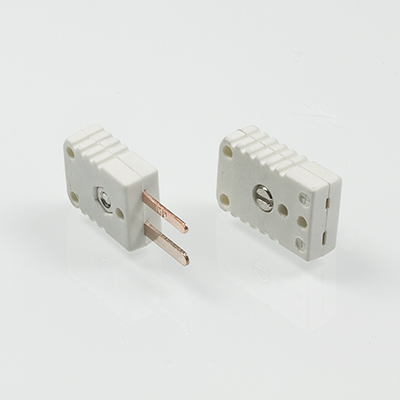

    Resistance Sensor miniature plug connectors

    The standard plug connectors are due to their construction reverse-polarity protected and up to 120 °C temperature stable. The round U type contact pins are out of copper (plus pin Ø 4 mm - minus pin Ø 4.7 mm). The plug is white and suitable for cross sections up to 1 mm². We recommend to assemble a strain relief with the plug and socket. This avoids the relieve of the leads from the plug. A brass ferrule will be provided, please state lead diameter.



    2-pin plug part# 2211006
      socket part# 2211010
      ferrule part# 2211002





    3-pin plug part# 2211007
      socket part# 2211012
      ferulle part# 2211019

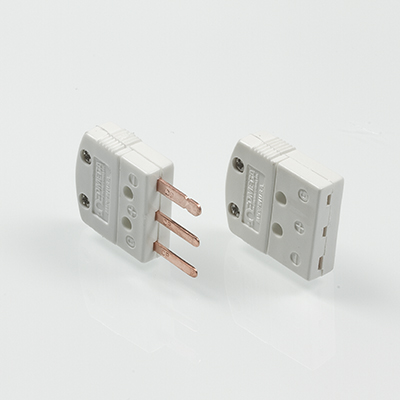

    Resistance Sensor miniature plug connectors

    The standard plug connectors are due to their construction reverse-polarity protected and up to 120 °C temperature stable. The flat U type contact pins are out of copper (plus pin Ø 2.3 x 0.8 mm - minus pin Ø 3 x 0.8 mm). The plug is white and suitable for cross sections up to 0.5 mm². We recommend to assemble a strain relief with the plug and socket. This avoids the relieve of the leads from the plug. A brass ferrule will be provided, please state lead diameter.



    2-pin plug part# 2211008
      socket part# 2211014
      ferrule part# 2211000





    3-pin plug part# 2211009
      socket part# 2211015
      ferulle part# 2211017
