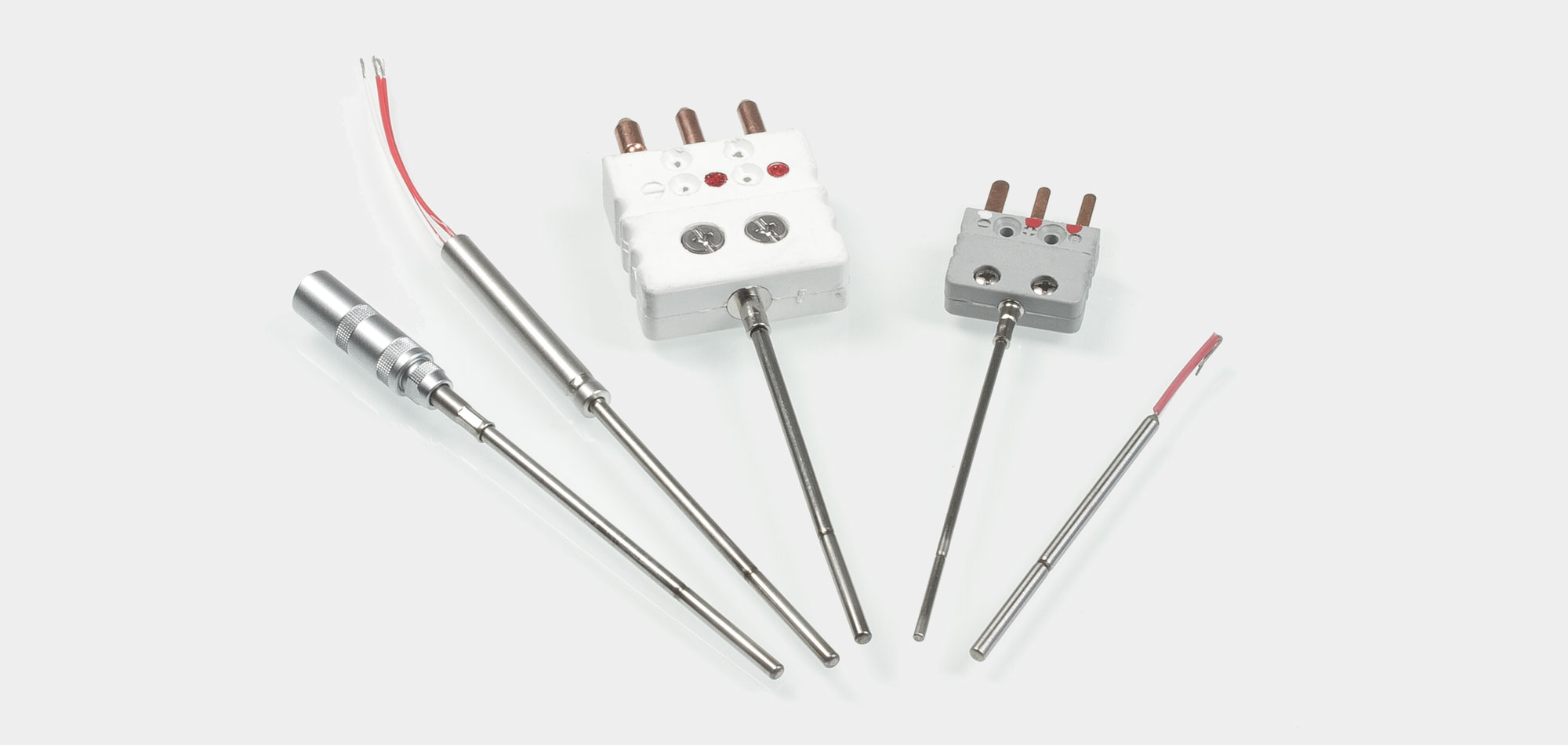

Mineral Insulated Resistance Sensors

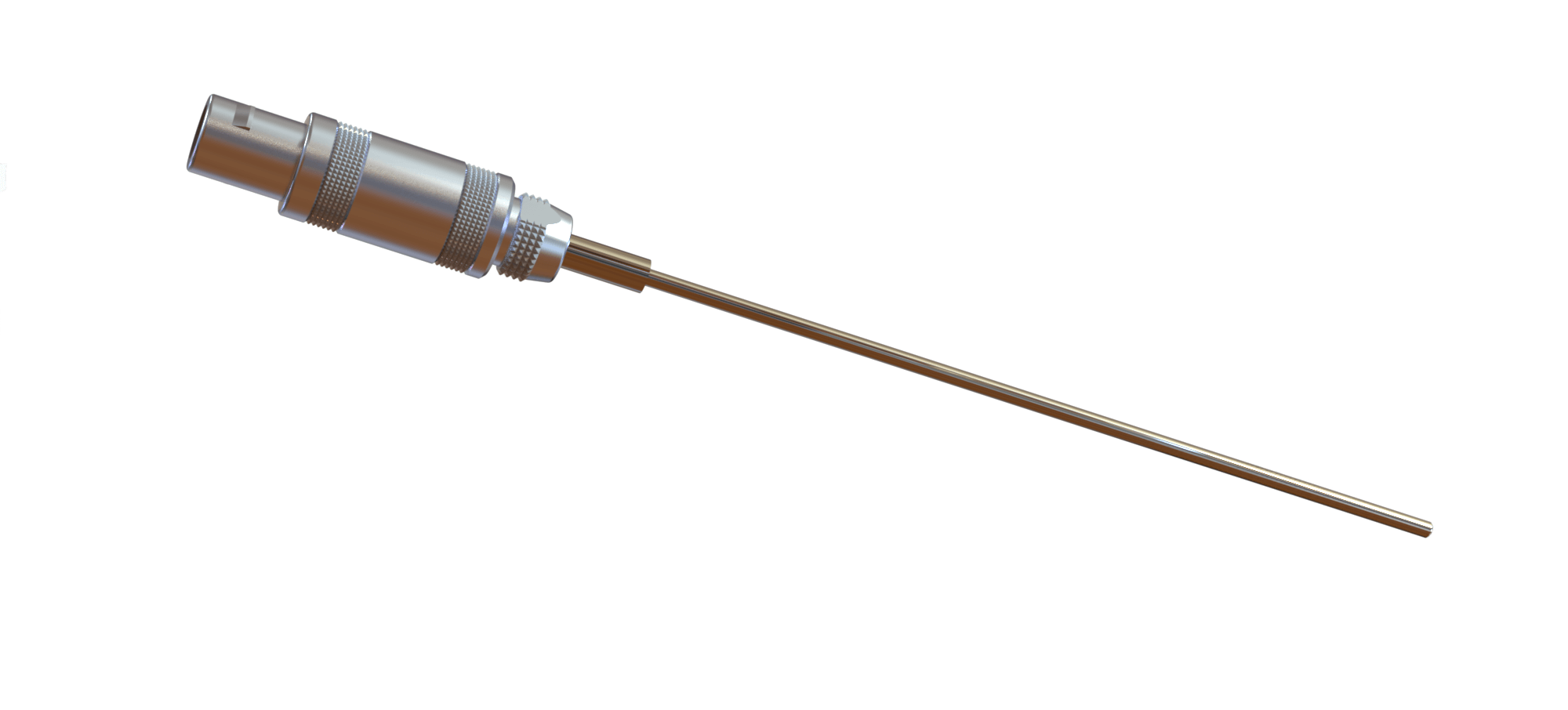

MW 3 Temperature Sensor


Due to their advantageous characteristics as flexibility, shock-resistant design and very fast reaction mineral insulated resistance sensor have many application ranges within the industrial sector. In flexible rust-free steel part are two or more heat resistant wires imbedded into Magnesium oxide. The Pt100 is installed into a rigid protection tube. The sensor leads are connected with the inner leads as and the jacket wire is soldered with the protection tube. 1.5 mm, 2.0 mm, 3.00 mm and 6.0 mm protection tube diameters are available. Please indicate the sensor length.

  • mineral insulated resistance sensor
    as per DIN EN 60751
  • operating temperature: up to 600 °C
  • standard design: with Pt100 resistance sensor
    in two-wire circuit – class B
  • miniature standard socket – type RC
  • 1.4541 jacket material
  • up to 600°C
    operating temperature
  • class B
    two-wire circuit
  • PT-100
    standard design

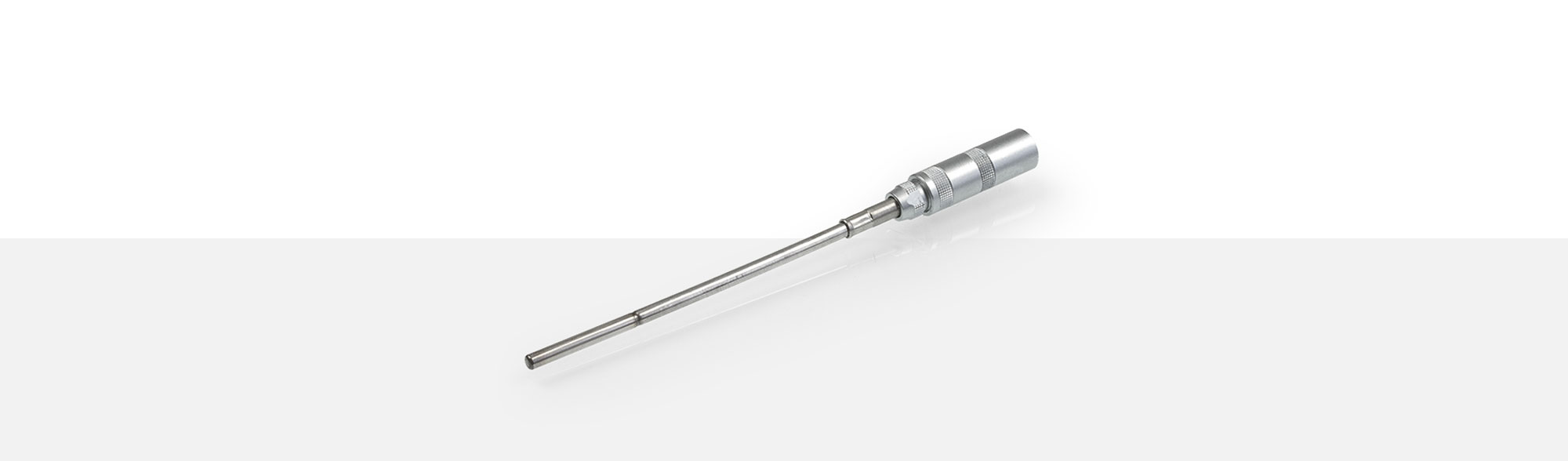

MW 3 Mineral Insulated Resistance Sensors

Miniature plug connectors

Lemo cable Ø max. in mm
  sizes 0S 1S 2S 3S
  standard socket 3,7 4,2 4,2 4,2
  fitting socket
  standard plug 3,7 4,2 4,2 4,2
